OWNER’S MANUAL
MODEL: RZ-37LZ55
2
Owner’s Manual Power Cord Remote Control / Batteries
Ensure that the following accessories are included with your TV. If any accessory is missing, please contact the
dealer from where you purchased the product.
Accessories
D-SUB cable (PC) Audio cable (PC)
Twister Holder
2-TV Brackets, 2-Wall Bracket2-TV Bracket Bolts
3
ENGLISH
Contents
Contents
Introduction
Operation
2 Accessories
5 Controls
6 Connection Options
7 Remote Control Key Functions
Setting up
TV stations
Basic operation
Installation
10 Basic Connection
12 External Equipment Connections
12 Antenna Connection
12 Headphone Socket
13 VCR Setup
15 DVD Setup
16 STB ( Set-Top Box) Setup
18 Cable TV Setup
19 External AV Source Setup
20 PC Setup
21 Supported display resolution
21 Power Cord Connection
22 Turning On/Off the TV
22 Volume Adjustment
22 Programme selection
22
On screen language selection
23 How to adjust the OSD screen
24 Auto programme tuning
25 Manual programme tuning
26 Fine tuning
26 Assigning a station name
27 Programme edit
28
Favourite programme
28
Calling the programme table
29
PSM (Picture Status Memory)
29 CSM (Colour Status Memory)
30 Function
30 ACM (Active Colour Management)
31 sRGB
31 Manual Picture Adjustment
32 SSM (Sound Status Memory)
32 SRS WOW
33 AVL (Auto Volume leveler)
33 Manual Sound Adjustment
34 TV Speaker
35 I/II
36
Clock Setup
36 On/Off Time
37 Auto Sleep
37
Sleep Timer
Picture adjustment
Sound adjustment
Time menu
4
Reference
Operation
38 Input
38 Child Lock
39 Demo
40 Auto Configure
40 Manual Configure
41 XGA Mode
41 Picture Size Zoom
42 Picture format (ARC)
43 Screen Position
43 Cinema
44 NR (Noise Reduction)
45 Reset to original factory value (Initializing)
46 Switch on/off
46 SIMPLE text
46 TOP text (option)
47 FASTEXT
47 Special teletext functions
Special Menu
Screen Menu
Teletext
48 External Control Device Setup ; RS-232C
52 IR codes
54 Programming the Remote control
55 Programming Codes
57 Troubleshooting Checklist
59 Product Specifications
5
ENGLISH
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
Remote Control Sensor
Power/Standby Indicator
(rr)
• illuminates red in standby mode.
• illuminates green when the set is
switched on.
Controls
Controls
Introduction
Introduction
Programme
(
EE
/
DD
) Buttons
Volume (F / G)
Buttons
OK Button
Menu Button
INPUT Button
ON/OFF Button
6
COMPONENT input
(Y,PB,PR/ Audio)
Headphone Socket
PC SOUND Input
Remote Control Port
Euro Scart Socket
(AV1/AV2)
HDMI (High Definition Multimedia Interface)/DVI
input
RS-232C Input Variable AUDIO OUT ports
RGB Input
AV3 (Video/Audio) Input
Antenna Input
AC Input
Connection Options
Connection Options
Introduction
Introduction
7
ENGLISH

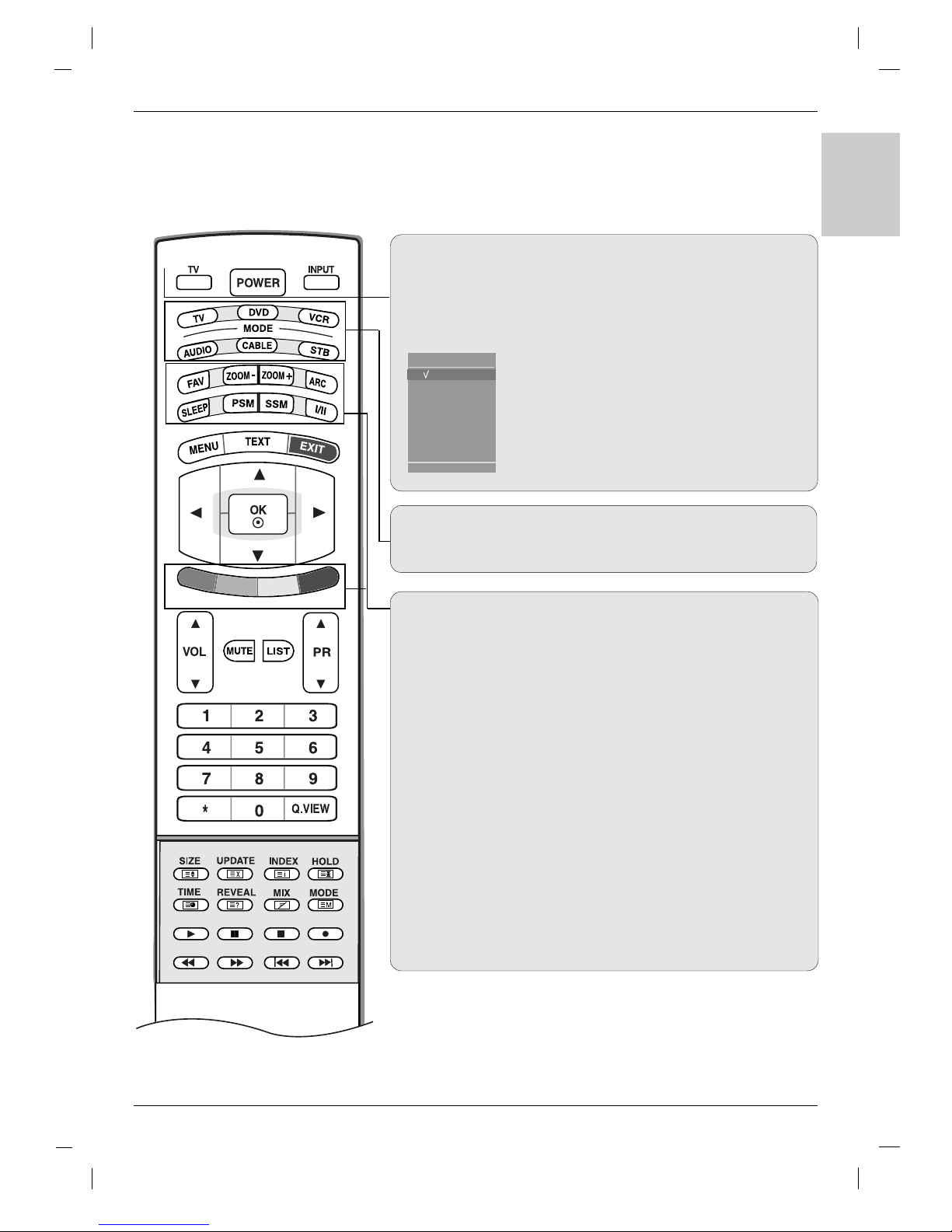

MODE
Selects the remote operating modes. :TV, DVD, VCR, AUDIO, CABLE
or STB
FAVOURITE
Displays the se
lected favourite programme
(Refer to p.28).
ZOOM - / ZOOM +
Enlarges or reduces the main picture size.
ARC
Selects your desired picture format (Refer to p.42).
SLEEP
Sets the sleep timer. (Refer to p.37)
PSM (Picture Status Memory)
Recalls your preferred picture setting. (Refer to p.29)
SSM (Sound Status Memory)
Recalls your preferred sound setting. (Refer to p.32)
I/II
• Selects the sound output.
*
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or Programme edit.
Remote Control Key Functions
Remote Control Key Functions
Introduction
Introduction
TV
Returns to TV viewing from any mode.
POWER
switches the set on from standby or off to standby.
INPUT
If you press the button once, the input source OSD
will appear on screen as shown. Press the DD / EEbut-
ton and then OK button to select the desired input
source (TV, AV 1 , AV 2 , AV 3 , S-Video, Component,
RGB PC/RGB DTV, or HDMI PC/ HDMI DTV).
TV
AV1
AV2
AV3
S-Video
Component
RGB PC
HDMI PC
TV
Input
8
MENU
Selects a menu.
TELETEXT BUTTONS
These buttons are used for teletext.
For further details, see the ‘Teletext’ section (Refer to p.46).
EXIT
Clears all on-screen displays and returns to TV viewing from any
menu.
DD
/
EE
/ F / G (up / down / left / right)
Selects or adjusts an item in the menu.
OK
Accepts your selection or displays the current mode.
VOL (Volume) D / E
Adjusts the volume.
MUTE
Switches the sound on or off.
LIST
Displays the programme table (Refer to p.28).
PR (Programme) D / E
Selects a programme.
0-9 number buttons
• Selects a programme.
• Selects numbered items in a menu.
Q.VIEW
Returns to the previously viewed programme.
VCR/DVD Control buttons
Controls a LG video cassette recorder or DVD.
1
1
1
9
ENGLISH
Installing Batteries
Open the battery compartment
cover on the back side.
Insert two 1.5V AA size batteries
in correct polarity (+ with +, - with
-). Don’t mix old or used batteries
with new ones.
Close the cover.
* Use a remote control at 7
meter distance and 30 degree
(left/right/up/down) within the
receiving unit scope.
* Dispose of used batteries in the recycle bin to prevent environment.
1
2
3
Remote Control Key Functions
Remote Control Key Functions
Introduction
Introduction
10
For proper ventilation, allow a clearance of 4" on each side and from
the wall. Detailed installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
Wall Mount: Horizontal installation
Desktop Pedestal Installation
For proper ventilation, allow a clearance of 4" on each side and from
the wall.
Basic Connection
Basic Connection
Installation
Installation
Connect the cables as necessary.
After connecting the cables neatly,
arrange the cables to the Cable
Holder.
To connect an additional equipment,
see the External equipment
Connections section.
Pull the cables through the hole
on the set and bundle the cables
using the supplied twister holder.
