OWNER’S MANUAL

LED LCD TV

M2232D

Please read this manual carefully before operating the your TV and

retain it for future reference.

LED LCD TV MODEL

ENGLISH

TABLE OF CONTENTS

3LICENSES

4INSTALLATION PROCEDURE

5ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

8 Lifting and moving the TV

9 Setting up the TV

9 - Attaching the Stand

11 - Mounting on a table

12 - Tidying cables

13 - Detaching the Stand

14 - Mounting on a wall

16 WATCHING TV

16 Turning the TV on for the first time

18 MAKING CONNECTIONS

18 Connecting an antenna

19 Connecting to a HD receiver, DVD, VCR

player or Gaming device

19 - HDMI connection

20 - HDMI to DVI connection

21 - Component connection

22 - Composite connection

23 Connecting to a USB

24 Connecting to a PC

25 - HDMI connection

26 - HDMI to DVI connection

27 - RGB connection

28 REMOTE CONTROL

30 CUSTOMIZING SETTINGS

30 Accessing main menus

31 USING THE USER GUIDE

31 Accessing User Guide menu.

31 - Using the TV menu

31 - Using the Remote Control

32 MAINTENANCE

32 Cleaning Your TV

32 Screen and frame

32 Cabinet and stand

32 Power cord

33 Preventing “Image burn” or “Burn-in” on

your TV screen

34 TROUBLESHOOTING

34 General

35 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby “and the

double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete

your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

ENGLISH

4INSTALLATION PROCEDURE

INSTALLATION PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the TV.

3Connect an external device to the TV.

yImage shown may differ from your TV.

yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

yThe available menus and options may differ from the input source or product model that you are

using.

yNew features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and accessories.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

NOTE

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

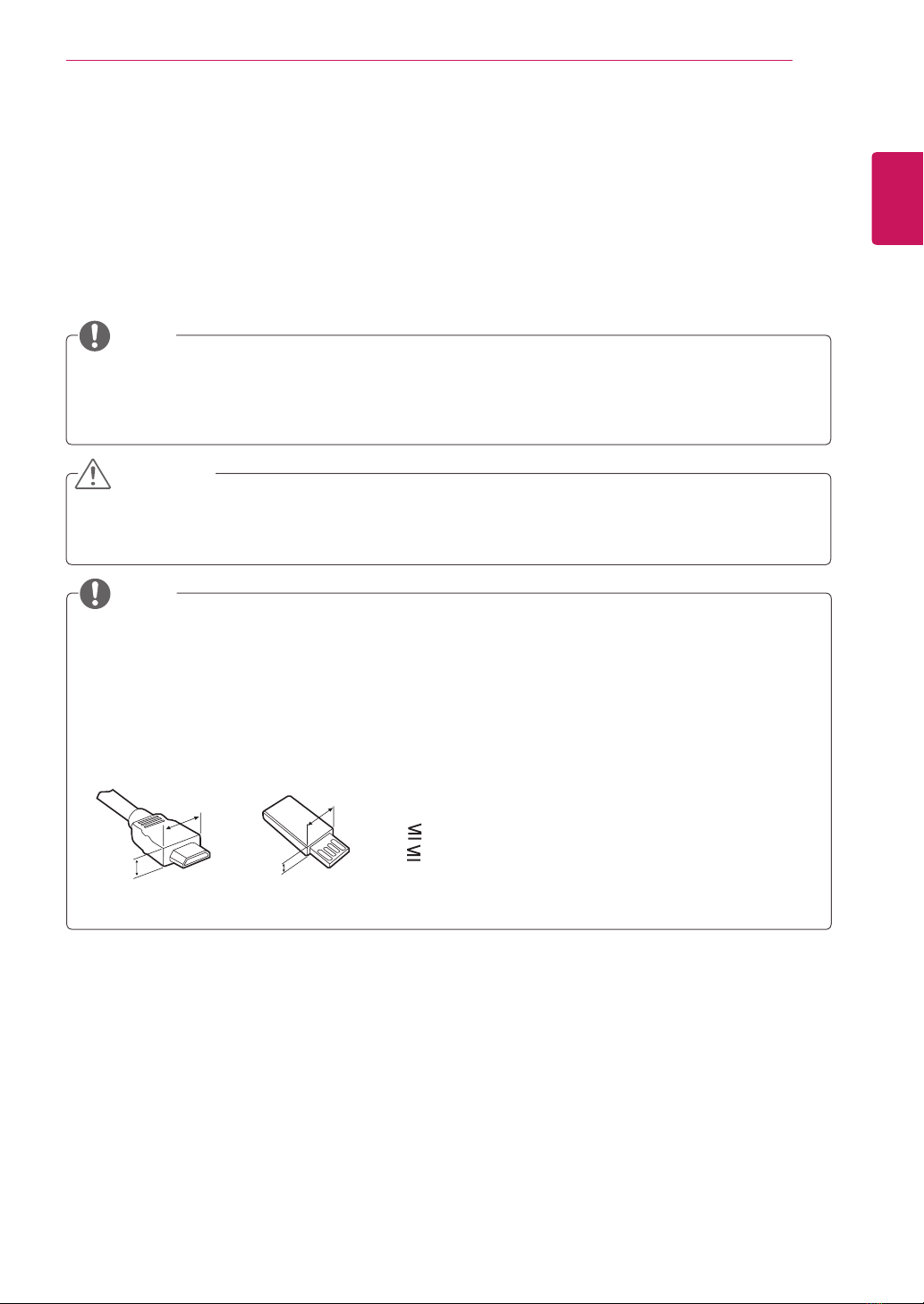

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

6ASSEMBLING AND PREPARING

Remote control.

Batteries (AAA).

CD (Owner's Manual).

Cards.

Cable Tie.

(See p.28, See p.29) (See p.11)

(See p.11)

(See p.12)

Stand Base. Stand Body.

(See p.9) (See p.9)

Power Cord.

AC-DC Adapter.

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ITurns the power on or off.

Remote Control Sensor

Standby Light

yLighting On:Turned off

yLighting Off: Turned on

Connection panel (See p.18)

Touch Buttons

ENGLISH

8ASSEMBLING AND PREPARING

yWhen holding the TV, the screen should face

away from you to prevent the screen from

scratches.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV

upright, never turn the TV on its side, or tilt

towards the left or right.

Lifting and moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for save transportation regardless of

its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen or

some of the pixels used to create images.

CAUTION

yIt is recommended to move the TV in the

box or packing material that the TV originally

came in.

yBefore moving or lifting the TV, disconnect

the power cord and all cables.

yHold the top and bottom of the TV frame

firmly. Make sure not to hold the transparent

part, speaker, or speaker grill area.

ENGLISH

ASSEMBLING AND PREPARING

3Attach the Stand Base from the Stand Body by

turning the screw to the right with a Coin.

Setting up the TV

Attaching the Stand

If you are not mounting the TV to a wall, use the

following instructions to attach the stand.

1Place the TV with the screen side down on a

flat and cushioned surface.

2Attach the Stand Body from the TV.

yLay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

yWhen attaching the stand to the TV,

place the screen facing down on a

cushioned table or flat surface to protect

the screen from scratches.

CAUTION

Tighten the screws firmly to prevent the TV

from tilting forward. Do not over tighten.

CAUTION

ENGLISH

10 ASSEMBLING AND PREPARING

CAUTION

yDo not carry the monitor upside-down by

holding the stand body as this may cause it

to fall off, resulting in damage or injury.

yThe illustration shows a general example of

installation and may look different from the

actual product.

yDo not carry the monitor upside-down

as this may cause it to fall off its stand,

resulting in damage or injury.

yThe illustration shows a general example of

installation and may look different from the

actual product.
