LG Therma V 5BPM5-01B Guía del producto

Air-to-Water Heat Pump / Monobloc

R32 / 50Hz

5BPM5-01B(Replaces 5BPM5-01A)

P/No. : MFL66101126

THERMA V

Monobloc Type

General Information

Product Data

Design and installation

General Information

THERMA V

Monobloc Type

1.Model Line Up

2.Nomenclature

THERMA V Monobloc Type General Information

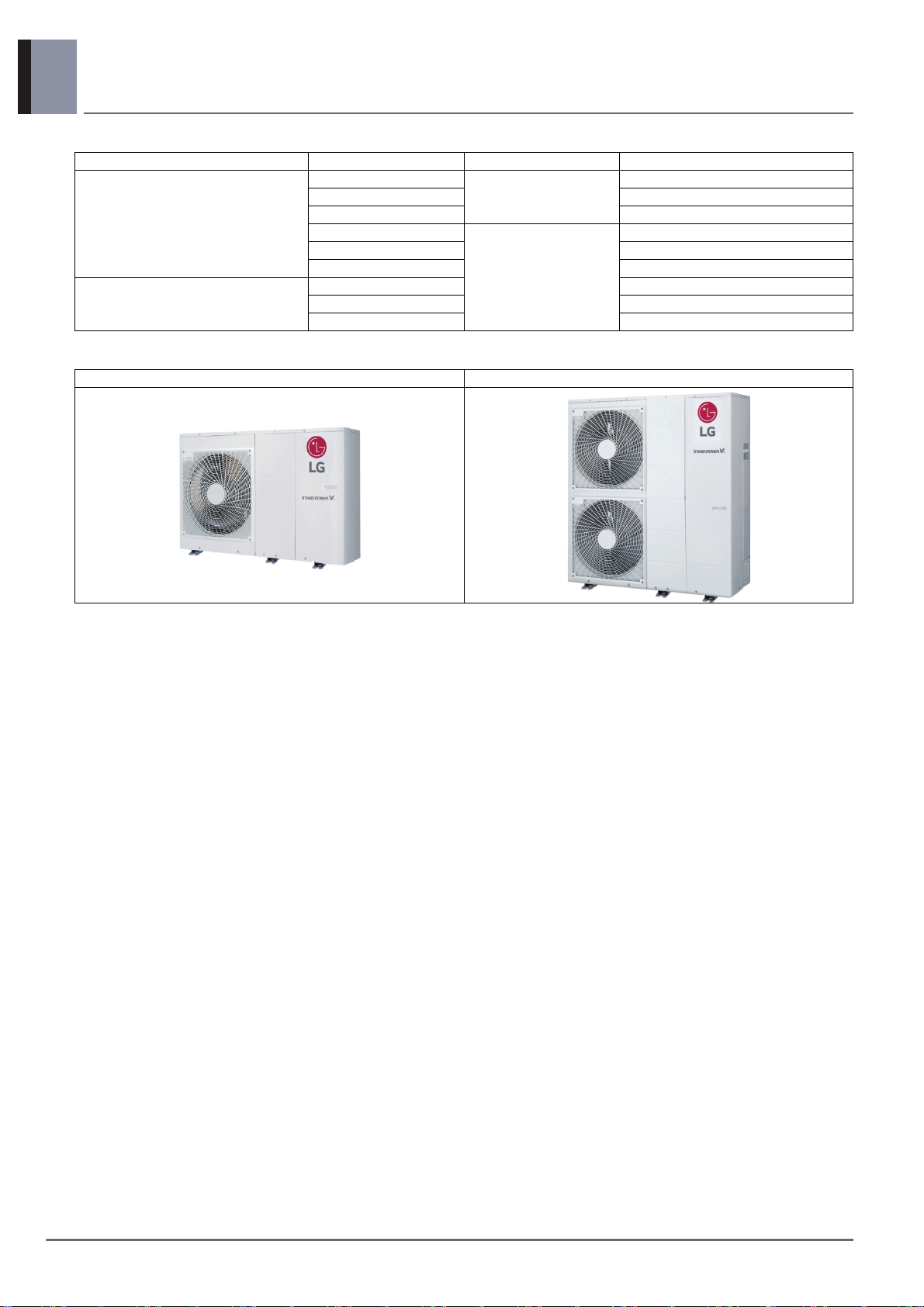

1. Model line up

Model line up

External appearance

Category Capacity (kW) Chassis Model Name

1 Phase Model

1 Ø, 220-240 V, 50 Hz

5.5

UN36A

ZHBW056A1 [HM051MR U44]

7.0 ZHBW076A1 [HM071MR U44]

9.0 ZHBW096A1 [HM091MR U44]

12.0

UN60A

ZHBW126A1 [HM121MR U34]

14.0 ZHBW146A1 [HM141MR U34]

16.0 ZHBW166A1 [HM161MR U34]

3 Phase Model

3 Ø, 380-415 V, 50 Hz

12.0 ZHBW128A1 [HM123MR U34]

14.0 ZHBW148A1 [HM143MR U34]

16.0 ZHBW168A1 [HM163MR U34]

UN36A UN60A

THERMA V Monobloc Type General Information

2. Nomenclature

■Factory Model Name

Model

Name ZH B W 12 6 A 1

No.1234567

No. Signification

1ZH : Air-to-Water Heat Pump for R32

2Classification

B : Monobloc

3Model Type

W : Inverter Heat Pump

4Heating Capacity (kW)

Ex) 5 kW : ‘05’, 16 kW : '16'

Electrical ratings

6 : 1 Ø, 220-240 V, 50 Hz

8 : 3 Ø, 380-415 V, 50 Hz

6Function

A : General Heating Heat pump

7Series

THERMA V Monobloc Type

2. Nomenclature

General Information

■Buyer Model Name

Model

Name HM121MRU34

No.12345678

No. Signification

1H : Air-to-Water Heat Pump

2Classification

M : Monobloc type

3Heating Capacity (kW)

Ex) 5 kW : ‘05’, 16 kW : '16'

Electrical ratings

1 : 1 Ø, 220-240 V, 50 Hz

3 : 3 Ø, 380-415 V, 50 Hz

5Leaving Water Combination

M : Mid Temperature

Type of refrigerant

A : R410A

R : R32

Platform (Chassis code)

U3 : UN60A Chassis

U4 : UN36A Chassis

8Series

Product Data

THERMA V

Monobloc Type

1.List of Functions

2.Specification

3.Dimensions

4.Piping Diagrams

5.Wiring Diagrams

6.Performance Data

7.Electric Characteristics

8.Operation Range

9.Sound levels

10.Hydraulic Performance

THERMA V Monobloc Type Product Data

1. List of Functions

■Basic functions of Unit

Water Side

Note

1. O : Applied, X : Not applied

Accessory : Ordered and purchased separately the accessory package referring to the model name provided and install at field.

Accessory line-ups varies by region, so check your local catalogue or local sales material.

2. * : This function requires the 3rd party accessory, PT-1000 sensor. (field supply)

Category Functions

ZHBW056A1 [HM051MR U44] ZHBW076A1 [HM071MR U44]

ZHBW096A1 [HM091MR U44] ZHBW126A1 [HM121MR U34]

ZHBW146A1 [HM141MR U34] ZHBW166A1 [HM161MR U34]

ZHBW128A1 [HM123MR U34] ZHBW148A1 [HM143MR U34]

ZHBW168A1 [HM163MR U34]

Installation Backup heater (Install kit) O (Accessory)

Reliability Self diagnosis O

Convenience

Auto Restart O

Child lock O

Sleep mode O

Timer (on/off) O

Timer (weekly) O

Two thermistor control X

Network function Network solution(LGAP) O

Modbus connectivity (without gateway) O

Air to Water Heat

Pump Functions

Anti-condensation on floor (cooling) O

Digital output for external pump O

Current flow rate monitoring O

Thermostat interface (230V AC) O

Thermostat interface (24V AC) X

Solar thermal system* O (Accessory)

DHW(Domestic Hot Water) tank installation

kit O (Accessory)

PHEX anti-freezing control O

Water pump anti-stuck function O

Weather compensation for heating and

cooling (Auto mode) O

Low noise operation O

Anti-overheating of water pipe O

Emergency operation O

Weather Dependent Operation with

Thermostat O

Scheduler (DHW Tank Heater) O

Timer (Domestic Hot Water Tank Heater) O

Quick Domestic Hot Water Tank Heating O

Screed Drying Mode O

Sump Heater O

Base Pan Heater O

Integrated Dry Contact (CN-EXT) O

Water flow control O

Water pressure monitoring O

Digital input for energy saving (ESS) O

Energy Monitoring O

DHW Recirculation O

1. List of Functions

THERMA V Monobloc Type Product Data

Refrigerant Side

Note

1. O : Applied, X : Not applied

Accessory : Ordered and purchased separately the accessory package referring to the model name provided and install at field.

Accessory line-ups varies by region, so check your local catalogue or local sales material.

2. * : This function requires the 3rd party accessory, PT-1000 sensor. (field supply)

Category Functions

ZHBW056A1 [HM051MR U44]

ZHBW076A1 [HM071MR U44]

ZHBW096A1 [HM091MR U44]

ZHBW126A1 [HM121MR U34]

ZHBW146A1 [HM141MR U34]

ZHBW166A1 [HM161MR U34]

ZHBW128A1 [HM123MR U34]

ZHBW148A1 [HM143MR U34]

ZHBW168A1 [HM163MR U34]

Reliability

Defrost / Deicing O O

High pressure switch O O

Low pressure switch X X

Phase protection X O

Restart delay (3-minutes) O O

Self diagnosis O O

Soft start X X

Convenience

Test function X X

Low Noise Operation O O

Wiring Error Check X X

Peak Control O O

Mode Lock O O

Forced Cooling Operation (Outdoor Unit) X X

Base Pan Heater O O

SLC(Smart Load Control) X X

Network function Network solution(LGAP) O O

THERMA V Monobloc Type

1. List of Functions

Product Data

■Accessory Compatibility List

Category Product Remark

ZHBW056A1 [HM051MR U44]

ZHBW076A1 [HM071MR U44]

ZHBW096A1 [HM091MR U44]

ZHBW126A1 [HM121MR U34]

ZHBW146A1 [HM141MR U34]

ZHBW166A1 [HM161MR U34]

ZHBW128A1 [HM123MR U34]

ZHBW148A1 [HM143MR U34]

ZHBW168A1 [HM163MR U34]

Wired

Remote

Controller

Standard PREMTW101 New standard (White) O

Dry Contact

Simple Contact PDRYCB000 Simple Dry Contact O

Communication Type

PDRYCB400 2 Points Dry Contact (For Setback) X

PDRYCB320 For 3rd party Thermostat O

PDRYCB500 Dry Contact for Modbus X

ETC

Remote temperature

sensor PQRSTA0 - O

Group control wire PZCWRCG3 0.25 m X

2-Remo Control Wire PZCWRC2 0.25 m O

Extension wire PZCWRC1 10 m O

Wi-Fi controller * PWFMDD200 USB Cable : 0.6 m Extension cable :

0.5 m O

Meter Interface*** PENKTH000 Interface between IDU and Meter O

2 Zone Valve

Controller PZNVVB200 - X

Accessory

Kit for

AWHP

DHW tanks (Single

coil)

OSHW-200F 200 L O

OSHW-300F 300 L O

OSHW-500F 500 L O

DHW tanks (Double

coil) OSHW-300FD 300 L O

DHW tank kit

PHLTA For Split 1Φ X

PHLTB For Monobloc O

PHLTC For Split 3Φ X

DHW sensor PHRSTA0 included in DHW Tank kit O

Thermostatic mixing

valve

OSHA-MV 3/4" DN20 O

OSHA-MV1 1" DN25 O

Backup heater

AHEH036A [HA031M E1] 220-240 V, 1Φ (For Monobloc) O

AHEH066A [HA061M E1] 220-240 V, 1Φ (For Monobloc) O

AHEH068A [HA063M E1] 380-415 V, 3Φ (For Monobloc) O

AHEH066B [HA061B E1] 220-240 V, 1Φ (For Hydrosplit

HN1600MB NK0) X

AHEH068B [HA063B E1] 380-415 V, 3Φ (For Hydrosplit

HN1600MB NK0) X

AHEH066C [HA061C E1] 220-240 V, 1Φ (For Hydrosplit

HN1600MC NK1) X

AHEH068C [HA063C E1] 380-415 V, 3Φ (For Hydrosplit

HN1600MC NK1) X

3way valve OSHA-3V - O

Solar thermal kit PHLLA - X

2nd Circuit or

E/Heater Thermistor PRSTAT5K10 - O

Drain pan PHDPB - X

PHDPC - X

Cover plate PDC-HK10 For K1 Chassis only X

Buffer Tank (40ℓ)OSHB-40KT For IWT(integrable) X

DHW expansion

vessel (8ℓ)OSHE-12KT For IWT(integrable) X

Note

1. O: Possible, X: Impossible, - : Not applicable

2. * : Some advanced functions controlled by individual controller cannot be operated.

3. ** : ACP or AC Smart is needed.

4. *** Meter interface cannot be connected at the same time with 3rd-party controller.

5. If you need more detail, please refer to the manual of product.

(http://partner.lge.com/global : Home> Doc.Library> Product > Control(BECON))
