3-2

ONE POINT REPAIR GUIDE

1. NO POWER

If the unit doesn’t work by no power problem, repair the set according to the following guide.

1-1. FUSE/ THERMISTOR/ BRIDGE DIODE

1-1-1. Solution

Please check and replace F901, TH901 or TH903, BD901 on SMPS board.

1-1-2. How to troubleshoot (Countermeasure)

1) Check if the fuse F901 is open or short-circuit.

2) Check if the NTC thermistor TH900 or TH903 is normal or open.

3) Check if the bridge diode BD901 is short-circuit by over current with a digital multi-meter.

1-1-3. Service hint (Any picture/ Remark)

< F901 >

If F901 is not short-circuit,

replace it with a same

speciﬁcations one.

< BD901 >

If BD901 is short-circuit,

replace it with a new one.

If TH901 or TH903 is open,

replace it with a new one.

jomi

3-3

ONE POINT REPAIR GUIDE

NO POWER

If the unit doesn’t work by no PVDD problem, repair the set according to the following guide.

1-2. FUSE/ FET

1-2-1. Solution

Please check and replace F901, Q901 on SMPS board.

1-2-2. How to troubleshoot (Countermeasure)

1) Check if the fuse F901 is open or short-circuit.

2) Check the anode-cathod voltage of D951 with a digital multi-meter, it is normally 0.2 ~ 0.3 V.

 If it doesn’t have any voltage, it’s destroyed. Replace it with a new one.

1-2-3. Service hint (Any picture/ Remark)

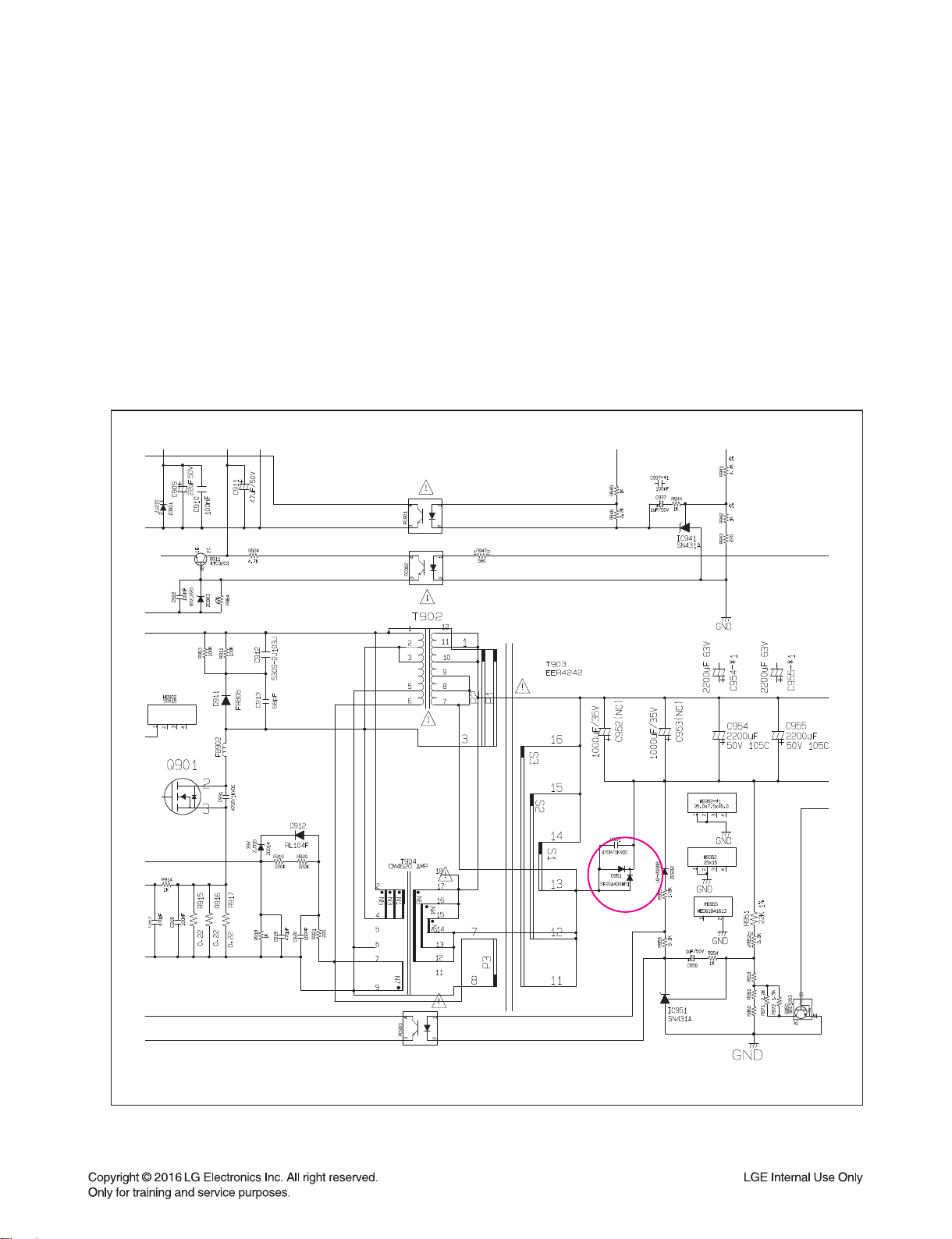

< SMPS circuit >

jomi

3-4

ONE POINT REPAIR GUIDE

2. NO BOOTING WHEN POWER ON THE SET

The set doesn’t work when press the power button on the top board or the remote control.

2-1. IC501

2-1-1. Solution

Replace IC501 on MAIN board.

2-1-2. How to troubleshoot (Countermeasure)

1) Check the +12 VA (CN202) and 3.3VA (IC503) in standby mode.

 If there is no 12 VA, check the SMPS and if doesn’t appear 3.3 VA, check IC503.

2) Check +12 VA, +5.1 VA, 3.3 VA, DVCC_5V and DVCC_3.3V when power on the set.

If the set doesn’t work regardless of what the KEY1 changes high to low while pressing the power button.

X500 and X501 work normally but, if you can not power on the set, replace the IC501 with a new one

on the main board.

2-1-3. Service hint (Any picture/ Remark)

< MAIN board top view >

< MAIN board bottom view >

X500

(24 MHz)

X501

(32.768 kHz)

KEY1

(R518)

PWR_CTRL

R559

jomi

3-5

ONE POINT REPAIR GUIDE

3. VFD IS NOT DISPLAYED WHEN POWER ON THE SET

When power on the set, any icons or characters on VFD are not displayed.

3-1. VFD (VFD301)

3-1-1. Solution

Please check and replace VFD301 on TOP FRONT board.

3-1-2. How to troubleshoot (Countermeasure)

1) Check if VFD_12V, DVCC_3.3V and VCC_5V are output from SMPS to VFD via the main board.

2) Check if the IC501 outputs VFD_CLK, VFD_STB, and VFD_DAT to the top board.

3) Check if the VFD grid current amplifier circuit on the top board.

Check the drive signal to the transistor’s(Q801,2) base.

 If the control signals from VFD (DGND, VDD) isn’t output, replace VFD with a new one.

3-1-3. Service hint (Any picture/ Remark)

R812(TP 841)

Q801 Emitter

about

30 Vp-p

< TOP FRONT circuit >

< Waveform of the grid current driver>

jomi

3-6

ONE POINT REPAIR GUIDE

4. NO BOOTING (IN CD/USB FUNCTION)

After you turn on power key and displayed message in the following order (HELLO VOL XX 

CD or USB) on VFD, it will not display other message on VFD, and it will not boot-up normally.

4-1. NO DVCC_3.3V, 1.2 VA

4-1-1. Solution

Please check and replace IC202, IC205 on MAIN board.

4-1-2. How to troubleshoot (Countermeasure)

1) Check Voltage of IC202 pin3 on MAIN board.

 If IC202 pin3 (about 5.1 V) & pin1 Input 12 VA doesn’t come out, check +12 VA from SMPS board.

2) If IC202 pin3 (about 5.1 V) is normal, check voltage of IC205 pin3 (about 1.2 VA), pin6 (about 3.3 VA).

If IC205 pin3 (about 1.2 VA), pin6 (about 3.3 VA) doesn’t come out, check R253, R254, R256 and R260, R261, R262.

If there’s no defective component then replace IC205.

3) PWR_CTRL is high, check R512 and if there’s no defective component then replace IC505.

PWR_CTRL (IC505 pin3) is high (about 3.2 V)

 If PWR_CTRL isn’t high, check pin D11 of IC501 & R512, R513

4) If PWR_CTRL is high, check R559 and if there’s no defective component then replace IC505.

4-1-3. Service hint (Any picture/ Remark)

< MAIN board top view >

< MAIN board bottom view >

IC505

IC202

IC205

jomi

3-7

ONE POINT REPAIR GUIDE

NO BOOTING (IN CD/USB FUNCTION)

After you turn on power key and displayed message in the following order (HELLO VOL XX 

CD or USB) on VFD, it will not display other message on VFD, and it will not boot-up normally.

4-2. CRYSTAL (X500)

4-2-1. Solution

Replace X500 on MAIN board.

4-2-2. How to troubleshoot (Countermeasure)

1) If 3.3 VA & 1.2 VA is normal, check reset ‘High’ of IC501 pin T12 on MAIN board.

 If MAIN_RESET isn’t high, check MICOM (IC101) pin40.

2) If MAIN_RESET is high, check the soldering status of 24 MHz crystal (X500).

3) If the crystal (X500) doesn’t oscillate, check R508, C502, C503 around crystal (X500).

 If there’s no defective component, then replace X500.

4-2-3. Service hint (Any picture/ Remark)

X500

< Signal waveform >

< MAIN board top view >

IC501

X500

jomi

3-8

ONE POINT REPAIR GUIDE

NO BOOTING (IN CD/USB FUNCTION)

After you turn on power key and displayed message in the following order (HELLO VOL XX 

CD or USB) on VFD, it will not display other message on VFD, and it will not boot-up normally.

4-3. SERIAL FLASH (IC503)

4-3-1. Solution

Please check and replace IC503 on MAIN board.

4-3-2. How to troubleshoot (Countermeasure)

1) If the crystal (X500) does oscillate, check serial flash (IC503) on MAIN board.

 Check pin8 (VCC), pin6 (CLK), pin1 (CS), pin2 (DO), pin5 (DI) of below waveform.

2) If pin1, 2, 5, 6 doesn’t come out, check registers (R563, R564, R534, R535, R536, R5E4) of IC503.

 If registers of IC503 is OK, then replace IC503. (it need to download program.)

3) After change IC503, if It is still not below waveform, check IC501 (DSP IC).

4-3-3. Service hint (Any picture/ Remark)

VCC

CLK

CS#

< Signal waveform >

< MAIN board bottom view >

IC503

jomi

3-9

ONE POINT REPAIR GUIDE

5. NO OPERATION OF MD

When no sound output in the CD function, you can not listen to music reading data from a CD

disc if the servo motors in MD don’t work. This step is for checking the SPINDLE MOTOR among

them.

5-1. SPINDLE MOTOR

5-1-1. Solution

Replace IC400 on MAIN board.

5-1-2. How to troubleshoot (Countermeasure)

1) Check the SPDO signal from pin16 of IC401.

 If no signal, check DVCC_3.3V and DV 3.3V (RF) and X400.

2) Check the SPIN+ & SPIN- from IC400 to CN401 for driving SPINDLE motor. It is about 3.6 Vp-p.

 If no signal, check M_5 V for IC400.

3) Check if the FFC cable is solidly connected between CN401 and MD.

4) Check the MD.

 If the spindle motor is sort-circuit or has any trouble, it can not rotate CD discs.

Please check the function after changing another MD.

5-1-3. Service hint (Any picture/ Remark)

< Waveform of SP- & SP+

for driving SPINDLE motor >

< MAIN board top view >

SP+: pin18

SP-: pin19

IC400

jomi

3-10

ONE POINT REPAIR GUIDE

NO OPERATION OF MD

When no sound output in the CD function, you can not listen to music reading data from a CD

disc if the servo motors in MD don’t work. This step is for checking the SLED MOTOR among

them.

5-2. SLED MOTOR

5-2-1. Solution

Replace IC400 on MAIN board.

5-2-2. How to troubleshoot (Countermeasure)

1) Check the SLDO signal from pin15 of IC401.

 If no signal, check DVCC_3.3V and DV 3.3V(RF) and X400.

2) Check the SPED+ & SLED- from IC400 to CN401 for driving SPINDLE motor. It is about 2.9 Vp-p.

 If no signal, check M_5 V for IC400.

3) Check if the FFC cable is solidly connected between CN401 and MD.

4) Check the MD.

 If the spindle motor is sort-circuit or has any trouble, it can not rotate CD discs.

Please check the function after changing another MD.

5-2-3. Service hint (Any picture/ Remark)

< Waveform of SLED- & SLED+

for driving SLED motor >

SP-

SP+

< MAIN board top view >

SLED+: pin11

SLED-: pin12

IC400

jomi

3-11

< Waveform

for driving tray open/ close motor >

MOT_ CL OS E

MOT_ OP EN

LO+(RED)

LO-

ONE POINT REPAIR GUIDE

NO OPERATION OF MD

When no sound output in the CD function, you can not listen to music reading data from a CD

disc if the servo motors in MD don’t work. This step is for checking the TRAY OPEN / CLOSE

MOTOR among them.

5-3. TRAY OPEN/ CLOSE MOTOR

5-3-1. Solution

Replace IC400 on MAIN board.

5-3-2. How to troubleshoot (Countermeasure)

1) Check MOT_OPEN & MOT_CLOSE signals from pin P5, L4 of IC501 to IC400.

 If no signal, check M_5V to IC400.

2) Check LOAD± from IC400 to CN401 for driving the tray open / close motor. It is about 3.85 Vp-p.

 If no signal, check M_5V to IC400. If it has any trouble, replace it with a new one.

3) Check if the FFC cable is solidly connected between CN401 and MD.

4) Check the MD.

 If the tray motor is sort-circuit or has any trouble, it can not open or close the tray.

Please check the function after changing another MD.

5-3-3. Service hint (Any picture/ Remark)

< MAIN board top view >

MOT_CLOSE: pin6

MOT_OPEN: pin7

LOAD+: pin9

LOAD-: pin10

IC400

jomi
