CONDENSING DRYER

SERVICE MANUAL

READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE

CORRECTLY BEFORE OFFERING SERVICE.

MODEL : TD-C7021*E Series

CAUTION

All manuals and user guides at all-guides.com

all-guides.com

4PROGRAM CYCLE

Gentle

This is used to lengthen the cycle time by

decreasing temperature.

Buzzer Off

This is about buzzer sound on/off.

After power is on and you select cycle, buzzer will

sound when you press a certain button on the

panel.

If you don’t like to hear that sound, just press

Buzzer Off button. The Buzzer is then turned -off.

Anti-Crease

Anti-Crease is functioning to prevent creases and

rumples that are formed when the laundry is not

unloaded promptly at the end of drying cycle. In

this function, the dryer repeatedly runs and pauses

to the cycle end.

If the door is open during Anti-Crease process, this

function is cancelled.

Time Delay

You can use the Time Delay function to delay the finishing time

of drying cycle. Maximum Time Delay is 19 hours. Minimum

Time Delay is 3 hours.

1. Turn the dryer on

2. Select cycle

3. Set time delay hour

4. Press Start/Pause button

More Time/Less Time

Press More Time or Less Time until the desired drying time is set.

1. Every time you push “More Time” button, operation time

increase 5 minute. (Maximum=100min.)

2. Every time you push “Less Time” button, operation time

decrease 5 minute. (Minimum=15min.)

Child Lock

For the safety of your children, press Gentle and Buzzer off

buttons at the same time for about 3 seconds. You can see “Child

Lock” sign on LED window.

These buttons are available only with Timed

Drying, before you push Start/Pause button.

Note

You can see “ ” sign on LED window

at the end of drying cycle. It is not error.

Note

For “Child Lock” off, press Gentle and Buzzer off

buttons at the same time for about 3 seconds.

Note

TD-C70210E/215E

TD-C70212E/216E

All manuals and user guides at all-guides.com

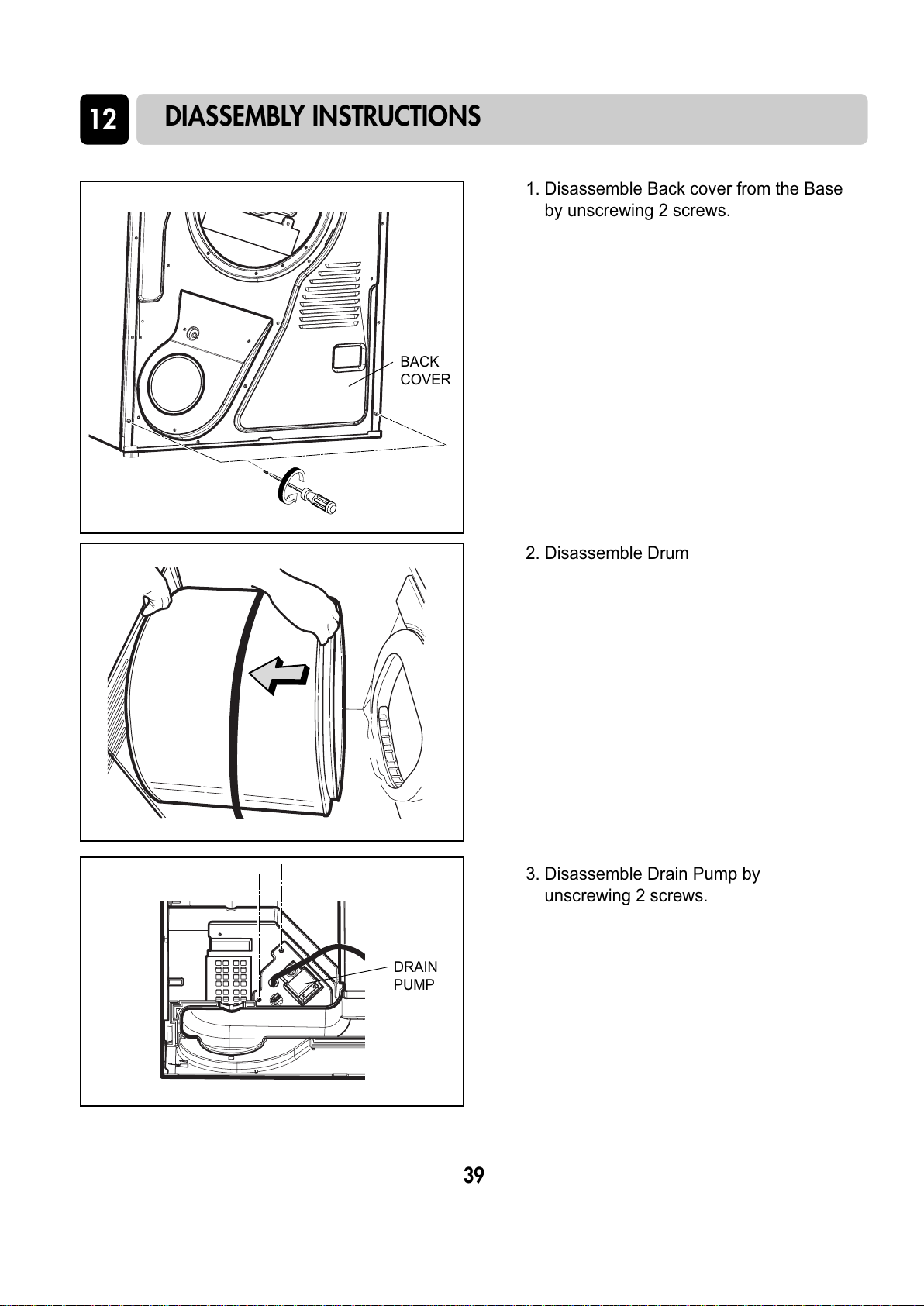

DIASSEMBLY INSTRUCTIONS

1. Disassemble Back cover from the Base

by unscrewing 2 screws.

2. Disassemble Drum

3. Disassemble Drain Pump by

unscrewing 2 screws.

BACK

COVER

DRAIN

PUMP

All manuals and user guides at all-guides.com

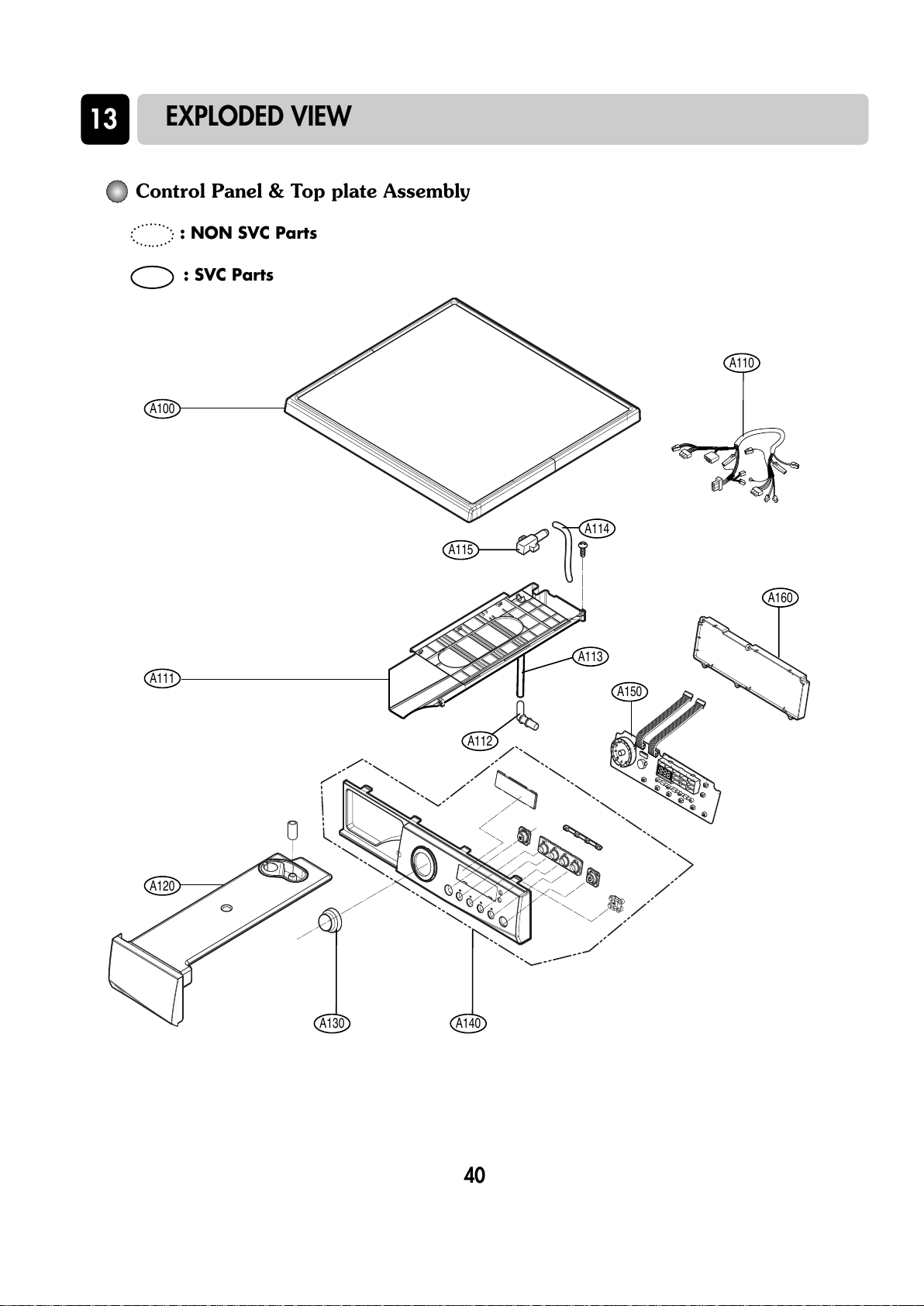

EXPLODED VIEW

Control Panel & Top plate Assembly

A100

A110

A111

A120

A160

A114

A115

A113

A112

A130 A140

A150

: NON SVC Parts

: SVC Parts

All manuals and user guides at all-guides.com

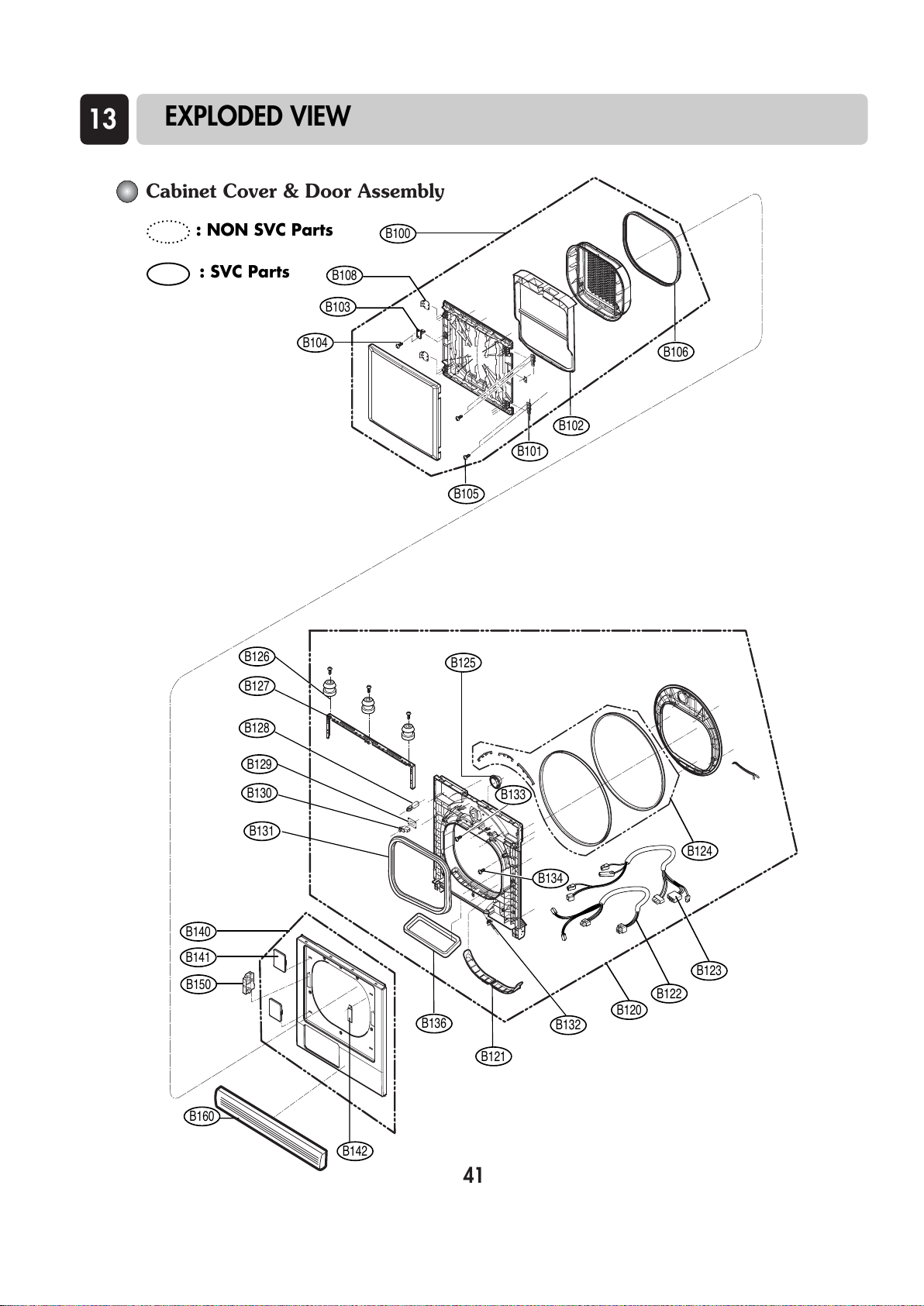

EXPLODED VIEW

Cabinet Cover & Door Assembly

B101

B105

B103

B104

B102

B106

B100

B108

B141

B140

B121

B136

B120

B122

B123

B130

B131

B128

B150

B142

B129

B127

B126 B125

B134

B133

B132

B160

B124

: NON SVC Parts

: SVC Parts

All manuals and user guides at all-guides.com

EXPLODED VIEW

Base & Motor Assembly

C100

C120

C110

C130

C140

C141

C160

C142

C150

C211

C180

C170

C200

C240

C230

C210

C220

C250

C260

C270

C280

C290

C310

C300

C191

C190

C212

: NON SVC Parts

: SVC Parts

All manuals and user guides at all-guides.com

all-guides.com

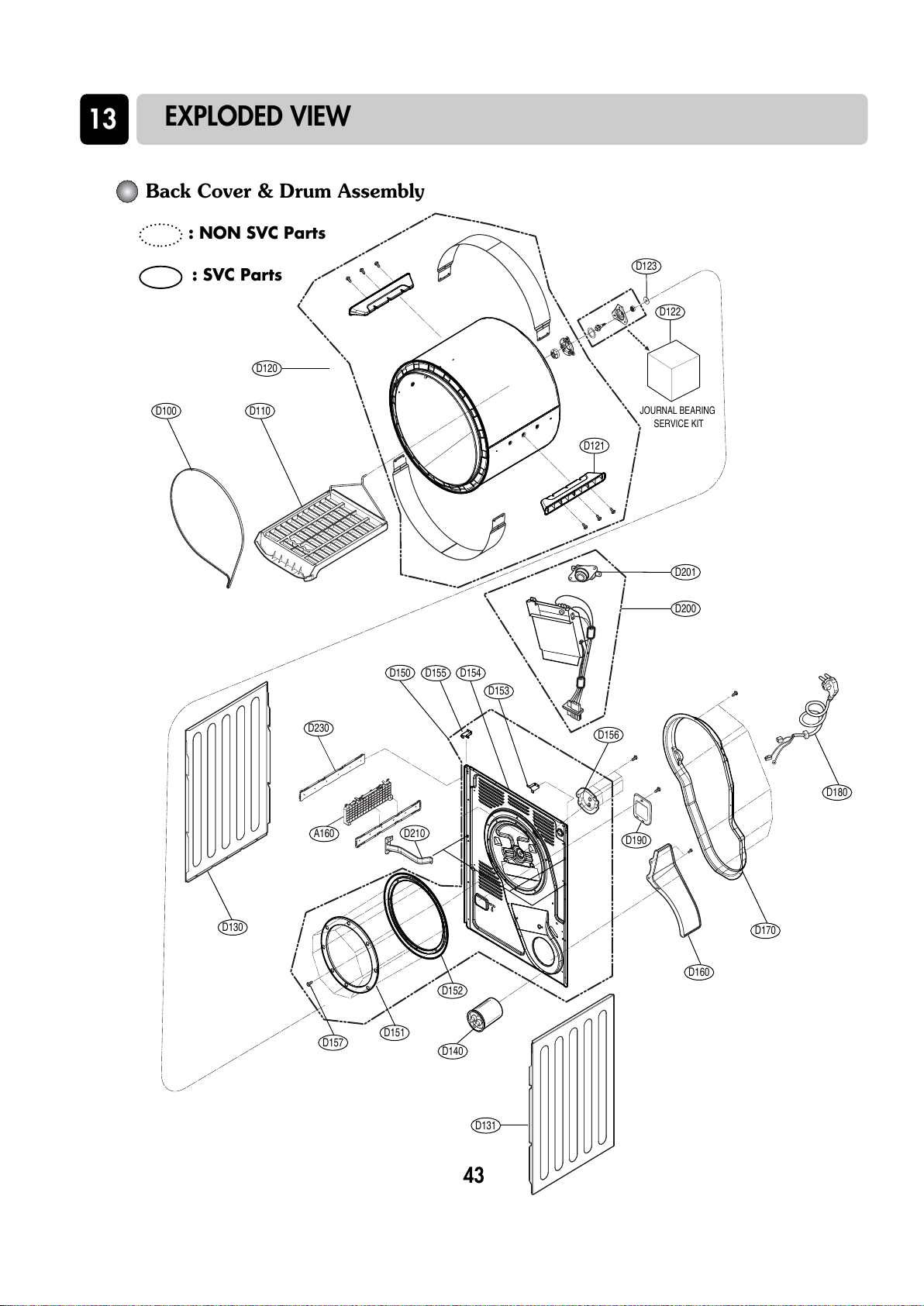

EXPLODED VIEW

Back Cover & Drum Assembly

D152

D155

D200

D190

D151

D157 D140

D160

D131

D170

D180

D130

D230

A160

D201

D153

D156

D150 D154

D210

D100 D110

D120

D121

JOURNAL BEARING

SERVICE KIT

D122

D123

: NON SVC Parts

: SVC Parts
