DISHWASHER

INSTAllATIONINSTRUCTIONS

Please read this guide thoroughly

before installation.

To contact LG Electronics, 24 hours a day,

7 days a week:

1-800-243-0000

Or visit us on the Web at: us.lge.com

IMPORTANT SAFETY INSTRUCTIONS

&WARNING

When installing and using your dishwasher, follow basic precautions, including

the following:

•Disconnect electrical power before you start[

• All electrical wiring and grounding must

be done in accordance with national and

local codes.

• If electrical supply is damaged, it must only be

replaced by the manufacturer or its service

agent or a similar qualified person in order to

avoid a hazard.

• This dishwasher must be connected to a

hot water supply between 120°F (49°C)

and 149°F (65°C). This temperature range

provides the best washing results and shortest

cycle time. Temperature should not exceed

149°C (65°F) to prevent damage to dishes.

• This appliance must be positioned near to an

electrical power supply.

• The appliance is to be connected to the water

supply using new hoses. Old hoses should not

be reused.

• Check the dishwasher for any damage before

trying to install it. If you find any damage to

the dishwasher, please contact your dealer

or builder immediately.

GROUNDING INSTRUCTIONS

For a permanently connected dishwasher:

This appliance must be connected to a grounded

metal, permanent wiring system, or an equipment-

grounding conductor must be run with the circuit

conductors and connected to the equipment-

grounding terminal or lead on the appliance.

P/NO. 3828DD3003D

INSTAllATION INSTRUCTIONS

PARTS SUPPLIED

(See page 8 for installation

of bracket) INSTALL BRACKET WOOD SCREW

MATERIALS YOU MAY NEED (.otprovided)

ELECTRICALCABLE WATERSUPPLYTUBE ELBOW

o©

FITTINGS

FORTUBE RUBBER

CONNECTOR PLUMBERS'

TAPE

TWIST-ON WIRE

AIR GAP CONNECTOR HOSE CLAMP STRAIN RELIEF ELECTRICAL TAPE

TOOLS YOU WILL NEED

STANDARD PHILLIPS

SCREWDRIVER SCREWDRIVER HOLE CUTTER ELECTRIC DRILL

ADJUSTABLE

WRENCH TAPE MEASURE CUTTING KNIFE

GLOVES

LEVEL

SAFETY GLASSES

TUBING CUTTER

NIPPER PLIERS WIRE STRIPPER

INSTAllATION INSTRUCTIONS

DISHWASHER SPECIFICATIONS

FULL Y INTEGRA TED

LDF6920WW/BB/ST SEMI-INTEGRATED

LDS4821 WW/BB/ST

SPECIFICATIONS

•Power supply: 120V, 60Hz AC only

• Water Pressure: 20-120 psi

(140-830 kPa)

• Product Dimension (WxDxH):

23 3/4" x 24 5/8" x 33 5/8"

(603 mm x 625 mm x 854 mm)

• Inlet Water Temperature: 120°F (49°C)

• Weight:

Fully Integrated: 90 Ibs. (40.8 kg)

Semi-Integrated: 89 Ibs. (40.5 kg)

Specifications are subject to change

without notice.

NOTE: The features on your dishwasher

may vary from the illustrations shown.

PRODUCT DIMENSIONS

23 3/4" (603 mm)

24 5/8" (625 mm)

® •

20 3/8" (518 mm)

32 5/8"

(854 mm)

6 3/4"

(171 mm) Water supply hose, drain hose

• and electric cable should be

passed through this area

_3" (76 mm)

INSTAllATION INSTRUCTIONS

These installation instructions are intended for use by Qualified Installers.

STEP 1: PREPARE CABINET OPENING

1. This dishwasher is designed to fit a standard

dishwasher opening as shown in Fig. 1.

2. Select a location as close to sink as possible for

easy connections to water and drain lines.

3. To ensure proper drainage, the dishwasher

should not be installed more than 10 ft. (3 m)

from the sink.

If dishwasher is to be installed in a corner, a

minimum of 2 in. (50 mm) is required between

the dishwasher and an adjacent wall.

To allow for proper clearance of plumbing and

electrical, measure a 4" x 7" target area

(Fig. 3) on the side of the cabinet where the

cabinet meets the back wall. Using a 21/2"

diameter hole saw, drill a hole in the target area

within 63/4"of the floor, and no more than 3"

from the back wall. If there is a floor in the

cabinet under the sink, it will also be necessary

to drill or cut through the floor to connect the

water and drain under the sink.

NOTES:

• Failure to cut this opening will result in the drain

hose interfering with the rear wall, preventing

flush mount installation.

• Ensure that the floor under the dishwasher is at

the same level as the rest of the room to allow

for any service requirements.

FIG. 3i

For flush installations ONLY, you may remove the

cabinet brace inside the cabinet. An opening (on either side) is required to route

plumbing and electrical connections.

INSTAllATION INSTRUCTIONS

These installation instructions are intended for use by Qualified Installers.

WARNING

For personal safety, remove house fuse or open circuit breaker before installation.

Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding

connections must comply with the National Electrical Code/provincial and municipal code and/or other

local codes.

STEP 2: PREPARE THE ELECTRICAL WIRING

1. This appliance must be operated with correct

voltage as shown in this manual and on the

rating plate, and connected to a dedicated

properly grounded branch circuit, protected

by a time-delay fuse. Wiring must be 3 wires

including ground.

2. The wiring or cord should be in an accessible

location adjacent to and not behind the

dishwasher and within 4 ft. (1.2 m) of the

dishwasher side.

3. The wiring or cord must be grounded properly.

If in doubt, have it checked by a qualified

electrician. Do NOT connect any other

appliance to the same outlet.

4. The wiring or cord must be routed as shown in

Fig. 4 below.

5. Make sure electrical cable is oriented in the

bottom channels as shown in the figure below.

If you find any damage to the dishwasher,

please contact your dealer or builder

immediately.

NOTE: If you find any damage to the dishwasher, Please contact your dealer or builder immediately.

Electrical Cable

4 1/2" - 6"

(115 mm - 152 mm)

INSTAllATION INSTRUCTIONS

These installation instructions are intended for use by Qualified Installers.

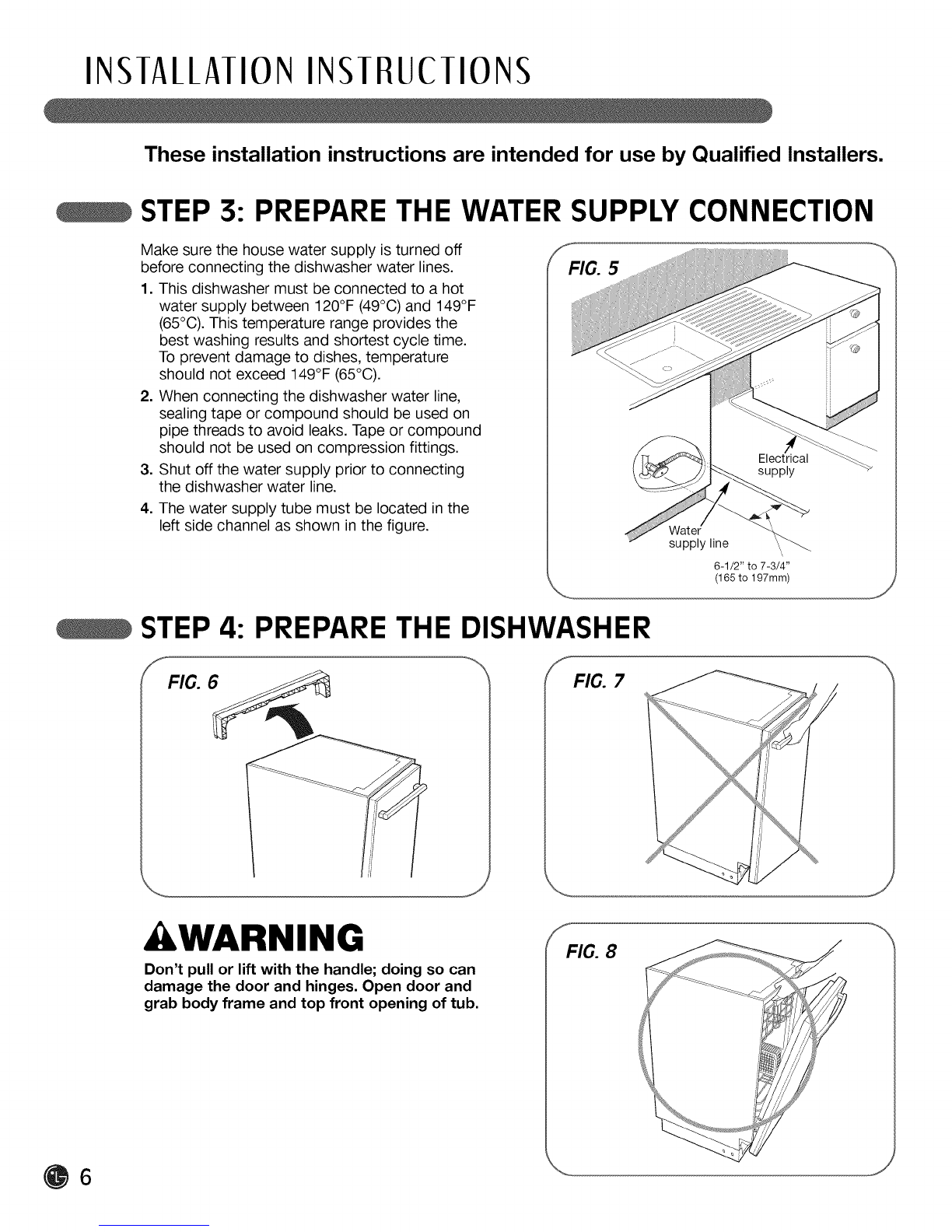

STEP 3: PREPARE THE WATER SUPPLY CONNECTION

Make sure the house water supply is turned off

before connecting the dishwasher water lines.

1. This dishwasher must be connected to a hot

water supply between 120°F (49°C) and 149°F

(65°C). This temperature range provides the

best washing results and shortest cycle time.

To prevent damage to dishes, temperature

should not exceed 149°F (65°C).

2. When connecting the dishwasher water line,

sealing tape or compound should be used on

pipe threads to avoid leaks. Tape or compound

should not be used on compression fittings.

3. Shut off the water supply prior to connecting

the dishwasher water line.

4. The water supply tube must be located in the

left side channel as shown in the figure. supply line

6-1/2" to 7-3/4"

(165 to 197mm)

STEP 4: PREPARE THE DISHWASHER

FIG. 6 FIG. 7

WARNING

Don't pull or lift with the handle; doing so can

damage the door and hinges. Open door and

grab body frame and top front opening of tub.

INSTAllATION INSTRUCTIONS

These installation instructions are intended for use by Qualified Installers.

STEP 5: REMOVE TOE KICK

.Remove the two screws attaching the lower

cover to the dishwasher.

* Remove the lower cover from the base.

* Remove the insulation pad from behind the

access panel.

fFIG. 9

STEP 6: INSTALL 90° ELBOW

When installing the elbow into the inlet valve,

Teflon®tape or pipe joint compound should be

used to avoid water leaks.

Install a 90° elbow onto the water valve.

FFIG. 10

tape

STEP 7: SLIDE DISHWASHER INTO CABINET

• Slide the dishwasher carefully into the cabinet

opening.

• Make sure the drain hose inside the cabinet is

not kinked or pinched.

• Make sure the water supply line and electrical

supply are routed through the channels under

the dishwasher as shown in Fig. 10.

Front of /

dishwasher

_'_"-- Electrical

Water supply

line supply

INSTAllATION INSTF UCTIONS

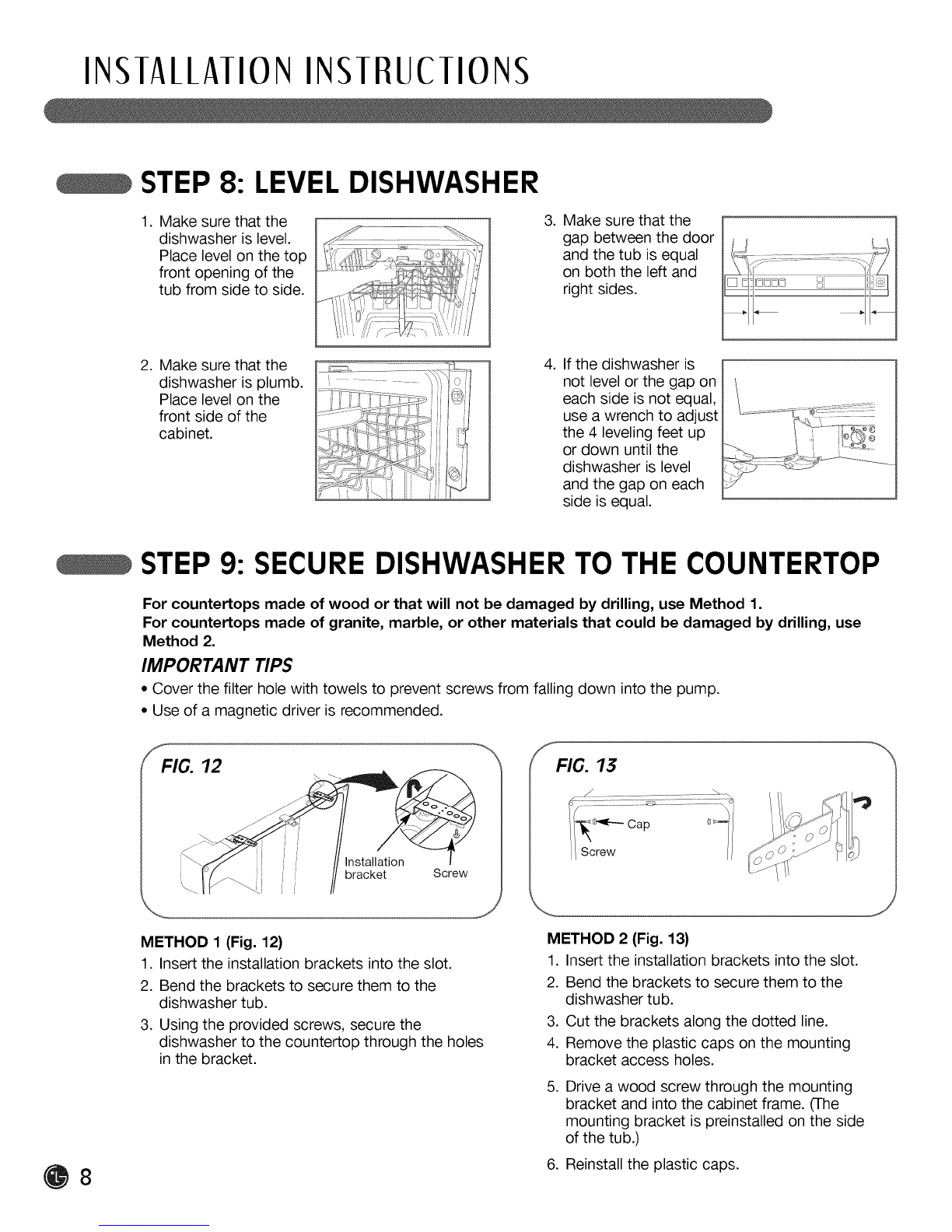

STEP 8: LEVEL DISHWASHER

1. Make sure that the

dishwasher is level.

Place level on the top

front opening of the

tub from side to side.

3. Make sure that the

gap between the door

and the tub is equal

on both the left and

right sides.

2. Make sure that the

dishwasher is plumb.

Place level on the

front side of the

cabinet.

.If the dishwasher is

not level or the gap on

each side is not equal,

use a wrench to adjust

the 4 leveling feet up

or down until the

dishwasher is level

and the gap on each

side is equal.

STEP 9: SECURE DISHWASHER TO THE COUNTERTOP

For countertops made of wood or that will not be damaged by drilling, use Method 1.

For countertops made of granite, marble, or other materials that could be damaged by drilling, use

Method 2.

IMPORTANT TIPS

•Cover the filter hole with towels to prevent screws from falling down into the pump.

° Use of a magnetic driver is recommended.

FIG. 13

Installation

bracket Screw

METHOD 1 (Fig. 12)

1. Insert the installation brackets into the slot.

2. Bend the brackets to secure them to the

dishwasher tub.

3. Using the provided screws, secure the

dishwasher to the countertop through the holes

in the bracket.

METHOD 2 (Fig. 13)

1. Insert the installation brackets into the slot.

2. Bend the brackets to secure them to the

dishwasher tub.

3. Cut the brackets along the dotted line.

4. Remove the plastic caps on the mounting

bracket access holes.

.Drive a wood screw through the mounting

bracket and into the cabinet frame. (The

mounting bracket is preinstalled on the side

of the tub.)

6. Reinstall the plastic caps.

INSTAllATION INSTRUCTIONS

STEP 10: DRAIN LINE CONNECTION

1. If the end of the drain hose does not fit the drain

line, use a heat and detergent resistant adapter

(not supplied). One may be obtained from a

local plumbing shop.

2. The 2 typical connections are shown in Figs. 14

and 15. To prevent siphoning, one of the

following connections should be used.

DRAIN REOUIREMENTS

* Follow local codes and ordinances.

° Do not exceed 10 ft. (3 m) distance to drain.

o Do not connect drain lines from other devices

to the dishwasher drain hose.

For disposal or waste tee connections

Forair gap connections, cut off drain hose at dotted line

CONNECTION TO DISPOSER OR WASTE TEE

fFIG. 14 Dishwasher

Sink

Drain

Hose

Min. 20" (508 mm)

Min. 30" (770 mm)

Min. 40" (1000 mm) --

CONNECTION TO AIR GAP

FIG. 15

Sink

Air Gap

_. Rubber

-- Connector

Dishwasher

Min. 20" (508 mm)

Min. 30" (770 mm)

Min. 40" (1000 mm)

NOTE: If the drain connection is less than 20 inches above the floor, an air gap MUST be

installed to prevent siphoning.

INSTAllATION INSTRUCTIONS

STEP 11: WATER SUPPLY CONNECTION

1. Before connecting, turn off the water supply.

2. After fitting the elbow into the inlet valve, slide

the flexible stainless-steel water line or copper

tube into the elbow.

3. Tighten the compression nut and make sure

that the line is not kinked or pinched.

FIG. 16

Elbow Water

STEP 12: ELECTRICAL POWER CONNECTION

1. Before beginning, turn off electrical power to the

unit at the circuit breaker.

2. Remove the junction box cover and then install

the strain relief.

3. Twist wire connectors tightly onto the wires;

then wrap each connection with electrical tape.

4. Check again and make sure that all wires are

connected correctly: black to black, white to

white, green ground wire to green ground wire.

5. Replace the junction box cover.

CAUTION

Verify that the black wire is hot (120V). If not, or

if you are unsure of the power supply, have it

checked by a licensed electrician.

fFIG. 17

Junction box cover

Strain if

relief _ jk:;_ ',) ._.__> \

___ "_:::-:::- Junction

:, _ box

i i

STEP 13: FINAL CHECK

1. Turn on electrical power.

2. Turn on house water supply.

3. Run the dishwasher on a normal cycle to verify

proper operation and check for leaks.

4. Replace the toekick panel.

Otros manuales para LDF6920WW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Lavavajillas de LG

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
