LG LD-4080W Manual de usuario

P/No. : 3828ED3001Y

3828ED3001Y 2005.3.14 7:9 PM 페이지1 001 HP LaserJet 5000 Series

- 3 -

1. CAUTION......................................................................................................................... 4

2. SPECIFICATIONS ........................................................................................................... 5

3. FEATURES & TECHNICAL EXPLANATION ................................................................... 6

4. PARTS NAME.................................................................................................................. 9

5. WIRING DIAGRAM...................................................................................................... 10

6. PROGRAM CHART (SCHEMATIC DIAGRAM) ............................................................ 11

7. HOW TO DISASSEMBLE ............................................................................................ 12

7-1. FULL DISASSEMBLE .......................................................................................... 12

7-2. DISASSEMBLE C-BASE ASSEMBLY ................................................................. 19

8. TROUBLE SHOOTING METHODS.............................................................................. 22

A. TROUBLE SHOOTING ACCORDING TO DISPLAYED ERROR MESSAGE.......... 22

B. TROUBLE DIAGNOSES AND REPAIR BY SYMPTOM........................................... 24

9. INSTALLATION INSTRUCTION ................................................................................... 28

10. EXPLODED VIEW ...................................................................................................... 33

11. REPLACEMENT PART LIST ........................................................................................39

CONTENTS

3828ED3001Y 2005.3.14 7:9 PM 페이지3 001 HP LaserJet 5000 Series

- 4 -

�DISCONNECT POWER CORD BEFORE SERVICING

�RECONNECT ALL GROUNDING DEVICES

IMPORTANT SAFETY NOTICE !

This service information is intended for individuals

possessing adequate backgrounds of electrical,

electronic and mechanical experience.

Any attempt to repair this appliance may result in

personal injury and property damage.

The manufacturer or seller can not be responsible

for the interpretation of this information, nor can it

assume any liability in connection with its use.

CAUTION !

3828ED3001Y 2005.3.14 7:9 PM 페이지4 001 HP LaserJet 5000 Series

- 5 -

2. SPECIFICATION

Rated Voltage / Frequency AC 220V/50Hz AC 230V/50Hz AC 240V/50Hz

Installation Free Standing / Built-Under / Built-In

Place Settings 14

Product Dimension(mm)

600(W)×600(D)×850(H) / 598(W)×576(D)×817(H) / 598(W)×562(D)×817(H)

Product Weight(Kg) 56 / 50 / 48

Door Colour White / STS

Tub Material Stainless Steel

Control Electronic

Rated Power(Watt) 2,210

Heater Power(Watt) 2,100

Programs 6

Upper Rack Position Adjustable

Lower Rack 100% Fold down

Water Consumption(ℓ) 15 (Eco)

Power Consumption (kWh) 1.05 (Eco)

Operating Time (min) Except Drying : 116(Except Drying):Economy

Fan Dry System Yes

Delay Start Function Yes

Auto-Off Power Switch Yes

Process Monitor Yes

Wash Level 5

Racks Nylon Coating

Operating Water Pressure (Bar) 0.5 ~ 8

ITEM SPECIFICATION

3828ED3001Y 2005.3.14 7:9 PM 페이지5 001 HP LaserJet 5000 Series

- 6 -

3. FEATURES & TECHNICAL EXPLANATION

3-1 New Technology Introduction

• During the high temp. Rinse course, water

temperature in an dishwasher reaches 77°C,

considerably higher than the average rinse

temperature in conventional

dishwashers(65°C). This is how Rinse 77°C

can eliminate some bacteria such as

salmonella.

3-1-1. High Temperature Rinsing

• Turbo Spray System is elaborately designed to

achieve a more powerful and efficient wash.

You can see the excellent 3 rotating spray arm

with 5 directional waterjet.

3-1-2. Turbo Spray System

3828ED3001Y 2005.3.14 7:9 PM 페이지6 001 HP LaserJet 5000 Series

- 7 -

3-2. Display Panel

PROGRAM

• When you want to

select program, press

each button.

BEEP ON / OFF

• The dishwasher must be switched

off.

• The beep on/off function can be

set by pressing the Half Load and

Power button simultaneously for

seconds, then a “on” will appear

in the time display.

• To change the setting, press the

Half Load button.

• The beep on/off function is

automatically canceled when

power failure occur.

CHILD

LOCK

• Used to lock or

unlock the

control buttons

to prevent all

the setting from

being changed

by a child.

• For locking /

unlocking, press

Auto and Quick

button

simultaneously.

EXTRA HOT

/ RINSE+

• With each press,

77℃extra hot,

Rinse+, 77℃

extra hot & Rinse+

is repeated.

TIME DELAY

• If you want to delay the start

of selected program, press

this button before start.

• Pressing the delay time will

increase time by 1 hour.

• The delay start time can be

adjusted from 1 hour to 19

hours.

SPRAY

INTENSITY

• With each press, the

level of water jet is

changed to “Strong”,

“Medium”, and

“Soft”.

HALF LOAD

• In case of small load, use

upper or lower rack only

to save energy.

• With each press, can

select upper or lower rack

only.

• In case you don’t select

this button, the machine

always works vario

washing, which operate

upper and lower spray

arm alternately.

POWER

• For operating, press

this button first for

power on.

• After operating, this

button automatically

switches off for safety

and energy saving.

• In case of irregular

surge disturbances to

the machine, the power

may be automatically

turned off for safety.

3828ED3001Y 2005.3.14 7:9 PM 페이지7 001 HP LaserJet 5000 Series

3.3 TEST MODE

CHECK PROGRAM(START IN THE STATE OF THE CLOSED DOOR)

BUTTON The number of

Pushing button DISPLAY Load and Checking Points DOOR

Intensive+Auto

+POWER S/W

Intensive KEY

Auto KEY

Eco KEY

Gentle KEY

Quick KEY

Spray KEY

Rinse KEY

Time Delay KEY

Half Load KEY

1 TIME

2 TIME

3 TIME

4 TIME

5 TIME

6 TIME

7 TIME

8 TIME

9 TIME

10 TIME

11 TIME

12 TIME

13 TIME

n0 All LEDs are Lighting not concerned

not concerned

closed

not concerned

closed

not concerned

Spray Intensity “Strong”LED is Lighting

Spray Intensity “Medium”LED is Lighting

Spray Intensity “Soft”LED is Lighting

Extra Hot LED is Lighting

Rinse + LED is Lighting

Child lock LED ( ) is Lighting

Rinse refill LED ( ) is Lighting

none

Half Load “Upper”LED is Lighting

Half Load “Lower”LED is Lighting

none

Washing moter

Drain Pump

Inlet valve

Dispenser

Heater(for 10 sec.)

Fan Moter

none

Thermister

Lower Nozzle

Upper Nozzle

AUTO OFF S/W

Temperature

Pre-Wash KEY 1 TIME 55

- 8 -

3828ED3001Y 2005.3.14 7:9 PM 페이지8 001 HP LaserJet 5000 Series

- 9 -

4. PARTS NAME

1. Control Panel

2. Handle deco

3. Door Handle

4. Front Cover

5. Lower Cover

6. Side Cabinet deco

7. Power Switch

8. Drain hose

9. Inlet Valve ASM

10. Power Cord

11. Adjust Leg

12. Upper Rack

13. Cutlery Rack

14. Detergent & Rinse Aid Dispenser

15. Vapor Vent Cover

16. Upper Spray Arm

17. Lower Spray Arm

18. Filter ASM

19. Lower Rack

3828ED3001Y 2005.3.14 7:9 PM 페이지9 001 HP LaserJet 5000 Series

- 10 -

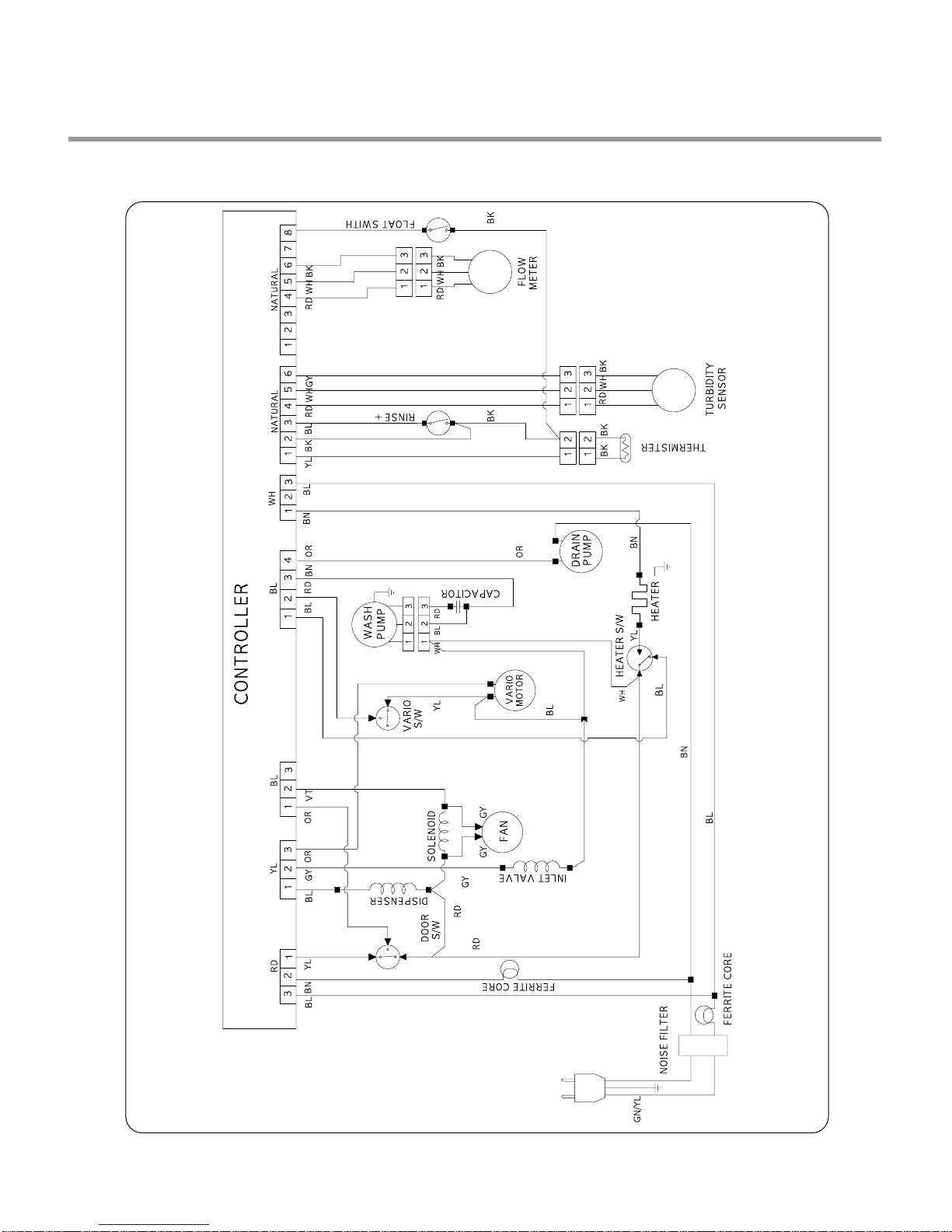

5. WIRING DIAGRAM

1. Fan dry

3828ED3001Y 2005.3.14 7:9 PM 페이지10 001 HP LaserJet 5000 Series

- 11 -

6. PROGRAM CHART(SCHEMATIC DIAGRAM)

3828ED3001Y 2005.3.14 7:9 PM 페이지11 001 HP LaserJet 5000 Series
