OWNER’S MANUAL

MONITOR SIGNAGE

72WS70MS

Please read this manual carefully before operating the your set and

retain it for future reference.

MONITOR SIGNAGE MODELS

ENG

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

4LICENSES

5ASSEMBLING AND

PREPARING

5 Accessories

6 Parts and buttons

7 Portrait Layout

8 Mounting on a wall

9REMOTE CONTROL

11 USING THE MONITOR

11 Connecting to a PC

12 - RGB connection

12 - DVI-D connection

13 - HDMI connection

13 - Display Port connection

14 Adjusting the screen

14 - Selecting an image mode

14 - Customizing image options

15 - Customizing PC display options

15 Adjusting the sound

15 - Selecting an sound mode

16 - Customizing sound options

16 Using additional options

16 - Adjusting aspect ratio

18 - Using the input list

19 ENTERTAINMENT

19 - Connecting to a wired network

20 - Network Status

21 - Connecting USB storage devices

22 - Browsing files

23 - Viewing movies

27 - Viewing photos

30 - Listening to music

32 - Viewing the Contents List

33 - DivX® VOD Guide

34 - Using PIP/PBP

36 CUSTOMIZING SETTINGS

36 Accessing main menus

37 - PICTURE settings

40 - AUDIO settings

41 - TIME settings

42 - OPTION settings

47 - NETWORK settings

48 MAKING CONNECTIONS

49 Connecting to a HD receiver, DVD,

Camcorder, Camera, Gaming Device or

VCR player

49 - HDMI connection

49 - Component connection

50 - AV(CVBS) connection

50 Connecting to a USB

51 Connecting to the LAN

51 - LAN connection

52 Daisy Chain Monitors

53 TROUBLESHOOTING

56 SPECIFICATIONS

ENG

ENGLISH

TABLE OF CONTENTS

60 IR CODES

61 CONTROLLING THE MULTIPLE

PRODUCT

61 Connecting the cable

61 RS-232C Configurations

61 Communication Parameter

62 Command reference list

64 Transmission / Receiving protocol

ENGLISH

4LICENSES

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks

or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certified device must be registered in order to play purchased DivX Video-

on-Demand (VOD) movies. To obtain your registration code, locate the

DivX VOD section in your device setup menu. Go to vod.divx.com for more

information on how to complete your registration.

DivX Certified to play DivX video up to HD 1080p, including premium

content.

DivX , DivX Certified and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Accessories

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

Remote control and Batteries Power Cord

CD (Owner's Manual)

/ Card

D-sub 15 pin signal cable

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

NOTE

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

POWER

S.MENU

BACK TILE

ON OFF

EXIT

ENG

ENGLISH

ASSEMBLING AND PREPARING

yYou can set the Power indicator to on or off by selecting OPTION in the main menu.

Parts and buttons

Screen Marks Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Adjust the up and down.

Adjusts the volume level.

AUTO/SET Displays the current signal and mode.

Press this button to adjust the screen automatically (available only in RGB mode)

/ITurns the power on or off.

IR Receiver This is where the unit receives signals from the remote control.

Power Indicator This Indicator lights up red when the display operates normally(on mode). If the display

In sleep mode (In Power Saving mode), this indicator color changes to amber.

NOTE

Connection panel

IR Receiver /

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Screen Buttons

Screen Marks

ENG

ENGLISH

ASSEMBLING AND PREPARING

Portrait Layout

- Only on some models.

When installing in a Portrait Layout, rotate the

monitor clockwise 90 degrees (when facing the

screen).

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall

For proper ventilation, allow a clearance of 10

cm on each side and from the wall. Detailed

installation instructions are available from your

dealer, see the optional Tilt Wall Mounting Bracket

Installation and Setup Guide.

10 cm

10 cm 10 cm

If you intend to mount the Monitor to a wall, attach

Wall mounting interface (optional parts) to the back

of the set.

When you install the Monitor using the wall

mounting interface (optional parts), attach it

carefully so it will not fall.

1Please, Use the screw and wall mount interface

in accordance with VESA Standards.

2If you use screw longer than standard, the

monitor might be damaged internally.

3If you use improper screw, the product might

be damaged and drop from mounted position.

In this case, LG Electronics is not responsible

for it.

4VESA compatible.

5Please use VESA standard as below.

y785mm(31 inch) or greater

* Fastening screw: Diameter 6.0 mm x Pitch 1.0

mm x Length 10 mm

yDisconnect the power before installing or

moving the monitor. Otherwise electric shock

may occur.

yIf you install the Monitor on a ceiling or

slanted wall, it may fall and result in severe

injury. Use an authorized LG wall mount

and contact the local dealer or qualified

personnel.

yDo not over tighten the screws as this may

cause damage to the Monitor and void your

warranty.

yUse screws and wall mounts that meet the

VESA standard. Any damages or injuries by

misuse or using an improper accessory are

not covered by the warranty.

yUse screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit includes an installation

manual and necessary parts.

yThe wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

yThe length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

yFor more information, refer to the instructions

supplied with the wall mount.

CAUTION

NOTE

ENG

ENGLISH

REMOTE CONTROL

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

BACK TILE

ON OFF

EXIT

POWER

/I(POWER)

Turns the Monitor on or off.

MONITOR ON / OFF

Turn off the monitor and then

turn it back on.

1/a/A Button

This button selection is not

applicable.

ENERGY SAVING

Adjusts the brightness of

the screen to reduce energy

consumption.

INPUT

Selects the input mode.

Number and Alphabet buttons

Enters numbers.

The alphabet selection is not

applicable.

CLEAR

This button selection is not

applicable.

PSM

Selects the Picture Status

Mode.

MUTE

Mutes all sounds.

ARC

Selects the Aspect Ratio

Mode.

Volume Up / Down

Adjusts the volume level.

BRIGHTNESS Key

Adjust the brightness by

pressing the Up and Down

buttons on the remote control.

In USB mode, the OSD menu

has the Page function to move

to the next file list.

The descriptions in this manual are based on the buttons of the remote control. Please read this manual

carefully and use the Monitor correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the

label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

yDo not mix old and new batteries, as this

may damage the remote control.

yMake sure to point the remote control at the

remote control sensor on the Monitor.

CAUTION

ENG

ENGLISH

REMOTE CONTROL

INPUT

ENERGY

SAVING

MARK

ARC

OFF



. , !



ABC



DEF



GHI



JKL



MNO



PQRS



TUV



1/a/A



- * #

WXYZ

CLEAR

S.MENU

MONITOR

PSM

AUTO

MUTE

BRIGHT

NESS

BACK TILE

ON OFF

EXIT

POWER

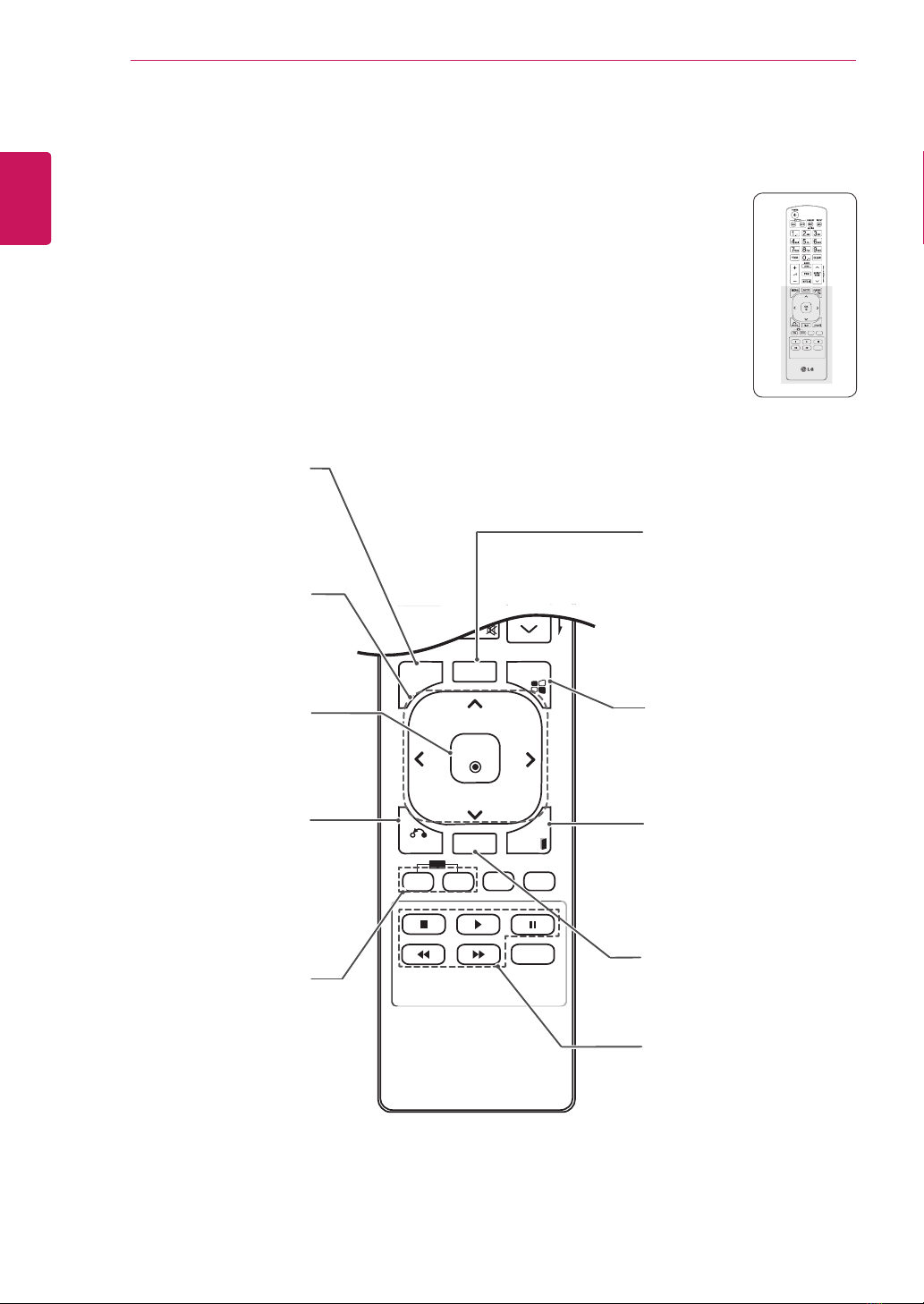

S.MENU

(SuperSign Menu Key)

This button selection is not

applicable.

EXIT

Clears all on-screen displays

and returns to Monitor

viewing from any menu.

TILE

Selects the TILE Mode.

MENU (See p.36)

Accesses the main menus

or saves your input and exit

menus.

Navigation buttons

Scrolls through menus or

options.

Selects menus or options and

confirms your input.

BACK

Allows the user to move back

one step.

USB Menu control buttons

Controls media playback.

ID ON/OFF

When more than one monitor

is present in the same room,

this allows you to control them

individually.

AUTO

Automatically adjusts picture

position and minimizes image

instability.(RGB input only)
