www.lg.com

MONITOR

SIGNAGE

OWNER’S MANUAL

Please read this manual carefully before operating the your set and retain it

for future reference.

42LS75A

49LS75A

55LS75A

42LS73B

49LS73B

55LS73B

2TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 ASSEMBLY AND

PREPARATION

4 Accessories

5 Optional Accessories

7 Parts and Buttons

8 Connecting the Stand

8 Connecting the Speakers

9 Connecting IR & Light Sensor

9 Portrait Layout

10 Connecting the OPS

12 Attaching and Removing the LG

Logo Bracket

13 Installing on a Wall

15 REMOTE CONTROL

17 MAKING CONNECTIONS

17 Connecting to a PC

18 External Device Connection

20 Daisy Chain Monitors

21 - Using the Multi Display Mode

Function

22 Using the Input List

22 ENTERTAINMENT

22 Using My Media

22 - Connecting USB Storage Devices

24 - Files Supported by My Media

27 - Viewing Videos

29 - Viewing Photos

29 - Listening to Music

30 - Settings

31 SuperSign Contents

31 Information

31 File Manager

32 PICTURE ID Settings

33 USER SETTINGS

33 Main Menu Settings

33 - Quick Settings

34 - Picture Settings

38 - Sound Settings

39 - Network Settings

41 - General Settings

43 TROUBLESHOOTING

45 PRODUCT SPECIFICATIONS

55 IR CODES

57 TO CONTROL MULTIPLE

PRODUCTS

57 Connecting the Cable

57 RS-232C Configurations

57 Communication Parameter

58 Command Reference List

60 Transmission/Reception Protocol

LICENSES

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in

the United States and other countries.

This DivX Certified® device has passed rigorous testing to ensure it plays

DivX® video. To play purchased DivX movies, first register your device at vod.

divx.com. Find your registration code in the DivX VOD section of your device

setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC

and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

•The warranty will not cover any damage caused by using the product in an excessively dusty

environment.

NOTE

For DTS patents, see http://patents.dts.com. Manufactured under license from

DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are

registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. ©

4ASSEMBLY AND PREPARATION

ENGLISH

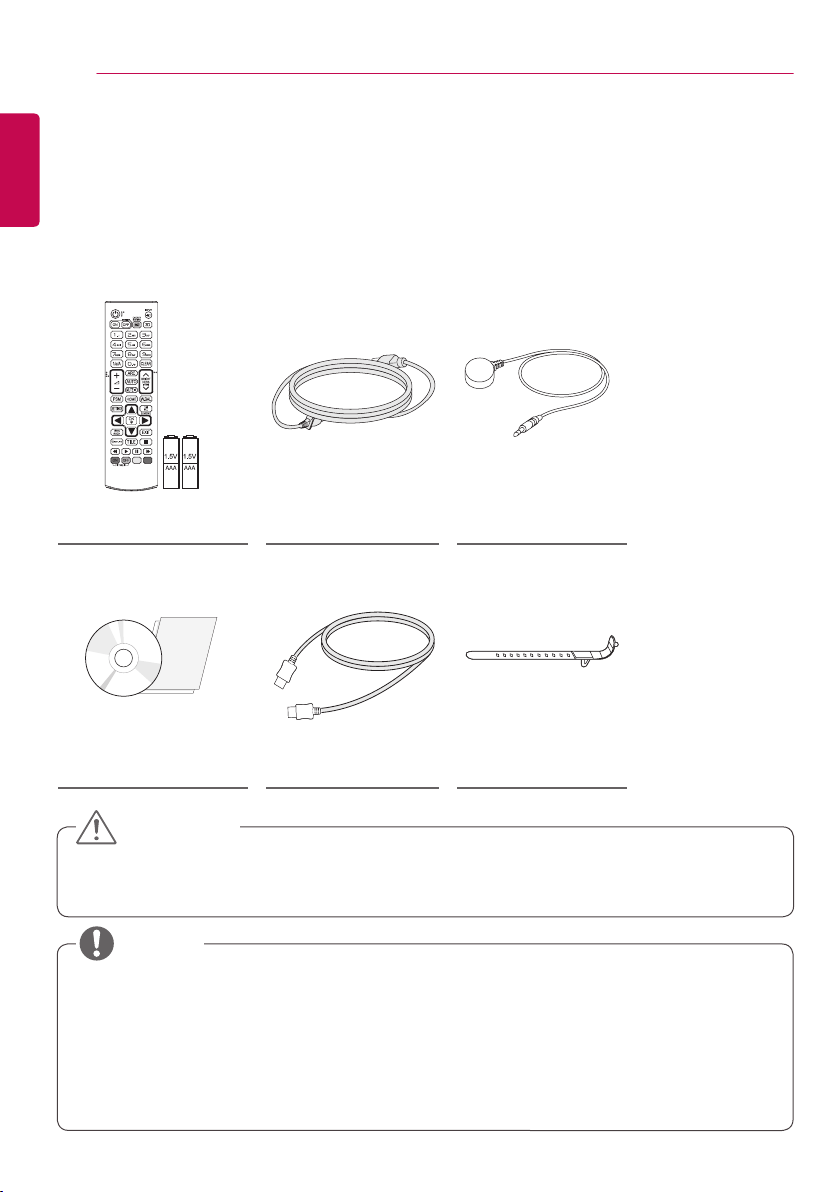

Accessories

Please check whether all the components are included in the box before using the product. If there are any

missing components, contact the retail store where you purchased the product. The illustrations in this manual

may differ from the actual product and accessories.

Remote Control,

Batteries (AAA) 2 EA Power Cord IR & Light Sensor

CD (Owner’s Manual) /

Card HDMI Cable Mounting Cable Tie

ASSEMBLY AND PREPARATION

•Always use genuine components to ensure safety and product performance.

•The product warranty will not cover damage or injury caused by the use of counterfeit components.

•The accessories provided with your product may vary depending on the model or region.

•Product specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

•SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest

software for your model.

CAUTION

NOTE

ASSEMBLY AND PREPARATION

ENGLISH

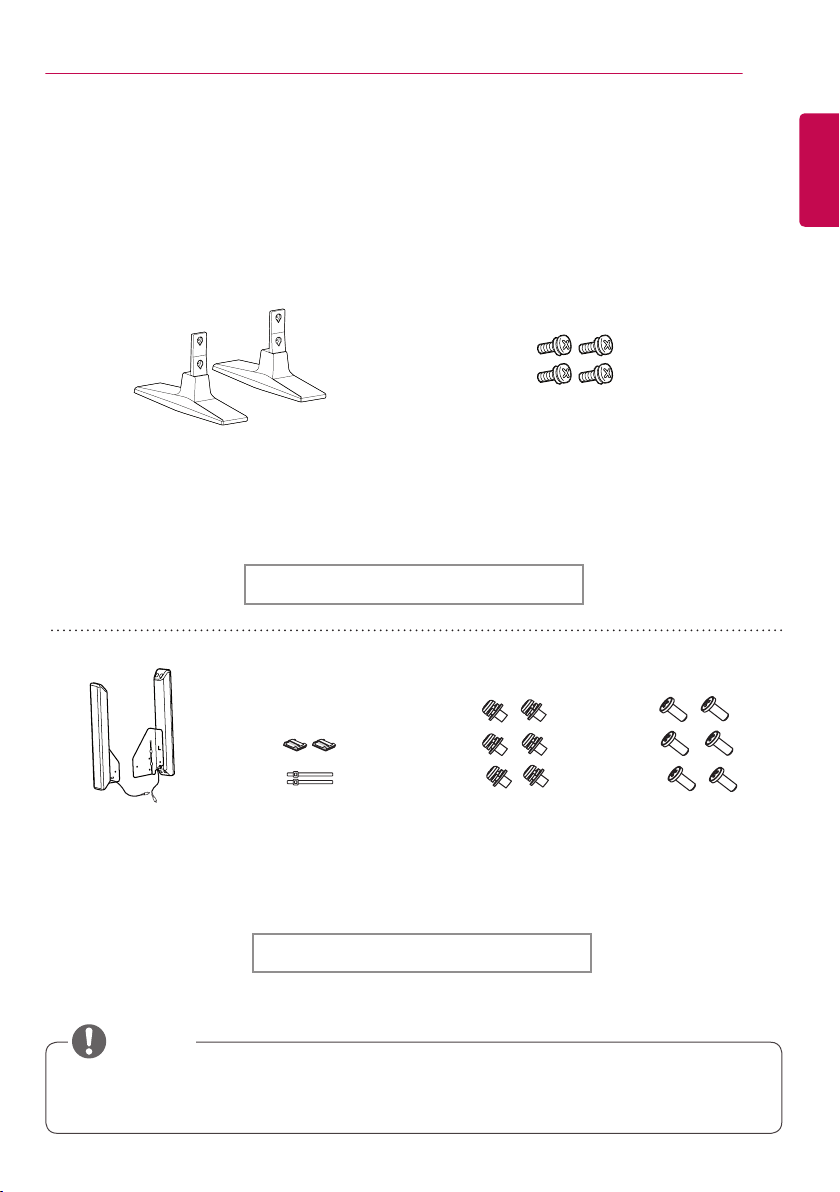

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the

product, and new accessories may be added. The illustrations in this manual may differ from the actual

product and accessories.

•Cable holder/Cable tie may not be available in some areas or for some models.

•Optional accessories are available for some models. If necessary, please purchase them separately.

Cable Holders/

Cable Ties

Screws

Diameter 4.0 mm x Pitch 0.7 mm x

Length 10 mm (including spring washer)

Speakers

SP-2100

Stand kit

Speaker kit

Screws

Diameter 4.0 mm x Pitch

0.7 mm x Length 8 mm

(including spring washer)

Screws

Diameter 4.0 mm x Pitch

1.6 mm x Length 10 mm

NOTE

Stand

ST-200T

6ASSEMBLY AND PREPARATION

ENGLISH

Screws

Card (Easy Setup Guide)

KT-OPSA

OPS kit

•Optional accessories are available for some models. If necessary, please purchase them separately.

•Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.

NOTE

Connecting

Cable

Power Cord

Pixel sensor kit

KT-SP0

Wi-Fi Dongle kit

AN-WF500

ASSEMBLY AND PREPARATION

ENGLISH

PIXEL

SENSOR

IR&LIGHT

SENSOR

3.3V 0.25mA

___

---

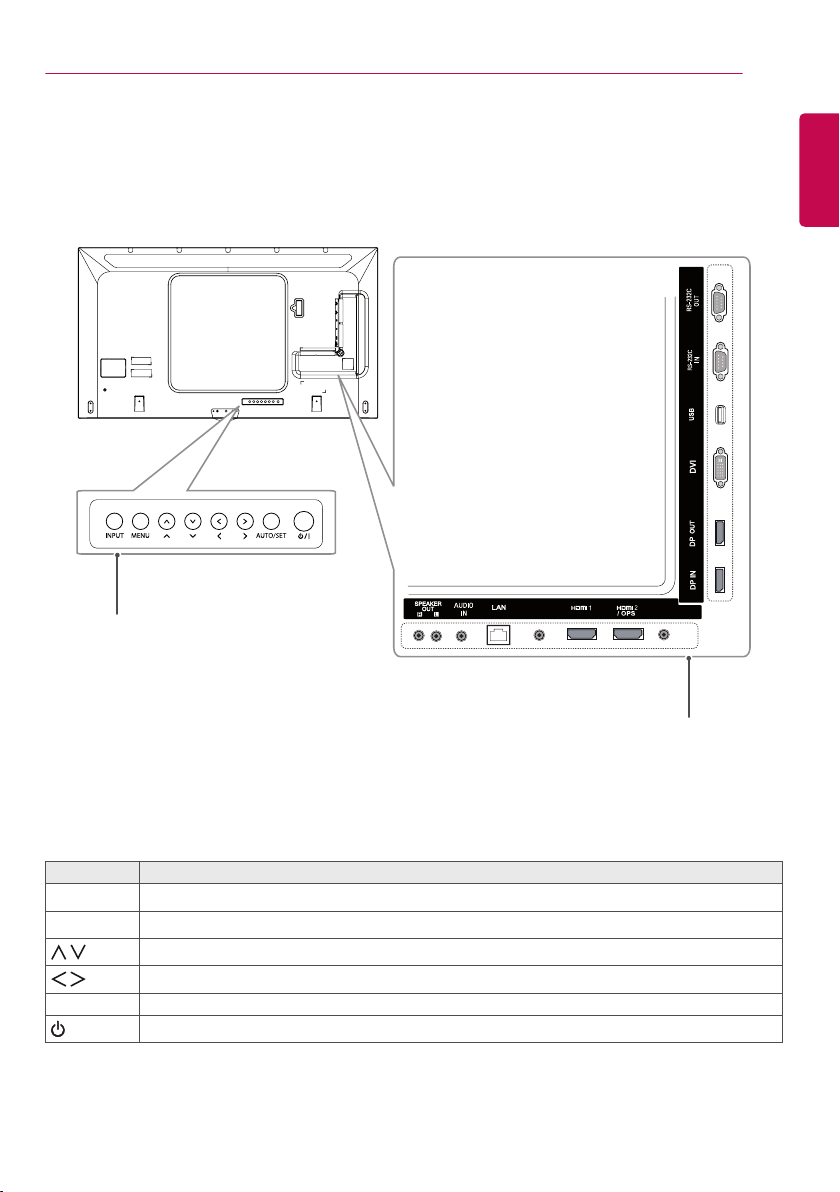

Parts and Buttons

Connection

Panel

Buttons

Buttons Description

INPUT Changes the input source.

MENU Accesses the main menus, or saves your input and exits the menus.

Adjust the up and down.

Moves left and right.

AUTO/SET Displays the current signal and mode.

/ITurns the power on or off.

8ASSEMBLY AND PREPARATION

ENGLISH

2Use the screws to secure the stand to the

back of the product as shown below.

Connecting the Stand

- For certain models only.

- The image may be different according to the

model

1Place a soft cloth on the table and place the

product with the screen facing downward.

Connecting the Speakers

- For certain models only.

- The image may be different according to the

model.

1Connect an input signal cable before

installing the speakers.

3Connect the speaker cables noting the

correct polarity. Use cable holders and cable

ties to organize the speaker cables.

2Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

ASSEMBLY AND PREPARATION

ENGLISH

Connecting IR & Light Sensor

When you connect the cable to the product,

the feature for receiving remote control signals

is activated. The IR & light sensor is magnetic.

Attach it to the front edge of the product for use.

[Front]

PIXEL

SENSOR

IR&LIGHT

SENSOR

3.3V 0.25mA

___

---

CAUTION

Portrait Layout

When installing in a portrait layout, rotate the

monitor counterclockwise 90 degrees (when

facing the screen).

The Kensington security system connector is

located at the back of the monitor. For more

information on installation and use of this

system, refer to the manual provided with the

Kensington security system or visit

http://www.

kensington.com

Connect the Kensington security system cable

between the monitor and a table.

Using Kensington Lock

•The Kensington security system is optional.

You can obtain additional accessories from

most electronics retail stores.

NOTE

•Please turn off the power before removing

the cable. Connecting or removing the

speaker cable while turned on may result in

no sound.

NOTE

10 ASSEMBLY AND PREPARATION

ENGLISH

OPS Hole Cover

Connector on

the KT-OPSA Connector inside the set

Connecting the OPS

- For certain models only.

- The image may be different according to the

model.

1 Lay a clean cloth on the floor, put the

monitor on it with the screen facing

downward, and then remove the screws

from the OPS hole cover on the rear of the

monitor with a screwdriver.

2Lift the left side (round part) of the OPS hole

cover. Remove the cover.

3 Align the KT-OPSA along the four screw

holes on the rear of the set and attach it

to the rear of the set using the four screws

provided.

4 Open the top cover of the KT-OPSA and

connect the cable provided to the connector

inside the set and the connector on the KT-

OPSA.

KT-OPSA
