LG 43UH7N-E Manual de usuario

OWNER’S MANUAL

LG Digital Signage

(MONITOR SIGNAGE)

www.lg.com

Please read the user manual before using this product to ensure

safe and convenient use.

43UH5N-E

43UH7N-E

49UH5N-E

49UH7N-E

55UH5N-E

55UH7N-E

65UH5N-E

65UH7N-E

ENGLISH

TABLE OF CONTENTS

BASIC .............................................3

- Checking the Accessories ............................................3

- Learning the Buttons......................................................4

GETTING READY ...........................5

- Connecting the IR Sensors..........................................5

- Kensington Lock Device ................................................6

CHECKING BEFORE

INSTALLATION ..............................7

- Installation Orientation .................................................7

- Installation Location........................................................8

- Wall Mount Holder ..........................................................9

PRECAUTIONS FOR USE............ 10

- Dust.......................................................................................10

- Afterimage ........................................................................10

PRODUCT SPECIFICATIONS...... 12

LICENCE...................................... 18

ENGLISH

WARNING - This product is not intended for household use.

BASIC

NOTE

•The accessories provided with your product may vary depending on the model or region.

•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product

functions.

•SuperSign Software & Manual

- Visit https://partner.lge.com to download the latest SuperSign software and manual.

Checking the Accessories

CABLE

MANAGEMENT

CABLE

MANAGEMENT

X 2

43/49/55/65UH7N-E

Depending on country

ENGLISH

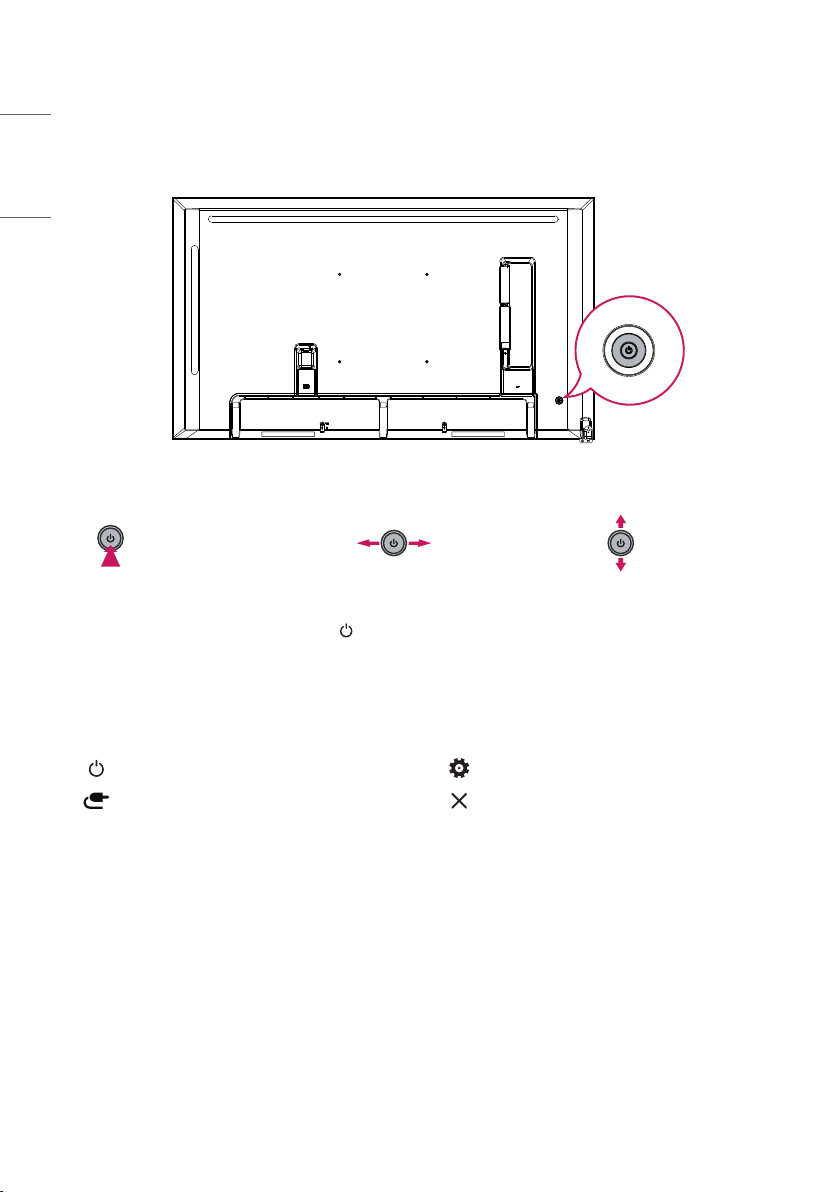

Learning the Buttons

The illustrations may differ depending on the model.

Power On (Press)

Quick Menu (Press 1)

Menu Selection (Press 2)

Power Off 3 (Press and Hold)

Volume Control

Menu Control 2Menu Control 2

1 When the monitor is turned on, press the button one time.

2 You can use the function when you control menu.

3 All running apps will close.

Quick Menu

Turns the power off. Accesses the main menu.

Changes the input source. Close the quick menu.

ENGLISH

GETTING READY

Connecting the IR Sensors

Connecting the cable to the product allows it to receive signals from the remote control.

Rotate the IR sensor according to horizontal or vertical use.

- The illustrations may differ depending on the model.

- Remove the protective cable film before use.

Back

Front

Back

Horizontal Use (Default Mount) Vertical Use

You can hide the IR sensor.

ENGLISH

Kensington Lock Device

(This feature applies only to some models.)

The Kensington lock device connector is located on the back of the monitor. For more information on installation and

use, refer to the user manual provided with the locking device.

Connect the Kensington security system cable between the monitor and a table.

NOTE

•The Kensington lock device is an optional specification.

•This is a general illustration of installation and may look different from the product held by the customer.

ENGLISH

CHECKING BEFORE INSTALLATION

We are not responsible for product damage caused by failure to follow the guide.

Installation Orientation

Using Vertically

When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen.

Tilt Angle

30°

Ceiling, Floor Orientation

ENGLISH

Installation Location

We are not responsible for product damage caused by failure to follow the guide.

Indoor

Installing on a Wall

13 mm (0.5inches) (Slim Wall Mount, optional)

26 mm (1.0inches) (Normal Wall Mount, optional)

A : 13mm (0.5inches) or more

•The warranty will not cover any damage

caused by using the product in direct sunlight

on the front panel.

•Leave sufficient space around the product so

that the ventilation vents of the product are

not blocked.

Installing on a Recessed Wall

A : 13mm (0.5inches) or more

B : 50mm (1.9inches) or more

C : 70mm (2.7inches) or more

•The warranty will not cover any damage

caused by using the product in direct sunlight

on the front panel.

Outdoor

Outdoor Enclosed

ENGLISH

Wall Mount Holder

To install the monitor on a wall, attach a wall mount holder (optional) to the back of the monitor.

Take caution, and ensure that the wall mount holder (optional) is securely fixed to the monitor and to the wall.

The VESA dimensions of the wall mount by model are as follows.

A B C

(mm (inches))

Length (Maximum)

(mm (inches))

43UH5N-E

43UH7N-E LSW240* 200 x 200

(7.8 x 7.8) M6 14

(0.5)

49UH5N-E

49UH7N-E

OLW480* 300 x 300

(11.8 x 11.8) M6 14

(0.5)

55UH5N-E

55UH7N-E

65UH5N-E

65UH7N-E

A B C

(mm (inches))

Length (Maximum)

(mm (inches))

43UH5N-E

43UH7N-E WB21LM* 200

(7.8) M6 14

(0.5)

49UH5N-E

49UH7N-E

WB21LM* 300

(11.8) M6 14

(0.5)

55UH5N-E

55UH7N-E

65UH5N-E

65UH7N-E

CAUTION

•Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.

•If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.

•Damage to the monitor by tightening the screws too tightly may void your warranty.

•Use screws and wall mount plates conforming to VESA standards. Breakage or personal injury due to use or misuse

of inappropriate components is not covered by the warranty of this product.

NOTE

•Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.

•For more information on installation, please refer to the user manual for the wall mount.

ENGLISH

PRECAUTIONS FOR USE

Dust

The warranty will not cover any damage caused by using the product in an excessively dusty environment.

Afterimage

•After-image appears when the product is turned off.

- Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen-

saver function.

- Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause

an afterimage. This is normal due to the display characteristics of this product.

•When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between

the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time

and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called

an afterimage.

•Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed

for a long time. The following are operational recommendations for reducing the occurrence of afterimages when

using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better

for preventing afterimages.
