LG HB7522A Manual de usuario

Built-In Gas Cooktops

Installation and Operating Instructions

HB7522A

To avoid the risk of accidents or damage to the Gas Cooktops,

it is essential to read these operating instructions

before it is installed or used for the first time.

And please keep this manual for later reference.

P/No.: MFL62060302

http://au.lge.com (Australia)

http://nz.lge.com (New Zealand)

Contents

Introduction ................................................................................. 3

1. Instructions for safe and proper use ....................................... 3

Instructions for the installer ...................................................... 5

2. Positioning of the hob ............................................................. 5

3. Electrical connection .............................................................. 9

4. Gas connection .................................................................... 10

5. Adaptation to different types of gas ...................................... 12

6. Final operations .................................................................... 15

Instructions for the user .......................................................... 17

7. Using the hob ....................................................................... 17

8. Cleaning and maintenance .................................................. 19

These instructions are valid only for end user countries whose

identification symbols appear on the cover of this manual.

INSTRUCTIONS FOR THE INSTALLER: these are for the

authorised person who must carry out a suitable check of the gas

system, install the appliance, set it functioning and carry out an

inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for

cleaning and maintenance of the appliance.

Introduction

1. Instructions for safe and proper use

This manual is an integral part of the appliance and therefore must

be kept in its entirety and in an accessible place for the whole

working life of the cooking hob. We advise reading this manual and

all the instructions therein before using the cooking hob. Also keep

the series of nozzles supplied. Installation

must be carried out by qualified personnel in accordance with the

regulations in force. This appliance is intended for domestic uses

and conforms to current regulations in force. The appliance has

been built to carry out the following functions: Cooking and

heating-up of food. All other uses are considered improper.

The manufacturer declines all responsibility for improper use.

Do not leave the packing in the home environment. Separate the

various waste materials and take them to the nearest special

garbage collection centre.

It is obligatory for the electrical system to be grounded according to

the methods required by safety rules.

The plug to be connected to the power cable and the socket must

be the same type and must conform to current regulations.

Never unplug by pulling on the cable.

Immediately after installation carry out a brief inspection test of

the cooking hob, following the instructions below. Should the

appliance not function, disconnect it from the supply and call the

nearest technical assistance centre.

Never attempt to repair the appliance.

Always check that the control knobs are in the position

“ZERO”(OFF) when you finish using the hob.

Introduction

The identification plate, with technical data, serial number and

marking is clearly visible under the casing.

The plate on the casing must not be removed.

Before connecting the device, make sure that it has been regulated for

the type of gas that will feed it, checking the label under the casing.

Do not put pans without perfectly smooth and flat bottoms on the

cooking hob grids.

Do not use recipients or griddle plates that extend beyond the

external perimeter of the hob.

The hob is to be used by adults only. Do not let unsupervised

children play with the hob.

This appliance is designed for cooking food and it shall not be used

as a space heater.

Do not spray aerosols in the vicinity of this appliance while it is in

operation.

WHERE THIS APPLIANCE IS INSTALLED IN MARINE

CRAFT OR IN CARAVANS, IT SHALL NOT BE USED AS A

SPACE HEATER.

The manufacturer declines all responsibility for damage to

persons or things caused by non-observance of the above

prescriptions or by interference with any part of the appliance or

by the use of non-original spares.

DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE

APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE.

DO NOT MODIFY THIS APPLIANCE

Instructions for the installer

2. Positioning of hob

This appliance shall be installed only by authorized persons in

accordance with AS5601 - Gas Installations, any statutory

regulations, local gas regulations, municipal building codes,

electrical wiring regulations, and the manufacturer's installation

instructions.

Clearance around the appliance must comply with the requirements

of AS5601.

The following operation requires building and/or carpentry work so

must be carried out by a competent tradesman. Installation can be

carried out on various materials such as masonry, metal, solid wood

or plastic laminated wood as long as they are heat resistant

(T 90°C). Never use silicone or other insulating products when

installing the appliance; use only the rubber gasket provided.

2.1 Attachment to support structure

Create an opening with the dimensions

shown in the figure in the top surface of

the counter, keeping a minimum distance

of 50 mm from the rear border.

This device is classified “type Y” as

regards risks against fire and it can be set

adjacent to walls that are higher than the work surface, provided

that a distance of 145 mm. is respected (as shown in the figure) to

prevent damage due to overheating. Make sure there is a minimum

of 750 mm between the hot plate flames and any shelf that may be

installed directly above them. Carefully position the insulation

gasket (supplied) on the external perimeter of the hole made in the

top surface (see figures below) and try to make it stick to the entire

surface by applying light pressure with your hands. Refer to the

coordinates shown in the figure, bearing in mind that sides Ashould

be adjacent to the hole. Secure the hob to the counter with brackets

B(supplied). Carefully trim any excess from border Cof the gasket.

Instructions for the installer

The distances in the following drawing refer to the hole on the

inner side of the gasket.

In case of installation on a hollow compartment with doors, a

separating panel has to be placed under the hob. Keep a minimum

distance of 10 mm between the bottom of the unit and the panel

surface. The panel has to be easily removable to allow access in

the event of technical service.

Overall dimensions: location of gas and electrical connection points

(all measures in mm).

30 cm 70 cm

hob hob

A 60 120

B 90 90

C 30 30

D 90 70

Dimension A, C : Clearances are

these for the hose assembly

2.2 Clearance above and around domestic appliances

Extract from AS5601

REQUIREMENTS

1 Overhead clearances – (Measurement A)

Range hoods and exhaust fans shall be installed in accordance with

the manufacturer’s instructions. However, in no case shall the

clearance between the highest part of the hob of the cooking

appliance and a range hood be less than 600 mm or, for an overhead

exhaust fan, 750 mm.

Any other downward facing combustible surface less than 600 mm

above the highest part of the hob shall be protected for the full width

and depth of the cooking surface area in accordance with Clause

5.12.1.2. However, in no case shall this clearance to any surface be

less than 450 mm.

Instructions for the installer

2 Side clearances – (Measurements B & C)

Where B, measured from the periphery of the nearest burner to any

vertical combustible surface, is less than 200 mm, the surface shall

be protected in accordance with Clause 5.12.1.2 to a height C of not

less than 150 mm above the hob for the full dimension (width or

depth) of the cooking surface area. Where the cooking appliance is

fitted with a ‘splashback’, protection of the rear wall is not required.

3 Additional requirements for Freestanding and Elevated Cooking

Appliaces – (Measurements D & E)

Where D, the distance from the periphery of the nearest burner to a

horizontal combustible surface is less than 200 mm, then E shall be

10 mm or more, or the horizontal surface shall be above the trivet.

See insets above.

NOTES

1 Requirement 3 does not apply to a freestanding or elevated

cooking appliance which is designed to prevent flames or the

cooking vessels from extending beyond the periphery of the

appliance.

2 The ‘cooking surface area’ is defined as that part of the

appliance where cooking normally takes place and does not

include those parts of the appliance containing control knobs.

3 For definition of hob, see Clause 1.4.64.

4 For definition of trivet, see Clause 1.4.109.

5 Consideration is to be given to window treatments when

located near cooking appliances. See Clause 5.3.4.

3. Electrical connection

Make sure that the voltage and capacity of the power line conform

to the data shown on the plate located under the casing. Do not

remove this plate for any reason.

The plug on the end of the supply cable and the wall socket must

be the same type and conform to the current electrical system

regulations. Check that the power line is adequately grounded.

On the power line, install an omnipolar cut-off device with contact

cut-off distance greater than or equal to 3 mm, located in an easily

accessible position near the unit.

Do not use reducers, adapters or shunts.

If the power cable is replaced, the wire section on the new cable

must not be less than 0.75 mm2 (3 x 0.75 cable), keeping in

mind that the end to be connected to the hob must have the

ground wire (yellow-green) longer by at least 20 mm. Use only

H05V2V2-F cable or similar which has a maximum temperature

of 90°C. Any replacement needed should be carried out by a

specialised technician who should make the mains connections

according to the following diagram.

L = brown

N = blue

= yellow-green

The manufacturer will not be liable for any damage to

persons or property caused by non-observance of the above

instructions or deriving from the tampering of even a single part

of the hob.

Instructions for the installer

4. Gas connection

Use pipe-joint compound made for use with Natural U.L.P. gas.

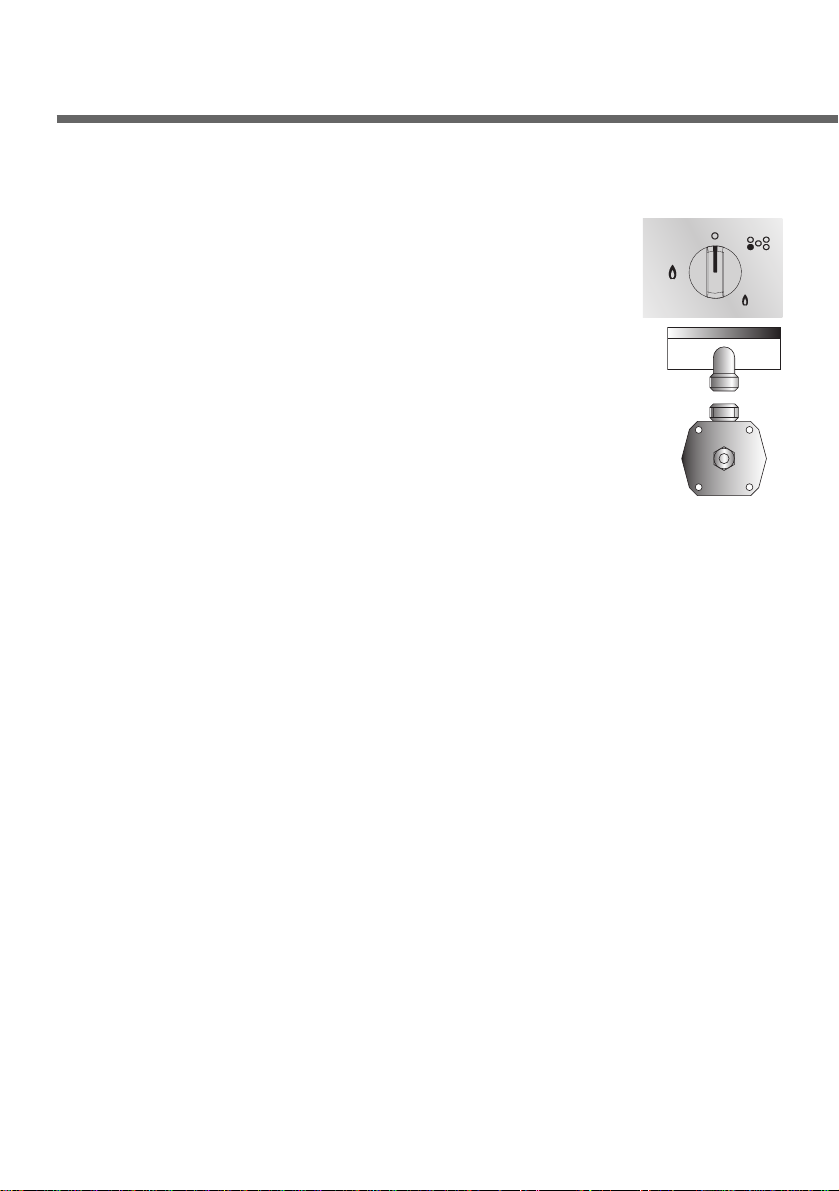

The burner it controls is shown next to each knob (the

example corresponds to the front left burner).

This appliance is suitable for installation with Natural

Gas or ULPG (propane). Refer to page 12 for the

relevant burner pressure and appropriate injector sizes.

When the appliance is to be connected to Natural Gas

then the pressure regulator supplied must be fitted to the

gas inlet. A test point (for checking the gas pressure) is

supplied either with the regulator or as a separate fitting

in the case of ULPG (propane) appliances.

Connection of the appliance to the gas supply must be in

accordance with the requirements of AS5601. A 1/2” BSP connector

at the inlet is recommended and the gas supply line to the

appliance must be of adequate length to allow sufficient withdrawal

of appliance for service or disconnection and be:

1. annealed copper pipe or;

2. flexible hose according to AS/NZ1869 & be at least Class

“B”, 10 mm diameter.

The cooker must be installed with provision to allow the gas to be

turned off and disconnected for servicing and removal of the appliance

as required from the gas supply. Before the cooker is operated make

certain all relevant parts are placed in the correct position.

When the installation is completed the installation connections of

cooker will require to be leak tested, the burner operating pressure

and flame checked and adjusted.

Warranty service calls do not cover these adjustments!

To check the operating pressure of the appliance it is recommended

at least 2 large size burners are used. Ensure appliance is secured

to wall when installation is completed.

N.G. The regulator supplied must be fitted to the 1/2BSP thread at

the rear of the appliance. An approved manual shut-off valve must

Tabla de contenidos

Otros manuales de Placa de cocina de LG

LG HB6422BRU Manual de usuario

LG CBIH3013BE Manual de usuario

LG LCE30845 - 30in Induction Cooktop Manual de usuario

LG LCE3681ST - 36in Smoothtop Electric Cooktop 5 Steady Heat... Manual de instrucciones

LG HB6422BGF Manual de usuario

LG LSCG367ST Manual de usuario

LG Studio LSCE305ST Manual de usuario

LG CBGS3628 Series Manual de usuario

LG LCE30845 - 30in Induction Cooktop Manual de usuario

LG LCE3010 Manual de instrucciones

LG Studio LSCE365ST Manual de usuario

LG LSCG307 Series Manual de usuario

LG LCE3610SB Manual de usuario

LG LCE3081ST - 30in Smoothtop Electric Cooktop 5 Steady Heat... Manual de instrucciones

LG CBIS3618B Manual de usuario

LG LCG3691ST - 36" Gas Cooktop Manual de usuario

LG Studio LSCE365ST Manual de usuario

LG CBIS3618BE Manual de usuario

LG LCE3010SB Manual de usuario

LG LCG3691ST - 36" Gas Cooktop Manual de usuario

LG Studio LSCI307ST Manual de usuario

LG LCG3091 Series Manual de usuario

LG LCE3081ST - 30in Smoothtop Electric Cooktop 5 Steady Heat... Manual de instrucciones

LG SIGNATURE SKSIT3601G Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Kleenmaid

Kleenmaid cooking GCTK9011 Guía de instalación

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Wolf

Wolf CI243C/B Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Miele

Miele KM 404 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario
