LG AP300AWFA Manual de usuario
www.lg.com
Owner’s Manual
Wearable Air Purifier
AP300A Series
ENGLISH
Read this owner’s manual thoroughly before operating the appliance and
keep it handy for reference at all times.
Copyright © 2020 - 2021 LG Electronics Inc. All rights reserved.
MFL71724112
Rev.01_012521
TABLE OF CONTENTS
This manual may contain images or content different from the model you purchased.
This manual is subject to revision by the manufacturer.
SAFETY PRECAUTIONS
03 Using the Product
05 Storing the Product
05 Battery Safety
UNPACKING
06 Components
07 Appliance Overview
ASSEMBLY
08 Installing the PuriCare Filters
09 Assembling the Face Guard
10 Installing the Inner Cover
CHARGING
11 Charging the Battery
11 Checking Remaining Battery Level
OPERATION
13 Turning Product On and Adjusting
Fan Speed
14 Wearing and Using the Product
MAINTENANCE
15 Filter Replacement
16 Maintaining the Face Guard
17 Cleaning the Product
17 Cleaning the Exhaust Unit
18 Maintaining the Ear Straps
18 Washing the Portable Pouch
TROUBLESHOOTING
19 Before Calling for Service
APPENDIX
20 Product Specifications
3
SAFETY PRECAUTIONS
Please make sure to read the following safety precautions as they are designed to
prevent unexpected danger and damage.
These safety precautions are divided into two sections, Warning statements and
Caution statements.
WARNING: Failure to follow the instructions laid down in this
manual may cause serious injury or death.
CAUTION: Failure to follow the instructions laid down in this
manual may cause minor injury or product damage.
Using the Product
WARNING • This product must not be used by healthcare professionals
or in hospitals as protection device.
• This is not a medical device.
• This product is an Air Purifier that protects the respiratory or-
gans from harmful particulate substances such as yellow dust
and fine dust. Do not use this product for other purposes.
• Do not use the product in a poorly ventilated area where
oxygen is not continually supplied.
• To avoid the risk of infection, do not share the product with
other users or transfer use to another person.
• Do not use or charge the product when it is wet. If the
product has been submerged, stop using the product and
contact an LG Electronics Customer Information Center.
• Do not use or store firearms, combustibles or inflammables
near the product.
• Do not disassemble or damage the product, battery or
parts. Do not use the product if the product, battery or any
part has been damaged.
• Do not use disinfectants and/or sterilizers on any part of
the product.
• Do not exercise strenuously while wearing the product.
4
• If you experience respiratory discomfort while using the prod-
uct, discontinue use and consult a physician, if needed.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of
the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• Do not operate this product while driving.
• If you detect a strange sound, a chemical or burning smell,
or smoke coming from the appliance, discontinue use
immediately, and contact an LG Electronics Customer
Information Center.
• Repair or immediately replace all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or
at either end.
• The appliance must only be supplied at safety extra low
voltage corresponding to the marking on the appliance.
• Do not allow foreign substances such as water, coffee, or
soft drinks to enter the product.
• Dispose of the packing materials safely so as to keep them
out of the reach of children.
CAUTION • Do not use strong detergents or solvents to clean the
product.
• Do not wear the product in the rain.
• Do not apply excessive impact to the product.
• Do not place obstacles around the air inlet of the product.
• If you experience skin problems while using the product,
stop using it and consult a doctor.
5
Storing the Product
WARNING • Do not place the product near a car window where it is
exposed to direct sunlight or on top of an electric pad or
heater.
• Do not place the product near humid areas such as sau-
nas, swimming pools, or bathrooms.
• Do not store the product in a place where there is a lot of
salt.
Battery Safety
WARNING • This product uses an integrated battery. Do not separate or
replace the battery. If the battery is faulty, the product and
charging accessories should be replaced by an authorized
LG service provider.
6
UNPACKING
Components
Main unit
Face guard PuriCare Filters(2EA) Inner cover(10EA)
Strap Extender Charging cable Portable pouch
7

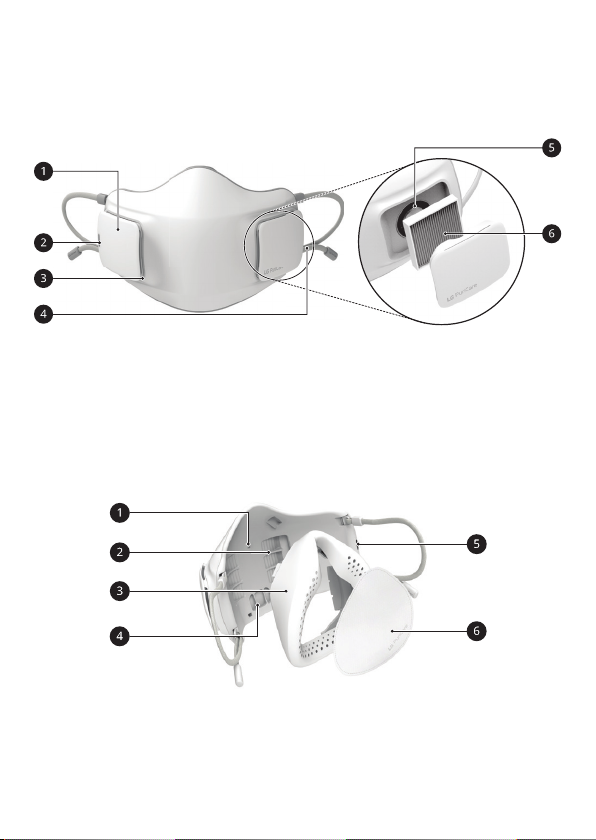

Appliance Overview
Front View
a Filter case d Ear strap
b Power button/battery indicator light eSuction fan
cAir inlet f PuriCare filter
Rear View
a Respiratory sensor dExhaust unit
bAir inlet eCharging unit
cFace guard f Inner Cover
8
Installing the PuriCare Filters
1 Separate the filter cases from the product.
• Pull the filter cases at the spots marked in Figure 1 above to separate the
cases from the product.
2 Insert the PuriCare Filters into the filter cases with the arrow on the Puri-
Care Filters facing up.
3 Align the filter cases with the grooves at the front of the product and press
the cases in until they click into place.
• Make sure to align the filter cases correctly before reassembling. The LG
PuriCare logo is on the right filter case.
NOTE
• Do not press the center of the PuriCare Filter too hard when installing the filter.
Doing so may lead to the filter blocking the air inlet.
• Pay attention to the direction indicated by the arrow on the filter when installing
the PuriCare Filter. Otherwise, product performance may be degraded.
–The horizontal or vertical direction of the PuriCare Filter does not affect
product performance.
• Ensure the product is turned off before replacing the filter.
• Make sure that the PuriCare Filters are installed before using the product. Do
not use the product without the filters in place.
Filter case
Left filter case Right filter case
1 2 3
ASSEMBLY
9
Assembling the Face Guard
1 Slide the 2 hooks at the bottom of the face guard into the slots at the
bottom of the product and press to secure.
2 Attach the 2 metal pieces at the top of the face guard to the magnets at
the top of the product.
3 Ensure that the face guard and the product are assembled correctly.
CAUTION
If the face guard and the product are not assembled correctly, product performance
may be affected due to air leakage.
Hook
Face guard
<Correct example> <Incorrect example>
Magnet
Hook
Slot
10
Installing the Inner Cover
1 Remove 1 inner cover from the inner cover packaging.
2 Align the inner cover with the top and bottom as shown, and insert it into
the face guard.
1 2
Inner cover
insertion
location
Top
Bottom
CAUTION
Do not use the Air Purifier without the inner cover installed. Without the inner cover
installed, moisture from your breath could enter the Air Purifier and cause it to fail.
