Lexmark MS510 & MS610 Series

Machine Type 4514-630, -635, -636

Service Manual

•Start diagnostics

•Maintenance

•Safety and notices

•Trademarks

•Index

October 17, 2012 www.lexmark.com

P/N 12G2826

Parts catalog

Legend

The following column headings are used in the parts catalog:

•Asm‑index—Identifies the item in the illustration.

•Part number—Identifies the unique number that correlates with the part.

•Units/mach—Refers to the number of units actually used in the base machine or product.

•Units/FRU—Refers to the number of units in a particular FRU.

•Description—A brief description of the part.

The following abbreviations are used in the parts catalog:

•NS (not shown) in the Asm‑index column indicates that the part is procurable but is not pictured in the illustration.

•PP (parts packet) in the Description column indicates that the part is contained in a parts packet.

4514-630, -635, -636

Parts catalog

262

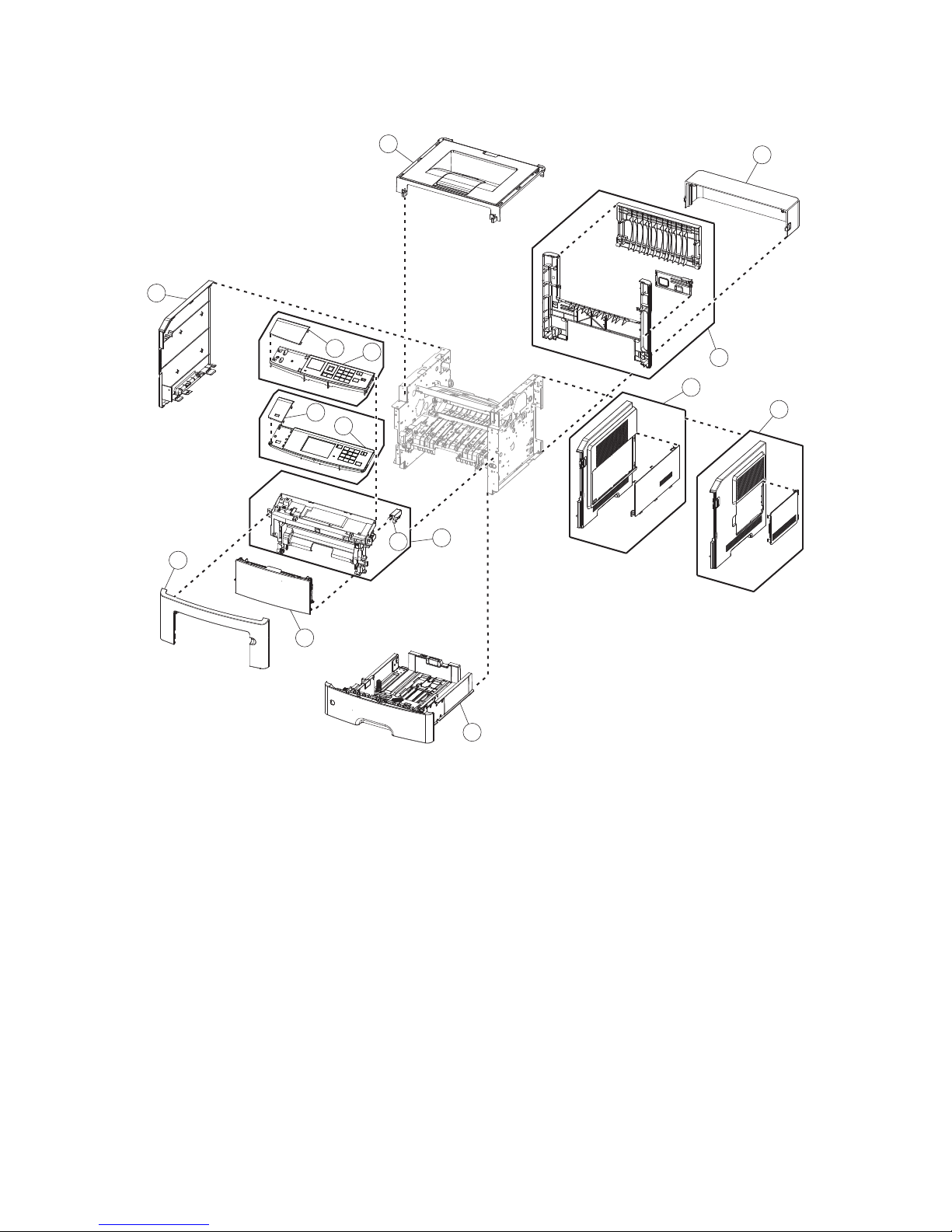

Assembly 1: Covers

4514-630, -635, -636

Parts catalog

263

Assembly 1: Covers

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 40X8520 1 1 Dust cover (250‑sheet tray) “Dust cover removal” on

page 240

1 40X8521 1 1 Dust cover (550‑sheet tray) “Dust cover removal” on

page 240

2 40X8054 1 1 Rear door and cover

(MS510dn)

“Rear door and cover

removal” on page 240

2 40X8270 1 1 Rear door and cover

(MS610dn, MS610de)

“Rear door and cover

removal” on page 240

3 40X8087 1 1 Right cover (MS610dn, MS610de) “Right cover removal” on

page 178

4 40X8052 1 1 Right cover (MS510dn) “Right cover removal” on

page 178

5 40X8305 1 1 250-sheet tray N/A

5 40X8086 1 1 550-sheet tray N/A

6 40X8056 1 1 Front access cover

(MS510dn, MS610dn)

“Front access cover

removal” on page 218

6 40X8268 1 1 Front access cover

(MS610de)

“Front access cover

removal” on page 218

7 40X9148 1 1 Cartridge plunger “Cartridge plunger removal”

on page 194

8 40X9131 1 1 MPF assembly (100 sheets) “MPF assembly removal” on

page 210

9 40X8051 1 1 Nameplate (MS510dn, MS610dn) “Nameplate removals” on

page 199

9 40X8272 1 1 Nameplate (MS610de) “Nameplate removals” on

page 199

10 40X8057 1 1 Control panel cover and buttons

(MS610de)

Note: Does not include the UICC.

“Control panel assembly

removals” on page 201

“UICC removals” on

page 205

11 40X8068 1 1 Bezel (MS610de) “Bezel removals” on

page 197

12 40X8060 1 1 Control panel cover and buttons

(MS510dn)

Note: Does not include the UICC.

“Control panel assembly

removals” on page 201

“UICC removals” on

page 205

4514-630, -635, -636

Parts catalog

264

Asm-index P/N Units/mach Units/FRU Description Removal procedure

12 40X8061 1 1 Control panel cover and buttons

(MS610dn)

Note: Does not include the UICC.

“Control panel assembly

removals” on page 201

“UICC removals” on

page 205

13 40X8066 1 1 Bezel (MS510dn) “Bezel removals” on

page 197

13 40X8067 1 1 Bezel (MS610dn) “Bezel removals” on

page 197

14 40X8053 1 1 Left cover (MS510dn) “Left cover removal” on

page 166

14 40X8269 1 1 Left cover (MS610dn, MS610de) “Left cover removal” on

page 166

15 40X8055 1 1 Top cover (MS510dn) “Top cover removal” on

page 245

15 40X8271 1 1 Top cover (MS610dn, MS610de) “Top cover removal” on

page 245

4514-630, -635, -636

Parts catalog

265

4514-630, -635, -636

Parts catalog

266

Assembly 2: Electronics 1

4514-630, -635, -636

Parts catalog

267

Assembly 2: Electronics 1

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 40X8081 1 1 Laser scanning unit “Laser scanning unit (LSU) removal”

on page 246

2 40X8343 1 1 Fuser, 100 V “Fuser removal” on page 244

2 40X8023 1 1 Fuser, 110 V “Fuser removal” on page 244

2 40X8024 1 1 Fuser, 220 V “Fuser removal” on page 244

3 40X8050 1 1 Narrow media/bin full sensor “Narrow media/bin full sensor

removal” on page 241

4 40X8276 1 1 Cooling fan (MS510dn, MS610dn) “Cooling fan removals” on page

180

4 40X8274 1 1 Cooling fan (MS610de) “Cooling fan removals” on page

180

5 40X8029 1 1 Controller board (MS510dn) “Controller board removals” on

page 184

5 40X8030 1 1 Controller board (MS610dn) “Controller board removals” on

page 184

6 40X8388 1 1 Controller board (MS610de) “Controller board removals” on

page 184

7 40X7592 1 1 Tray present sensor “Tray present sensor removal” on

page 179

8 40X8280 1 1 Front input guide “Front input guide removal” on

page 219

9 40X8300 1 1 MPF solenoid “MPF solenoid removal” on

page 169

10 40X8301 1 1 Reverse solenoid “Reverse solenoid removal” on

page 174

11 40X8285 1 1 Control panel assembly (MS610de) “Control panel assembly removals”

on page 201

12 40X8292 1 1 Control panel assembly (MS510dn) “Control panel assembly removals”

on page 201

12 40X8284 1 1 Control panel assembly (MS610dn) “Control panel assembly removals”

on page 201

4514-630, -635, -636

Parts catalog

268

Assembly 3: Electronics 2

4514-630, -635, -636

Parts catalog

269

Assembly 3: Electronics 2

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 40X8048 1 1 Front door sensor “Front door sensor removal” on

page 218

2 40X8266 1 1 Cartridge smart chip contact “Toner cartridge smart chip contact

removal” on page 188

3 40X8046 1 1 Toner density sensor “Toner density sensor removal” on

page 232

4 40X7797 1 1 Power supply, 100 V/110 V “Power supply removal” on page 223

“Power supply removal (MS610)” on

page 224

4 40X7798 1 1 Power supply, 220 V “Power supply removal” on page 223

“Power supply removal (MS610)” on

page 224

5 40X8045 1 1 Trailing edge sensor “Trailing edge sensor removal” on

page 232

6 40X8043 1 1 Duplex sensor and input sensor “Duplex sensor and input sensor

removal” on page 227

7 40X7592 1 1 Media present sensor “Media present sensor removal” on

page 230

8 40X8044 1 1 Index sensor “Index sensor removal” on page 230

4514-630, -635, -636

Parts catalog

270
