Lexmark 310 Series Manual de usuario

Contents

Understanding your printer ..............................................7

Printer parts ..................................................................................7

Control panel .................................................................................8

Loading paper ..................................................................10

Supported photo paper types ......................................................10

Loading the photo paper .............................................................10

Inserting memory cards ..................................................11

Supported memory cards ............................................................11

Inserting memory cards ..............................................................12

Printing from a memory card ..........................................13

Step 1: Load photo paper ...........................................................13

Step 2: Insert a memory card ......................................................13

Step 3: View your photos ............................................................13

Step 4: Select a photo to print .....................................................13

Step 5: Customize the photo .......................................................14

Step 6: To select another photo, repeat steps 4 and 5. ..............14

Step 7: Print photo(s) ..................................................................14

Step 8: Remove the memory card ..............................................14

Printing from a digital camera ........................................15

Customizing your photo prints .......................................16

Printing an index page ................................................................16

Printing all photos .......................................................................16

Printing a photo in black and white .............................................17

Cropping a photo ........................................................................18

Adjusting the brightness ..............................................................19

Adjusting the number of prints ....................................................20

Viewing slide show ......................................................................21

Printing DPOF selection ..............................................................21

Customizing your printer settings .................................22

Changing the blank paper size ...................................................22

Changing the blank paper type ...................................................22

Changing the print quality ...........................................................23

Adjusting preview before print .....................................................23

Changing the control panel display language .............................23

Changing the power save ...........................................................24

Clearing photo settings ...............................................................24

Restoring factory defaults ...........................................................25

Traveling with your printer ..............................................26

Before you travel .........................................................................26

Packing the printer ......................................................................26

Unpacking the printer ..................................................................28

Maintaining your print cartridge .....................................30

Checking the ink level status ......................................................30

Refilling the print cartridge ..........................................................30

Ordering supplies ........................................................................30

Replacing the print cartridge .......................................................31

Aligning the print cartridge ..........................................................34

Cleaning the print cartridge nozzles ............................................34

Printing a test page .....................................................................35

Troubleshooting ...............................................................36

Setup troubleshooting .................................................................37

Print troubleshooting ...................................................................38

Improving print quality .................................................................40

Jams and misfeeds troubleshooting ...........................................43

Memory card and PictBridge troubleshooting .............................44

Error messages troubleshooting .................................................45

Finding more information ...............................................47

Notices ..............................................................................48

Index ..................................................................................51

Understanding your printer

Printer parts

#Part Purpose

1 Paper support Load paper into the printer.

2 Carry handle Transporting the printer.

3 Access cover Install or replace print cartridge.

4 PictBridge port Connect a PictBridge-enabled digital camera to the

printer. Use the controls on the camera to select and

print your photos.

5 Memory card slots Insert memory cards.

6 Paper exit Allows paper to exit after printing is complete.

7 Control panel

display Preview photos on your memory card and check the

status of the printer.

The display has 4 positions: flat, 25°, 50°, and 90°.

8 Control panel Operate the printer. For more details, see “Control

panel” on page 8

543

Control panel

#Part Purpose

1 Power supply cord port Install the provided power supply cord.

#Button Purpose

1Menu •Display the Photo menu.

2 Stop/Clear •Deselect the displayed photo for printing.

•Stop the print job.

3 Start Begin printing the selected photos.

4 Power Turn the printer on and off.

5 Up arrow •Scroll through menu options.

•Change the selected area when cropping an

image.

•Skip forward through the pictures on the

memory card 10 at a time.

Down arrow •Scroll through menu options.

•Change the selected area when cropping an

image.

•Skip backward through the pictures on the

memory card 10 at a time.

Right arrow (+) •Increase the number of prints.

•Change the selected area when cropping an

image.

•Increase the value of a menu item.

•Display the next picture on a memory card.

Left arrow (-) •Decrease the number of prints.

•Change the selected area when cropping an

image.

•Decrease the value of a menu item.

•Display the previous picture on a memory

card.

6 Number of Prints •Change the number of photos you want to

print.

•Change the size of the green crop box when

cropping an image.

7 Rotate Rotate the image on the control panel display

90°counterclockwise for easier viewing.

8 Select •Choose a menu option.

•Choose a displayed photo for printing.

#Button Purpose

Loading paper

Supported photo paper types

Loading the photo paper

1Lift the paper support.

2Load the photo paper into the paper support with the print side

facing you.

Note: Do not force the photo paper into the printer.

Type Size Usage

Photo/Glossy

cards Photo paper: 4 x 6 inches

(102 x 152 mm) Print photos

Hagaki card: 3.9 x 5.8 inches

(100 x 148 mm) Print photos

A6 card: 4.1 x 5.8 inches

(105 x 148 mm) Print photos

Card stock Index card: 4 x 6 inches

(102 x 152 mm) Print test pages and cartridge

maintenance pages

Note: Do not load more than 25 sheets into the paper support.

Inserting memory cards

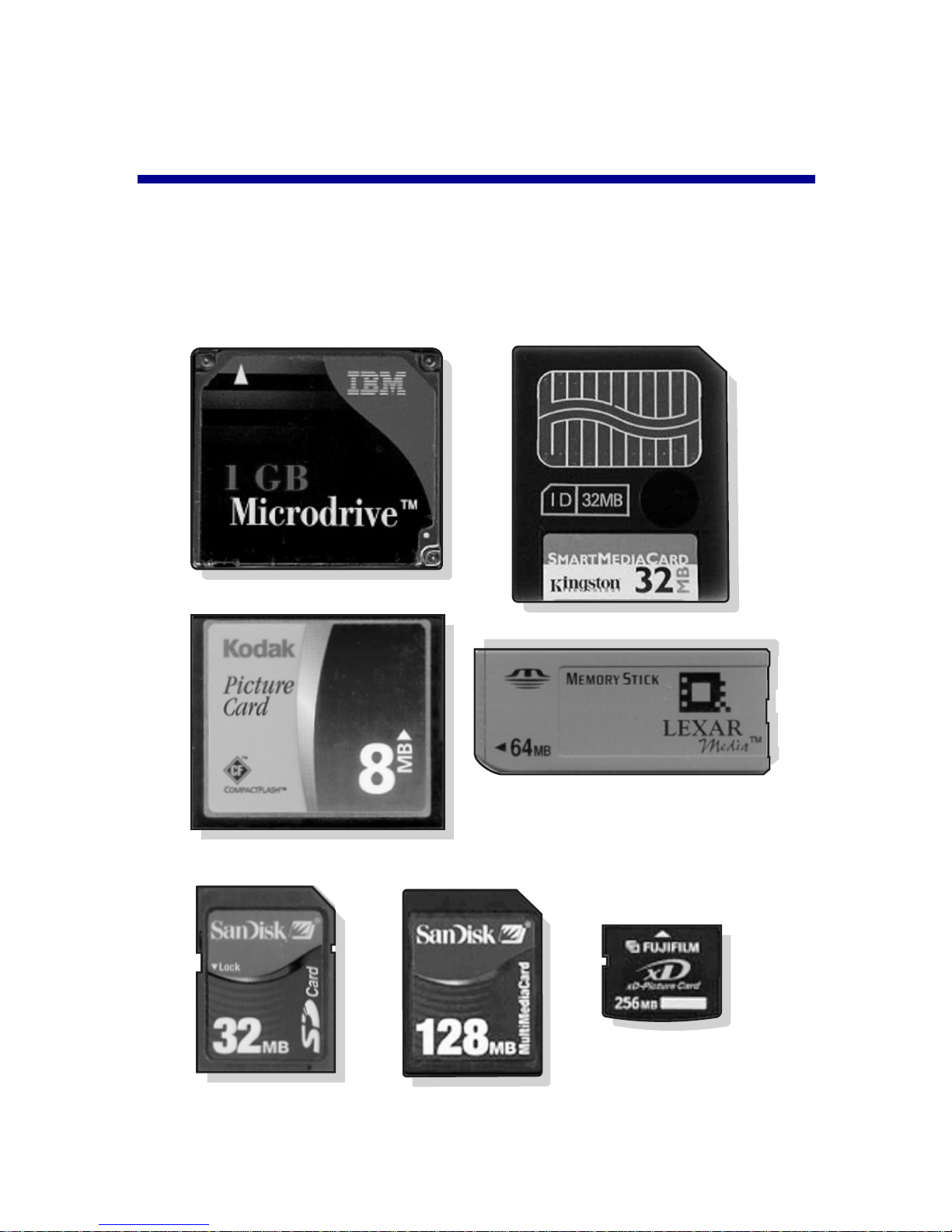

Supported memory cards

Note: Your card manufacturer may differ from the ones

pictured.

Secure Digital (SD)

xD Picture Card

(up to 512MB)

Memory Stick

Memory Stick PRO

Memory Stick Duo (with adapter)

Memory Stick PRO Duo (with adapter)

SmartMedia

MultiMedia Card

Microdrive

CompactFlash Type I and Type II

Inserting memory cards

The memory card reader has two slots to accommodate different size

memory cards. A small light turns on when a memory card is inserted. The

light blinks to indicate the memory card is being read or is transmitting

data.

Warning: Do not remove the memory card while the light is

blinking.

Note: Your printer recognizesonly onedigital mediasourcefor

photos at a time.

Slot Memory card Installation

Left slot •Secure Digital

•SmartMedia

•MultiMedia

•Memory Stick

•Memory Stick PRO

•Memory Stick Duo

(with adapter)

•Memory Stick PRO

Duo (with adapter)

•xD Picture Card.

•Insert card with brand name

label face up.

Note: If you are using

SmartMedia cards, make sure the

gold contact area faces up.

Note: If you are using a Memory

Stick Duo or Memory Stick PRO

Duo card, be sure to connect it to

the adapter that came with the

card before inserting it in the slot.

•If you have an arrow on your

card, make sure it points

toward the printer.

Right slot •CompactFlash Type I

and Type II

•Microdrive

•The name label faces up.

•If you have an arrow on your

card, make sure it points

toward the printer.
