Parts catalog 7-1

7525-xxx

7. Parts catalog

How to use this parts catalog

The following legend is used in the parts catalog:

•Asm-index: Identifies the assembly and the item in the diagram. For example, 3-1 indicates Assembly 3

and item number 1 in the table.

•Part number: Identifies the unique number that identifies this FRU.

•Units/mach: Refers to the number of units actually used in the base machine or product.

•Units/option: Refers to the number of units in a particular option. It does not include the rest of the base

machine.

•Units/FRU: Refers to the number of units packaged together and identified by the part number.

•NS: (Not shown) in the Asm-Index column indicates that the part is procurable but is not pictured in the

illustration.

•PP: (Parts Packet) in the parts description column indicates the part is contained in a parts packet.

•Model information used in the parts catalog:

Asm-

index

Part

number

Units/mach

- OR -

Units/option

Units/

FRU Description

Machine type/model Term used in parts Product name Description

7525-131 131 Lexmark X543dn Network, duplex print

7525-133 133 Lexmark X543dn Network, duplex print,

DBCS op panel

7525-138 138 Lexmark X543dn Network, duplex print,

wireless

7525-356 356 Lexmark X544n Duplex scan, fax

7525-352 352 Lexmark X544n Duplex scan

7525-3361336 Lexmark X544dn Duplex scan/print, fax

7525-3321332 Lexmark X544dn Duplex scan/print,

7525-3371337 Lexmark X544dn Duplex scan/print, fax,

DBCS op panel

7525-3331333 Lexmark X544dn Duplex scan/print,DBCS

op panel

7525-386 386 Lexmark X544dw Duplex scan/print, fax,

wireless

7525-382 382 Lexmark X544dw Duplex scan/print, wireless

7525-387 387 Lexmark X544dw Duplex scan/print, fax,

wireless, DBCS op panel

7525-383 383 Lexmark X544dw Duplex scan/print,

wireless, DBCS op panel

7525-392 392 Lexmark X546dtn Duplex scan/print

www MK-Electronic de

7-2 Service Manual

7525-xxx

7525-393 393 Lexmark X546dtn Duplex scan/print, DBCS

op panel

7525-396 396 Lexmark X546dtn Duplex scan/print, Fax

7525-397 397 Lexmark X546dtn Duplex scan/print, DBCS

op panel, Fax

1A dtn version of this model is available. This version includes the 650-sheet tray.

Machine type/model Term used in parts Product name Description

www MK-Electronic de

Parts catalog 7-3

7525-xxx

www MK-Electronic de

7-4 Service Manual

7525-xxx

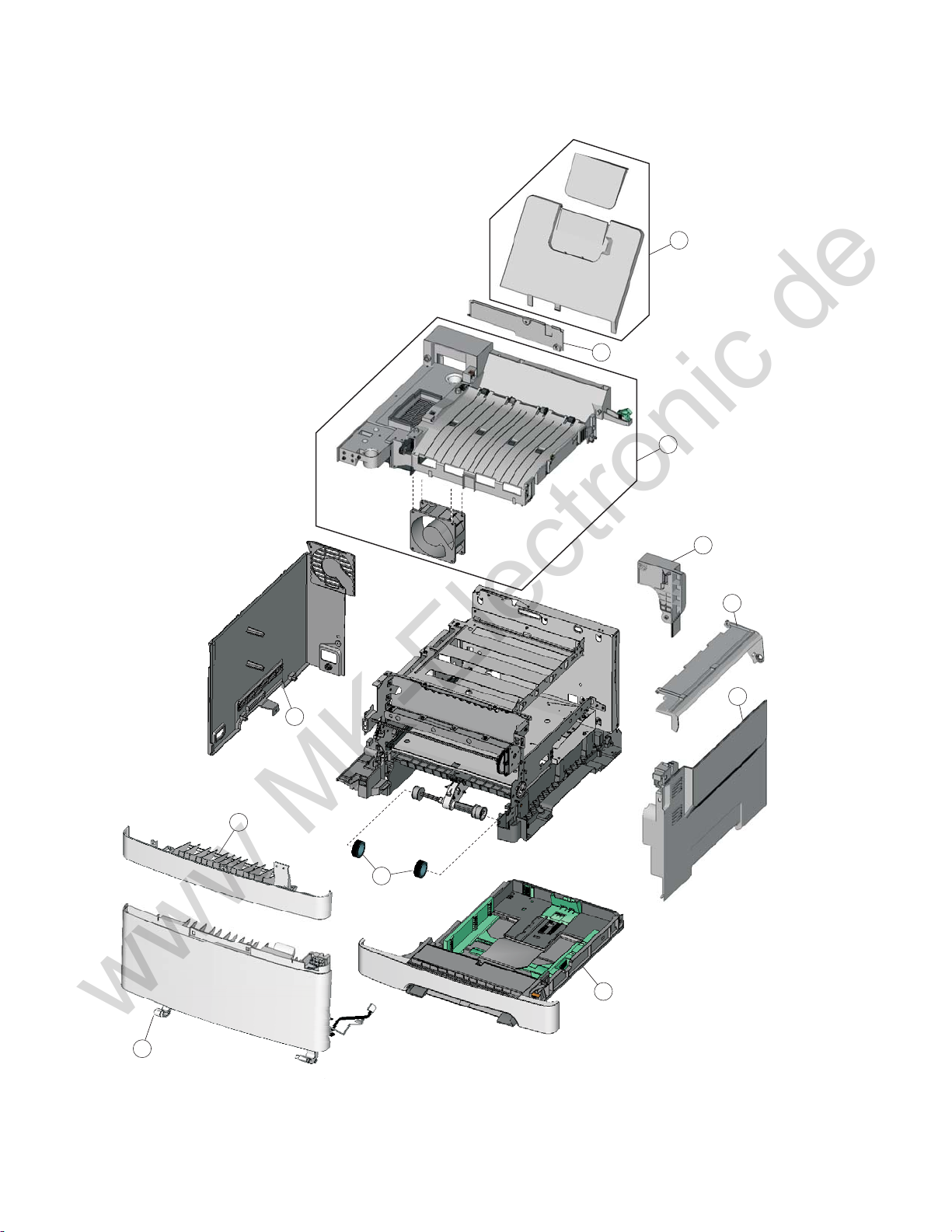

Assembly 1: Covers

www MK-Electronic de

Parts catalog 7-5

7525-xxx

Assembly 1: Covers

Asm-

index

Part

number

Units/

mach

Units/

FRU Description

1-1 40X5484 1 1 Tray, Output Bin

2 40X5489 1 1 Cover, AIO Back Cable

3 40X5482 1 1 Assembly, Top Cover

4 40X5537 1 1 Link, AIO

5 40X5534 1 1 Cover, AIO Toner

6 40X5486 1 1 Cover, Right AIO

7 40X5419 1 1 Tray Asm, 250 sheet

8 40X5168 2 2 Pick tires

9 40X5538 1 1 Cover, Front

10 40X5490 1 1 Cover, Front Middle

11 40X5417 1 1 Cover, Left

NS 40X5434 1 1 Drawer, 650-sheet

NS 40X5435 1 1 Tray Asm, 650-sheet

NS 40X5441 1 1 Cover, Legal extender

NS 40X2253 1 1 Front flatbed hinge

www MK-Electronic de

7-6 Service Manual

7525-xxx

Assembly 2: Scanner

www MK-Electronic de

Parts catalog 7-7

7525-xxx

Assembly 2: Scanner

Asm-

index

Part

number

Units/

mach

Units/

FRU Description

2-1 40X5470 1 1 Tray, ADF input

2 40X5477 1 1 Cover, ADF rear simplex

2 40X5478 1 1 Cover, ADF rear duplex

3 40X5479 1 1 Cable, ADF

4 40X5872 1 1 Bin full flag

6 40X5467 1 1 Asm, Flatbed

5 40X5492 1 1 Asm, redrive

7 40X5536 1 1 Lever, AIO release

8 40X5487 Cover, scanner right

9 40X5533 Cover, bezel

10 40X5481 Cable, Op panel

11 40X5480 Cable, USB (for thumbdrive)

12 40X5473 3-1 op panel

12 40X5474 4-1 op panel

12 40X5475 3-1 op panel DBCS

12 40X5476 4-1 op panel DBCS

13 40X5491 Cover, Logo

14 40X5493 1 1 Bezel, op panel 4-1 (English)

14 40X5494 1 1 Bezel, op panel 3-1 (English)

14 40X1537 1 1 X546 English operator panel bezel

14 40X5495 1 1 Bezel, op panel 4-1 (French)

14 40X5496 1 1 Bezel, op panel 3-1 (French)

14 40X2513 1 1 X546 French operator panel bezel

14 40X5497 1 1 Bezel, op panel 4-1 (Spanish)

14 40X5498 1 1 Bezel, op panel 3-1 (Spanish)

14 40X2514 1 1 X546 Spanish operator panel bezel

14 40X5499 1 1 Bezel, op panel 4-1 (German)

14 40X5500 1 1 Bezel, op panel 3-1 (German)

14 40X2516 1 1 X546 German operator panel bezel

14 40X5519 1 1 Bezel, op panel 4-1 (Dutch)

14 40X5520 1 1 Bezel, op panel 3-1 (Dutch)

14 40X2518 1 1 X546 Dutch operator panel bezel

14 40X5511 1 1 Bezel, op panel 4-1 (Danish)

14 40X5512 1 1 Bezel, op panel 3-1 (Danish

14 40X2519 1 1 X546 Danish operator panel bezel

14 40X5517 1 1 Bezel, op panel 4-1 (Swedish)

14 40X5518 1 1 Bezel, op panel 3-1(Swedish)

14 40X2521 1 1 X546 Swedish operator panel bezel

14 40X5515 1 1 Bezel, op panel 4-1 (Norwegian)

14 40X5516 1 1 Bezel, op panel 3-1 (Norwegian)

14 40X2520 1 1 X546 Norwegian operator panel bezel

14 40X5513 1 1 Bezel, op panel 4-1 (Finnish)

14 40X5514 1 1 Bezel, op panel 3-1 (Finnish

www MK-Electronic de

7-8 Service Manual

7525-xxx

Assembly 2 (continued): Scanner

www MK-Electronic de

Parts catalog 7-9

7525-xxx

Assembly 2 (continued): Scanner

Asm-

index

Part

number

Units/

mach

Units/

FRU Description

14 40X2602 1 1 X546 Finnish operator panel bezel

14 40X5509 1 1 Bezel, op panel 4-1 (Italian)

14 40X5510 1 1 Bezel, op panel 3-1 (Italian)

14 40X2517 1 1 X546 Italian operator panel bezel

14 40X5523 1 1 Bezel, op panel 4-1 (Russian)

14 40X5524 1 1 Bezel, op panel 3-1 (Russian)

14 40X2681 1 1 X546 Russian operator panel bezel

14 40X5521 1 1 Bezel, op panel 4-1 (Polish)

14 40X5522 1 1 Bezel, op panel 3-1 (Polish)

14 40X2624 1 1 X546 Polish operator panel bezel

14 40X5525 1 1 Bezel, op panel 4-1 (Czech)

14 40X5526 1 1 Bezel, op panel 3-1 (Czech)

14 40X2689 1 1 X546 Czech operator panel bezel

14 40X5529 1 1 Bezel, op panel 4-1 (Hungarian)

14 40X5530 1 1 Bezel, op panel 3-1 (Hungarian)

14 40X2686 1 1 X546 Hungarian operator panel bezel

14 40X5505 1 1 Bezel, op panel 4-1 (Simplified Chinese)

14 40X5506 1 1 Bezel, op panel 3-1 (Simplified Chinese)

14 40X2724 1 1 X546 Simplified Chinese operator panel bezel

14 40X5507 1 1 Bezel, op panel 4-1 (Traditional Chinese)

14 40X5508 1 1 Bezel, op panel 3-1 (Traditional Chinese)

14 40X2783 1 1 X546 Traditional Chinese operator panel bezel

14 40X5531 1 1 Bezel, op panel 4-1 (Korean)

14 40X5532 1 1 Bezel, op panel 3-1 (Korean)

14 40X2784 1 1 X546 Korean operator panel bezel

14 40X5501 1 1 Bezel, op panel 4-1 (Braz Por)

14 40X5502 1 1 Bezel, op panel 3-1 (Braz Por)

14 40X2515 1 1 X546 Braz Por operator panel bezel

14 40X5503 1 1 Bezel, op panel 4-1 (Japanese)

14 40X5504 1 1 Bezel, op panel 3-1 (Japanese)

14 40X2723 X546 Japanese operator panel bezel

14 40X5527 1 1 Bezel, op panel 4-1 (Turkish)

14 40X5528 1 1 Bezel, op panel 3-1 (Turkish)

14 40X2682 1 1 X546 Turkish operator panel bezel

15 40X5488 1 1 Cover, scanner left

16 40X5468 1 1 Asm, Duplex ADF

16 40X5469 1 1 Asm, Simplex ADF

17 40X5472 1 1 Asm, Separator pad

18 40X5471 1 1 Asm. Separator roll

NS 40X5539 1 1 Cushion, L flatbed

NS 40X5535 1 1 Cushion, H flatbed

NS 40X1569 1 1 Flatbed pivot link

NS 40X2252 1 4 Redrive spacer screws
