Lexmark X500 Manual de funcionamiento

X500n, X502n

Maintenance Guide

April 2007 www.lexmark.com

Contents

Maintaining the printer................................................................................3

Storing supplies.........................................................................................................................................3

Conserving toner.......................................................................................................................................3

Cleaning the printer..................................................................................................................................3

Cleaning the exterior of the printer....................................................................................................................3

Cleaning the scanner glass..................................................................................................................................4

Cleaning the dust-proof glass..............................................................................................................................5

Ordering supplies....................................................................................................................................10

Ordering toner cartridges.................................................................................................................................10

Ordering a fuser................................................................................................................................................11

Ordering a photodeveloper cartridge...............................................................................................................11

Ordering a waste toner bottle..........................................................................................................................11

Moving the printer..................................................................................................................................12

Before moving the printer.................................................................................................................................12

Locking the scanner..........................................................................................................................................12

Removing the printer from the 530-sheet drawer............................................................................................14

Moving the printer to another location............................................................................................................17

Setting the printer up in a new location...........................................................................................................17

Contents

Maintaining the printer

Periodically, certain tasks are required to maintain optimum print quality.

Storing supplies

Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you

are ready to use them.

Do not expose supplies to:

•Direct sunlight

•Temperatures above 35°C (95°F)

•High humidity above 80%

•Salty air

•Corrosive gases

•Heavy dust

Conserving toner

Toner Saver mode enables you to conserve toner. When Toner Saver mode is enabled, print may appear lighter. To

enable Toner Saver mode:

1From the control panel, press .

2Press or repeatedly until Machine Settings appears, and then press .

3Press or repeatedly until Toner Saver Mode appears, and then press .

4Press or repeatedly until On appears, and then press .

5Press to return to the Ready state.

Note: Toner Saver mode is not recommended when you are printing photos or grayscale images.

Cleaning the printer

If print quality problems such as streaking occur, follow these cleaning procedures.

Warning—Potential Damage: Do not put water directly on the printer or use ammonia-based cleaners or volatile

solvents, such as thinner, on the printer.

Cleaning the exterior of the printer

1Make sure that the printer is turned off and unplugged from the wall outlet.

CAUTION—SHOCK HAZARD: To avoid the risk of electric shock, unplug the power cord from the wall outlet

and disconnect all cables to the printer before proceeding.

2Remove paper from the paper support and paper exit tray.

Maintaining the printer

3Dampen a clean, lint-free cloth with water.

Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the finish of the

printer.

4Wipe only the outside of the printer, making sure to remove any ink residue that has accumulated on the paper

exit tray.

Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.

5Make sure the paper support and paper exit tray are dry before beginning a new print job.

Cleaning the scanner glass

Clean the scanner glass if you encounter print quality problems, such as streaks on copied or scanned images.

1Slightly dampen a soft, lint-free cloth or paper towel with water.

2Open the scanner cover.

3Wipe the scanner glass (which includes the document glass and ADF glass) until it is clean and dry.

4Wipe the white underside of the scanner cover and the white plastic input guides until they are clean and dry.

Note: The white plastic input guides are located on the scanner cover underneath the ADF on the left side.

5Close the scanner cover.

Maintaining the printer

Cleaning the dust-proof glass

Clean the dust-proof glass if you encounter print quality problems.

1Turn the printer off.

2Pull the front door release latch forward, and gently lower the front door.

3Remove the toner cartridges one at a time.

Maintaining the printer

4Open the top door.

5Push the latches toward each other to release the photodeveloper cartridge.

Maintaining the printer

6Grasp the handle, and pull the photodeveloper cartridge straight up and out.

7Pull on the tabs to lift the dust-proof glass cover.

Maintaining the printer

8Gently wipe the dust-proof glass using a clean, dry, lint-free cloth.

9Push the dust-proof glass cover down.

Maintaining the printer

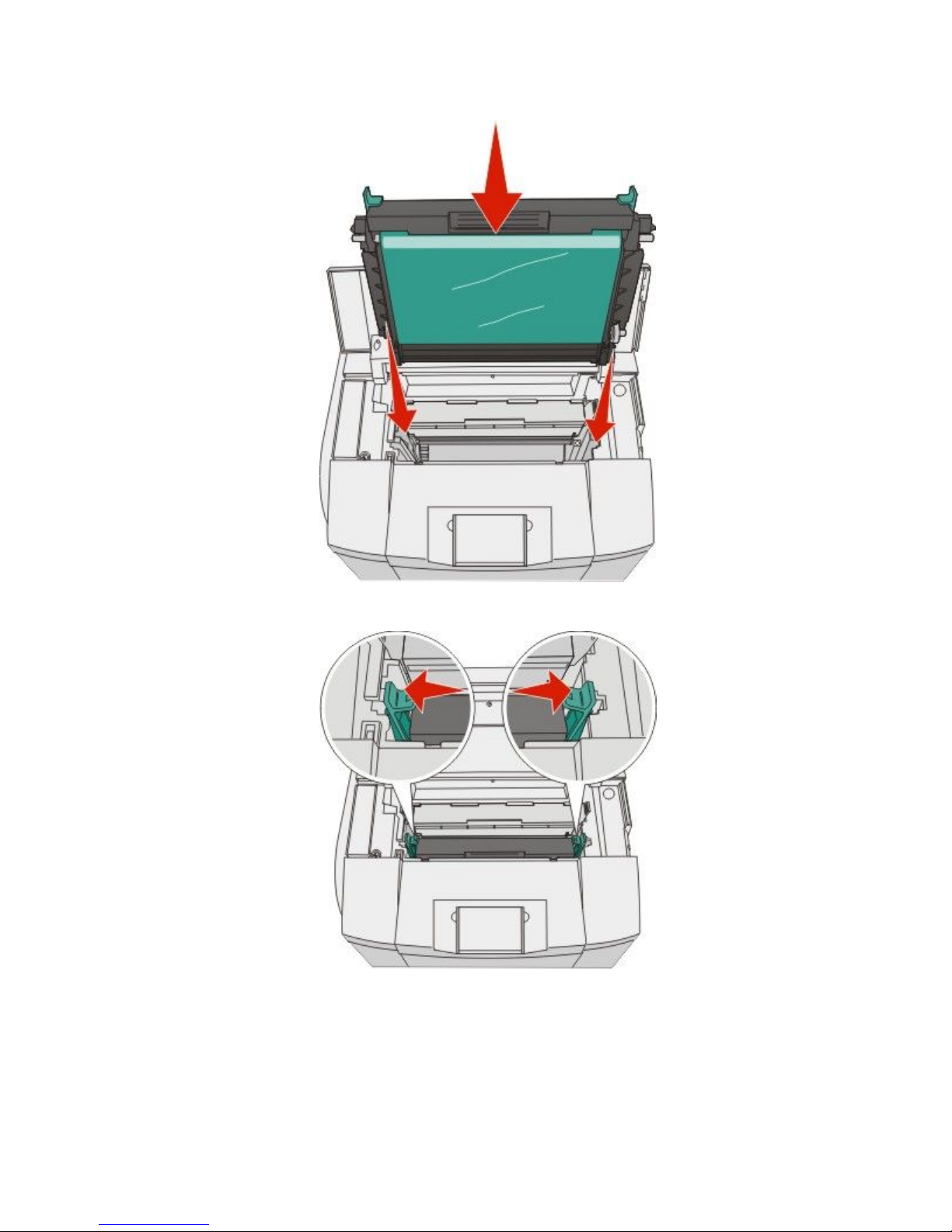

10 Replace the photodeveloper cartridge.

11 Push the latches away from each other to lock the photodeveloper cartridge into place.

12 Close the top door.

Maintaining the printer

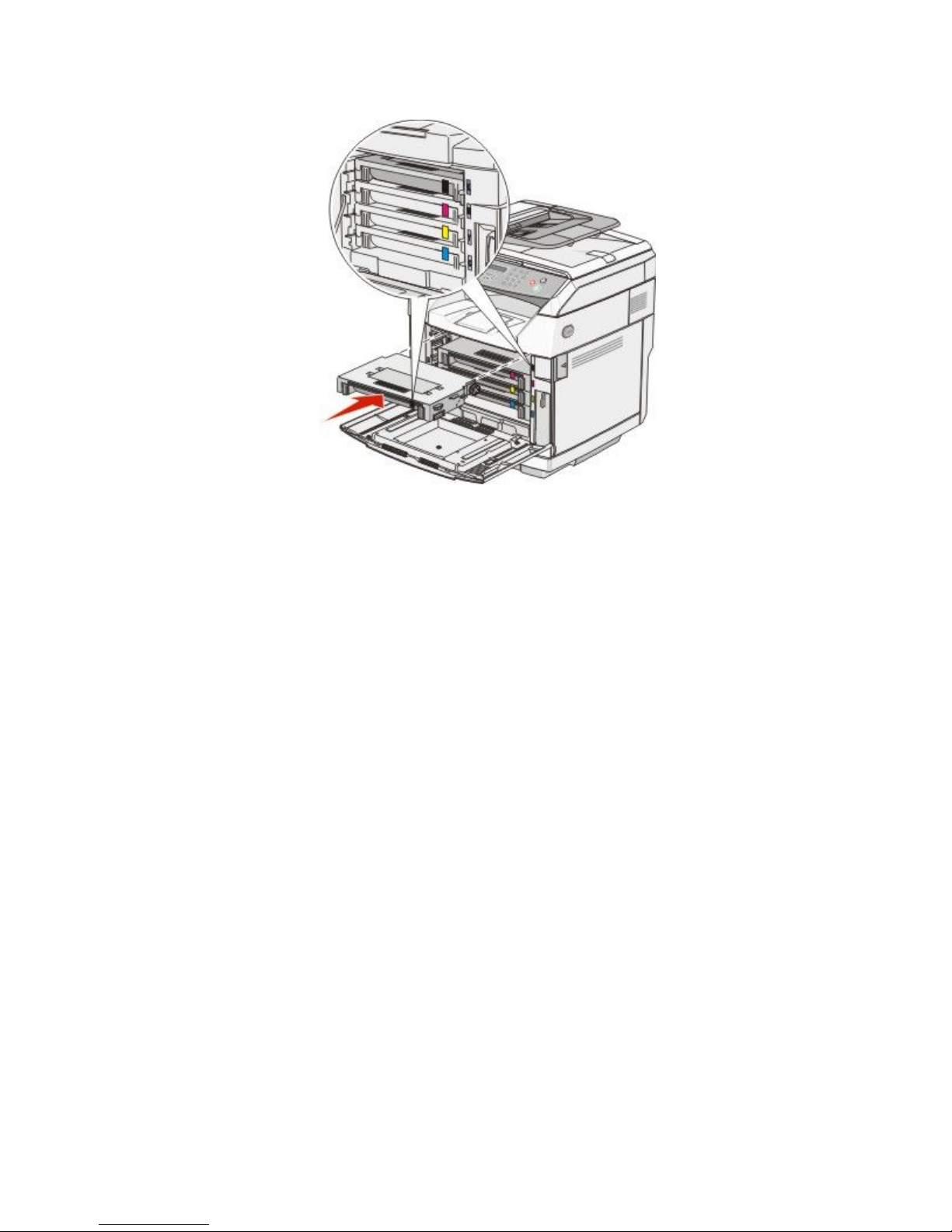

13 Install the toner cartridges one at a time.

14 Close the front door.

15 Turn the printer on.

Ordering supplies

To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies

dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the place

where you purchased the printer.

Note: All life estimates for printer supplies assume printing on letter- or A4-size plain paper.

Ordering toner cartridges

When Toner Low <xxxx> appears, order the specified new toner cartridge(s). The toner cartridge(s) of color “x”—

K(black), Y(yellow), M(magenta), or C(cyan)—will soon be exhausted. The specified toner cartridge can print

approximately 100–125 pages, depending on the coverage of the toner color, after the message first appears.

When Toner Low <xxxx> appears or when the print becomes faded, you may be able to extend the life of the

toner cartridge(s):

1Remove the toner cartridge(s).

2Firmly shake the cartridge(s) side-to-side and front-to-back several times to redistribute toner.

3Reinsert the toner cartridge(s) and continue printing.

Note: Repeat this procedure multiple times until the print remains faded, and then replace the cartridge(s).

Maintaining the printer
