Leviton HCCUR Manual de usuario
Universal Remote Control
Cat. No. HCCUR
Owners Manual
DI-000-HCCUR-00A
DI-000-HCCUR-00A 7/5/02, 2:18 PM1
READ THIS FIRST!
SAFETY CONSIDERATIONS
Remember to exercise good common sense when using
the Home Automation features of your Remote - especially
when scheduling unattended devices. There can be some
unexpected consequences if not used with care. For
example, an empty coffee pot can be remotely turned on.
If that should happen, your coffee pot could be damaged
from overheating. If an electric heater is turned on by
remote control while clothing is draped over it, a fire could
result. DO NOT USE the remote for the control of high power
heating appliances such as portable heaters.
WARNING: TO PREVENT ELECTRIC SHOCK HAZARD, DO
NOT EXPOSE ANY PART OF THE HOME AUTOMATION SYSTEM
TO RAIN OR MOISTURE
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT DISASSEMBLE ANY PART OF THE HOME AUTOMATION
SYSTEM’S PLUG-IN MODULES OR CONTROLLERS. NO USER-
SERVICEABLE PARTS ARE INSIDE. IF YOU SPILL LIQUID ON A
UNIT, DISCONNECT THE UNIT FROM THE AC OUTLET TO
PREVENT POSSIBLE FIRE OR SHOCK HAZARD AND CONSULT
AUTHORIZED SERVICE PERSONNEL.
POWERLINE OPERATED EQUIPMENT OR ACCESSORIES
CONNECTED TO ANY OF THESE UNITS SHOULD BEAR THE UL
LISTING OR CSA CERTIFICATION MARK AND SHOULD NOT
HAVE BEEN MODIFIED IN ANY WAY THAT MIGHT DEFEAT THEIR
SAFETY FEATURES.
2
DI-000-HCCUR-00A 7/5/02, 2:19 PM2
FCC CAUTION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,
AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
This equipment generates and uses radio frequency
energy, and if not installed and used properly, that is, in
strict accordance with the manufacturers instructions, it
may cause interference to radio and television reception. It
has been type tested and found to comply with the limits
for remote control devices in accordance with the
specifications in Sub-Parts B and C of Part 15 of FCC Rules,
which are designed to provide reasonable protection
against such interference in a residential installation.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause interference to radio or television reception, which
can be determined by unplugging the equipment, try to
correct the interference by one or more of the following
measures.
•Reorient the antenna of the radio/TV experiencing the
interference.
•Relocate the interface with respect to the radio/TV.
•Move the interface away from the radio/TV.
•Plug the interface into an outlet on a different electrical
circuit from the radio/TV
experiencing the interference.
•If necessary, consult your local Dealer for additional
suggestions.
NOTE: Modifications to any of the components in this kit will
void the user’s authority to operate this equipment.
3
DI-000-HCCUR-00A 7/5/02, 2:19 PM3
CONTENTS
INTRODUCTION .................................................................. 5
GETTING STARTED .............................................................. 6
6-IN-1 REMOTE .............................................................. 6
SETTING UPYOUR REMOTE ................................................... 6
BUTTON DESCRIPTIONS ..................................................... 6
SETTING UP FOR TV, VCR,
CABLE BOX AND SATELLITE RECEIVER .................................. 8
USING AUX TO CONTROL
ASECOND TV, VCR, CABLE BOX OR SATELLITE RECEIVER ...... 9
SEARCHING FOR CODES ................................................ 10
IDENTIFYING CODES FOUND USING
THE SEARCH PROCEDURE ................................................ 11
SETTING THE TV SLEEP TIMER ........................................... 12
CONTROLLING MODULES .................................................. 12
TOSET THE HC SLEEP TIMER ............................................ 13
CHANGING THE HOUSE CODE: ....................................... 14
TROUBLESHOOTING ........................................................... 15
WARRANTY .................................................................... 16
4
DI-000-HCCUR-00A 7/5/02, 2:19 PM4
INTRODUCTION
Congratulations on your purchase of a Leviton Universal
Remote Control.
Make your lights and appliances go to work for you....
The Remote will control most or all of your video and audio
equipment. But what really sets it apart from other remotes
is that you can also control almost any light or appliance
in your home - even in another room! And it’s easy to set
up. Within minutes, you can be using your Remote to dim
the lights, start brewing a fresh pot of coffee and play your
favorite movie!*
Here are just some of the things you can do with your
Remote...
•Control your entire audio/video and lighting setup for
the ultimate Home Theater experience.
•Turn on lights at night to scare away intruders if you
hear a noise.
•Start the coffee from your bedroom when you wake
up.
•Turn on your electric blanket before the movie ends, so
you it’s nice and warm when you go to bed.
Use this manual to become familiar with your Remote....
This manual will explain how to set up your Remote to use it
with your existing Audio/Video equipment.
Next it will show you how you can use it to set up a
Transceiver Module and Lamp Module (sold separately) to
operate electrical products in your home.
* Requires Leviton Home Control Modules, sold separately.
5
DI-000-HCCUR-00A 7/5/02, 2:19 PM5
GETTING STARTED
6-IN-1 REMOTE
The 6-in-1 Remote lets you control practically everything
electrical in your home. It has IR technology that lets you
control all your TV, VCR, Cable and Satellite equipment,
and RF technology that lets you control lamps and
appliances anywhere in your home.
To find out more about configuring the Remote to work
with your audio/video equipment, refer to the following
section titled “Setting Up Your Remote.”
1. Push the tab and lift off the battery cover.
2. Fit two AAA batteries, taking care to
match the + and - marks in the battery
compartment.
SETTING UP
YOUR REMOTE
BUTTON DESCRIPTIONS
INDICATOR LIGHT
The indicator light flashes when the remote is operating.
POWER
Works in the same way as your original remote.
SET UP
Used for programming the remote.
HOUSE SYMBOL
Lets you control modules to operate lamps and
appliances around the home.
6
DI-000-HCCUR-00A 7/5/02, 2:19 PM6
TV, VCR, CBL, AUX1, AUX2, SAT
Used to select the device to control. SAT includes DBS
receivers.
0-9
Used as your original remote and to enter device codes.
LAST
Selects the last channel viewed on your TV, VCR, Cable
Box or Satellite Receiver.
CHANNEL +/-
Works like your original remote. Also used to switch
modules on and off.
MUTE
Works the same as your original remote.
VOLUME +/-
Works like your original remote. Also used to brighten and
dim lamps connected to Modules.
TIMER
Used to set the Sleep Timer to automatically switch off the
TV or modules after a preset time.
CAP (CAPTION)
Has different function depending on Mode e.g. TV Closed
Caption in TV Mode.
PLAY, REW, FF, STOP, PAUSE
Work the same as on your original remote.
REC
Record button. Works the same as your original remote.
You must press the REC button twice to begin recording.
SHIFT
For accessing additional functions.
DISP (DISPLAY)
Used to access on-screen information
7
DI-000-HCCUR-00A 7/5/02, 2:19 PM7
SETTING UP FOR TV, VCR, CABLE BOX AND SATELLITE RECEIVER
1. Turn on the device you want to control (TV,
VCR, cable box, satellite receiver etc.).
2. Press and hold SETUP until the LED
indicator lights steadily. Release the SETUP
button.
3. Press and release mode button for the
device you want to control. The LED blinks
once. Use AUX1 or AUX2 for CD
equipment.
4. Enter the 3 digit Code from the Code List
(separate sheet). The LED turns off after
the last digit entered.
5. Point the remote at the device and press
the POWER button. Your device should
turn off.
6. Turn your device on and press CHANNEL+.
If the device responds, setup is complete.
NOTES:
For CD players use the AUX 1 or AUX 2 buttons.
If your TV/VCR/Cable Box/Satellite Receiver does not
respond, try the other codes for your brand. If it still doesn’t
respond, try the Code Search method on page 10.
If the LED blinked rapidly when you entered the code, you
may have entered an invalid code. Recheck the code in
the code list (separate sheet) and try again.
If some buttons do not operate your equipment, try one of
the other codes for your brand.
8
DI-000-HCCUR-00A 7/5/02, 2:19 PM8
USING AUX TO CONTROL ASECOND TV, VCR, CABLE BOX
OR SATELLITE RECEIVER
The AUX button is normally used to control an audio
component, but it can also be configured to control a
second TV, VCR, cable box or satellite receiver.
1. Turn on the equipment you want to control.
2. Press and hold SETUP until the LED
indicator lights steadily. Release Setup
button.
3. Press the AUX1 or AUX2 button.
4. Press and release the mode button that
matches the A/V equipment you want to
control. The LED blinks once.
5. Enter the 3 digit Code from the Code List.
The LED turns off after the last digit
entered.
6. Point the remote at your audio
component and press the POWER button.
Your audio component should turn off.
7. Turn your audio component on and press
CHANNEL +. If it responds, setup is
complete.
9
DI-000-HCCUR-00A 7/5/02, 2:19 PM9
NOTES:
If your audio/video component does not respond, try the
other codes for your brand. If it still doesn’t respond, try the
Code Search using the followingmethod.
If the LED blinked rapidly when you entered the code, you
may have entered an invalid code. Recheck the code in
the code list (separate sheet) and try again.
SEARCHING FOR CODES

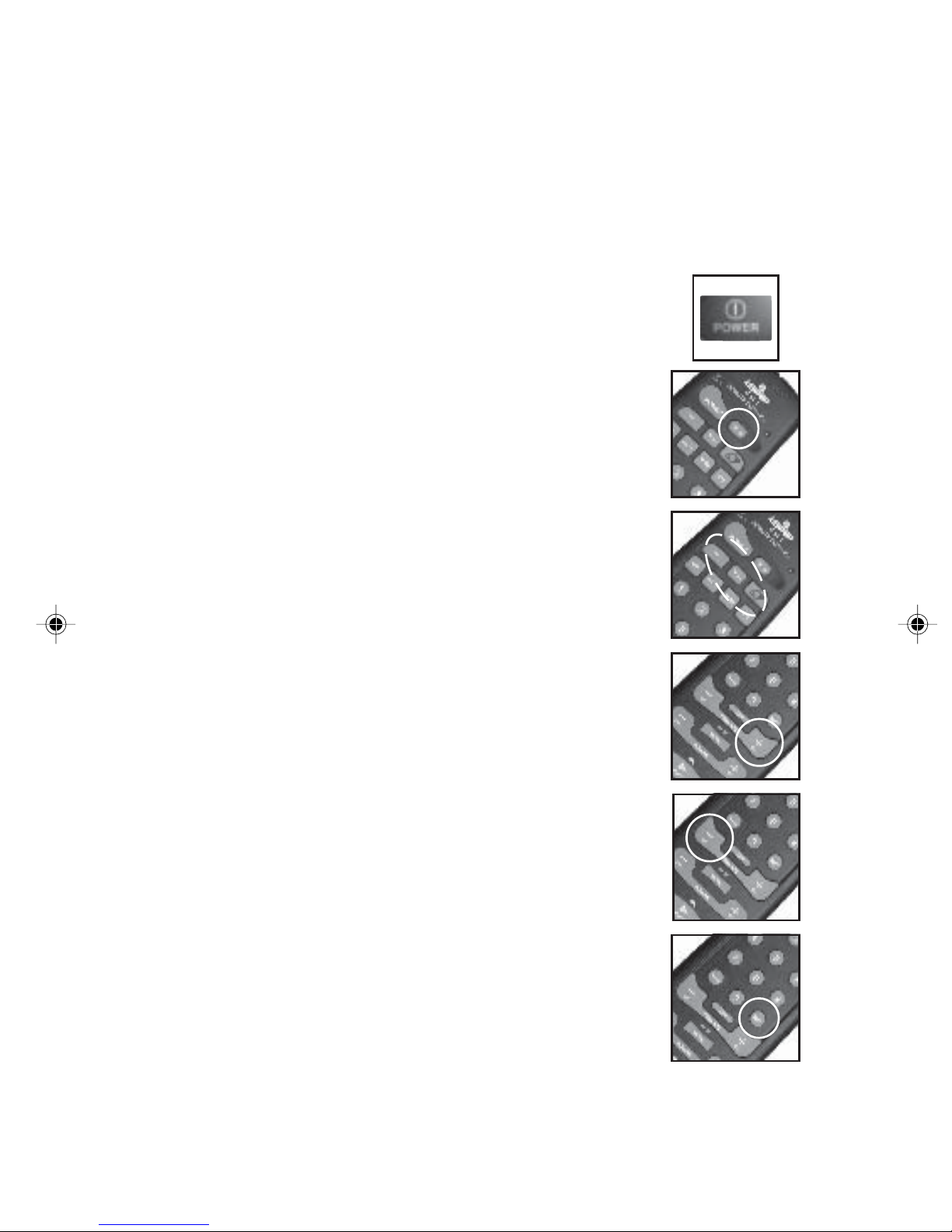

1. Turn on the device you want to control.
2. Press and hold SETUP until the LED
indicator lights steadily. Release Setup
button.
3. Press the mode button that matches the
equipment you want to control. The LED
blinks once.
4. Press CHANNEL + repeatedly* until the
device to be controlled changes channel.
If you accidentally go past the code, press
CHANNEL -repeatedly until the channel
changes again.
5. Press and release the ENTER button to
complete the setup.
*NOTE: You might have to press CHANNEL+ many times
(50+). If the device does not have a Channel Up function,
use the PLAY button (VCR only) or the POWER button.
10
DI-000-HCCUR-00A 7/5/02, 2:19 PM10
Otros manuales para HCCUR
2
Tabla de contenidos
Otros manuales de Mando a distancia de Leviton
Leviton
Leviton HCCUR Manual de usuario
Leviton
Leviton JCC JC121371 Manual de usuario
Leviton
Leviton HCCUR Manual de usuario
Leviton
Leviton DL15A Manual de usuario
Leviton
Leviton Bitwise BWRMT Manual de usuario
Leviton
Leviton 48A00-1 Manual de operación y mantenimiento
Leviton
Leviton Enocean WSTLT-9D0 Manual de usuario
Leviton
Leviton NE200 Manual de usuario
Leviton
Leviton VIZIA RF + Manual de usuario
Leviton
Leviton ZLS0R-RC1 Manual de usuario
Leviton
Leviton Decora IllumaTech RTF01-10X Manual de usuario
Leviton
Leviton Vizia RF RZCPG Manual de usuario
Leviton
Leviton HCCKR Manual de usuario
Leviton
Leviton 8700 Series Manual de usuario
Leviton
Leviton NE210 Manual de usuario
Leviton
Leviton VRCPG Manual de usuario
Leviton
Leviton Acenti ACP0R-CB Manual de usuario
Leviton
Leviton Vizia VZ00R-10X Manual de usuario
Leviton
Leviton Universal Remote Controle Manual de usuario
Leviton
Leviton VRCPG Manual de usuario
