Leviton 5R1UH-S08 Manual de usuario

Instructions for Use - Opt-X®High Density System Ultra Enclosure

Leviton Network Solutions, a division of Leviton Mfg. Co., Inc.

2222 - 222nd St. SE Bothell, WA 98021 Tech Line: 1-800-722-2082 Fax: 1-425-485-9170 www.leviton.com

Page 1 of 30

DI-007-5RXUH-20A

5R1UH-S08

5R2UH-S16

5R1UH-S08

5R2UH-S16

FIBER CONNECTOR SAFETY WARNINGS

SAFETY INFORMATION

1. Always wear safety glasses.

2. Isopropylalcoholisammableandmaycauseeyeirritation.Incaseofcontactwitheyes,

 ushwithwaterforatleast15minutes.Whenusingisopropylalcohol,alwaysassure 

proper levels of ventilation. In case of ingestion, consult a physician immediately.

3. Never look directly into a laser light source, point source at a person’s eyes, or point

 sourceatreectivesurfaces.

4. Whenworkingonaberlink,alwaysturnlasersourceoff,ordisconnectcompletely.

5. Alwaysdisposeofberdebrisproperly,preferablyusingstickytabs.

6. Do not place food or beverages in the vicinity of the work area.

7. Thoroughlywashfaceandhandsafterterminatingber.

8. Carefullyremoveanyberdebristhatmayhavebeenstucktoclothing,orleftinwork

area, and dispose of properly.

TIPS AND RECOMMENDATIONS

1. Usingisopropylalcohol,thoroughlycleanexposedberandbufferensuringbotharefree

from dust, oil, and debris.

2. Do not lay ferrule dust covers on a dirty or dusty surface.

3. Alwaysusepropertoolsand/oraccessoriestoterminatebersandcleanconnectortips.

TABLE OF CONTENTS

The following instructions will help you quickly install your Leviton Opt-X®High Density System Ultra™ Enclosure

for use in your equipment cabinet or rack. For detailed information on each step, go to the page number listed

below.

Safety and Installation Instructions Pg. 2

Table of Contents Pg. 2

Standard Accessories Pg. 3

Optional Accessories Pg. 3

Equipment Overview Pg. 4

Side View Pg. 5

Bend Radius Installation, Cover Removal, and Door Removal Pg. 5

Cable Installation - Preparation Pg. 6

Center Bar Removal - Detail View Pg. 6

Cassette Installation Pg. 7

Cable Installation - Applications Pg. 8

Opt-X®High Density System Ultra Labeling Pg. 9

Page 2 of 30 DI-007-5RXUH-20A

STANDARD ACCESSORIES (Included with Opt-X Ultra™ Enclosure)

Prior to installing your Leviton Opt-X Ultra Enclosure, please refer to the table below. This will help ensure that you

have all the items shipped with the unit, and/or any additional items that may be required for proper installation.

Page 3 of 30 DI-007-5RXUH-20A

Description Part Number

Universal Opt-X Cable Clamp Kit w/ single cable grommet (for enclosure mounting) 5RCMP-KIT

Universal Opt-X Cable Clamp Kit w/ multiple cable grommet (for enclosure mounting) 5RCMP-KT2

Universal Opt-X Cable Clamp Kit (for rack/post mounting) 5RCMR-KIT

1RU Mounting Ear for 23" Rack 5R1RU-023

1RU Replacement Door 5D000-1UN

1RU Replacement Door w/Lock 5D000-1UL

Replacement Covers 5C000-RPL

Grounding Kit DPGRD-KIT

2RU Replacement Door 5D000-2UN

2RU Replacement Door w/Lock 5D000-2UL

OPTIONAL ACCESSORIES

Description Image Quantity in

1RU Kit

Quantity in

2RU Kit

Paper Label Kit 2 Sets 2 Sets

Label Holder 6 12

ID Card Label 2 2

Spiral Loop, 18" 1 1

Velcro Tie 4 6

Rack Mnt Screw 4 4

Bend Radius

Bracket

(1RU Shown)

2 2

3 5 6

10 11

12 1

10 11

12 1

235

10 11

Panel # Serving: Fed From:

Page 4 of 30

DI-007-5RXUH-20A

1. Removable Covers

2. Cable Grommet

3. Removable Doors

4. Bend Radius Bracket

5. Slide Out Termination Tray

6. Front Grab Bar (pull to slide tray forward)

7. Label ID Holder

8. Mounting Ear

5RCMP-KIT Strain Relief Kit (Optional)

1. Hook and Loop Lacing Points

2. Rear tray plunger (lift plunger to slide tray

backward)

3. Trunk Cable Lace Points

4. Slide out termination tray

5. Front Grab Bar (pull to slide tray forward)

6. Receiving Rails

7. Patch Cord Cable Management Rings

EQUIPMENT OVERVIEW

Interior

NOTE: Cover removed for clarity.

Exterior

Description

The Leviton HD System Enclosure is available in 1RU and 2RU versions and provides for the mounting

of HD System Evolve cassettes, adapter plates and blank plates. 1RU Enclosures can receive up to 8

system components. 2RU Enclosures can receive up to 16 system components.

Provided Parts

1. (1) 1RU or 2RU Opt-X Ultra HD System enclosure

2. (2) Removable, transparent hinged doors

3. (1) Opt-X HD System slide tray

4. (3) Patch cord cable management rings

5. (2) Bend radius brackets

6. (2) Rubber cable grommets

7. (2) Mounting ears

8. (1) Accessory Kit (velcro ties, spiral wrap, port ID windows and labels)

9. (1) 12/24x0.5 screw kit assembly

7. 5.

7. 6.

SIDE VIEW (1RU Shown)

1. Adjustable 19” rack mount brackets

2. Cable Clamp kit mounting points

3. Cut grommet as needed to accomodate cables.

NOTE: Optional 23" RM kit also available for 1RU. See

Optional Part Number list (see page 4).

Slide bend radius bracket into opening

Page 5 of 30

DI-007-5RXUH-20A

To remove door: press tabs as shown

BEND RADIUS INSTALLATION

1. 2. 2. 3.

DETAIL I

SCALE: 2/1

Lift tab

Remove

cover

To remove cover: lift tabs, and then slide out

Press tab

COVER REMOVAL DOOR REMOVAL

CABLE GROMMET

CABLE INSTALLATION - PREPARATION

Page 6 of 30 DI-007-5RXUH-20A

Top View: Tray to Front

NOTE: Tray in forward position, covers

and center bar removed for clarity.

COMMENTS:

• Routecabletotraythroughgrommetontheopposite

side of slide tray tie down point

• Assurecableslackfortraymovement.

• Recommendedtrunkbreakoutlengthis36inches.

• 20inchesofbreakoutisrequiredfromthersttraylacing

point to provide adequate slack for individual cassette

travel.

• Aminimumof14inchesoffreeslackisrequiredtoeach

cassette for bend radius compliant accessibility from the

front side.

To remove tray from enclosure, slide tray fully forward

(Warning: No front pin/rear stop point is provided with this

enclosure.)

Pictured:Removabletraytofacilitateeld

termination

NOTE:

Pictured: Center bar removal - detail view

To remove center steel support bar, depress latch as

shown per arrow in diagram below.

NOTE:

• Donotremovebar

before installing

enclosure in rack.

• Centerbarisrequired

for operation of the

removable covers.

• Replacecenterbarwhen

service is complete.

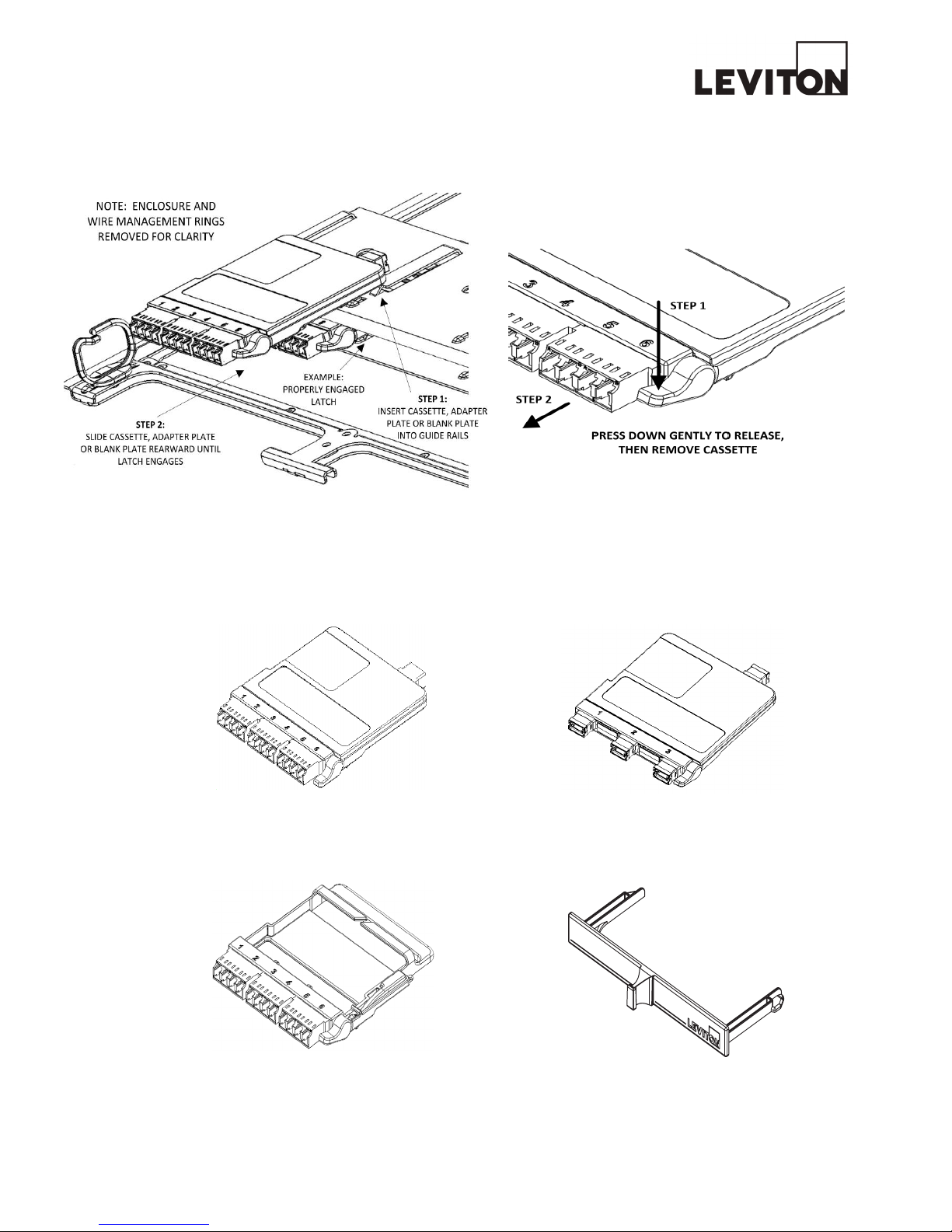

CASSETTE INSTALLATION

Page 7 of 30

DI-007-5RXUH-20A

Insert HD Evolve Cassettes, Adapter Plates or Blank Plates from the front into

the receiving guide of the target location.

HD Evolve Cassette HD Evolve MTP Cassette

Blank PlateHD Evolve Adapter Plate

Page 8 of 30 DI-007-5RXUH-20A

CABLE INSTALLATION - APPLICATIONS

OPT-X ULTRA™ UHD LABELING

Page 9 of 30 DI-007-5RXUH-20A

1RU/2RU Units: Insert label into label holder,

then with label holder oriented so the label slot

is facing up, insert label holder into door by

aligning with the pin points and gently pushing.

Label Printing Organization by Fiber Cassette or Adapter Panel Type

Per Column Number Scheme

Port Spacing No. of Ports

Duplex SC (3 pack) .60 6 1 2 3 4 5 6

Quad LC (3 pack) .60 12 1-2 / 3-4 5-6 / 7-8 9-10 / 11-12

MTP (3 port) 1.20 3 1 Space 2 Space 3

MTP (6 port) .60 6 1 2 3 4 5 6

Universal Labeling Devices

1RU

 •Use1/4"labeltape

 •Totallabellength~ 4"

 •Eachpanelsectionis1/4"Hx3/4"L

Leviton has provided the labeling model requirements to Rhino Labeling. Rhino has established product standards which are

available at www.rhinolabeling.com

2RU

 •Use3/8"labeltape

 •Totallabellength~ 3 3/4"

•Eachpanelsectionis3/8"Hx5/8"L

Leviton Manufacturing Co., Inc.

2222 222nd ST SE

Bothell, WA 98021, USA

Technical Support: 800-824-3005

DI-007-5RXUH-20A

Page 10 of 30 DI-007-5RXUH-20A
