Leviton Decora smart DW15R Manual de usuario

OUTLET

Getting Started Guide

Cat. No. DW15R

See the complete line of My Leviton app compatible

dimmers, switches, plug-ins, and controllers at

leviton.com/decorasmart.

Welcome to the

My Leviton Family

CALL

1-800-824-3005 (USA)

1-800-405-5320 (Canada)

ONLINE

leviton.com/decorasmart

CHAT

www.leviton.com

dssupport@leviton.com

Welcome

The Decora Smart branded, Wi-Fi

enabled outlet allows control

of lights and appliances from a

smartphone or tablet when you

are home or away as long as you

have an internet connection.

Built-in scheduling lets you turn

electrical devices on or o at

speciﬁc times of day, sunrise or

sunset. The aesthetic will look at

home with your matching Decora

electrical devices. Tamper resistant

protection provides additional

safety. An integrated vanishing

status light provides simple

indications of your outlet's status

as well as assistance joining the

network and setting up your outlet.

We are here to help

RATINGS

General Use 15A-120VAC, 50/60Hz

Magnetic 15A-120VAC, 50/60Hz

LED/CFL 5A-120VAC, 50/60Hz

Incandescent 1500W - 120VAC, 50/60Hz

Motor 3/4 HP - 120VAC, 50/60Hz

Operating Temp 0°C - 40°C (32°F - 104°F)

Operating Humidity 0-90% non-condensing

NETWORK

Wi-Fi 802.11 a/b/g/n @ 2.4GHz and 5GHz

Security WPA or WPA2

What you need to make it work



To install and use your Wi-Fi enabled outlet:

LINE

GROUND

NEUTRAL

1. A home Wi-Fi network with high speed internet

connection (802.11 a/b/g/n @ 2.4 and 5GHz with WPA

or WPA2 security).

2. An iOS (11.0 or later) or Android (6.0 or later) mobile

device.

3. An available interior wallbox with a line, neutral and

ground wire. WARNING: Do not use with aluminum

wire. To ensure proper communication, do not use

with metal wall plates.

4. Compatible with outlet loads up to 15A.

Features

Controlled Outlet

Press the button or use an

app command to turn the

outlet on/o.

Vanishing feedback light

Illuminates when the outlet

is o.

Tamper Resistant

Built-in shutters help prevent

the insertion of unintended

foreign objects.

Integrated Button

Provides manual control as well

as setup and conﬁguration.

Powered Outlet

The bottom outlet is

always on.

For additional support use the support options in the My Leviton app or

contact technical services (page 4).

NOTE: Before you wire, check to make sure a strong Wi-Fi signal is

present at the location where you want to install your controller.

WARNING: TO AVOID FIRE, SHOCK OR DEATH, turn o power at the

circuit breaker.

1. Work on only one connection at a time.

2. Connect wires as shown.

NOTE: Wire size #14-12 AWG is needed for hot and neutral terminals.

Conductor strip length is marked on the product. Tighten screws to

14 in-lbs (1.6 N-m).

Installation

LINE

NEUTRAL

GROUND

If your back box looks dierent,

consult an electrician

Test and install

1. Restore power. Status light

should ﬂash green indicating

your outlet is ready to be added

to a network.

Turn o power at circuit breaker

before completing the outlet

installation.

2. Gently push wires into wall box.

Screw outlet to box.

3. Install wallplate base and

snap on Decora®wallplate.

Restore power.

Congratulations!

Your Wi-Fi enabled outlet

is ready to control your ﬁxture.

Get the app

Visit http://my.leviton.com and select the link

for your smartphone or tablet.

Launch the app

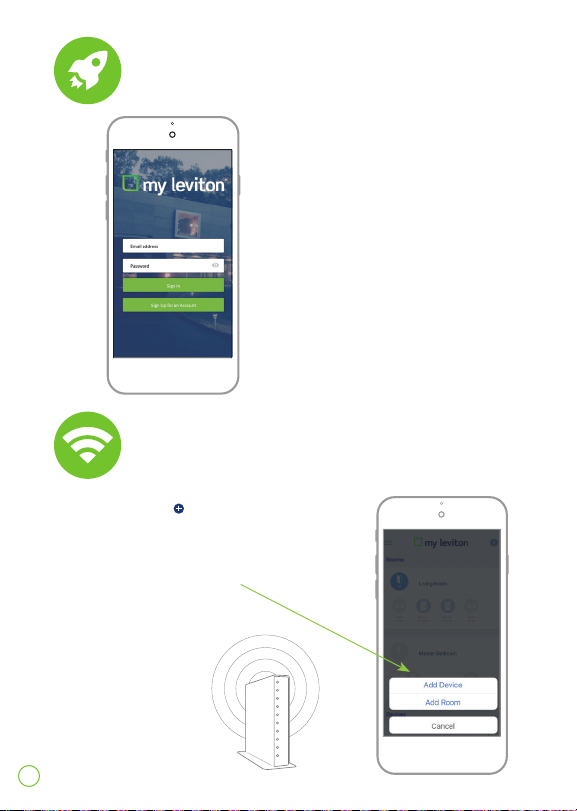

1. Launch the My Leviton app.

2. Log in or choose Sign Up

for an Account.

3. Follow the instructions on

the screen.

1. Select the in the upper right

corner to add a device.

2. Follow the app instructions to add

your device to your home network.

Add to your home network
