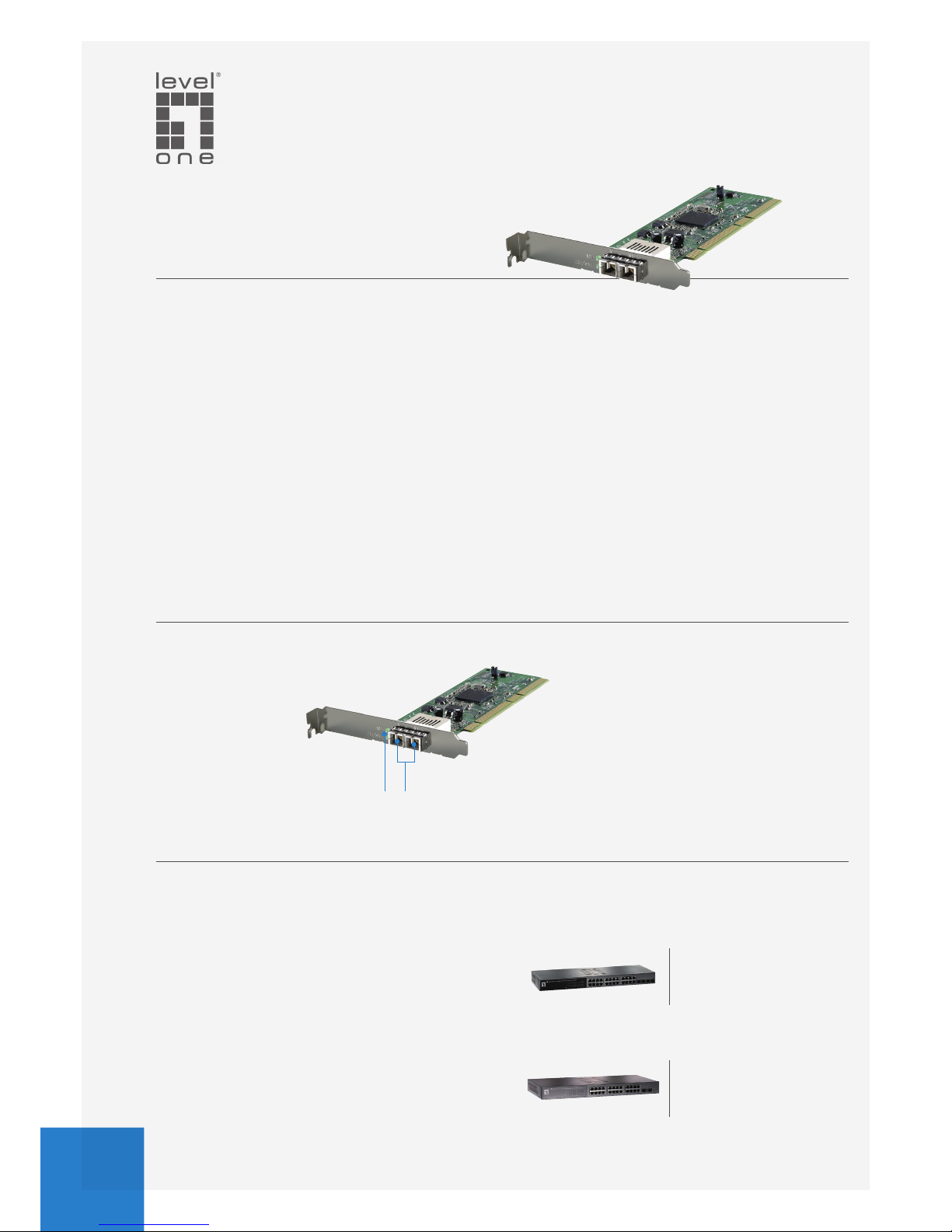

LevelOne GNC-0107 Manual de usuario

1000BASE-SX Fiber Optic

PCI Card (SC) GNC-0107

Product Overview

The LevelOne GNC-0107 Fiber Gigabit Ethernet

Network Interface Card provides network connectivity

within high-speed Fiber-Optic networks. The high

bandwidth network interface card provides full-

duplex network data speeds of up to 2000Mbps

and support an array of advanced network interface

functionality.

High-Speed Network Interface

The GNC-0107 Gigabit Fiber PCI Card supports a 32 or

64 bits PCI bus conguration for servers that require

a high-bandwidth environment. It is IEEE802.3x

compliant, providing full-duplex ow control for

2Gbps network data transfer speeds over a 550 meter

ber connection. It also requires less server resources

by providing on-board verication of IP headers and

TCP/UDP checksums for received data.

Advanced Networking

The Gigabit Fiber PCI Card provides high-level VLAN

ltering and on-board screening of IEEE 802.3Q VLAN

tagged Ethernet frames for secured and exible

network usage while IEEE 802.1p (QoS) Quality of

Service protocol support allows for a Layer 2 priority

network data trac interface and dynamic multicast

ltering.

The GNC-0107 Gigabit Fiber PCI Card further supports

a 9K Jumbo Frame Rate, IEEE 802.3ad link aggregation,

Pre-Boot Execution Environment (PXE), Multi-Boot

Agent (MBA), Remote Program Load (RPL) and

Bootstrap Protocol (BOOTP).

Key Features

- High-Speed Fiber-Optic network interface card

- Supports 2Gbps Full-Duplex mode

- Full-Duplex Switching: 550m

- Supports 32/64 bits PCI bus conguration

- Compliant with IEEE 802.1Q VLAN

- Supports 802.3ad Link Aggregation

- Compliant with IEEE 802.1p QoS

- Supports on-board IP header verication and TCP/

UDP checksum ooad

- Supports Multiple Operating Systems

GSW-2476

24-Port TP w/ 4-Port shared SFP

Web Smart Gigabit Ethernet

Switch

Works Well With

1. LEDs

2. 1000SX SC-Type Fiber Port

H/W Version: 1

GSW-2494

24-Slot TP w/ 2-Port shared

SFP L2 SNMP Gigabit

Ethernet Switch

www.level1.com

one world_one brand_one level_ Ethernet Switches

Technical Specications

Product Diagram

Server

Physical Specications

Power Requirement

10W

5V DC, 2A

Operating Parameters

Temperature: 0°C to 50°C

Humidity: 5% to 90%

Dimensions

165mm (L) x 57.5mm (H)

Weight

70g

Certications

FCC Class B

CE Mark

RoHS

Software Support

Windows 2000/NT4.0/2003/XP/Vista/7

Novel Netware 4.x, 5.x, 6.x

Linux, NDIS2,

UnixWare 7.0

PXE & RPL Boot ROM, Solaris

SCO Open Server

Network Interface

Standards Compliant

IEEE 802.3z Gigabit Ethernet 1000Base-SX/LX

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.1Q VLAN

IEEE 802.1p QoS

IEEE 802.3ad Link Aggregation

Connector

850nm SC multi-mode

Fiber Optic Cable and Length

62.5/125μm, 50/125μm Multi-Mode up to 550m

Data Transfer Mode/Speed

Full duplex with NWay ow control

1000Mbps speed

Bus Slot

PCI-X 64/32bit Signaling (PCI 2.2 66MHz)

Diagnostics LEDs

Link/Activity

Full-duplex Activity

GNC-0107

Server

GNC-0107

GSW-2494

Order Information GNC-0107: 1000BASE-SX Fiber Optic PCI Card (SC)

Package Contents GNC-0107

CD Manual

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.
