YOGA TABLET 8 /

YOGA TABLET 10

Quick Start Guide v1.0

Read this guide carefully before using your YOGA TABLET.

All information labeled with * in this guide refers only to the WLAN + 3G

model (Lenovo B6000-H(V) / Lenovo B8000-H ).

①Actual product may differ.

② Launch with Android 4.2 which only supports BT 4.0 PXP proﬁle.

Technical speciﬁcations

5 MP AF (back) + 1.6 MP HD (front)

Size: 8 inches

Resolution: 1280 × 800

*Version: WLAN + 3G

②Bluetooth 4.0 WLAN 802.11 b/g/n GPS

*WCDMA, GSM

6000 mAh

Wireless

communication

Display

Battery

CPU

① Weight

Camera

YOGA TABLET 8 YOGA TABLET 10

60044; Z0AG

60043; Z0AF

Model & version

Model: Lenovo B8000-F;

Version: WLAN

60046; Z0AL

*Model: Lenovo B8000-H

Android 4.2

60047; Z0AJ

System

Approx. 401 g *404 g Approx. 605 g *610 g

MTK MT8125 Quad Core 1.2 GHz

*MTK MT8389 Quad Core 1.2 GHz

9000 mAh

Size: 10.1 inches

Resolution: 1280 × 800

*Version: WLAN + 3G

60045; Z0AH

(Data only)

( Voice)

*Model: Lenovo B6000-HV;

*Model: Lenovo B6000-H;

*Version: WLAN + 3G

(Data only)

Model: Lenovo B6000-F;

Version: WLAN

Microphone

Bracket

Front camera On/Off button

Volume key

Back camera

Earphone jack

Speakers 5

Micro USB

789

microSD card slot *Micro SIM card slot

①

213 mm

①144 mm

②

261 mm

②

180 mm 3 mm

4 4

②

8.1 mm

①

7.3 mm

① Actual product may differ and this dimension only refers to YOGA TABLET 8.

② Actual product may differ and this dimension only refers to YOGA TABLET 10.

* The WLAN model ( Lenovo B6000-F / Lenovo B8000-F) does not have a Micro SIM

card slot.

21 mm

First glance

10.00

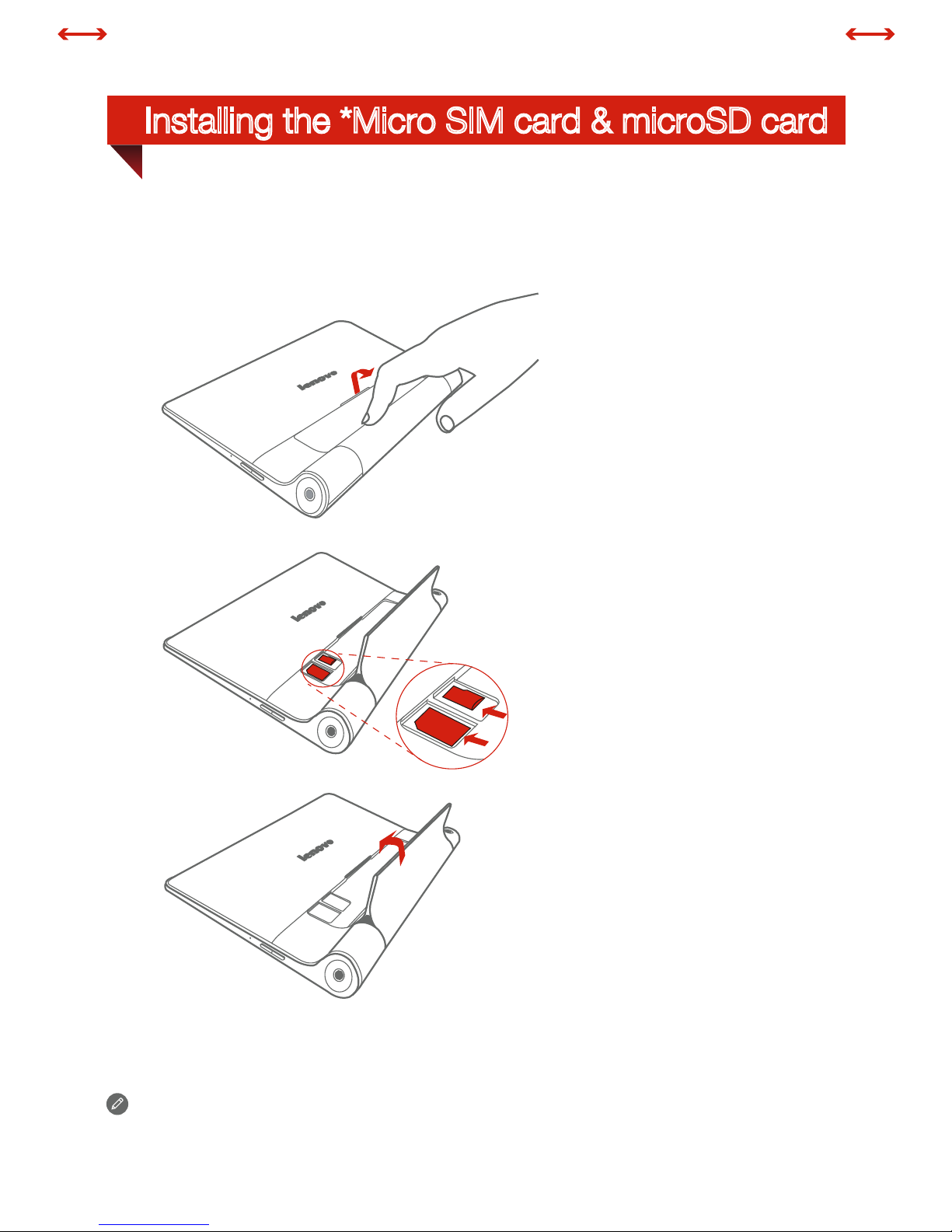

Step 3. Push back the bracket.

You can use cellular services with the WLAN + 3G model ( Lenovo B6000-H(V) /

Lenovo B8000-H) by inserting the Micro SIM card provided by your carrier.

Install the Micro SIM card and the microSD card as shown.

Only Micro SIM card works with your YOGA TABLET.

!!! DO not insert or remove the Micro SIM card while your YOGA TABLET is turned

on. Doing so can permanently damage your Micro SIM card or YOGA TABLET.

microSD

Step 1. Lift the bracket.

Step 2. Insert the Micro SIM card

and microSD card.

Micro SIM

Installing the *Micro SIM card & microSD card

Connect your

YOGA TABLET

to a power outlet using the included cable and

USB power adapter.

Low battery Fully charged Charging

For more information about battery safety, see the Important Product

Information Guide.

Before using your YOGA TABLET, you might need to charge the battery.

Charge the battery as shown.

Turn on/off

Turn on: Press and hold the On/Off button until

the Lenovo logo is displayed.

Turn off: Press and hold the On/Off button for a

few seconds, then tap Power off .

Charging and turning on/off your YOGA TABLET

SSC9A463BX

Printed in China

Learn more

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States,

other countries, or both.

Other company, product, or service names may be trademarks or service

marks of others.

Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

First Edition (September 2013)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is

delivered pursuant a General Services Administration “GSA” contract, use,

reproduction, or disclosure is subject to restrictions set forth in Contract

No. GS-35F-05925.

For more information about your YOGA TABLET functions, please refer to

the “Feature Guide” app in your YOGA TABLET.

For other useful manuals, please access “User Guide” from the Browser

favorites in your YOGA TABLET.

For “Regulatory Notices” , please go to http://support.lenovo.com/.

Getting support

For support on network service and billing, please contact your wireless

network operator. For instructions on how to use your YOGA TABLET, go

to http://support.lenovo.com/.

Radio and Telecommunications Terminal Equipment Directive

This product is in compliance with the essential requirements and other

relevant provisions of the Radio and Telecommunications Terminal

Equipment Directive, 1999/5/EC.

European Union conformity
