Lenovo YOGA Tablet 2-851F Cómo utilizar

English/Deutsch/Français/Italiano/Português/Nederlands/Dansk/

Svenska/Norsk/Suomi/Español/Inglise/Latviski/Anglų k./Íslenska

YOGA Tablet 2–851F

with Windows

Safety, Warranty & Quick Start Guide

Electronic emission notices

Learn more

Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in

the United States, other countries, or both.

Other company, product, or service names may be

trademarks or service marks of others.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or

software is delivered pursuant a General Services

Administration “GSA” contract, use, reproduction, or

disclosure is subject to restrictions set forth in Contract

No. GS-35F-05925.

To learn more information about your YOGA Tablet 2

with Windows and obtain the latest manuals, go to:

http://support.lenovo.com/.

Getting support For support on network service and billing, contact your

wireless network operator. For instructions on how to

use your YOGA Tablet 2 with Windows, go to:

http://support.lenovo.com/.

Read this guide carefully before using your YOGA Tablet 2 with Windows.

Radio and Telecommunications Terminal Equipment

Directive

This product is in compliance with the essential

requirements and other relevant provisions of the Radio

and Telecommunications Terminal Equipment Directive,

1999/5/EC.

European Union conformity

0700

English

Approx. 426 g

Intel Bay Trail - T Z3745

(4-core, 1.33 GHz (up to 1.86 GHz))

6400 mAh (NOM)

①Weight

Camera

Battery

Display

Wireless

communication

8 megapixels AF (back) + 1.6 megapixels HD (front)

Size: 8 inches

Resolution: 1920 × 1200

Bluetooth WLAN 802.11 a/b/g/n, 2.4GHz & 5GHz Dual Band

GPS

①Depending on the measuring method, the weight might vary slightly.

CPU

YOGA Tablet 2 with Windows

Windows

Model: YOGA Tablet 2-851F Version: WLAN

System

Model & version

Technical speciﬁcations

Micro USB

789

On/Off button Speakers

Windows button

Volume button

Kickstand

Hanging hole microSD card slot

!!! DO not insert your nger into the hanging hole. Doing so might hurt your nger.

You can use pencils or metal-tipped pens with a tip diameter of 0.7mm or above,

including fountain pens, rollerball pens, and some ballpoint pens, to write and draw

on the screen or perform auxiliary touch operations. Special tip: There is a risk of

scratching the screen slightly if you apply too much pressure when writing or use a

pen tip that is too hard.

Back camera

Microphone

Earphone jack

210.4 mm

148.9 mm

21.0 mm

7.0 mm

2.7 mm

First glance

Front camera

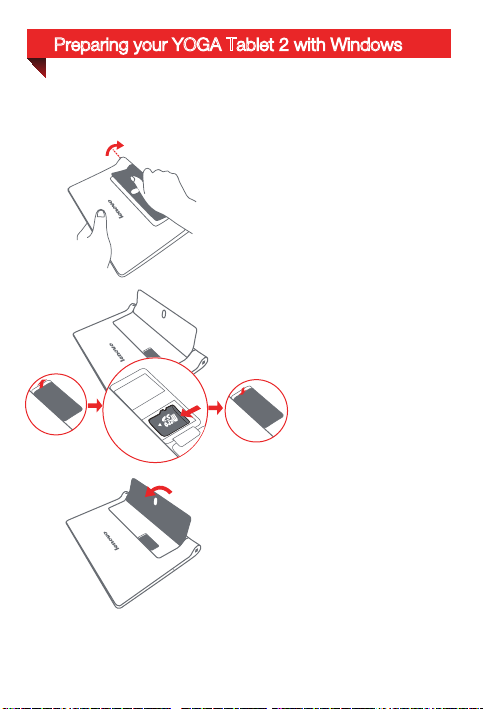

Install the microSD card as shown.

Step 1. Lift the

kickstand

Step 2. Open the card slot cover.

Insert the microSD card and then

install the card slot cover back.

Step 3. Push back the

kickstand

Preparing your YOGA Tablet 2 with Windows

Turning on/off

Before using your YOGA Tablet 2 with Windows, you might need to charge the battery.

Charge the battery as shown.

Connect your YOGA Tablet 2 with Windows to a power outlet using the included cable

and USB power adapter.

Low battery Fully charged Charging

Turn on: Press and hold the On/Off button until the

Lenovo logo is displayed.

Turn off: Press and hold the On/Off button for a few

seconds, then drag Slide to shut down your PC

down.

Use the USB power adapter supplied only with your YOGA Tablet 2 with Windows.

Starting to use your YOGA Tablet 2 with Windows

Taking screenshots

Press and hold the Windows button and the Volume down button at the same time.

Read before using your tablet

Read ﬁrst-Regulatory information

The following sections provide critical safety and regulatory information for Lenovo

tablets and instructions on how to access electronic versions of the publications

developed for your tablet.

Downloading publications

Accessing your User Guide

The following information describes the technical support that is available for your

product, during the warranty period or throughout the life of your product. Refer to the

Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo

Limited Warranty notice” later in this document for details on accessing the full

warranty.

Online technical support

Online technical support is available during the lifetime of a product at

http://www.lenovo.com/support.

You can get help and information from the Customer Support Center by telephone.

Before contacting a Lenovo technical support representative, please have the following

information available: model and serial number, the exact wording of any error

message, and a description of the problem.

Your technical support representative might want to walk you through the problem

while you are at your device during the call.

Device models equipped with wireless communications comply with the radio frequency

and safety standards of any country or region in which it has been approved for wireless

use. In addition, if your product contains a telecom modem, it complies with the

requirements for connection to the telephone network in your country.

Be sure to read the Regulatory Notice for your country or region before using the wireless

devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer

to the “Downloading publications” section below.

Electronic versions of your publications are available from the

http://support.lenovo.com. To download the publications for your device, go to:

http://support.lenovo.com and follow the instructions on the screen.

Your User Guide contains detailed information about your device. To access your User

Guide, use one of the following methods:

Go to: http://support.lenovo.com and follow the instructions on the screen.

Start your device, access the User Guide app.

Service and Support information

Telephone technical support

WARNING:

Handling the cord on this product or cords associated with accessories sold with this

product will expose you to lead, a chemical known to the State of California to cause

cancer, and birth defects or other reproductive harm. Wash hands after handling.

Polyvinyl Chloride (PVC) cable and cord notice

Built-in rechargeable battery notice

Prevent hearing damage

Your device has a headphone connector. Always use the headphone connector for

headphones (also called a headset) or earphones.

Worldwide Lenovo Support telephone list

DANGER:

Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo

Support for factory replacement.

CAUTION:

Excessive sound pressure from earphones and headphones can cause hearing loss.

Adjustment of the equalizer to maximum increases the earphone and headphone

output voltage and the sound pressure level. Therefore, to protect your hearing, adjust

the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time at high volume

can be dangerous if the output of the headphone or earphone connectors do not

comply with speciﬁcations of EN 50332-2.

The headphone output connector of your device complies with EN 50332-2 Sub

clause 7. This speciﬁcation limits the device's maximum wide band true RMS output

voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or

earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band

characteristic voltage of 75 mV. Using headphones that do not comply with EN

50332-2 can be dangerous due to excessive sound pressure levels.

If the telephone number for your country or region is not listed, contact your Lenovo

reseller or Lenovo marketing representative.

Important safety and handling information

Plastic bag notice

DANGER:

Plastic bags can be dangerous. Keep plastic bags away from babies and children to

avoid danger of suffocation.

Important: Telephone numbers are subject to change without notice. The most

up-to-date telephone list for the Customer Support Center is always available at

http://www.lenovo.com/support/phone.

Warning statement:

To prevent possible hearing damage, do not listen at high volume levels for a long

period of time.

Lenovo Limited Warranty notice

This product is covered by the terms of the Lenovo Limited Warranty, version

L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at

http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of

languages from this Web site. If you cannot view the LLW from the Web site, contact

your local Lenovo ofﬁce or reseller to obtain a printed version of the LLW.

YOGA Tablet 2 with Windows

Model & Version

Model Version

WLAN

YOGA Tablet 2-851F

Sound pressure warning statement

For the device that is tested in accordance with EN 60950-1:

2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests for

EN50332.

This device has been tested to comply with the Sound Pressure Level requirement laid

down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing

loss may occur if earphones or headphones are used at high volume for prolonged

periods of time.

Warranty information

If your device came with headphones or earphones in the package, as a set, the

combination of the headphones or earphones and the device already complies with

the speciﬁcations of EN 50332-1. If different headphones or earphones are used,

ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using

headphones that do not comply with EN 50332-1 can be dangerous due to excessive

sound pressure levels.

* Excludes some components. 90-day limited warranty for power adapters, keyboards,

plastics and hinges.

Types of Warranty Service

1. Customer Replaceable Unit (“CRU”) Service

2. On-site Service

Warranty period and type of Warranty service

Country or Region Purchase Warranty Period Type of Warranty

Service

France, Germany, Italy, Austria,

United Kingdom, Israel, Australia, New

Zealand

parts and labor-1 year

battery pack -1 year 1,3

Serbia, Costa Rica, Venezuela, Peru,

Uruguay, Ecuador, Colombia, Chile, Argentina,

Indonesia, Vietnam, India, Malaysia, Thailand,

Philippines, Singapore, Hong Kong

parts and labor-1 year

battery pack -1 year 1,4

Russia, Ukraine, Egypt, Lebanon, Morocco,

South Africa, Tunisia, Mauritius, Mozambique,

Saudi Arabia, United Arab Emirates, Jordan,

Kenya, Nigeria, Uganda, Ghana, Oman,

Tanzania, Namibia

parts and labor-1 year

battery pack -1 year 4

Poland, Hungary, Romania, Bulgaria, Greece,

Croatia, Slovenia, Slovakia, Cyprus, United

States of America, Canada, Mexico, Japan

parts and labor-1 year

battery pack -1 year 1,5

Panama parts and labor-1 year

battery pack -1 year 2,4

Taiwan, South Korea parts and labor-1 year

battery pack -1 year 3,4

Spain, Switzerland, Portugal, Netherlands,

Belgium, Sweden, Denmark, Norway, Finland,

Estonia, Latvia, Lithuania, Iceland

parts and labor-2 year

battery pack -1 year 1,3

Czech Republic parts and labor-2 year

battery pack -1 year 1,5

Turkey parts and labor-2 year

battery pack -1 year 3,4

Otros manuales para YOGA Tablet 2-851F

Tabla de contenidos

Idiomas:

Otros manuales de Tableta de Lenovo

Lenovo

Lenovo ThinkPad Hard Disk Drive Manual de usuario

Lenovo

Lenovo Tab M10 HD Manual de usuario

Lenovo

Lenovo ThinkPad Tablet 2 Manual del propietario

Lenovo

Lenovo Tab K10 Manual de usuario

Lenovo

Lenovo a7600 Manual de usuario

Lenovo

Lenovo TAB3 7 Essential Cómo utilizar

Lenovo

Lenovo TAB 7 Cómo utilizar

Lenovo

Lenovo TAB3 7 Essential Cómo utilizar

Lenovo

Lenovo YOGA Tab 3 10" YT3-X50F Cómo utilizar

Lenovo

Lenovo TAB 4 Manual de usuario

Lenovo

Lenovo TAB3 7 Essential Cómo utilizar

Lenovo

Lenovo YOGA Tablet 2-830F Cómo utilizar

Lenovo

Lenovo Tab M10 FHD Plus Cómo utilizar

Lenovo

Lenovo YOGA BOOK with Windows Manual de usuario

Lenovo

Lenovo Lenovo S5000 Manual de usuario

Lenovo

Lenovo MIIX 3-830 Manual del propietario

Lenovo

Lenovo IdeaPad A1-07 Manual del propietario

Lenovo

Lenovo TAB 2 A7 Cómo utilizar

Lenovo

Lenovo A5500 Manual de usuario

Lenovo

Lenovo TAB3 10 Business Cómo utilizar

Lenovo

Lenovo Yoga Tab 13 Manual de usuario

Lenovo

Lenovo Tab K10 Cómo utilizar

Lenovo

Lenovo IdeaPad Miix 2 8 Manual de usuario

Lenovo

Lenovo IdeaPad A1 16GB Manual de usuario

Manuales populares de Tableta de otras marcas

Laser

Laser MID-1060 Guía del usuario

MUNBYN

MUNBYN IRT09J Guía de inicio rápido

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Manual de usuario

Dell

Dell Latitude ST Manual del propietario

Venturer

Venturer WT9L11 Manual de usuario

EDUGEAR

EDUGEAR UnoBook Manual de usuario

Philips

Philips PI3210G/58 Manual de usuario

ADLINK Technology

ADLINK Technology IMT-BT Manual de usuario

TwinMOS

TwinMOS TwinTAB-T102D1 Manual de usuario

Archos

Archos 9.7 xenon Manual de usuario

Getac

Getac E100 Manual de usuario

HANNspree

HANNspree HANNspad SN70T3 Manual de usuario

Philips

Philips PI3105W2/55 Manual de usuario

LG LG-V935 Manual de usuario

Zeki

Zeki TBDB763B Manual de usuario

Ricoh

Ricoh eQuill Manual de usuario

DT Research

DT Research DT365CT Instrucciones de montaje

MaxWest

MaxWest Nitro Phablet 9 Manual de usuario
