Lenovo TAB 2 A7-30 series Cómo utilizar

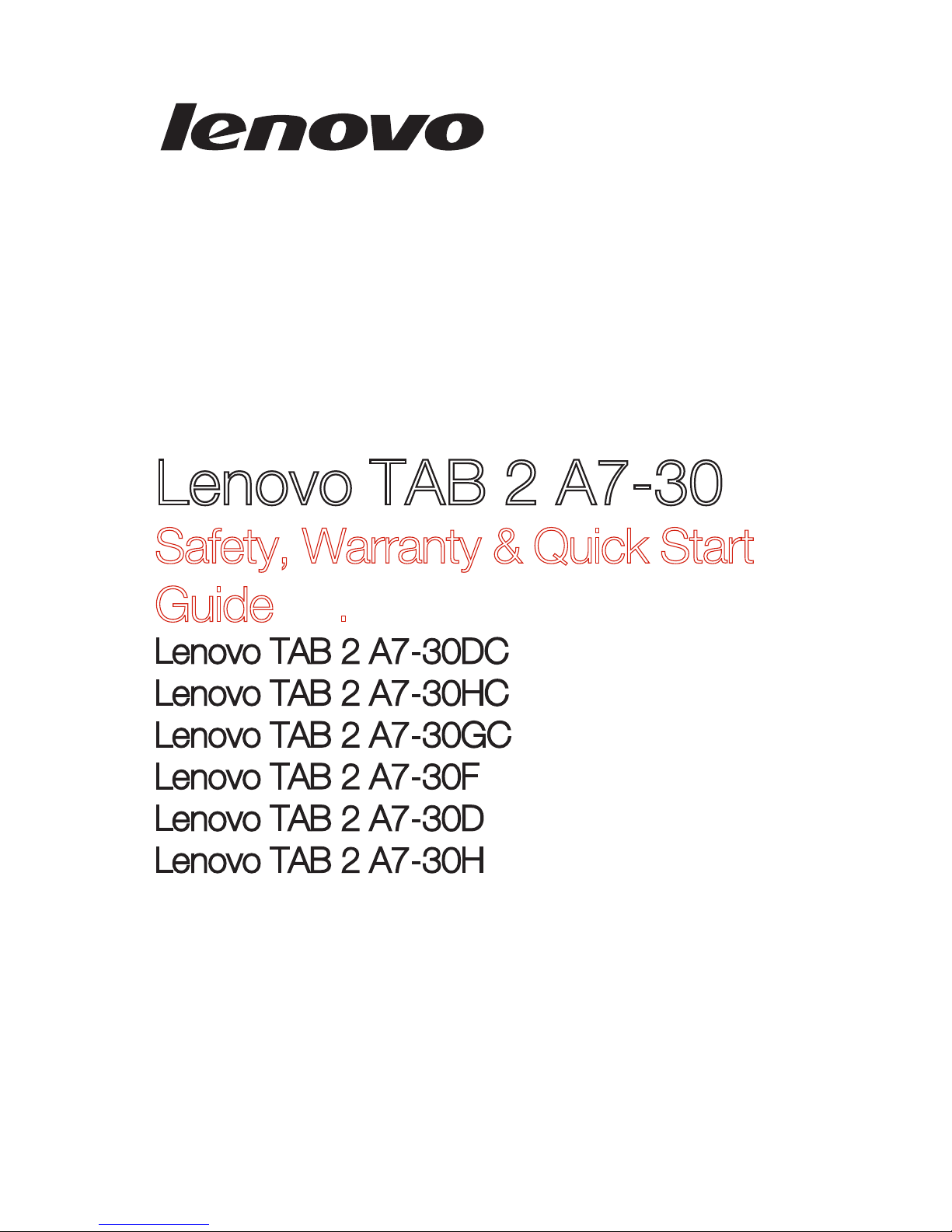

Lenovo TAB 2 A7-30

Safety, Warranty & Quick Start

Guide V1.0

Lenovo TAB 2 A7-30DC

Lenovo TAB 2 A7-30HC

Lenovo TAB 2 A7-30GC

Lenovo TAB 2 A7-30F

Lenovo TAB 2 A7-30D

Lenovo TAB 2 A7-30H

English/Čeština

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or

software is delivered pursuant a General Services

Administration “GSA” contract, use, reproduction, or

disclosure is subject to restrictions set forth in Contract

No. GS-35F-05925.

English

Electronic emission notices

Learn more

Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in

the United States, other countries, or both.

Other company, product, or service names may be

trademarks or service marks of others.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

To learn more information about your Lenovo TAB 2

A7-30 functions, please access “User Guide” from the

Browser favorites in your tablet.

To obtain the “Regulatory Notices” , go to

http://support.lenovo.com/.

Getting support For support on network service and billing, contact your

wireless network operator. For instructions on how to

use your Lenovo TAB 2 A7-30, go to

http://support.lenovo.com/.

Read this guide carefully before using your Lenovo TAB 2 A7-30

All information labeled with * in this guide refers only to the WLAN + 3G (Lenovo

TAB 2 A7-30HC/Lenovo TAB 2 A7-30H/Lenovo TAB 2 A7-30D/Lenovo TAB 2

A7-30DC) and WLAN + 2G (Lenovo TAB 2 A7-30GC) models.

Radio and Telecommunications Terminal Equipment

Directive

This product is in compliance with the essential

requirements and other relevant provisions of the Radio

and Telecommunications Terminal Equipment Directive,

1999/5/EC.

European Union conformity

2200

Technical speciﬁcations

MTK MT8127/*MTK MT8382M, Quad Core, 1.3 GHz

3450 mAh

Model & version

Camera

Battery

Display

Wireless

communication

2 megapixels FF (back) + 0.3 megapixels (front)

Size: 7 inches

Resolution: 1024 × 600

Bluetooth 4.0 WLAN 802.11 b/g/n GPS

*WCDMA, *GSM

①Dimensions &

Weight

Height: 191 mm (7.52 inches) Width: 105 mm (4.13 inches)

Depth: 8.9 mm (0.35 inch) Weight: 269 g (0.72 lb)

①Depending on the measuring method, the weight might vary slightly.

*Version: WLAN + 2G (voice)

CPU

Lenovo TAB 2 A7-30

Version: WLAN

Android

*Version: WLAN + 3G (voice)

*Version: WLAN + 3G

*Model: Lenovo TAB 2 A7-30HC;

Lenovo TAB 2 A7-30DC;

*Model: Lenovo TAB 2 A7-30H;

Lenovo TAB 2 A7-30D;

*Model: Lenovo TAB 2 A7-30GC;

Model: Lenovo TAB 2 A7-30F;

System

Micro USB

789

1On/Off button Speaker/*Receiver

Microphone

Volume key

Earphone jack

Back camera microSD card slot

*SIM card slot

Only Lenovo TAB 2 A7-30DC, Lenovo TAB 2 A7-30HC, and Lenovo TAB 2

A7-30GC have a receiver.

The receiver is only available to VoIP (Voice over Internet Protocol).

The WLAN model (

Lenovo TAB 2 A7-30F

) does not have a SIM card slot.

First glance

Front camera

You can use cellular services with the WLAN + 3G (Lenovo TAB 2 A7-30HC/Lenovo TAB

2 A7-30H/Lenovo TAB 2 A7-30D/Lenovo TAB 2 A7-30DC) and WLAN + 2G (Lenovo TAB

2 A7-30GC) models by inserting the SIM card provided by your carrier.

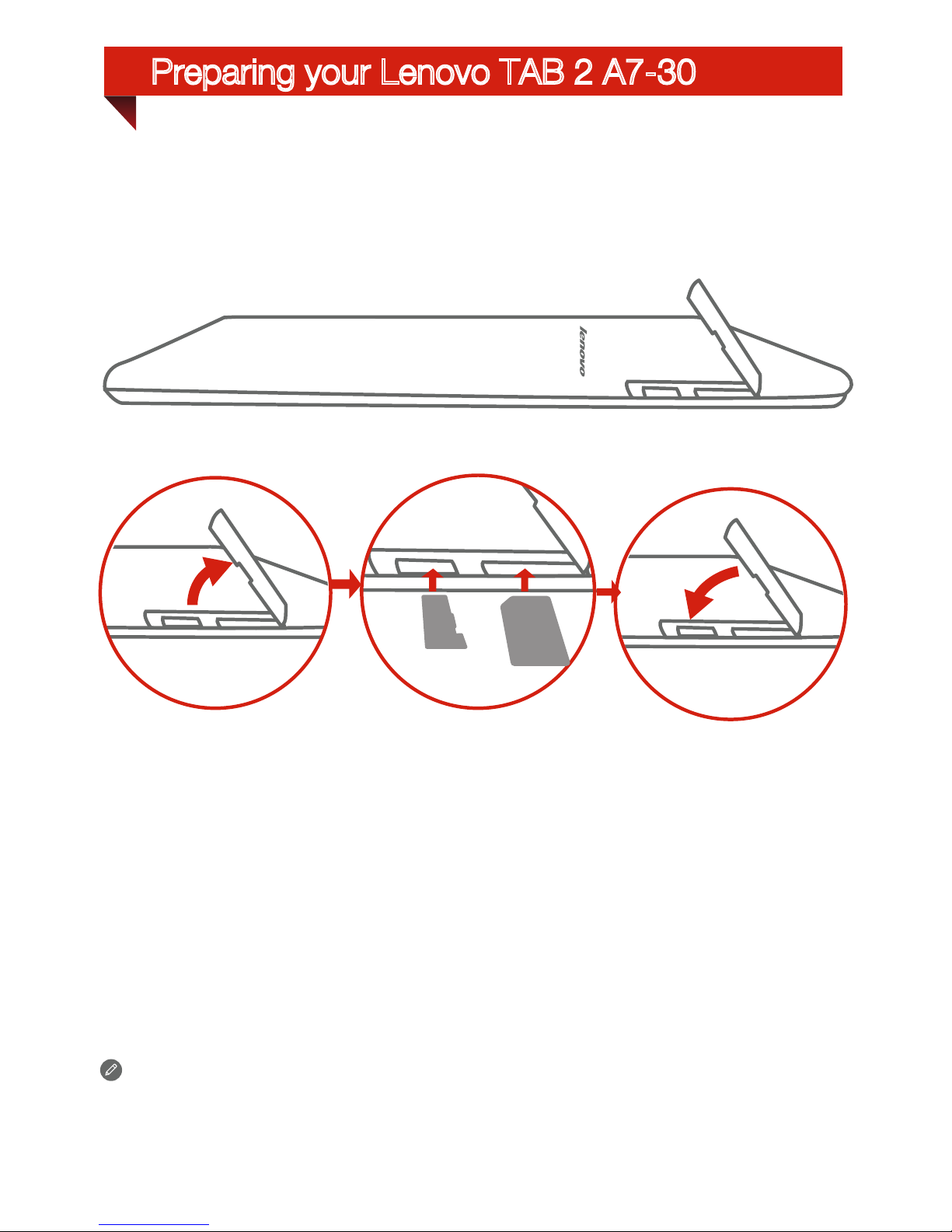

Install the SIM card and the microSD card as shown.

Step 1. Open the card slot cover.

Step 2. Place the SIM card into the SIM card slot and the microSD card into the

microSD card slot.

Step 3. Carefully replace the slot cover.

!!! DO not insert or remove the SIM card while your WLAN + 3G or WLAN + 2G

model is turned on. Doing so can permanently damage your SIM card or your

WLAN + 3G or WLAN + 2G model

microSD

SIM

Preparing your Lenovo TAB 2 A7-30

Turning on/off

Before using your Lenovo TAB 2 A7-30, you might need to charge the battery.

Charge the battery as shown.

Connect your

Lenovo TAB 2 A7-30

to a power outlet using the included cable and

USB power adapter.

Low battery Fully charged Charging

Turn on: Press and hold the On/Off button until the Lenovo

logo appears.

Turn of f: Press and hold the On/Off button for a few

seconds, then tap Power off.

Starting to use your Lenovo TAB 2 A7-30

Taking screenshots

Press and hold the On/Off button and the volume down button at the same time.

Read before using your tablet

Read ﬁrst-Regulatory information

The following sections provide critical safety and regulatory information for Lenovo

tablets and instructions on how to access electronic versions of the publications

developed for your tablet.

Downloading publications

Accessing your User Guide

The following information describes the technical support that is available for your

product, during the warranty period or throughout the life of your product. Refer to the

Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo

Limited Warranty notice” later in this document for details on accessing the full

warranty.

Online technical support

Online technical support is available during the lifetime of a product at

http://www.lenovo.com/support.

You can get help and information from the Customer Support Center by telephone.

Before contacting a Lenovo technical support representative, please have the following

information available: model and serial number, the exact wording of any error

message, and a description of the problem.

Your technical support representative might want to walk you through the problem

while you are at your device during the call.

Device models equipped with wireless communications comply with the radio frequency

and safety standards of any country or region in which it has been approved for wireless

use. In addition, if your product contains a telecom modem, it complies with the

requirements for connection to the telephone network in your country.

Be sure to read the Regulatory Notice for your country or region before using the wireless

devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer

to the “Downloading publications” section below.

Electronic versions of your publications are available from the

http://support.lenovo.com. To download the publications for your device, go to:

http://support.lenovo.com and follow the instructions on the screen.

Your User Guide contains detailed information about your device. To access your User

Guide, use one of the following methods:

Go to: http://support.lenovo.com and follow the instructions on the screen.

Start your device, access “User Guide” from the Browser favorites in your tablet.

Service and Support information

Telephone technical support

WARNING: Handling the cord on this product or cords associated with accessories

sold with this product will expose you to lead, a chemical known to the State of

California to cause cancer, and birth defects or other reproductive harm. Wash hands

after handling.

Polyvinyl Chloride (PVC) cable and cord notice

Built-in rechargeable battery notice

Prevent hearing damage

Your device has a headphone connector. Always use the headphone connector for

headphones (also called a headset) or earphones.

Worldwide Lenovo Support telephone list

DANGER:

Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo

Support for factory replacement.

CAUTION:

Excessive sound pressure from earphones and headphones can cause hearing loss.

Adjustment of the equalizer to maximum increases the earphone and headphone

output voltage and the sound pressure level. Therefore, to protect your hearing, adjust

the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time at high volume

can be dangerous if the output of the headphone or earphone connectors do not

comply with speciﬁcations of EN 50332-2.

The headphone output connector of your device complies with EN 50332-2 Sub

clause 7. This speciﬁcation limits the device's maximum wide band true RMS output

voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or

earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band

characteristic voltage of 75 mV. Using headphones that do not comply with EN

50332-2 can be dangerous due to excessive sound pressure levels.

If the telephone number for your country or region is not listed, contact your Lenovo

reseller or Lenovo marketing representative.

Important safety and handling information

Plastic bag notice

DANGER:

Plastic bags can be dangerous. Keep plastic bags away from babies and children to

avoid danger of suffocation.

Important: Telephone numbers are subject to change without notice. The most

up-to-date telephone list for the Customer Support Center is always available at

http://www.lenovo.com/support/phone.

Warning statement:

To prevent possible hearing damage, do not listen at high volume levels for a long

period of time.

Lenovo Limited Warranty notice

This product is covered by the terms of the Lenovo Limited Warranty, version

L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at

http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of

languages from this Web site. If you cannot view the LLW from the Web site, contact

your local Lenovo ofﬁce or reseller to obtain a printed version of the LLW.

Lenovo TAB 2 A7-30

Model & Version

WLAN + 3G (Voice)

WLAN + 2G (Voice)

Lenovo TAB 2 A7-30HC/Lenovo TAB 2 A7-30DC

Lenovo TAB 2 A7-30GC

Lenovo TAB 2 A7-30F

Lenovo TAB 2 A7-30H/Lenovo TAB 2 A7-30D

WLAN

WLAN + 3G

Sound pressure warning statement

For the device that is tested in accordance with EN 60950-1:

2006+A11:2009:+A1:2010+A12:2011, it is mandatory to perform audio tests for

EN50332.

This device has been tested to comply with the Sound Pressure Level requirement laid

down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing

loss may occur if earphones or headphones are used at high volume for prolonged

periods of time.

Warranty information

If your device came with headphones or earphones in the package, as a set, the

combination of the headphones or earphones and the device already complies with

the speciﬁcations of EN 50332-1. If different headphones or earphones are used,

ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using

headphones that do not comply with EN 50332-1 can be dangerous due to excessive

sound pressure levels.

Model Version

* Excludes some components. 90-day limited warranty for power adapters, keyboards,

plastics and hinges.

Types of Warranty Service

1. Customer Replaceable Unit (“CRU”) Service

2. On-site Service

Warranty period and type of Warranty service

Country or Region Purchase

France, Germany, Italy, Austria,

United Kingdom, Israel, Australia,

New Zealand

Serbia, Costa Rica, Venezuela, Peru,

Uruguay, Ecuador, Colombia, Chile, Argentina,

Indonesia, Vietnam, India, Malaysia, Thailand,

Philippines, Singapore, Hong Kong

Russia, Ukraine, Egypt, Lebanon, Morocco,

South Africa, Tunisia, Mauritius, Mozambique,

United Arab Emirates, Jordan,Kenya, Nigeria,

Uganda, Ghana, Oman,Tanzania, Namibia

Panama

Taiwan, South Korea

Brazil

Spain, Switzerland, Portugal, Netherlands,

Belgium, Sweden, Denmark, Norway, Finland,

Estonia, Latvia, Lithuania, Iceland

Czech Republic

Turkey

Saudi Arabia

Poland, Hungary, Romania, Bulgaria, Greece,

Croatia, Slovenia, Slovakia, Cyprus, United

States of America, Canada, Mexico, Japan

Warranty Period

parts and labor-1 year

Battery Pack -1 year

parts and labor-1 year

Battery Pack -1 year

parts and labor-1 year

Battery Pack -1 year

parts and labor-1 year

Battery Pack -1 year

parts and labor-1 year

Battery Pack -1 year

parts and labor-1 year

Battery Pack -1 year

parts and labor-1 year

Battery Pack -1 year

parts and labor-2 year

Battery Pack -1 year

parts and labor-2 year

Battery Pack -1 year

parts and labor-2 year

Battery Pack -1 year

parts and labor-2 year

Battery Pack -1 year

1,3

1,4

1,5

2,4

3,4

2,5

1,3

1,5

3,4

Type of warranty

service

Otros manuales para TAB 2 A7-30 series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Tableta de Lenovo

Lenovo

Lenovo Lenovo YT3-X50F Manual del propietario

Lenovo

Lenovo YOGA Tab 3 10 YT3-X50F Cómo utilizar

Lenovo

Lenovo ThinkPad 8 Manual de usuario

Lenovo

Lenovo YOGA Tablet 2-851F Cómo utilizar

Lenovo

Lenovo TAB 7 Essential Manual de usuario

Lenovo

Lenovo Tab P11 Manual de usuario

Lenovo

Lenovo YOGA Tab 3 8 Cómo utilizar

Lenovo

Lenovo TAB A7-40 Manual de usuario

Lenovo

Lenovo Tab 3 Pro YT3 -X90F Manual del propietario

Lenovo

Lenovo Yoga Smart Tab YT-X705F Cómo utilizar

Lenovo

Lenovo A3500 Manual del propietario

Lenovo

Lenovo TAB 2 A7 Cómo utilizar

Lenovo

Lenovo ThinkPad X60 Tablet Manual de usuario

Lenovo

Lenovo A5500 Manual del propietario

Lenovo

Lenovo TAB 2 A10-30 Cómo utilizar

Lenovo

Lenovo TB3-X70L Cómo utilizar

Lenovo

Lenovo TB-8505XS Cómo utilizar

Lenovo

Lenovo ThinkPad 183828U Manual de usuario

Lenovo

Lenovo TAB 10 Plus Cómo utilizar

Lenovo

Lenovo TAB A10-70 Manual técnico

Lenovo

Lenovo Yoga Tab 3 Pro Cómo utilizar

Lenovo

Lenovo Tab M7 Manual de usuario

Lenovo

Lenovo Tablet Manual de usuario

Lenovo

Lenovo IdeaPad Miix 10 Manual del propietario

Manuales populares de Tableta de otras marcas

Laser

Laser MID-1060 Guía del usuario

MUNBYN

MUNBYN IRT09J Guía de inicio rápido

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Manual de usuario

Dell

Dell Latitude ST Manual del propietario

Venturer

Venturer WT9L11 Manual de usuario

EDUGEAR

EDUGEAR UnoBook Manual de usuario

Philips

Philips PI3210G/58 Manual de usuario

ADLINK Technology

ADLINK Technology IMT-BT Manual de usuario

TwinMOS

TwinMOS TwinTAB-T102D1 Manual de usuario

Archos

Archos 9.7 xenon Manual de usuario

Getac

Getac E100 Manual de usuario

HANNspree

HANNspree HANNspad SN70T3 Manual de usuario

Philips

Philips PI3105W2/55 Manual de usuario

LG LG-V935 Manual de usuario

Zeki

Zeki TBDB763B Manual de usuario

Ricoh

Ricoh eQuill Manual de usuario

DT Research

DT Research DT365CT Instrucciones de montaje

MaxWest

MaxWest Nitro Phablet 9 Manual de usuario
