Lenovo IdeaTab A1000 Manual de usuario

Quick Start Guide v1.0

IdeaTab

A1000

Please read this guide carefully before using your IdeaTab. The guide will

help you learn tips on setting and using IdeaTab.

The information in this guide is based on default settings. Illustrations and

screenshots used here may differ from the actual product appearance and

screen displays.

Speaker

Speaker/receiver Power button

Front camera

Microphone

Welcome

Screen lock/unlock

In standby mode, press the Power button to lock your IdeaTab.

To unlock the screen, press the Power button, and then drag the on-screen

slider to enter the interface displayed before it locks.

Sleep/Wake

If you do not touch the screen for a while, IdeaTab dims its screen to enter

sleep mode for power saving.

Turning IdeaTab off

While in standby mode, press and hold the Power button and then follow the

on-screen instructions to conﬁrm shutdown.

Volume button Micro USBEarphone jack

Getting started

L × W × H: 199x121x10.7mm

3500mAh

*Weight: 350g *Color: Black/White

Android 4.1 (Jelly Bean)

Bluetooth 4.0

7", 16:9 TN,

1,024 x 600 dpi

Micro USB

0.3 MP (front)

32 GB (max.)American National Standards

Wi-Fi

MTK 8317, dual-core, 1.2GHz

Model:IdeaTab A1000-T

Dimensions/Weight/Color

Integrated camera Screen

Battery

CPU

GPS

3.5 mm earphone jack SD card slot

Operating system

Hardware

Operating system

Interface

Communication

*Based on actual measurements.

Version: Wi-Fi+2G

SIM card

Technical speciﬁcations

You can charge your IdeaTab whether it is on or off.

When the battery level falls below the threshold, IdeaTab will alert you with

a tone and the battery status icon will change into . We recommend you

plug the AC power adapter into your IdeaTab in the direction of the orange

arrow as shown above ﬁgure.

If your IdeaTab is being charged while it is on, the battery status icon

(located on the status bar of the screen) will appear as . After the battery

has ﬁnished charging, the status bar will show the fully charged icon .

For more information on battery safety, see the Important Product

Information Guide.

Charging IdeaTab

Inserting SD card and SIM card

IdeaTab supports SD card and SIM card extension. To insert an

1. Open the SD card and SIM card cover.

2. Insert the SD card and SIM card as shown by the arrow.

3. Close the SD card and SIM card cover.

SD card and SIM card , do the following:

SD Card

Reset

SIM Card

Keep the metal surface down for SIM card and SD card.

You can connect IdeaTab to the PC's USB port with the cable provided for

battery charging or data transferring with the PC.

Installing apps and games

Transfer the APK setup ﬁle from the PC to IdeaTab, and then open it in the

ﬁle manager on IdeaTab. The installer will run automatically.

IdeaTab supports SD card and SIM card extension. To insert an

There are three connection methods available: USB storage, Media device

(MTP) and Camera (PTP).

Connecting IdeaTab to PC

This function requires support from your wireless carrier.

Touch > Phone. Now you can input your number or choose a number

from the call history or Contacts.

operators13800000000

Phone

Options

Hide dial pad

Show dial pad

Mute on/off

Microphone on/off Suspend call

Add call

*Multiparty service is required to use the teleconference function.

Teleconference*

Phone

This function requires support from your wireless carrier.

New message

Send message

Options

Add contact

Touch > Messaging. Now you can use the messaging function to

keep contact with your family or friends.

Add attachment

Search Phone

10:51

10:54

13800000000

Type message

sent

Received

HI~How's everything?

Me too,what are you busy now?

I am going to China for a travel with my family next month.

It sounds good.Have a good trip then.

Thanks~~~

I’m ﬁne.and you?very pleased to see you.

Messaging

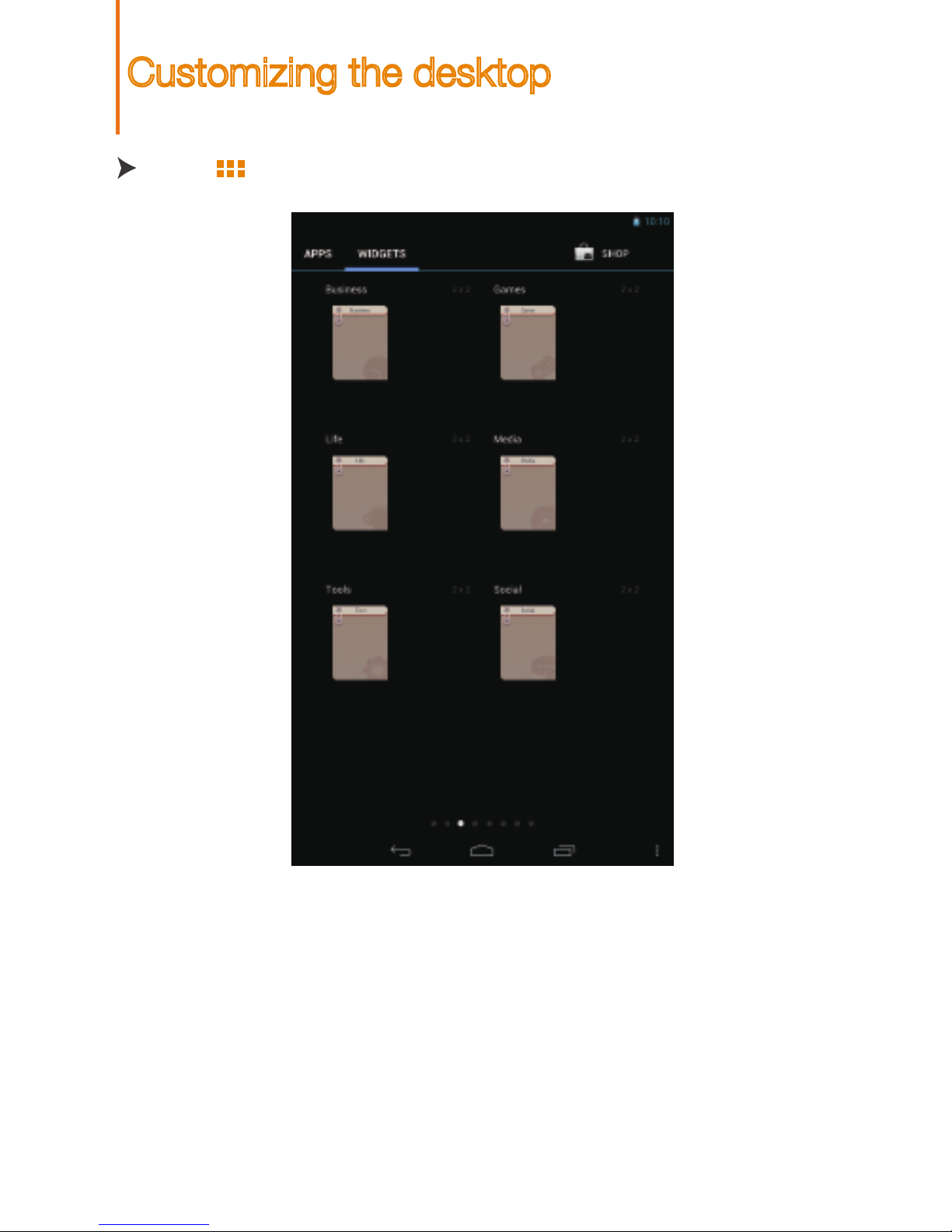

Adding apps/widgets to the desktop

Tap and hold the icon of your desired application or widget, until the

desktop background pattern appears on the screen, and then place the

icon wherever you wish.

Touch >WIDGETS. You can drag your favorite applications and

widgets onto the desktop.

Tap and hold any icon on the desktop and then drag it to your preferred

location or delete it from the desktop.

Editing the desktop

Customizing the desktop
