1P7K
user and installation
manual
Documentation version: v2.0
October 2021
COPYRIGHT
©2021 by LEKTRI.CO®. All rights reserved. LEKTRI.CO® is a registered
trademark of SC CIVITRONIC SRL.
1P7K is a product designed and manufactured by LEKTRI.CO.
This document is copyright protected. Copying, reproduction or
translation of this document or sections from this document, without
prior written consent from LEKTRI.CO is strictly prohibited and is unlawful.
The information described in this document including any attachments
is condential and is intended only for the 1P7K users, therefore any
disclosure or distribution (in any format) is strictly prohibited and is
unlawful.
Any software applications or web portals that are needed to operate the
1P7K charger are subject to license agreements and can only be used in
accordance with the terms and conditions of that specic agreement.
DISCLAIMER
The information presented in this document can be changed without
prior notice and does not represent any commitment on the part of
LEKTRI.CO.
LEKTRI.CO is not liable to any person or business for any direct or indirect
potential injuries, damages or losses caused by the improper installation
or use of the 1P7K charger.
Installation of the 1P7K charger must always be performed by certied
personnel in electrical installations and accordance with the local
electrical regulations.
Thank you for purchasing
the LEKTRI.CO 1P7K!
This manual provides a detailed explanation on how to install, congure
and use the charger. For other languages, video instructions or support,
please access this URL:
https://lektri.co/1p7k
or scan this QRCode
Contents
1. SAFETY INSTRUCTIONS.................................................................................................................................5
2. MEET YOUR 1P7K CHARGER.....................................................................................................................6
3. TECHNICAL DATA..............................................................................................................................................8
3.1. General characteristics.......................................................................................................................8
3.2. Electrical characteristics ..................................................................................................................8
3.3. Connectivity..............................................................................................................................................8
3.4. Mechanical characteristics.............................................................................................................8
3.5. Environmental characteristics.....................................................................................................9
3.6. LED status..................................................................................................................................................9
3.7. Transport and storage ..................................................................................................................... 11
3.8. Applicable standards and certications.............................................................................. 11
4. 1P7K INSTALLATION...................................................................................................................................... 13
4.1. Necessary tools ..................................................................................................................................... 13
4.2. Plan the installation.......................................................................................................................... 13
4.3. Before installing 1P7K......................................................................................................................14
4.4. Installation steps................................................................................................................................. 15
4.5. Overall and mounting dimensions ....................................................................................... 22
4.6. Electrical connection diagram................................................................................................. 23
4.7. Troubleshooting .................................................................................................................................24
5. OPERATING THE 1P7K CHARGER ....................................................................................................... 27
5.1. Before rst use...................................................................................................................................... 27
5.2. Start the charging............................................................................................................................. 27
5.3. Stop the charging.............................................................................................................................. 27
5.4. Emergency stop................................................................................................................................. 27
5.5. Health and Safety...............................................................................................................................28
6. 1P7K CHARGER CONFIGURATION..................................................................................................... 29
7. Congure with LEKTRICO APP.............................................................................................................30
8. MAINTENANCE AND SUPPORT........................................................................................................... 32
8.1. Maintenance .......................................................................................................................................... 32
8.2. Support..................................................................................................................................................... 33
8.3. Warranty .................................................................................................................................................. 33
9. NOTES....................................................................................................................................................................34
1P7K user and installation manual 5
1. SAFETY INSTRUCTIONS
ELECTRICAL WARNINGS
Before starting to install and operate the 1P7K charger,
the user must always read this document very carefully,
take into consideration all the warnings and follow all
the instructions as described in this manual.
Failure to do so may result in electric shock which
can be fatal or cause serious physical injuries.
DO NOT open the front cover when the 1P7K charger
is functioning, electric shock hazard.
DO NOT touch the connector’s pins.
DO NOT touch any pins, electronic components and
terminals on the printed circuit board (PCB) to avoid
electrostatic discharges (ESD) that could damage
the product.
Never install a product that is damaged.
Failure to do so may result in electric shock and/or
material damages (electric vehicle included).
1P7K charger must always be installed by certied personnel and in
accordance with the electrical regulations applicable in your country.
1P7K charger is an electrical device that is always connected to 230Va.c.
therefore touching uninsulated parts (e.g. interior PCB pins, connectors,
uninsulated parts of the wires) will result in an electric shock.
If opening the front cover is necessary (e.g. during installation), always cut
off the power supply of the charger from the dedicated circuit breaker.
The 1P7K charger must be operated only by adults.
CAUTION
CAUTION
ESD CAUTION
CAUTION
1P7K user and installation manual6

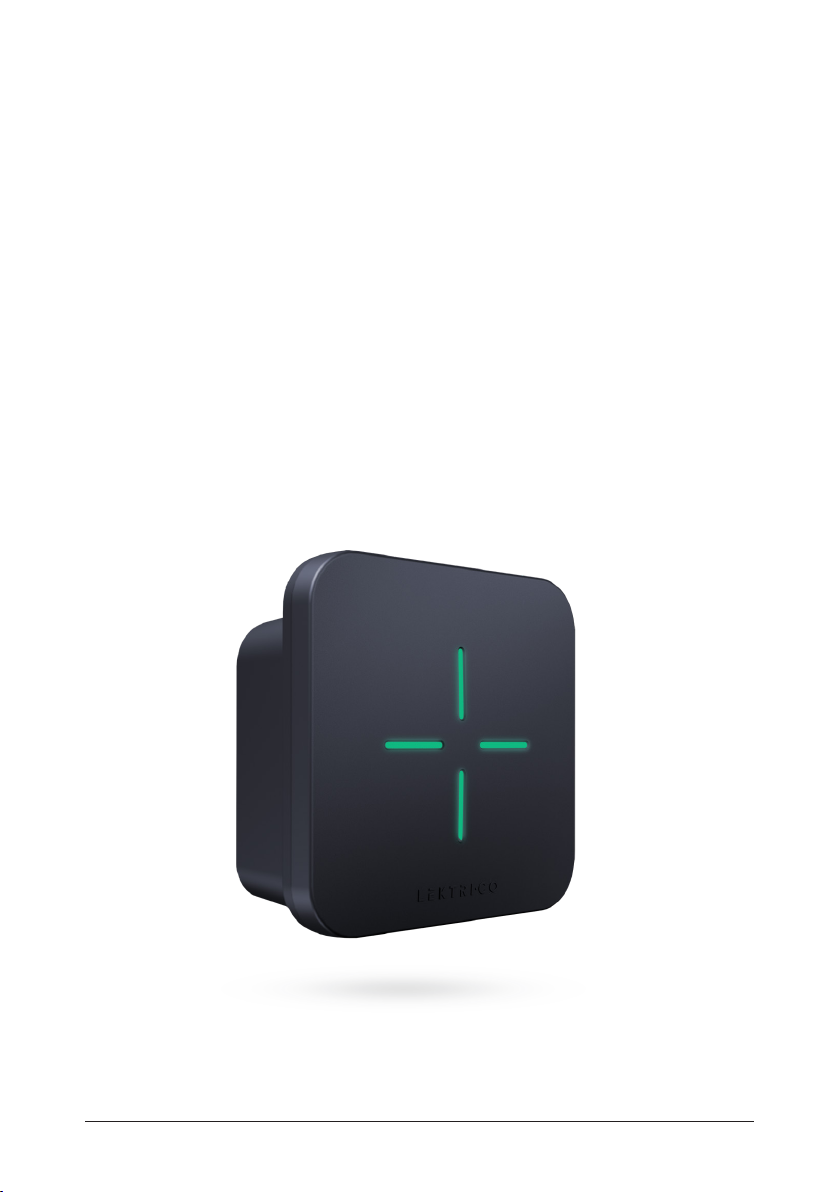

1P7K is a compact connected and simple to use charger.
Congratulations on joining the electro-revolution!
Your new 1P7K device is a single-phase charger with the capacity of
charging your EV with up to 7,4 kW power. Its smart features allow you to
remotely control and congure the charger using the LEKTRI.CO mobile
application. To get started, after the installation, download the application
and follow the instructions to connect it to your Wi-Fi network.
FEATURES
• Easy installation
• Compatible with any EV
• 5-meter charging cable with Type 2 connector
• Increased safety: integrated Type B RCD - AC 30mA, DC 6mA
• Extend your 1P7K charger with our M2W module for smart load and
charge balancing. Your 1P7K charger is smart-home ready and can
be integrated into your smart home ecosystem.
POSSIBILITIES
• Remote charge Start and Stop
• Load balancing: automated dynamic charge adjustment to avoid
circuit breaker overload
• PV charge: charge your EV with green energy
• Schedule charging
• Check our webpage for more information and systems supported.
Add your 1P7K charger to the LEKTRI.CO network to publicly share or earn
money by selling charging sessions. Contact us for more information (see
8.2 Support).
2. MEET YOUR 1P7K CHARGER
1P7K user and installation manual 7
The product label can be found on the backside of the charger. The label
provides useful information about the product:
• Manufacturer
• Serial number and a barcode
• Electrical characteristics
• Environmental characteristics
• Certications
Fig. 1 Main components of the 1P7K charger
Fig. 1 The product label of the 1P7K charger
1P7K user and installation manual8
3. TECHNICAL DATA
3.1. GENERAL CHARACTERISTICS
• Charging mode: Mode 3
• Connector: IEC 62196 Type 2
3.2. ELECTRICAL CHARACTERISTICS
• Nominal voltage: 230Va.c.
• Nominal frequency: 50Hz
• Charging current: maximum 32A
• Programmable charging current: 6A ... 32A
• Charging power: 1,4kW ... 7,4kW
• Standby power consumption: 3,5W
• Charging cable: copper exible cable, 3x6mm2 +2x0,5mm2;
• Power inputs: L, N, PE
3.3. CONNECTIVITY
• Wi-Fi: IEEE 802.11 b/g/n - Frequency: 2.4GHz
3.4. MECHANICAL CHARACTERISTICS
• Overall dimensions: 190mm x 190mm x 88mm
• Weight: 4kg (including the charging cable, connector and
packaging).
• Protection class: IP54
• Shock protection: IK10
• Material: PC + ABS, ame-retardant (V0), recyclable, UV resistant.
• Power supply cable connectors: WAGO™ lever-action connector,
mounted on PCB.
• Charging cable length: 5m
1P7K user and installation manual 9
• Mounting solutions:
− on a wall;
− on a metal pillar (optional - can be purchased separately);
3.5. ENVIRONMENTAL CHARACTERISTICS
• Operating temperature range: -25°C … +55°C
• Temperature range for storage and transport: -30°C and +60°C
• Relative humidity: maximum 96%, non-condensing
3.6. LED STATUS
1P7K charger has one status LED on the front cover shaped like a cross
which lights in different colours depending on the charger’s status.
1P7K user and installation manual10
GREEN fading in and out: available and connected to
Wi-Fi.
GREEN continuously lit: available and unused (not
connected to the electric vehicle).
BLUE continuously lit: connected to the electric vehicle
and waiting for the car to start the charging process.
PURPLE continuously lit: connected to the electric
vehicle and waiting for the remote server to authorize
the start of the charging process.
WHITE, each segment is lit in a clockwise rotating
pattern: connected to the electric vehicle and charging.
RED continuously lit: error - general fault, charging
not possible please see the Troubleshooting section or
contact the manufacturer (for contact details see 8.2
Support section).
YELLOW continuously lit: the charger is performing a
rmware update.
1P7K CHARGER’S LED
Different charger statuses are represented by different LED colours as
described below:
