Owners Manual For The
Phantom
Loudspeaker System
2
Registration
Owners Record 3
The Cabinetry Our Commitment 4
Warranty 5
Setup
Unpacking Your Speakers 6
Speaker Installation 7-10
Hooking Up Cables 11-13
Amplification 14-16
Technology
Specifications 17
Table of Contents
Page
3
The serial number is located on the rear of the unit. Record this
number in the space provided below. Refer to this when calling your
dealer regarding this product.
Model: Phantom
Serial No: _________________________
Date of purchase: ___________________
Thank you for selecting a Legacy Loudspeaker System. These hand-
crafted instruments will provide you with many years of listening en-
joyment.
Owners Record
4
Handcrafted
Beneath the surface of Phantom’s elegant exterior lies rigid MDF
construction. Interlocking joinery maximizes the strength of the cabinet
parts. Polyester fiberfill is selected for internal damping. A sharp rap on
the enclosure will leave you with little more than bruised knuckles.
Each cabinet is impeccably finished on all exposed surfaces with select
veneers. The exquisite finish is hand-rubbed several times to assure a
patina at home with the most elegant decor.
Our Commitment
A great deal of forethought, love and satisfaction is instilled in each piece
of Legacy workmanship. We take pride in getting to know many of our
customers on a first name basis.
Your purchase of this product is backed by the renowned “Legacy
Satisfaction Guarantee”.
The Cabinetry / Our Commitment
5
Legacy Audio supports its customers and products with pride. We cheerfully warrant our loud-
speaker products we manufacture from defects in materials and workmanship for a period of seven
(7) years. Electronic components such as internal amplifiers and digital processors are covered for
three (3)years. Please register your product with Legacy Audio. Should you require service Legacy
will require a proof of purchase in order to honor the warranty - so please keep your receipt.
• The warranty applies to the original owner and is not transferable.
• The warranty applies to products purchased from an “Authorized Legacy Dealer”.
• The warranty on active components such as digital processors or internal amplifiers is limited to three
(3) years of coverage.
• The warranty on dealer stock will extend for a maximum of two years from invoice.
The warranty does not cover transportation costs of product to or from the customer, distributor or
dealer, or related shipping damage.
Exclusions from Warranty
The following situations or conditions are not covered by the Legacy Audio warranty:
• Accidental damage, electrical abuse or associated equipment failure.
• Use inconsistent with recommended operating instructions and specifications
• Damage caused by modification or unauthorized service
• Costs associated with the removal and reinstallation of defective products. Consequential damage to
other products.
• Normal wear such as fading of finishes due to sunlight.
Warranty
6
Your new speaker system has been very carefully packaged to insure
that it travels to you safely. Each speaker is protected by a double-
wall outer carton with heavy V-board corner protectors. Molded foam
end caps are used to protect the elegant cabinetry, and a plastic liner
is provided as waterproofing. Please save this packing for future
transportation. If cartons become damaged or misplaced, new ones
can be purchased from Legacy Audio.
Unpac ing Your Spea ers
7
Precautions
If you have any doubts about your ability to properly install on-wall
loudspeakers, you should consider the services of a custom installer. If
you plan to install them yourself, always use high quality tools to save
time and make the installation go more smoothly. The Phantom On-Wall
Loudspeakers mount on standard 16-in center stud walls. Determine the
final location of both left and right speakers before drilling any holes
since changes to one speaker may affect the other either aesthetically or
acoustically. Look for pipes, wiring or any other conflicting material that
might be damaged before beginning the installation.
Spea er Installation
8
- There are two options when mounting
the Phantom Loudspeaker. The bracket
can be mounted either vertically on one
stud or horizontally on two 16-inch center
studs.
- Place the provided screws in the
appropriate holes based on how you wish
to mount your speakers. Please see
figure 1.
Spea er Installation
9

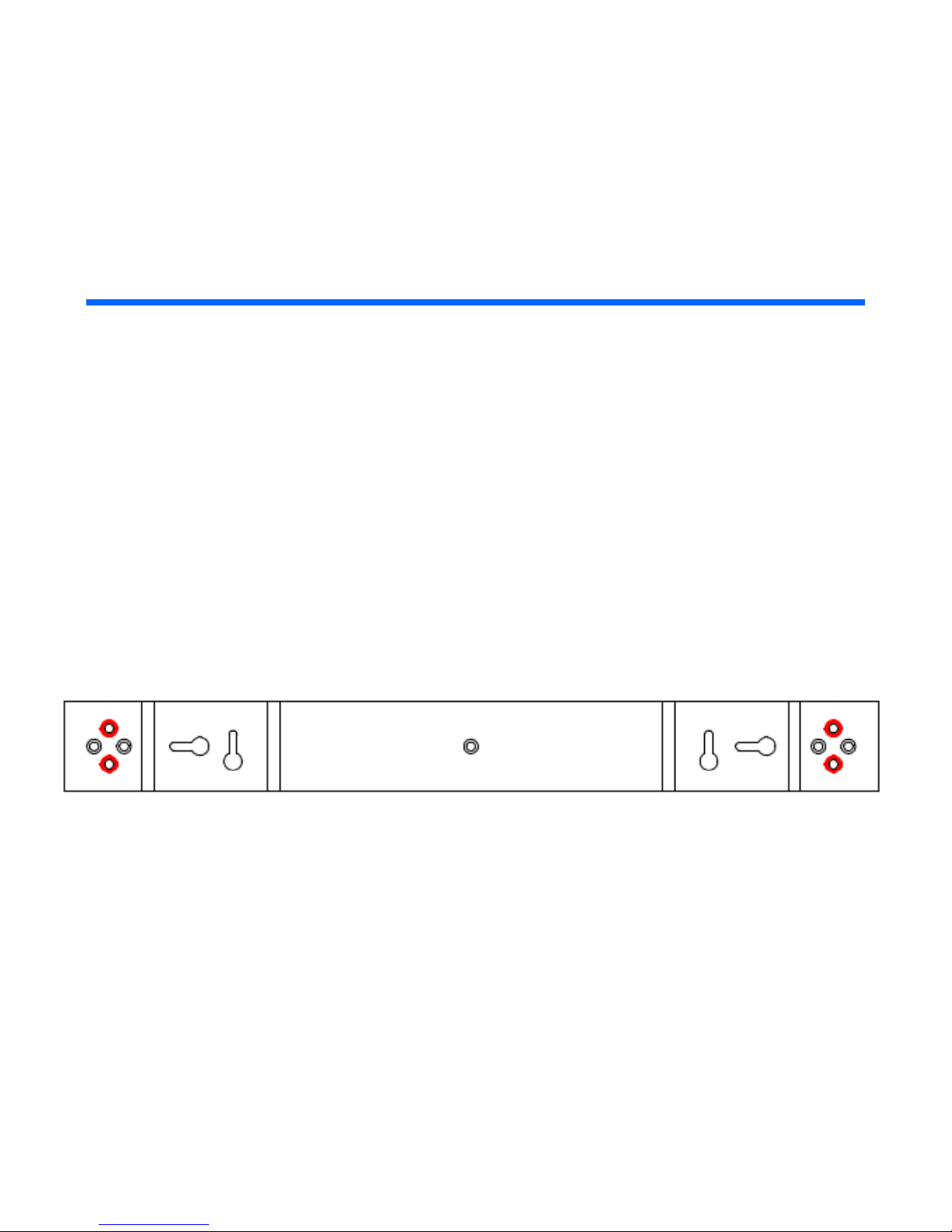

Vertical Mounting
- Find the center of one stud and mount the
provided bracket using the provided screws. Place
screws in the holes highlighted in red in figure 2.
- Lift the cabinet and slide the screws on the back of the
cabinet into the keyholes. This may take two people to
accomplish this task.
Spea er Installation
Figure 2
10
Horizontal Mounting
- Find the center of the two studs and mount the provided bracket using
the provided screws. Place screws in the holes highlighted in red in figure 3.
- Lift the cabinet and place the screws on the back of the cabinet into the
keyholes. Slide the cabinet to lock it into place. This may take two people
to accomplish this task.
Spea er Installation
Figure 3
