Ledlenser P5R Core Manual de usuario

USER MANUAL

P5R CORE

P5R WORK

P5R Core P5R Work

User Manual P5R Core |P5R Work V.01 06.2021

Many Thanks

We are pleased that you have chosen a

product from our company. To familiarize

yourself with your new product, you will

ﬁnd information for safety and operation

in these operating instructions.

These instructions for use must be read

carefully before using the product. It must

be kept and handed over to third parties

when the product is passed on.

This also serves to ensure that you get

the maximum beneﬁt from your product,

get answers to your questions and avoid

operating errors. Therefore, pay particular

attention to the warning and safety

instructions and properly dispose of the

lamp, batteries and packaging material.

User Manual P5R Core |P5R Work V.01 06.2021

General product information

The Ledlenser P5R Core and P5R Work

are ﬂashlights and may only be used

as such for lighting purposes. Use the

products only at ambient temperatures of

-20°C to + 40°C. The ﬂashlights do not be

used in areas with a potentially explosive

atmosphere. The ﬂashlights are no toys

and are not suitable for small children.

Please register your product with the

enclosed registration card to obtain an

extended warranty, check the authenticity

of the product and receive updates about

products or product improvements.

Table of contents

1. Scope of delivery

2. Warning

3. Magnetic Charging System

4. Battery Replacement

5. Default Operation

6. Boost Function

7. Advanced Focus System

8. Backup Mode

9. Customizing Light Modes

10. Additional Functions

11. Reset to Factory Settings

12. Further Information

P5R Core P5R Work

14500

1. 2.1. 2.

User Manual P5R Core |P5R Work V.01 06.2021

1. The ﬂashlight is delivered with the scope of

delivery shown. The product may only be used

with the following rechargeable batteries:

P5R Core: 14500 Li-ion, 3.7V (Item No. 500985)

P5R Work: 14500 Li-ion, 3.7V (Item No. 500985)

Rechargeable batteries may only be charged at

temperatures from 10°C to 40°C.

Scope of delivery

Lanyard

Intelligent Clip

Adapter

4x blink

User Manual P5R Core |P5R Work V.01 06.2021

2. CAUTION: The lamp generates heat when in use. Do

not cover the lamp during operation, this can lead to

heat build-up. Maintain a distance of at least 10 cm

between the lamp and illuminated surfaces.

Make sure that the lamp is locked during transport

and cannot be switched on accidentally.

3. The included USB magnetic charging cable is used for

charging. If the contacts on the lamp or cable are dirty

or dusty, ﬁrst clean them with a dry cloth. Then connect

the cable to the lamp, paying attention to the correct

orientation of the contacts. Finally, connect the charging

cable to a standard USB power supply or computer.

While the lamp is charging, the charge level indicator

lights up red. When the charging process is complete,

the display changes to green. If an error occurs, the

charge indicator ﬂashes (e.g. defective or incorrectly

inserted battery).

Rechargeable batteries may only be charged at

temperatures of 10°C to 40°C. Optionally, the batteries

can be removed from the lamp and charged externally

with a suitable charger.

WARNING

hold

=5s

Transportation Lock

Magnetic Charging System

red green red + green blink

<3s

+1x

<3s

+1x

User Manual P5R Core |P5R Work V.01 06.2021

4. To remove the rechargeable battery, the end cap of

the lamp is screwed o. The battery can then be

removed. When inserting a new battery, pay attention

to the correct polarity (+/-). This is marked on the

battery and inside the lamp shaft. Only approved

batteries may be used. Then close the lamp again by

screwing the end cap on. To ensure watertightness,

make sure that the seals are undamaged.

5. This lamp has several light functions or brightness

levels.

The desired function can be selected within the ﬁrst

three seconds after switching the lamp on. To do this,

ﬁrst switch the lamp on and then tap the switch once

within three seconds to switch to the next function.

If the switch has not been pressed for more than

three seconds or if the last available light function

has been selected, the lamp switches o the next

time the switch is pressed.

When the lamp is switched on, the remaining battery

capacity is displayed (GREEN fully charged; ORANGE

half full; RED almost empty)

If the „Memory Mode“ is active, the lamp always

turns on with the previously selected light function. If

the „Memory Mode“ is deactivated, the lamp always

starts with the same light function. The „Memory Mode“

can be activated and deactivated in the advanced

settings (10).

Battery Replacement

O

Power

Mid Power

Low Power

Default Operation

O

Power

Mid Power

Low Power

<25%

Backup

Boost

=10s

User Manual P5R Core |P5R Work V.01 06.2021

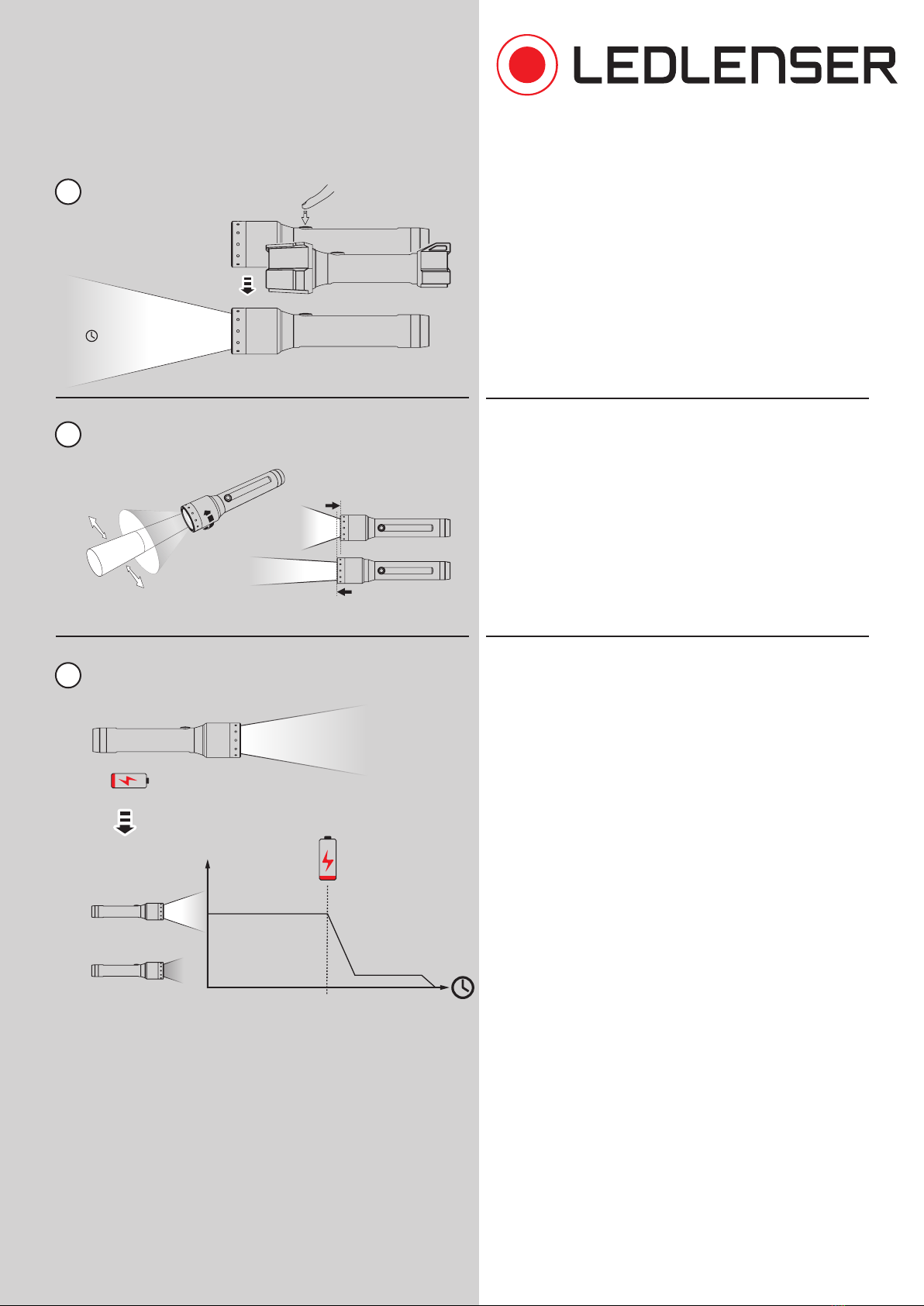

6. In boost mode, the lamp lights up with the maximum

available brightness for a period of ten seconds. The

boost mode can be activated at any time by double

tapping the switch, except when the transportation

lock is activated. After ten seconds the lamp switches

back to the previously selected light function.

7. Dierent activities require dierent light. By turning

the lamp head whilst moving it forwards or backwards,

the light can be focused for maximum beam distance

or defocused for even illumination of the close-up area.

8. If the remaining battery capacity is low - after the

regular runtime has expired - the lamp switches to

„Backup Mode“. In this mode the lamp can only be

used in the lowest brightness level. It prevents the

lamp from suddenly switching o and ensures that

the user still has light available when the battery

is weak.

The „Backup Mode“ can be activated or deactivated

in the advanced settings. If the backup mode is

deactivated, the lamp is operated at full brightness

until the end of the battery capacity and then switches

o immediately.

When the „Low Battery Warning“ is active, which can

be activated or deactivated in the advanced settings,

the lamp gives a ﬂashing signal every 15 minutes

when the battery capacity is low.

Advanced Focus System

Boost Function

Backup Mode

defocused

focused

User Manual P5R Core |P5R Work V.01 06.2021

9. The ﬂashlight is preset with selected light

functions and brightness levels. If desired, the

default settings can be changed via the switch

on the lamp. Proceed as follows:

- Hold down the switch for ﬁve seconds while the

light is on. Do not cover the switch completely,

in order to still be able to see the indicator light

inside the switch.

- After ﬁve seconds the switch will ﬂash brieﬂy.

Release the switch immediately.

- By brieﬂy pressing the switch, you can switch

through all available light functions and brightness

levels.

- If you want to save the selected light function, hold

the switch down for two seconds. The switch will

ﬂash twice to conﬁrm. You can repeat this process

up to a total of ten times in order to save further

light functions.

- Alternatively, press and hold the switch for four

seconds to save the selected light function(s) and to

end the process (after the switch has ﬂashed three

times).

- The lamp has now been programmed with the

selected light functions. These can now be activated

in the selected order by tapping the switch several

times within three seconds after switching the

lamp on.

Customizing Light Modes

hold

=8s

hold

=4s

SAVE & EXIT

Low Power

Mid Power

Power

Dim

Blink

Flashing

Position

SOS

Strobe

2x blink

hold

=2s

2x blink

3x blink

1x blink

15s

User Manual P5R Core |P5R Work V.01 06.2021

10. You can use the advanced settings to switch additional

functions on or o. To do this, switch on the lamp. Hold

down the switch for about eight seconds. The switch

ﬂashes once, then twice. Release the switch when it

has blinked twice.

Now tap the switch brieﬂy several times to activate

or deactivate functions. If you want to activate or

deactivate another function, start the process again

from the beginning (10.).

With a single tap, the Memory Mode is switched on or

o (see also No. 5).

If you tap it twice, the Low Battery Warning is switched

on or o (see also No. 8).

If you tap it three times, the Emergency Mode is

switched on or o. When the emergency mode is

active, the lamp is switched on automatically if it is

disconnected from the power supply while charging.

This means that the lamp comes on automatically in

the event of a power failure or is immediately active

when it is removed from the holder.

Additional Functions

hold

=8s

2x red blink: Memory Mode OFF

2x green blink: Memory Mode ON

2x red blink: Low Battery Warning OFF

2x green blink: Low Battery Warning ON

2x red blink: Emergency Mode OFF

2x green blink: Emergency Mode ON

2x blink

1x blink

User Manual P5R Core |P5R Work V.01 06.2021

If you tap the switch four times, the Backup Mode is

switched on or o (see also No. 8).

11. The lamp can be reset to factory settings. To do this,

switch on the lamp. Hold down the switch for about

eight seconds. The switch ﬂashes once, then twice.

Release the switch when it has blinked twice.

Then press the switch again for ﬁve seconds until it

ﬂashes four times. Now release the switch. The lamp

has been reset to the factory settings and can be used

again as usual.

2x red blink: Backup Mode OFF

2x green blink: Backup Mode ON

Reset to factory settings

2x blink

1x blink

4x green blink: Reset

hold

=8s

hold

=5s

Otros manuales para P5R Core

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Flash de ledlenser

ledlenser

ledlenser MT18 Manual de usuario

ledlenser

ledlenser P6.2 Manual de instrucciones

ledlenser

ledlenser P6R Work Manual de usuario

ledlenser

ledlenser P6R Work Manual de usuario

ledlenser

ledlenser X21.2 Manual de usuario

ledlenser

ledlenser P17R Manual de usuario

ledlenser

ledlenser MT10 Manual de usuario

ledlenser

ledlenser M17R Manual de usuario

ledlenser

ledlenser M7R X Manual de usuario

ledlenser

ledlenser SEO 7R Manual de usuario

ledlenser

ledlenser P18R Work Manual de usuario

ledlenser

ledlenser H14R.2 Manual de usuario

ledlenser

ledlenser P6.2 Manual de usuario

ledlenser

ledlenser M1 Manual de usuario

ledlenser

ledlenser P5.2 Manual de usuario

ledlenser

ledlenser P6R Signature Manual de usuario

ledlenser

ledlenser P6R Work Manual de usuario

ledlenser

ledlenser MT 18 Manual de usuario

ledlenser

ledlenser P5R Core Manual de usuario

ledlenser

ledlenser P5R Core Manual de usuario

ledlenser

ledlenser iF2R Manual de usuario

ledlenser

ledlenser NEO Manual de usuario

ledlenser

ledlenser P14.2 Manual de usuario

ledlenser

ledlenser P7R Manual de usuario

Manuales populares de Flash de otras marcas

StreamLight

StreamLight PROPOLYMER 2AA Manual de usuario

StreamLight

StreamLight Stinger Manual de usuario

Silverline

Silverline 994024 Manual de usuario

Gama Sonic

Gama Sonic 23i60065 Manual de usuario

Olympia

Olympia RG580 CREE XM-L2 Manual de usuario

EUFAB

EUFAB 13495 Manual de usuario

OLIGHT

OLIGHT S35 BATON Manual de usuario

Kopp

Kopp Emergency Sensor Light Manual de usuario

YLP

YLP PROFESSIONAL Series Manual de usuario

Light motion

Light motion GoBe Manual de usuario

MOB

MOB MO8622 Manual de usuario

EuroLite

EuroLite KKS-3 Manual de usuario

Carson

Carson 500907010 Manual de usuario

Duracell

Duracell 550 Manual de usuario

Mactronic

Mactronic Black Eye 1300 Manual de usuario

Eurotops

Eurotops 29780 Manual de usuario

MOB

MOB MO8690 Manual de usuario

Pelican

Pelican L1 1930 LED Manual de usuario
