Leadshine Technology 3DM2283 Manual de usuario

User Manual

3DM2283

3-Phase Digital Stepper Drive

Address: 15-20/F, Block B, Nanshan I Valley, No.3185, Shahe West Road, Nanshan District, Shenzhen,

Guangdong, 518055, China

Tel: (86)755-26409254 Fax: (86)755-26402718

Web: www.leadshine.com Sales: sales@leadshine.com

Support: tech@leadshine.com

High Voltage Digital Stepper Drive 3DM2283 Manual

Page 2of 7

3DM2283 3-phase Digital Stepper Drive

150-220VAC, 0.5-8.2A peak, Auto-configuration, Low Noise

Anti-Resonance provides optimal torque and nulls mid-range instability

Motor auto-identification and parameter auto-configuration technology, offers optimal

responses with different motors

Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus

offers smoother motor movement

Microstep resolutions from full-step to51,200.

Soft-start with no “jump” when powered on

Supply voltage up to +220 VAC

Output current programmable, from 0.5A to 11.7A. It can also be set via DIP switches.

Pulse input frequency up to 200 KHz

5V optically isolated input

Automatic idle-current reduction (Reduction rate can be software configured)

Suitable for 3-phase motors

Support PUL/DIR and CW/CCW modes

Over-voltage, over-current protections

Descriptions

The 3DM2283 is a high voltage, fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion

control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its

motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared

with traditional analog drives, 3DM2283 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its

unique features make 3DM2283 an ideal choice for high requirement applications.

Applications

Suitable for a wide range of stepper motors, from NEMA size 34 to 51. It can be used in various applications such as laser cutters, laser

markers, high precision X-Y tables, labeling machines, CNC router, etc. Its unique features make the 3DM2283 an ideal choice for

applications that require both low-speed smoothness and high speed performances

High Voltage Digital Stepper Drive 3DM2283 Manual

Page 3of 7

Specifications

Electrical Specifications

Parameter

Min

Typical

Max

Unit

Input Voltage

150

220

240

VAC

Pulse Input Frequency

200

kHz

Logic Signal Current

Isolation Resistance

500

MΩ

Operating Environment

Cooling

Natural Cooling or Forced cooling

Operating Environment

Environment

Avoid dust, oil fog and corrosive

gases

Storage Temperature

-20℃ － 65℃(-4℉ － 149℉)

Ambient Temperature

0℃－50℃(32℉ － 122℉)

Humidity

40%RH －90%RH

Operating Temperature (Heat

Sink)

70℃(158℉) Max

Storage Temperature

-20℃－65℃(-4℉ － 149℉)

Weight

1.3Kg (2.87lbs)

Mechanical Specifications

High Voltage Digital Stepper Drive 3DM2283 Manual

Page 4of 7

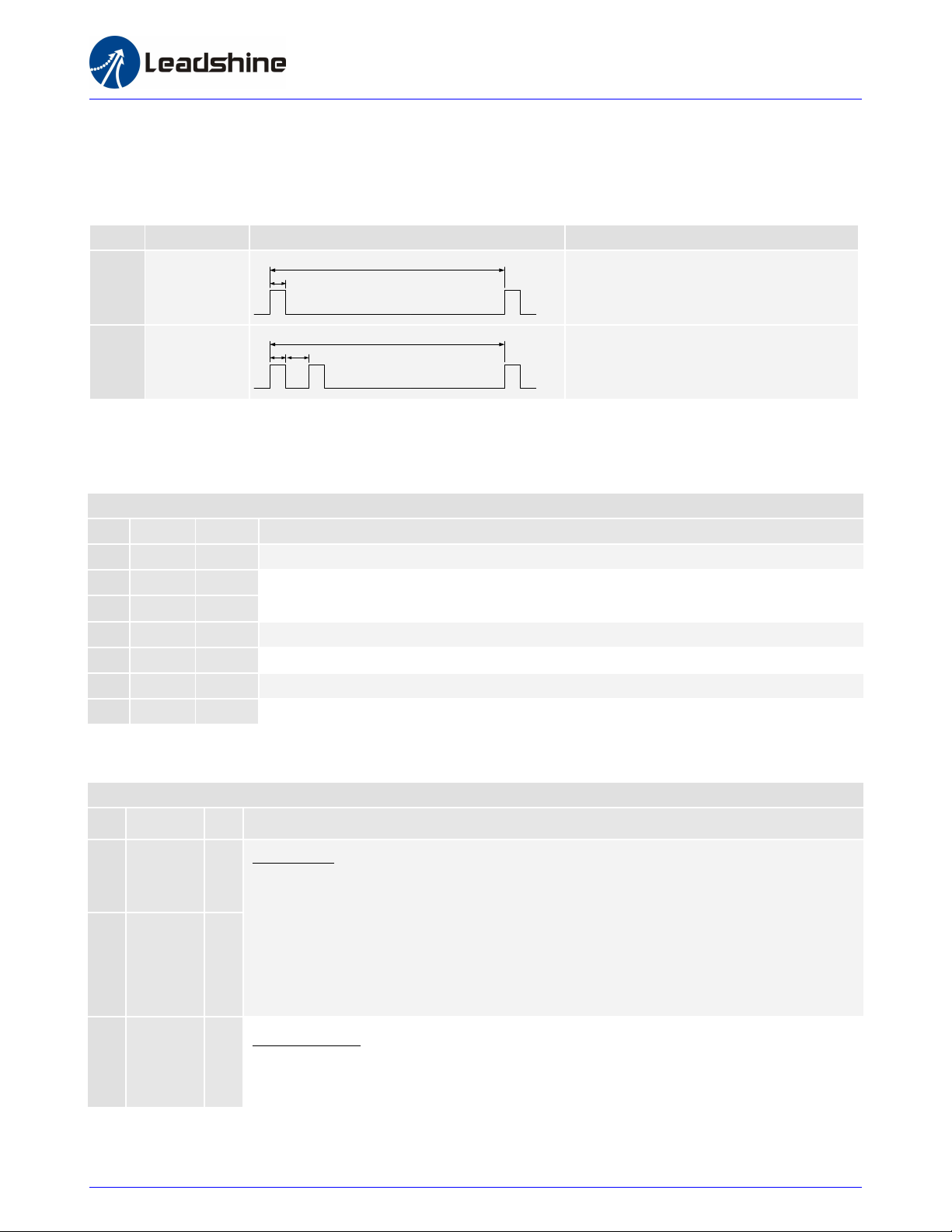

Protection Indications

The green indicator turns on at power-up. When drive protection is activated, the red LED blinks periodicity to indicate the error type

Priority

Time(s) of Blink

Sequence wave of RED LED

Description

1st

0.2S

Over-current Protection

2nd

0.2S 0.3S

Over-voltage Protection，over 440VDC

Pin Assignment

The 3DM2283 has one barrier strip connector for power and motor connections and one screw terminal for control signal connections.

Power and Motor Connector

Name

I/O

Description

Recommend connect this port to the ground for better safety.

Power supply inputs. If AC input, recommend use isolation transformers with

theoretical output voltage of 150-220VAC.

No Connection

Motor Phase U

Motor Phase V

Motor Phase W

Pin Assignment (Continued)

Control Signal Connector

Name

I/O

Description

PUL+

Pulse Signal: In single pulse (pulse/direction) mode, this input represents pulse signal, each

rising or falling edge active (software configurable, see DM drives software operational

manual for the detail); In double pulse mode (software configurable), this input represents

clockwise (CW) pulse, active both at high level and low level. 4-5V when PUL-HIGH,

0-0.5V when PUL-LOW. For reliable response, pulse width should be longer than 2.5μs.

Series connect resistors for current-limiting when +12V or +24V used. The same as DIR

and ENA signal.

PUL-

DIR+

Direction Signal: In single-pulse mode, this signal has low/high voltage levels, representing

two directions of motor rotation. In double-pulse mode (software configurable), this signal

is counter-clock (CCW) pulse, active both at high level and low level. For reliable motion

High Voltage Digital Stepper Drive 3DM2283 Manual

Page 5of 7

response, DIR signal should be ahead of PUL signal by 5μs at least. 4-5V when DIR-HIGH,

0-0.5V when DIR-LOW. Please note that rotation direction is also related to motor-driver

wiring match. Exchanging the connection of two wires for a coil to the driver will reverse

motion direction. The direction signal’s polarity is software configurable.

DIR-

ENA+

Enable signal: This signal is used for enabling/disabling the drive. In default, high level

(NPN control signal) for enabling the driver and low level for disabling the driver. Usually

left UNCONNECTED (ENABLED). Please note that PNP and Differential control signals

are on the contrary, namely Low level for enabling. The active level of ENA signal is

software configurable.

ENA-

FAULT+

Fault Signal: OC output signal, active when one of the following protection is activated:

over-voltage, over current, low voltage, phase error and over-temperature. This port can

sink or source 20mA current at 24V. In default, the resistance between FAULT+ and

FAULT- is high impedance in normal operation and become low when 3DM2283 goes into

error.

FAULT-

RS232 Communication Port

The RS232 communication port is used to configure the 3DM2283’s peak current, microstep, active level, current loop parameters and

anti-resonance parameters. See DM driver’s software operational manual for more information.

RS232 Communication Port

Name

I/O

Description

Not connected.

+5V

Not connected.

TxD

RS232 transmit.

GND

Ground.

RxD

RS232 receive.

Not connected.

DIP Switch Settings

Dynamic Current

Peak

RMS

SW1

SW2

SW3

Default

OFF

3.1A

2.2A

OFF

4.5A

3.2A

OFF

5.9A

4.2A

OFF

7.3A

5.2A

OFF

8.9A

6.3A

OFF

10.1A

7.2A

OFF

11.7A

8.3A

High Voltage Digital Stepper Drive 3DM2283 Manual

Page 6of 7

Note: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.

Idle-Current

SW4 determines whether current-reduction is performed when there is no pulse applied to 3DM2283..

OFF

SW4

Motor current reduces automatically when

there is no pulse applied to 3DM2283.

Motor current is the same as the dynamic

current when there is no pulse applied to

3DM2283.

Microstep Resolution

Steps/Revolution

SW5

SW6

SW7

SW8

200

400

OFF

1600

OFF

3200

OFF

6400

OFF

12800

OFF

25600

OFF

500

OFF

1000

OFF

1200

OFF

2000

OFF

4000

OFF

5000

OFF

6000

OFF

8000

OFF

10000

OFF

Auto-Configuration

Switch SW4 two times in two seconds will activate parameter Auto-configuration for 3DM2283’s current loop. That is, OFF-ON-OFF or

ON-OFF-ON. During Auto-configuration, motor parameters are identified and 3DM2283’s current loop parameters are calculated

automatically. The motor shaft will vibrate a little during the process of Auto-configuration which takes about 1 to 3 seconds.

High Voltage Digital Stepper Drive 3DM2283 Manual

Page 7of 7

Typical Connections

NPN Control Signal

3DM2283 Drive

DIR+

Controller

VCC

PUL-

150 ~ 220 VAC

270O

PUL+

ENA-

R=0 if VCC=5V;

R=1K(Power>0.125W) if VCC=12V;

R=2K(Power>0.125W) if VCC=24V;

R must be connected to control signal terminal.

PUL

DIR

ENABLE

DIR-

ENA+

FAULT-

FAULT+

FAULT

~ AC Input

863SXX

YEL WHT

BRN

BLK RED

BLU
