LCG LCG-301C Manual de usuario

User Manual

Please read this manual carefully before use!

Mixlaser RB

LCG-301C

Mixlaser RB User Manuel

- - 1 - -

Contents

Introduction----------------------------------------------------------------------------P2

Silkscreen on light ----------------------------------------------------------------P3

Safety instruction and product specification-------------------------------P4

Menu operation, function ---------------------------------------------------------P5

Channel instruction ------------------------------------------------------------------P6

Remote control----------------------------------------------------------------------- P7

DMX-512 connection and Address setting-------------------------------------P8

Installation and Size--------------------------------------------------------------- P9

Warning and warranty card------------------------------------------------------- P10

Mixlaser RB User Manuel

- - 2 - -

Introduction

Thank you for purchasing this product. To optimize the performance of this product,prior to

use,please read these operating instructions carefully to familiarize yourself with the basic operation

of this unit.Please keep the manual in safe price for future reference.

This unit has been tested at our factory before being shipped to you, there is no assembly required.

Once after received this product , please take and put carefully. And check cautiously that whether

the product was damaged or not during the transportation.

Checking Parts

Please check if the following parts are included:

1 x LED Laser Light

1 x Power cable

1 x User manual

1 x Remote control

Caution

Before out factory, this device has passed strict inspection, functions stable and perfect

packing. If this device will be operated in any way different to the one described in this

manual, the product may suffer damages and the guarantee becomes void. Furthermore,

any other operation may lead to dangers like short circuit, burns, electric shock, crash etc.

If any technology changes of this manual, company do not notice in further and have

interpretation.

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

Warning!

Damages caused by the disregard of this user manual are not subject to

warranty. The dealer will not accept liability for any resulting defects or

problems.

Mixlaser RB User Manuel

- - 3 - -

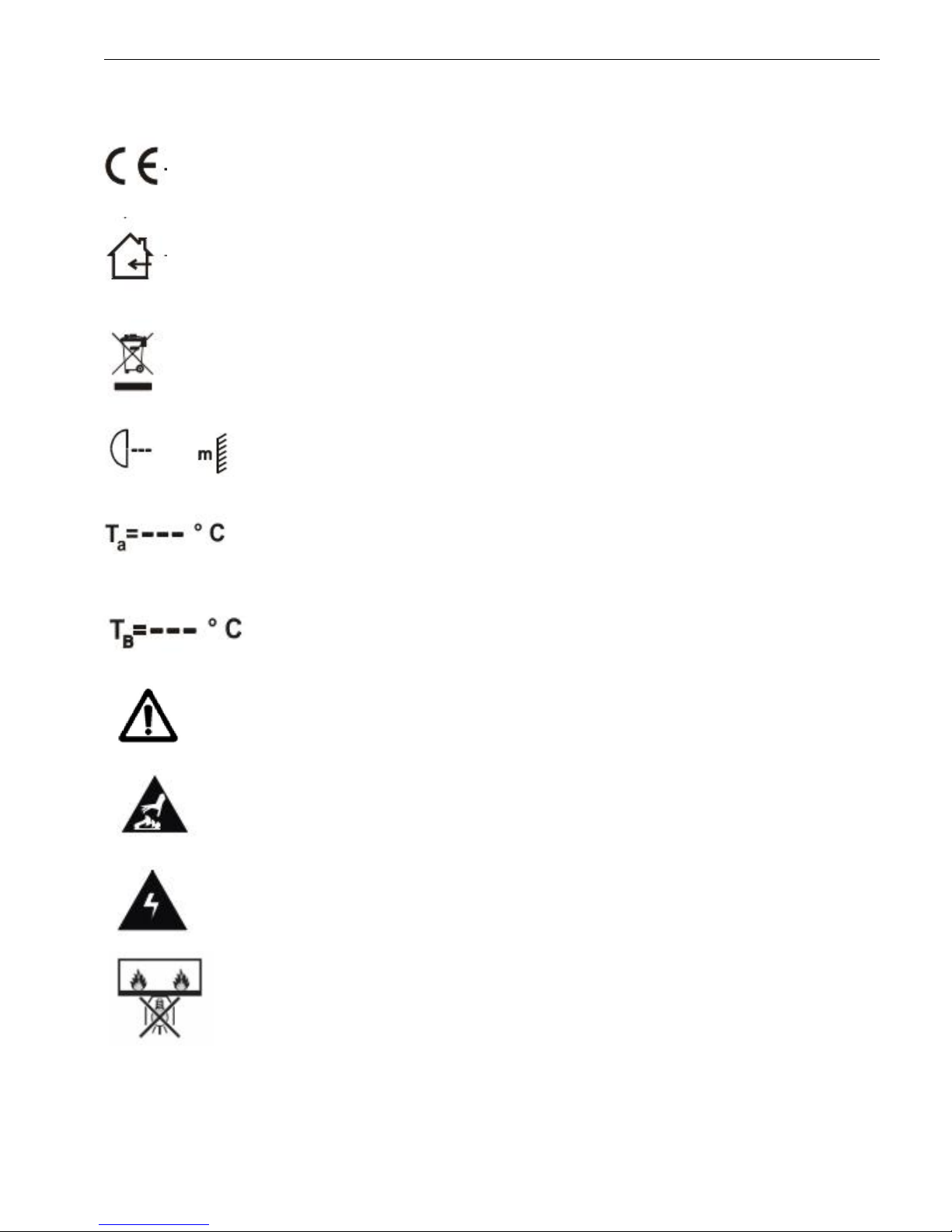

Silkscreen on light

-------------------------------------------------------------------------------CE compliant

-----------------------------------------------------------------------------Only indoor use

--------------------------------------------------------------------------RoHS Certificate

---------------------------The minimum distance from lighted objects(meter)

----------------------------------------------------------------Max. Ambient Temp

-------------------------------------------------------Max. Housing Temp

-------------------------------------------------------------------------- Safety caution

-------------------------------------------------------------------------Careful burns

-----------------------------------------------------------------Careful electric shock

---- Not suitable for directly installed on the surface of ordinary combustible

materials

Mixlaser RB User Manuel

- - 4 - -

1.Safety Instructions

1)Please open and check whether break or not for transport once receive this fixture, if yes, not use

it and contact dealer or manufacture as soon as possible.

2)The Max applicable temperature for the light is 40°C. Do not use the light under or above the

temperature. ta=40℃

3)The fixture is applicable for many occasions, it should keep clean, and avoid long use in

overheating or dusty environment. To prevent the fixture from the chemical liquid .

4)User must be careful of fire, heat, electric and fall-off that make heavy or fatal injury. Please read

this user manual carefully before power on and installation, following safety and operation

instruction in it. If still have any questions, please contact dealer or manufacture.

5)User must following this user manual, do not open fixture by yourself, if any problems, please

contact professional technician, maintenance should by technician.

Do not power on or start the fixture before installation, please stop after working more than 8

hours, which will longer use life.

6)Fixed installation, do not by strong shocks.

7)The minimum distance between light and the illuminated surface must be more than 1 meter.

8)Never look directly into the light source to avoid hurt to eyes (especially epileptics)!

9) When dustproof glass at light output breaks, cracks or other visible damage, user should replace

with new glass to continue to use.

2. Installation

When install this equipment please make sure there's no flammable surfaces (decorated things,

etc) and minimum distance of 0.5M from the equipment to the flammable.

The installation of the effect has to be built and constructed in a way that it can hold 10 times the

weight and without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate

safety rope.Never stand directly below the device when mounting, removing or servicing the

fixture.

3、Technical Specifications

1. Power supply: AC100V~240V 50/60Hz

2. Amp:：BGDP ￠5x20mm 250VAC T2A

3. Rated power: 90W

4. Laser: R:150m/650nm,B:150mw/450nm

5. LED：1pc 60W RGBW 4in1；8pcs 3W White LED

6. LED effect:Derby

7. Laser effect:8 grating effect

8. Control mode: Sound Active/ Auto-play/DMX512/Master-Slave

9. Channel：10

10. Scan system：Step motor

11. Operating temperature:10℃~40℃

12. Inner Packing(mm):340*270*340

13. Outer Packing(mm):560*360*365 (2pcs)

Mixlaser RB User Manuel

- - 5 - -

4、LED Digital Display

Operating Instruction: press button marked as “A” to select a function, For details, please see

the “OPERATION MENU” section. Press button marked as “B” or button marked as “C” to modify

values . Press button marked as “D” to save your settings.

LED Digital Display Operation Menu:

Function

Default Values

Addr

DMX address DOWN/UP to +/- (1-512)

001

SLND

Mast, Master mode

Master

Slav, Slave mode

SHOW

Sh1, show 1 mode, Led effect

Show7 mode

Sh2, show 2 mode, Strobe effect

Sh3, show 3 mode, Laser effect

Sh4, show 4 mode, Led + Laser effect

Sh5, show 5 mode, Led + Strobe effect

Sh6, show 6 mode, Laser + Strobe effect

Sh7, show 7 mode,Led + Strobe + Laser effect

SENS

SESE,sound sensitivity 0-100

SOUN

Sound ON/OFF

Vers

Ve1.0 , software version

A B C D

A．（MENU）

B．（UP）

C．（DOWN）

D．（ENTER）

E．LED Display

Mixlaser RB User Manuel

- - 6 - -

5、Channel

Channel

Value 0-255

Details

CH1

Control Mode

0-9

Black- out

10-39

Show 1，Led

40-69

Show 2, Strobe

70-99

Show 3, Laser

100-129

Show 4, Led + Laser

130-159

Show 5, Led + Strobe

160-189

Show 6, Laser + Strobe

190-219

Show 7, Led + Strobe + Laser

220-255

DMX mode

CH2

RGBW control

0-9

RGBW off

10--198

Choose colors（15 groups）, each 13 data for 1 color

group

199-225

Color chase1（single color）

226-255

Color chase 2(single or multiple）

CH3

Auto,LED

chase speed

0-255

Auto speed，LED color chase speed from slow to fast

CH4

RGBW Strobe

0-9

LED no strobe

10-244

Strobe Speed（from slow to fast）

245-255

LED strobe by sound

CH5

Strobe LED

0-9

Strobe off

10-134

Strobe position choose，5 data for only 1 choose

135-255

Strobe chase effect choose

CH6

Strobe chase

speed

0-127

no strobe, but White LED chase speed from slow to fast

127-255

With strobe, white LED chase speed from slow to fast

CH7

Laser Color

Control

0-9

Laser off

10-49

Red

50-89

Blue

90-129

Red and Blue

130-169

Red and Blue flicker

170-209

Blue and Red flicker

210-249

Red, Blue synchronous flicker

250-255

Red, Blue alternative flicker

CH8

Laser Strobe

Control

0-9

Strobe Off

10-244

Strobe Speed（from slow to fast）

245-255

Laser strobe by sound

CH9

LED Step

Motor Control

0-9

Step motor Off

10-127

Step Motor clockwise from slow to fast

128-255

Step Motor counterclockwise from slow to fast

CH10

Laser Step

Motor Control

0-127

Laser pattern choose

128-255

Laser pattern chase from slow to fast

Mixlaser RB User Manuel

- - 7 - -

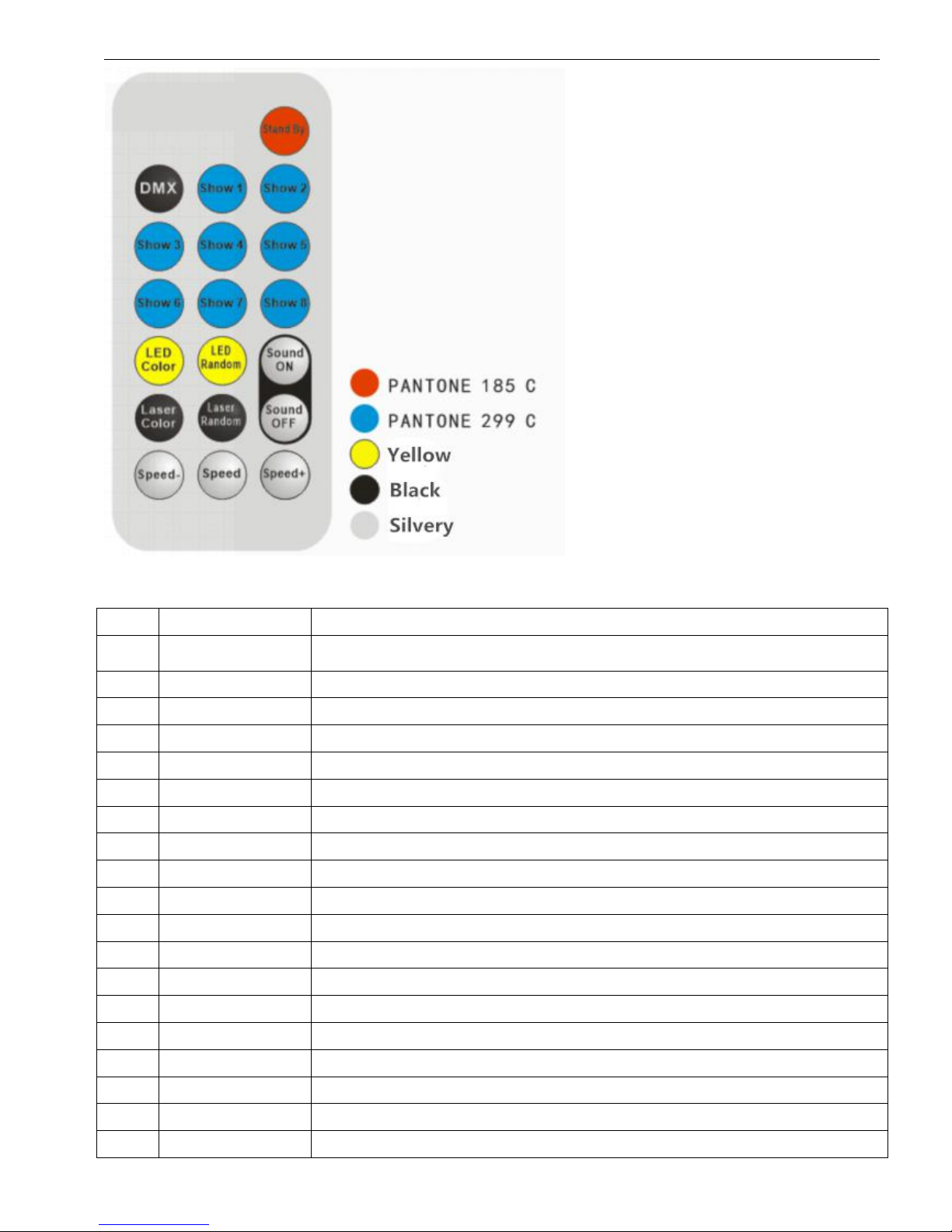

6.Remote control menu:

NO.

Button

Function

StandBy

Stand By

DMX

Inter DMX control mode

Show 1

Show 1，Led

Show 2

Show 2, Strobe

Show 3

Show 3, Laser

Show 4

Show 4, Led + Laser

Show 5

Show 5, Led + Strobe

Show 6

Show 6, Laser + Strobe

Show 7

Show 7, Led + Strobe + Laser

Show8

Hold on, no function

LED Color

Choosing LED color (15 sets)

LED Random

LED color random

Laser Color

Choosing laser color (3 sets)

Laser Random

Laser color random

Sound ON

Sound on, Show 1-Show7 by sound control

Sound OFF

Sound off，Show 1-Show7 by auto

Speed-

Speed down

Speed+

Speed increase

Speed

Speed set as defaults value

Mixlaser RB User Manuel

- - 8 - -

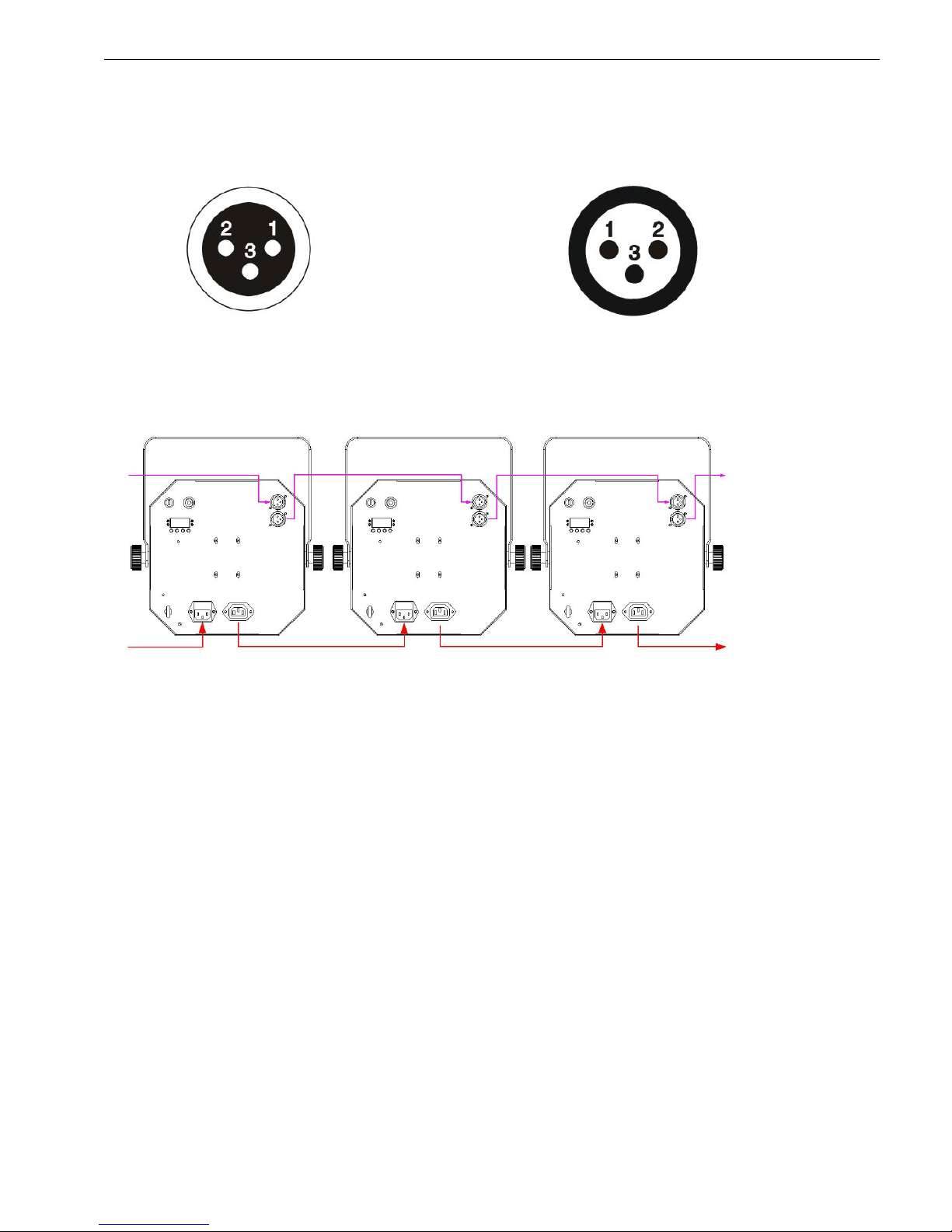

7. DMX-512 connection

3-Pins DMX Out 3-Pins DMX In

(Female) (Male)

1 Earth 2 DMX- 3 DMX+

10CH for example

First（address 001）Second（address 011）Third（address021）

DMX in DMX out to next light

8、DMX address setting

Each fixture must set a specific starting address. When receiving signal transmission, fixture will

receive channel control signals which from the starting address.

According to different requirements or easy to use, the user can set many value fixtures to the same

address, also can set up a separate address for every device.

If you set the same address,all the devices will receive from DMX channels signal. All connecting

fixtures are jointly controlled, controller can't separate control a device.

If you set a different address, each device will be separate from its particular set the starting address

and begin accepting DMX512 control signal, so that more convenient separate control one device.

Using this method must be based on channel quantity of device to determine a starting address.

This light has 10 channels. When you use 10CH, you should set the starting address of the first unit

to 1, the second unit to 11(10+1), the third unit to 21 (11+10), and so on.

Mixlaser RB User Manuel

- - 9 - -

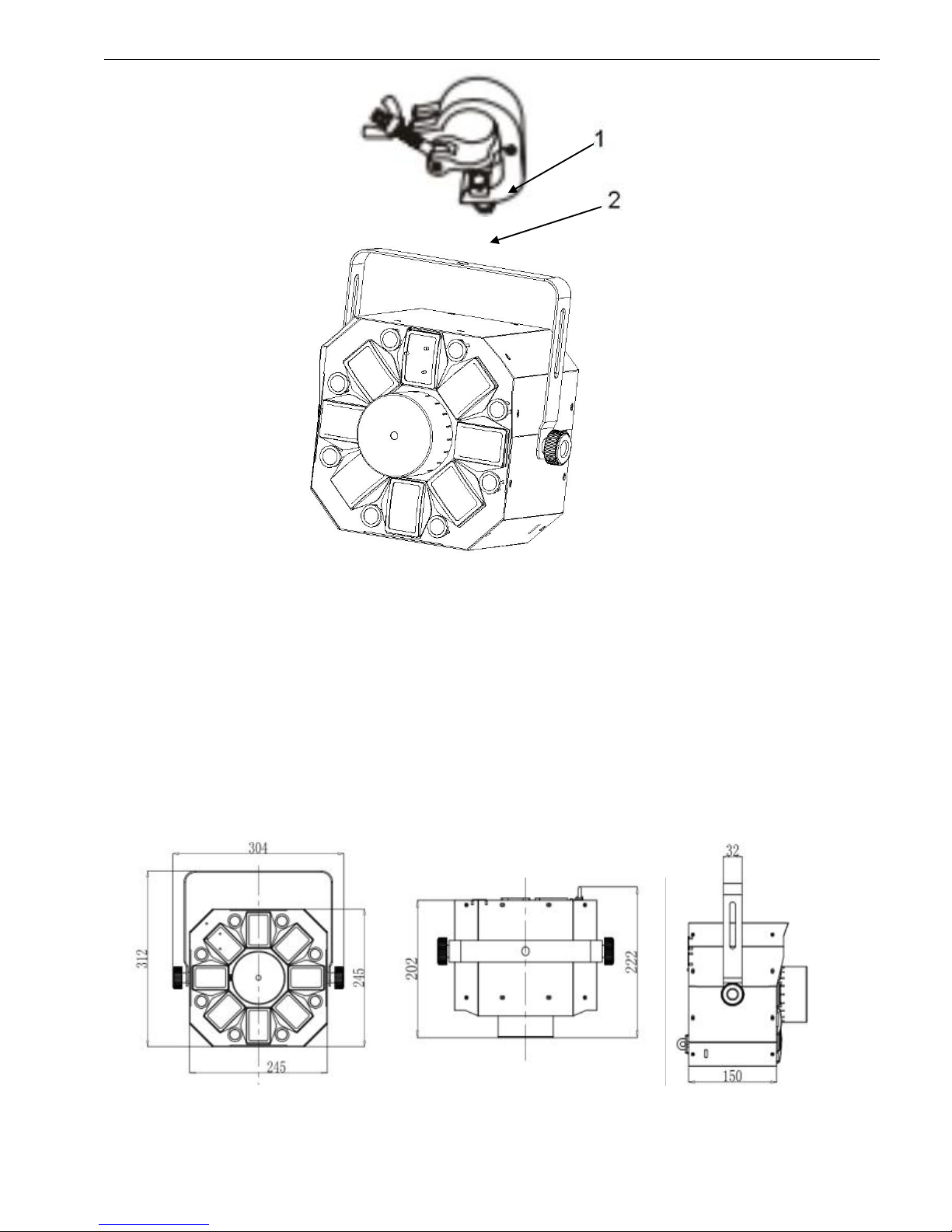

9、Installation

1 Clamp

2 Handle

When install this equipment please make sure there's no flammable surfaces

(decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M

from the equipment to the walls.

Please make sure that there's no other equipment or decorating materials obstructed

the exhaust fan and the vent-pipe.

Products should be install immobility.

In case of safety, it's very important that to connect the earth with line.

10、Product size

Tabla de contenidos

Otros manuales de Equipo de DJ de LCG

LCG

LCG LCG-2501WB Manual de usuario

LCG

LCG DICE6 Manual de usuario

LCG

LCG Mini Party Mix LCG-305A Manual de usuario

LCG

LCG MINI RADIUS 1W RGB Manual de usuario

LCG

LCG ULTRA WASH ZOOM LCG-MHW730Z Manual de usuario

LCG

LCG Mini Rubik LED LCG-623A Manual de usuario

LCG

LCG BEAMER 6 Manual de usuario

LCG

LCG LCG-003 V2 Manual de usuario

LCG

LCG LCG-072 Manual de usuario

LCG

LCG LCG-UV18 Manual de usuario

LCG

LCG LCG-301B Manual de usuario

Manuales populares de Equipo de DJ de otras marcas

ALPHA LITE

ALPHA LITE ALPHA 1500 Manual del propietario

Chauvet

Chauvet OVATION E-930VW Manual de usuario

Zumtobel

Zumtobel APHRODITE Home Manual de usuario

Snow Masters

Snow Masters Zig Oscillator Manual de usuario

EuroLite

EuroLite 50530554 Manual de usuario

Beamz

Beamz BUV243 Manual de usuario

thomann

thomann Stairville DJ Lase 40-G MK-III Manual de usuario

Eagletone

Eagletone 6 Eyes Flower Manual de usuario

EuroLite

EuroLite FLD-1508 Manual de usuario

Technical Pro

Technical Pro LG8xSEA Manual de usuario

JB Systems

JB Systems Lounge Laser DMX Manual de usuario

Lightmaxx

Lightmaxx Vega Halo 90 Manual de usuario

Elation

Elation FUZE WASH Z350 Manual de usuario

Maverick

Maverick MK3 WASH Manual de usuario

Infinity

Infinity TF-260C7 Fresnel Manual de usuario

Chauvet

Chauvet EVE E-50Z Manual de usuario

Eliminator Lighting

Eliminator Lighting E 138 Manual de usuario

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manual de usuario
