Lawmate PV-RC200W Manual de usuario
1
PV-RC200W
HD WI-FI Keyfob DVR (Black)
Quick Guide
A. Regarding the Device
1. Key Eject / Retract buon
2. Power On/O & REC Buon
3. WI-FI On/O & Client Buon & WI-FI Reset
4. Snapshot Buon
5. Memory Card Slot
6. Charge LED
7. USB Charge
8. Camera Lens
B. Power Charging
1) Press buon 1 to eject key.
2) Connected the USB cable to 7 then connected the cable to USB Plug.
3) The 6 will showed Orange LED light on, The Orange LED light will o when the device is fully charged.
4) Hold down the 1 key and back depressed key.
C. Insert the SD Card
1) Place the SD Card into SD Card Slot, Press the SD Card
for take out the SD Card.
2
D. Buon Funcon
1) Power On ：Hold the buon 2 ll it vibraon, the device will vibraon on 3 mes.
2) Power On nish ：The device will vibraon on 2 mes when it nish power on.
3) Power O ：Hold the buon 2 ll it vibraon, the device will vibraon on long mes.
4) Power O nish ：The device will vibraon on 2 mes when it nish power o.
5) REC On/O ：Press buon 2 to turn on REC or stop REC.
(REC will vibraon on 1 mes ；Stop REC will vibraon on 2 mes)
6) WI-FI On/O ：Press buon 3 to turn on WI-FI or turn o WI-FI.
(The WI-FI is on when the device is power on.)
7) Reset WI-FI Default ：Hold the buon 3 for 10 sec.
8) Snapshot ：Press the buon4take a one photo and vibraon 1 me.
E. LED Light
1) Orange LED Light On ：Power Charging
Orange LED Light O ：Fully Charge
F. APP download QR Code (Scan the QR code below to download the APP or directly type & search
“SecurePro Plus” in App store or Google play for installaon)
3
4
5
II. APP UI descripon
1) Back to WI-FI which you need to connect device list.
2) Cell phone video and Photo archive folder.
3) SD card video host and Photo archive folder.
4) Seng.
5) Quick seng.
6) Host SD card resoluon when recording.
7) SD card reminder.
8) Moon detecon recording.
9) Resoluon when recording.
10) Host SD card recording icon.
11) Host SD card recording.
12) Host SD card photograph.
13) Smartphone recording icon.
14) Smartphone recording.
15) Smartphone photograph.
16) Host SD card recording buon.
17) Smartphone recording buon
1) Host SD card red light constant lighng while recording
2) Smartphone recording red light blinking.
6

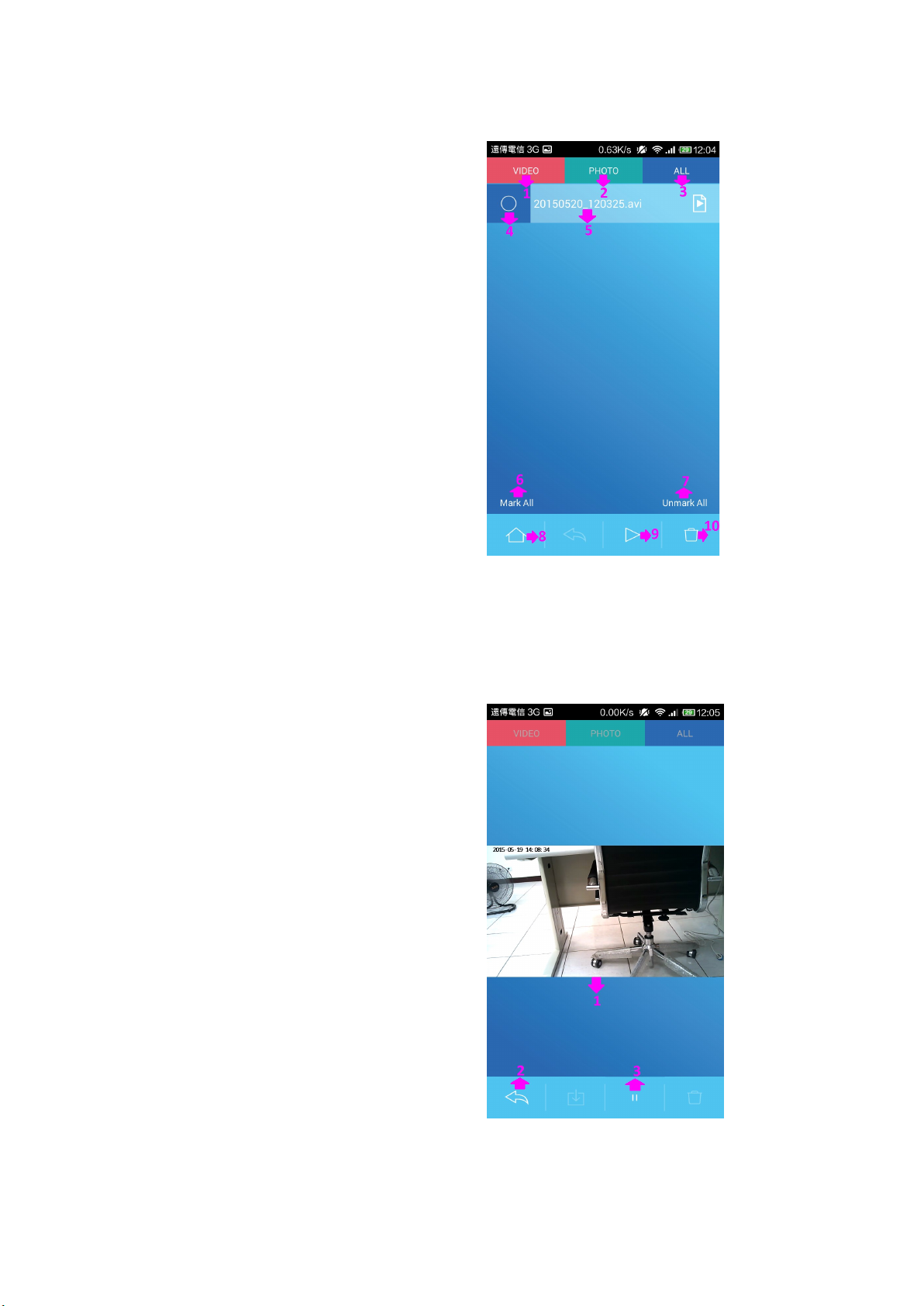

Browsing Mobile Video and Photo Archive Informaon.
1) Film archives.
2) Photographic archives.
3) Film and photo all archive.
4) Mark archive what you need.
5) File name.
6) Mark all archive.
7) Unmark all archive.
8) Back to homepage.
9) Play buon.
10) Delete buon.
Play The Video File.
1) Video playback window.
2) Back to last page.
3) Pause buon.
7
Browsing the Host SD Card Video and Photo Archive Informaon.
1) Film archives.
2) Photographic archives.
3) Film and photo all archive.
4) Connuous video le named beginning with Rec.
5) Moon detecon recording named beginning with MRec.
6) Mark archive what you need.
7) File name.
8) Mark all archive.
9) Unmark all archive.
10) Back to homepage.
11) Download archive of SD card to smartphone.
12) Play buon.
13) Delete buon.
Seng
1) WI-FI seng.
2) Privacy seng.
(Aer switch privacy seng, entry APP need password.)
3) Video seng.
4) Date and me seng.
5) System informaon.
6) Reset all seng.
7) Firmware upgrade.
8) Back to homepage.
8
WI-FI Seng
1) WI-FI host name.
2) WI-FI password
*You may change the default password to your preferred
here to keep the WIFI connecon more condenal
3) Way of encrypon.
4) WI-FI SSID invisible or not.
5) Host WI-FI o.
6) Back to homepage.
7) Back to last page.
1) Encrypon Column Opon.
2) No encrypon
3) WEP encrypt (64bit)
4) WPA/WPA2/PSK encrypt (128bit)—Default
*Not suggest to change
9

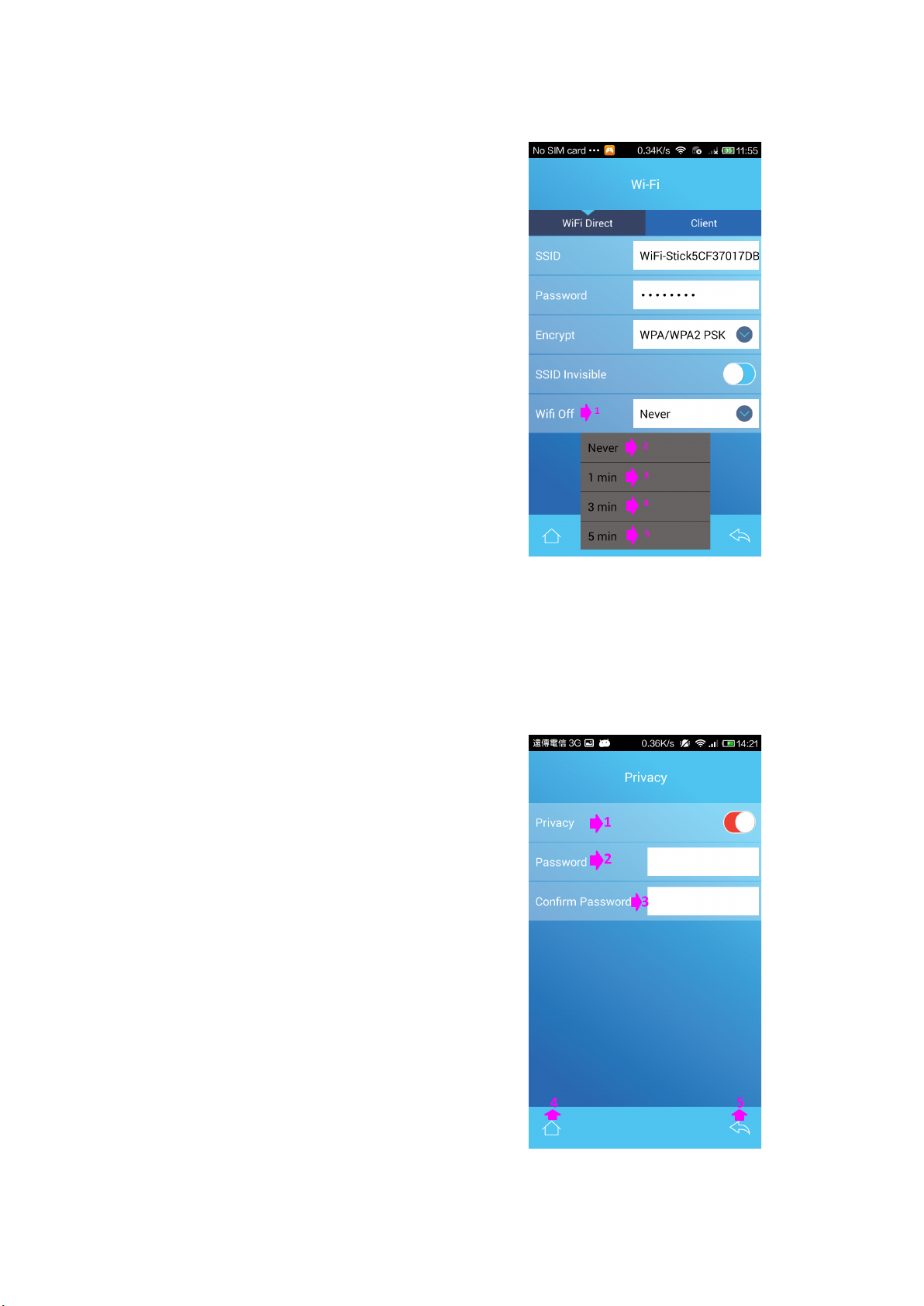

1) WIFI column opon
2) Once power on, WI-FI is always on
3) WIFI turn o aer 1 minute (If no connecon detect)
4) WIFI turn o aer 3 minute (If no connecon detect)
5) WIFI turn o aer 5 minute (If no connecon detect)
*Once WIFI turn o it has to be switched on from the device,
can’t be re-opened by the phone remotely
1) Privacy On/O
White doc on the le ：Privacy o
White doc on the right ：Privacy on
2) Privacy password. (Number Only)
3) Conrm password again.
4) Back to homepage.
5) Back to last page
*Be aware the privacy funcon only lock on the running of
this APP, all other funcons in the phone remain normally.
10
Image Seng
1) Play parameters.
2) Resoluon. (D1、720P)
3) Frame choice. (10、15、20、25)
Image Seng
1) Recording mode.
Connuous recording / Moon detecng recording
*When execute the moon record, aer seng it up in
The menu, it need to be pushed once for the either
record buon on the preview page to start to operate.
2) Recording me. (1、3、5、10 min)
3) SD Over-Write on/o ：
White dot on the le ：Overwrite Seng o.
White dot on the right ：Overwrite Seng on.
4) Back to homepage.
5) Back to last page.
