Lava FireHost

Installation Manual

Rev. B00

LAVA COMPUTERS

1394_PCI FIREHOST

P.N. MOKO L88.0

MADE

IN

CANADA

Hardware Installation

1. Before opening the casing of your computer, make sure that all

power is off.

2. Open the case of your computer according to the manufacturer's

instructions. Before proceeding further, touch a bare metal portion

of the computer case to discharge any static electricity your body

may have.

3. Locate an unused PCI slot (any PCI slot will do). PCI slots are white

plastic.

PCI Slot

Screw for attaching card bracket

to PC casing

Ports

4. Unscrew and remove the metal slot cover corresponding to the slot

that will hold the FireHost card, and retain the screw.

5. Holding the FireHost card without touching its gold connectors,

insert it into the PCI slot. Ensure that it is well seated.

6. Screw the metal bracket of the FireHost card to your PC’s casing and

replace the machine’s cover.

7. Reattach all peripherals to your computer, and start the system.

Installing in

Windows 98SE/2000/Me/XP

1. When Windows starts, it will detect the new FireHost PCI host

adapter in your system and display the first screen of the "Add New

Hardware Wizard" (shown below). Click on "Next".

2. In the next screen of the "Add New Hardware Wizard", select

"Display a list of all the drivers...." then click "Next".

3. The next screen (shown below) asks you to select the make and

model of the hardware device driver you will use. Select the "Texas

Instruments OHCI Compliant IEEE 1394 Host Controller" and click

"Next".

Note: If this driver is not displayed among the screen's choices, click on

"Show all hardware." Windows will display a list of manufacturers and

models, from which you can select the "Texas Instruments OCHI

Compliant IEEE 1394 Host Controller" device driver. After selecting this

driver, click "Yes" on the update warning prompt that appears.

4. Windows will now either confirm that it has found the driver file you

specified, or prompt you to insert your Windows installation CD.

Click "Next" to continue once the driver file is available to Windows.

Checking the Installation

5. When Windows has finished copying and installing the device

drivers, it will display the following dialog box. Click "Finish" to

complete installing the FireHost adapter.

To check that the FireHost was correctly installed, go to My Computer |

Control Panel | System | Device Manager, and click on the plus sign in

front of the 1394 Bus Controller heading.You should see an entry for the

Texas Instruments OHCI Compliant IEEE 1394 Host Controller.

Macintosh Installation

1. Before opening the casing of your computer, make sure that all

power is off.

2. Open the case, locate an unused PCI slot and insert the FireHost

Adapter into it. Ensure that it is well seated. Close the case.

3. Turn the Mac on.When an operating system starts, it will

automatically find the FireHost Adapter.

4. To check if the FireHost was properly installed, go to ‘Apple Menu’,

‘Apple System Profiler.’

5. Select the ‘Devices and Volumes’tab and check for the FireHost.

Lava Computer MFG Inc.

Lava

Technical Support

9:00 am to 5:30 pm Monday to Friday (Eastern Time)

Tel: +416 674-5942

Fax: + 416 674-8262

E-mail: tech@lavalink.com

Internet: www.lavalink.com

This device complies with part 15 of the FCC Rules. Operation is subject

to the following conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Lava Computer MFG Inc. 908 Niagara Falls Blvd.#629. North Tonawanda NY 14120-2060

Tabla de contenidos

Otros manuales de Tarjeta PCI de Lava

Lava

Lava DSerial-PCI Powered Manual de usuario

Lava

Lava Parallel-PCI/LP Card Manual de usuario

Lava

Lava Lava Parallel LAVA SP-PCIe Manual de usuario

Lava

Lava LAVA Dual Parallel-PCI Manual de usuario

Lava

Lava 2SP-PCI Manual de usuario

Lava

Lava LavaPort 650 Manual de usuario

Lava

Lava DSerial-PCI/LP Card Manual de usuario

Lava

Lava LAVA SSerial-PCI/LP Manual de usuario

Lava

Lava Parallel-PCIe Manual de usuario

Lava

Lava Parallel-PCIe/LP Manual de usuario

Lava

Lava QUATTRO-PCI Manual de usuario

Lava

Lava Dual Parallel-PCI Manual de usuario

Lava

Lava Dual Parallel-PCI Manual de usuario

Lava

Lava Enhanced Parallel Port Board Manual de usuario

Lava

Lava Octopus-550 Manual de usuario

Lava

Lava Quattro-PCI/LP Manual de usuario

Lava

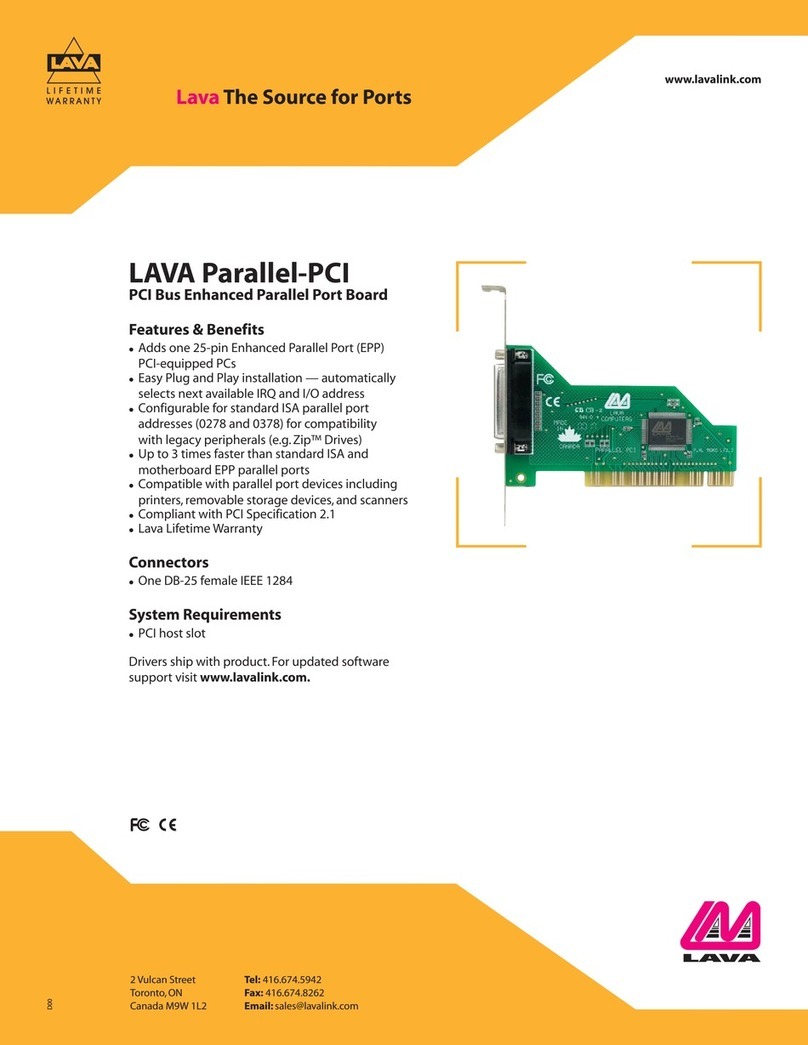

Lava Parallel-PCI DB-25 Manual de usuario
