Larry vs Harry Damper Manual de usuario
Damper Kit
Attachment Manual
Before you start Tools you need
Things you need before attaching the Damper Kit
Your favourite Bullitt
The Damper Kit is maintenance-free!
Find your tools and get ready!
1 2 3
5
4mm
Hex/Allen Key
6
15mm
Wrench/ Spanner
If you have the Honeycomb Board or Sidepanel Kit
installed, you might also need:
5mm
Hex/Allen Key
10mm
Wrench/Spanner
Grease
(metal on metal)
Note!
Important message
from Larry the King.
Grease.
Remember to grease or else
your mechanic will hate you later on.
(“Muc-o” has a Bio Grease
that cares about the environment)
Icons that will appear throughout the guide:
4
Phillips 3
Screwdriver
2

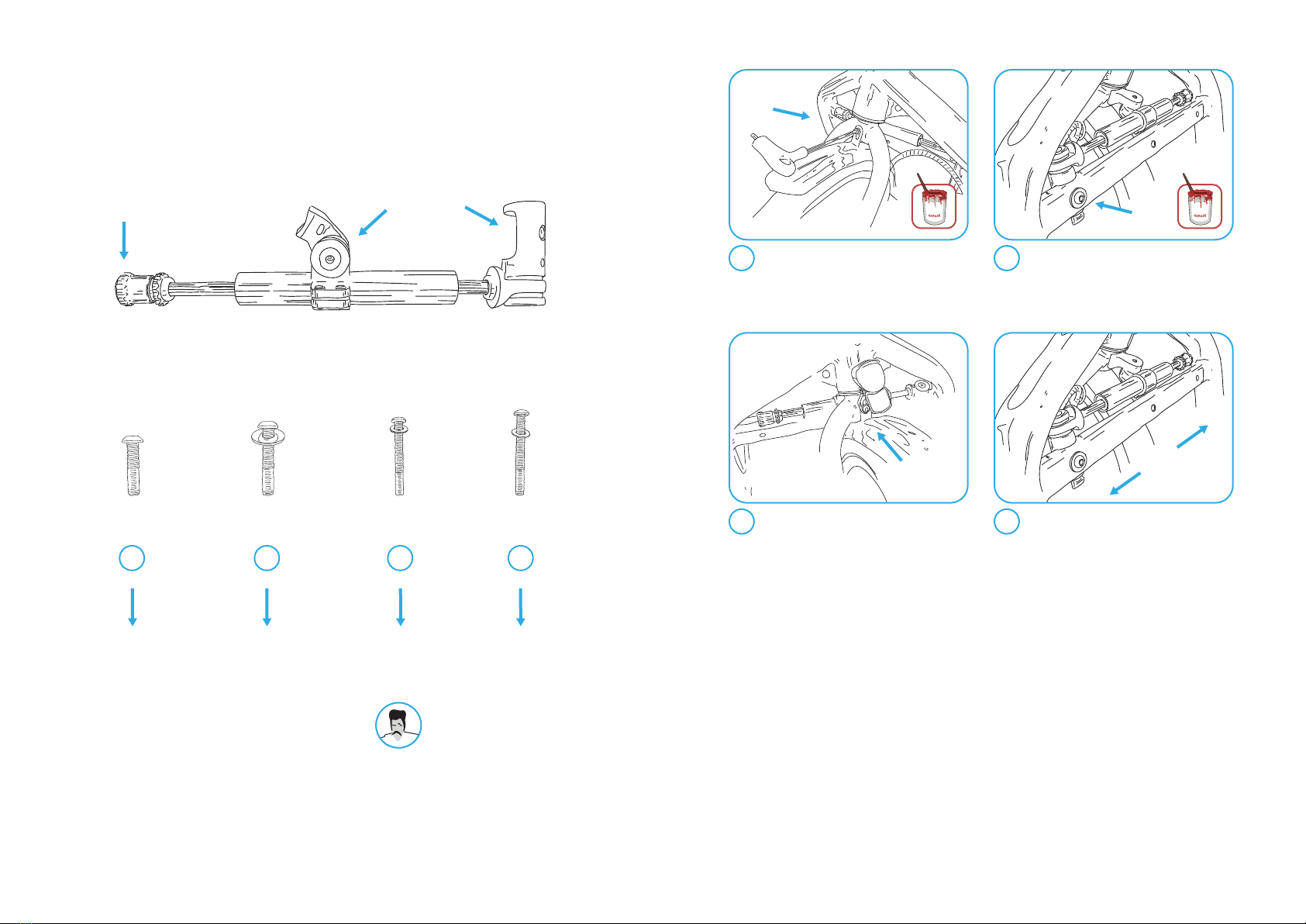

The Damper
4 Bolts
M8x45 M6x50 M6x55M8x35
Use this one, if you
DO NOT use the
Honeycomb Board
Components What’s in the box?
Use this one, if you
DO use the
Honeycomb Board
Use this one, if you
only have the
MUDGUARD attached
Use this one, if you
have the FRONT
LIGHT attached
3
Step 1
A small tip before attaching the Damper Kit
3 4
2
First, remove the reflector and/
or front light. The Original Bullitt
comes as standard with a reflector,
the eBullitt, a front light.
Remove the bolts and lift up
the mudguard a bit.
NOTE! Are the fittings of the
mudguard mounted on the back
side, it needs to be mounted on
the front side.
If you have mounted any other accessories
-other than the Honeycomb Board-
these needs to be dismounted first!
Tighten the bolts on the
Damper, if they are a bit loose
1
4
Step 2
Placing and attachment of the Damper Kit
1
A B C D
2
3
Grease the bolt (C) or (D).
Loosely tighten the bolt into
the Damper bracket with the
Allen Key.
Grease the bolt (A) or (B).
Mount it from the back (possibly
through the Honeycomb Board)
in to the Damper bracket.
Mount the front light back on
and make sure to place the fittings
of the mudguard on the front side.
4Now check that the Damper
runs smoothly through it’s travel
with some resistance.
M8x45 M6x50 M6x55M8x35
Use this one, if you
DO NOT use the
Honeycomb Board
Use this one, if you
DO use the
Honeycomb Board
Use this one, if you
only have the
MUDGUARD attached
NOTE:
We recommend to remove the
reflector (of the Original Bullitt) as
it’s made of plastic and can brake.
Place it possibly somewhere else.
Damper
bracket
Resistance
Use this one, if you
have the FRONT
LIGHT attached
5-6 Nm
5-6 Nm
5
Step 3
Adjusting the Damper Kit
3
Adjust Bumper 2. Turn handlebar
all the way to the left and fine
tune the distance between the
wheel and the front fork so they
do not touch.
Resistance
Bumper 2 Bumper 1Bumper 1 Bracket
Adjust the Resistance:
Seven settings - The resistance
level is personal preference.
= Max. (tight)
+= Min. (loose)
−
1Adjust Bumper 1. Turn handlebar
to the right: Make sure the
Damper does not hit the front
fork legs. Adjust the Bracket
with 4mm Allen Key.
2
3-4 Nm
6
All rights reserved © 2022 Larry vs Harry
Ver.No.: 01, 12-2021
www.larryvsharry.com
Bullitt Copenhagen
Frederiksborggade 43, DK–1371 Copenhagen, Denmark
