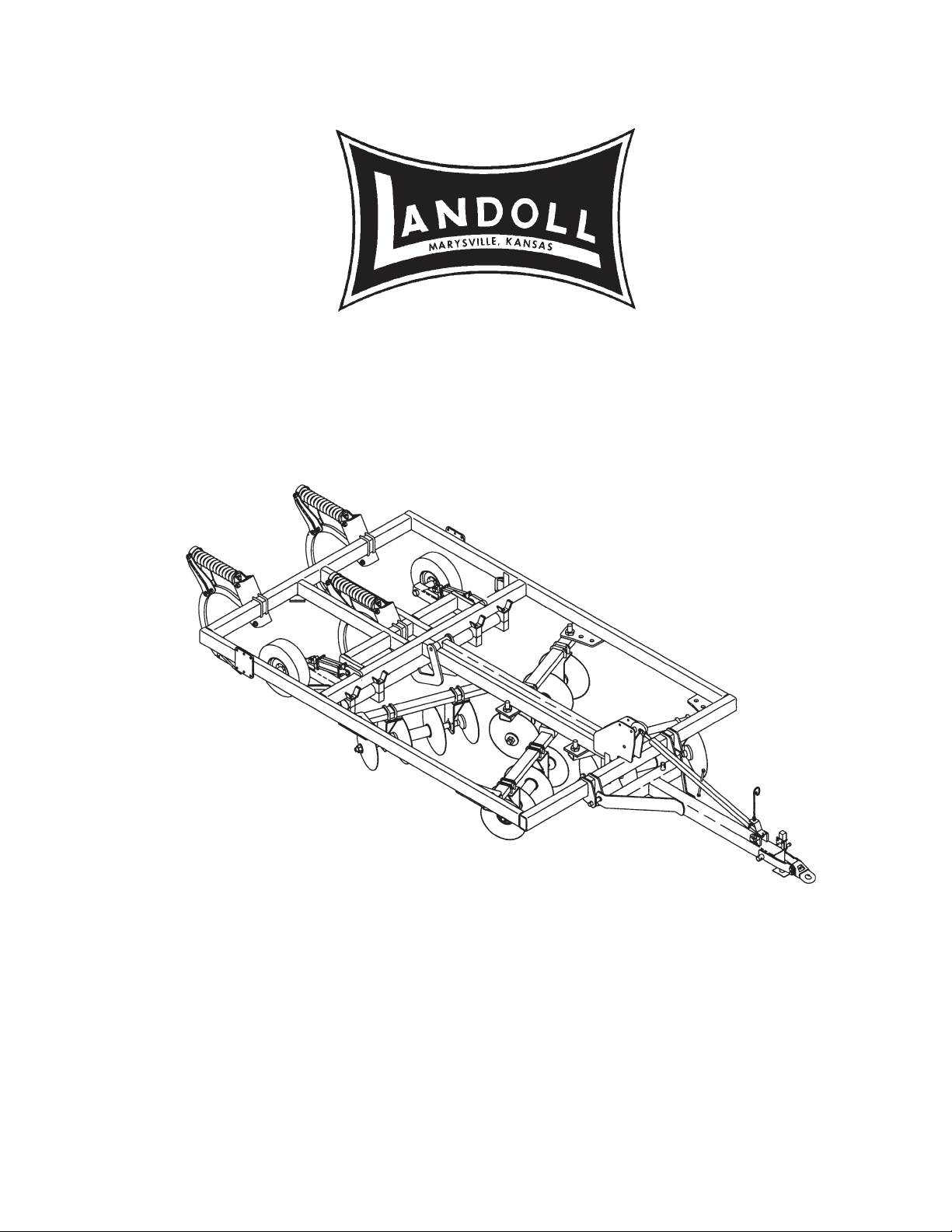

MODEL 2210 SERIES

WEATHERPROOFER

OPERATOR’S MANUAL

1900 NORTH STREET

MARYSVILLE, KANSAS 66508

(785) 562-5381

F-227-896 8/96

WARRANTY

MANUFACTURER’S GUARANTEE POLICY

LANDOLL CORPORATION WARRANTY

LANDOLL warrants each new and unused LANDOLL machine, when

properly assembled, adjusted, and operated, to be free of defects in

material and workmanship, in normal use and when properly serviced,

for a period of twelve (12) months after date of delivery by the Dealer to

the original retail purchaser. LANDOLL shall repair or replace, at its op-

tion, freight on board (f.o.b.) at its factory or designated DEALER loca-

tion, any part or parts of such new and unused machine which shall

have been reported in writing to LANDOLL within thirty (30) days from

date of failure thereof and which LANDOLL inspection shall disclose to

have been defective. Defective parts must be returned to the LANDOLL

factory, freight prepaid. LANDOLL will not be liable for labor, transpor-

tation, or any other charges resulting from replacement of a defective

part. This warranty is void if any part not supplied by LANDOLL is used

in assembly or repair, or if the machine has been altered, abused, or

neglected. LANDOLL repair parts are warranted for ninety (90) days

from date of replacement or for the unexpired warranty period of the

applicable LANDOLL machine, whichever period is longer. LANDOLL

makes no warranty, whatsoever, as to purchased component parts and

other trade accessories, except to the extent that such items are war-

ranted by the manufacturer thereof. THIS WARRANTY IS EXCLUSIVE

AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED,

IMPLIED, OR STATUTORY (INCLUDING WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR PURPOSE), AND LANDOLL SHALL NOT BE

LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND

ON ACCOUNT OF ANY LANDOLL PRODUCT.

NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE

THIS WARRANTY, VERBALLY OR IN WRITING, OR GRANT ANY OTHER

WARRANTY.

LANDOLL CORPORATION, WHOSE POLICY IS ONE OF CONTINUOUS

IMPROVEMENT, RESERVES THE RIGHT TO MAKE CHANGES WITHOUT

OBLIGATION TO MODIFY PREVIOUSLY PRODUCED EQUIPMENT.

MODEL 2210 SERIES

WEATHERPROOFER

OPERATOR’S MANUAL

PURCHASED FROM: DATE / /

ADDRESS:

PHONE NO.: SERIAL NO.:

TABLE OF CONTENTS

SECTION DESCRIPTION PAGE

1 INTRODUCTION 1-1

2 STANDARD SPECIFICATIONS 2-1

3 ASSEMBLY PROCEDURES 3-1

3-1 2215 FRAME ASSEMBLY ..............................3-3

3-2 2217 FRAME ASSEMBLY ..............................3-3

3-3 2215 ROCKSHAFT INSTALLATION .......................3-5

3-4 2217 ROCKSHAFT INSTALLATION .......................3-7

3-5 GAUGE WHEEL HYDRAULIC PLUMBING INSTALLATION .....3-9

3-6 PULL HITCH INSTALLATION...........................3-11

3-7 STANDARD RIGID RISER DISC GANG INSTALLATION .......3-14

3-8 FLEX DISC GANG INSTALLATION ......................3-15

3-9 SPRING SHANK INSTALLATION ........................3-17

3-10 LUBRICATION ......................................3-17

4 OPERATION AND MAINTENANCE 4-3

4-1 TRACTOR PREPARATION .............................4-4

4-2 MODEL 2210 SERIES WEATHERPROOFER PREPARATION ....4-4

4-3 ATTACHING TO THE TRACTOR .........................4-4

4-4 FIELD OPERATION ...................................4-6

4-5 WHEEL BEARING MAINTENANCE .......................4-8

4-6 LUBRICATION.......................................4-8

4-7 HYDRAULIC MAINTENANCE............................4-8

4-8 STORAGE..........................................4-8

5 TROUBLESHOOTING GUIDE 5-1

SAFETY PRECAUTIONS

THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU

TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES

THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR

DEATH.

DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUA-

TION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR

SERIOUS INJURY.

WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUA-

TION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR

SERIOUS INJURY.

CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUA-

TION WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR

MODERATE INJURY.

CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDI-

CATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF

NOT AVOIDED, MAY RESULT IN PROPERTY DAMAGE.

1INTRODUCTION

The Landoll 2210 Series Weatherproofer is a quality product designed to give years of trouble free per-

formance. By following each section of this manual, your system will perform as designed for you and your

operation.

SECTION 1 gives basic instructions on the use of this manual.

SECTION 2 gives product specifications. These specifications supply lengths and measures for your

equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques

to be used when servicing this product.

SECTION 3 contains assembly instructions for your 2210 Series Weatherproofer. When these pro-

cedures are correctly followed, your equipment should provide you years of trouble-free

operation and service.

SECTION 4 instructs how to operate your equipment before using it, and describes adjustments

needed. It also gives practical advice for the care and maintenance of your Landoll

equipment. Drawings in this section locate adjustment points on the equipment.

NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE

WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:

LANDOLL CORPORATION

1900 NORTH STREET

MARYSVILLE, KANSAS 66508

or phone:

(785) 562-5381 or

(800) 428-5655

or FAX:

(785) 562-3240

SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equip-

ment.

PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.

Refer to that manual when ordering Landoll replacement parts. Order parts from your

Landoll dealer or call the Landoll Parts Distribution Center at:

(785) 562-4650 or

(800) 423-4320 or

FAX: (785) 562-4654

WARRANTY The Warranty Registration form is included with the product documents. Fill it out and

mail it within 15 days of purchase. The Warranty is printed inside the front cover.

NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR

LANDOLL MACHINE CAN VOID YOUR WARRANTY.

COMMENTS Address comments or questions regarding this publication to:

LANDOLL CORPORATION

1900 NORTH STREET

MARYSVILLE, KANSAS 66508

ATTENTION: PUBLICATIONS -DEPT. 55

1-1

2STANDARD SPECIFICATIONS

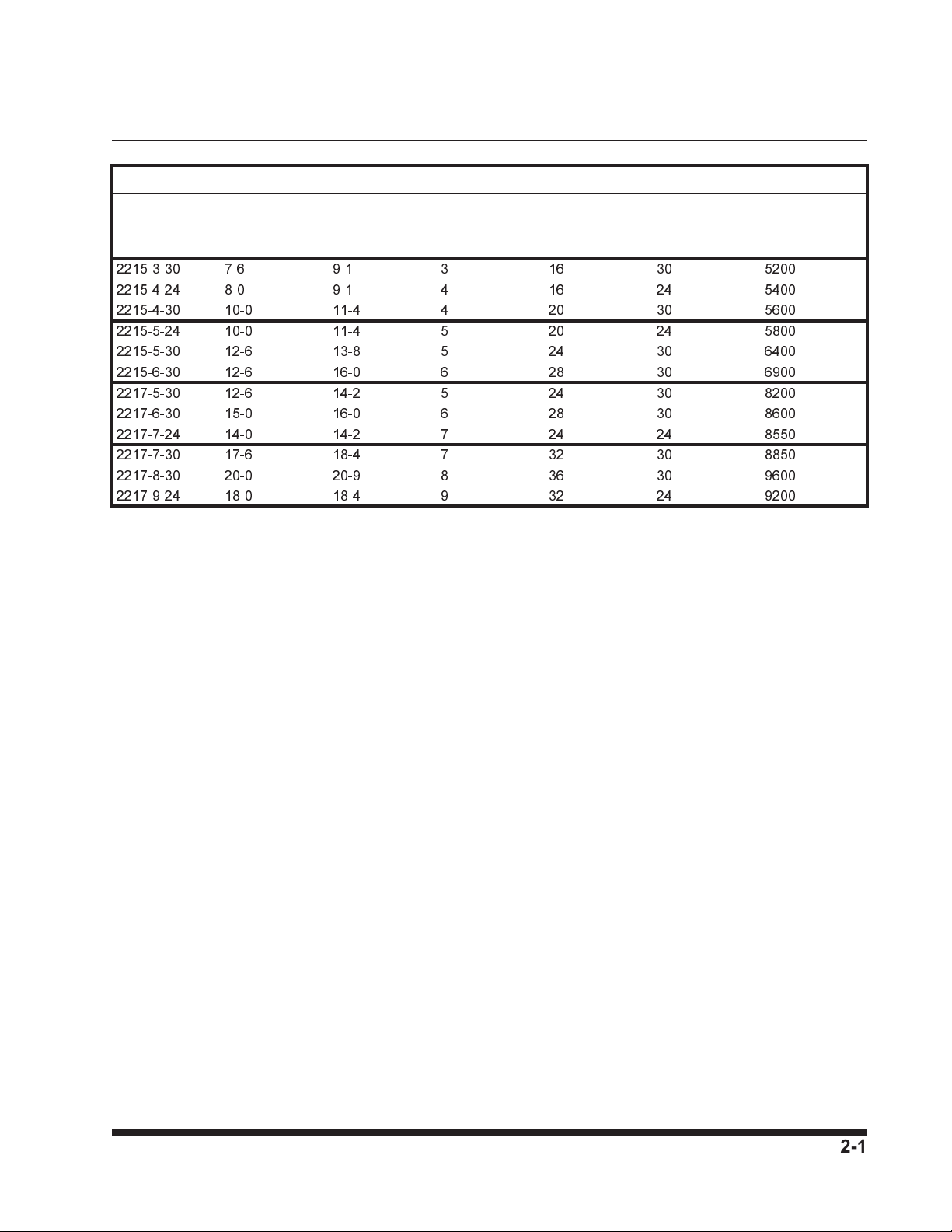

SPECIFICATIONS

Model

Number

Working

Width

(ft.-in.)

Transport

Width

(ft.-in.)

Number

Shanks

Number

Discs

Shank

Spacing

(in.)

Weight

(Approx.

lbs)

2215-3-30 7-6 9-1 3 16 30 5200

2215-4-24 8-0 9-1 4 16 24 5400

2215-4-30 10-0 11-4 4 20 30 5600

2215-5-24 10-0 11-4 5 20 24 5800

2215-5-30 12-6 13-8 5 24 30 6400

2215-6-30 12-6 16-0 6 28 30 6900

2217-5-30 12-6 14-2 5 24 30 8200

2217-6-30 15-0 16-0 6 28 30 8600

2217-7-24 14-0 14-2 7 24 24 8550

2217-7-30 17-6 18-4 7 32 30 8850

2217-8-30 20-0 20-9 8 36 30 9600

2217-9-24 18-0 18-4 9 32 24 9200

2-1

2-2

LANDOLL CORPORATION

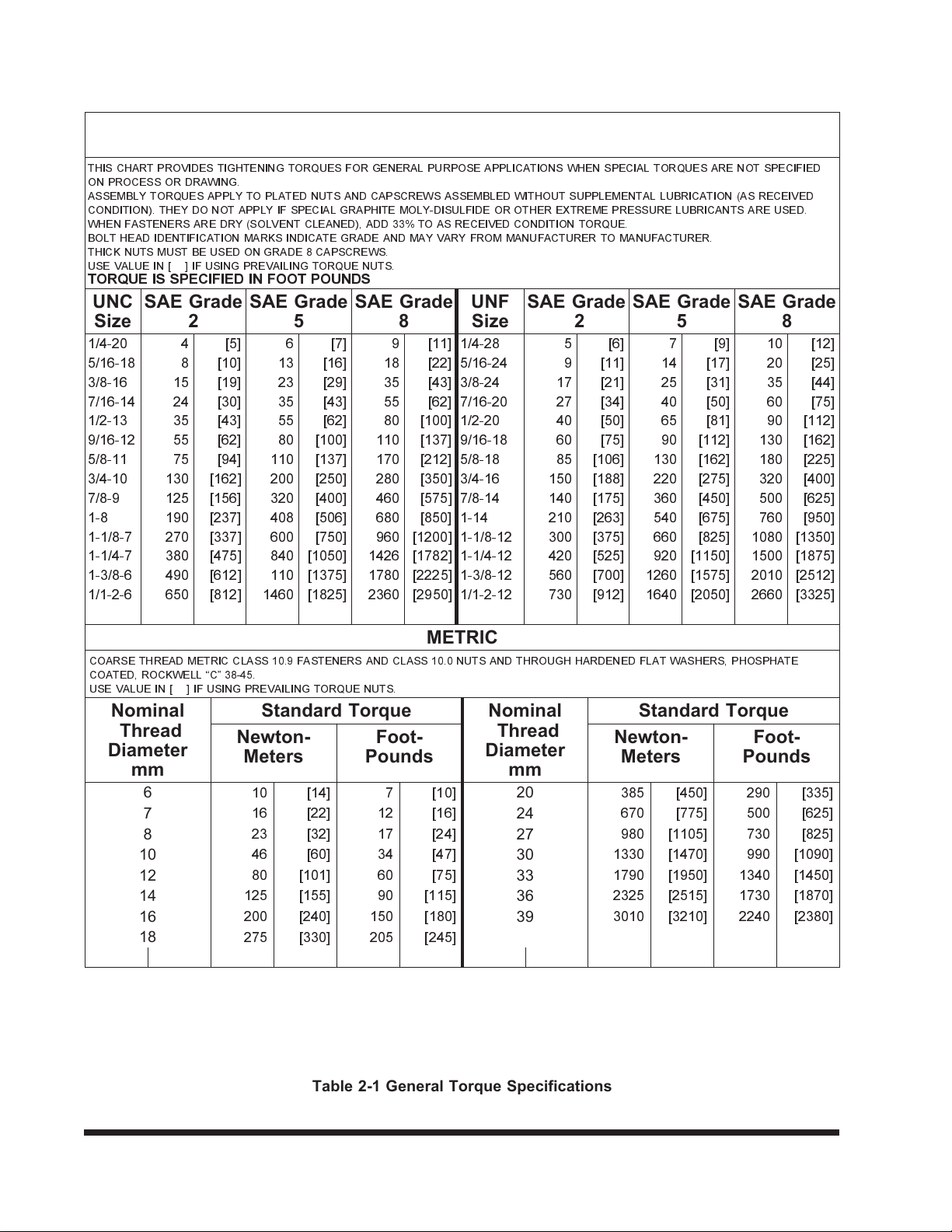

GENERAL TORQUE SPECIFICATIONS (REV. 4/97)

THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED

ON PROCESS OR DRAWING.

ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED

CONDITION). THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.

WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.

BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.

THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.

USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.

TORQUE IS SPECIFIED IN FOOT POUNDS

UNC

Size

SAE Grade

UNF

Size

SAE Grade

1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]

5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]

3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]

7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]

1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]

9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]

5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]

3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]

7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]

1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]

1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]

1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]

1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]

1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]

METRIC

COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE

COATED, ROCKWELL C 38-45.

USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.

Nominal

Thread

Diameter

Standard Torque Nominal

Thread

Diameter

Standard Torque

Newton-

Meters

Foot-

Pounds

Newton-

Meters

Foot-

Pounds

10 [14] 7 [10]

385 [450] 290 [335]

16 [22] 12 [16]

670 [775] 500 [625]

23 [32] 17 [24]

980 [1105] 730 [825]

46 [60] 34 [47]

1330 [1470] 990 [1090]

80 [101] 60 [75]

1790 [1950] 1340 [1450]

125 [155] 90 [115]

2325 [2515] 1730 [1870]

200 [240] 150 [180]

3010 [3210] 2240 [2380]

275 [330] 205 [245]

Table 2-1 General Torque Specifications
