LaMotte 1742 PockeTester Manual de usuario

TRACER

POCKETESTERä

CODE 1742

TRACER

ORP POCKETESTERTM

CODE 1742

Table of Contents

Introduction .............................. 4

Specifications ............................. 4

Contents ................................ 4

Parts & Accessories .......................... 4

Meter Description

Front Panel Description ..................... 5

TRACER Display......................... 5

Basic Operation

Powering the TRACER ..................... 6

Electrode Recognition ...................... 6

Automatic Calibration ...................... 6

Data Hold............................. 6

ORP Testing

Overview ............................. 6

ORP Display ........................... 6

Getting Started .......................... 6

ORP Measurement ........................ 6

Storing Readings .........................7

Recalling Stored Readings ....................7

Maintenance

Storage .............................. 8

Battery Replacement ....................... 8

Cleaning & Conditioning the Electrode ............. 8

Troubleshooting ............................ 9

Replacing the Electrode ........................ 9

Expand Your TRACER ........................ 10

Warranty ............................... 10

Introduction

Congratulations on your purchase of the TRACER ORP PockeTester.

The advantages of the TRACER to the user include: Easy to use and

maintain, high accuracy, automatic calibration, and fast response. The

TRACER a 15-reading memory storage. Careful use and maintenance

will provide years of reliable service.

Specifications

Display Multifunction LCD with Bar graph

Operating Conditions 32 to 122°F (0 to 50°C) and < 80% RH

ORP Range & Accuracy ±999mV/±4mV

Measurement storage 15 tagged (numbered) readings

Power Four CR2032 button batteries (see Page

Low battery indication ‘BAT’ appears on the LCD

Auto power off After 10 minutes of inactivity

Contents

ORP TRACER PockeTester Kit, ±999mV Range Code 1742

Includes Sample Cup w/cap*

*Not sold individually. See below.

Parts & Accessories

ORP Replacement Electrode Code 1734

Weighted Stand w/Sample Cups (5) Code 1746

Sample Cups w/caps (24) Code 1745

Meter Description

Front Panel Description

1. Battery compartment cap

2. LCD Display

3. MODE/HOLD button

4. CAL/RECALL button

5. ON/OFF button

6. Electrode Collar

7. Electrode

(Note: The Electrode cap is not shown)

Display Description

1.Reading

2.Units

3.Bargraph

4.Data Hold

5.Scale

6.Low Battery

Basic Operation

Powering the TRACER

If the batteries are weak, the BAT indicator will appear on the LCD.

Press the ON/OFF key to turn the TRACER on or off. The auto power

off feature will shut the TRACER off automatically after 10 minutes of

inactivity.

Electrode Recognition

When the TRACER is turned on, it will recognize the type of electrode

that is connected and will display the appropriate unit of measure. An

electrode must be attached before turning the meter on.

Automatic Calibration

When the TRACER is turned on, it will enter the Automatic

Calibration mode. ‘SELF’ and ‘CAL’ will appear on the display while

calibration is in progress. After the calibration is completed, the ‘SELF’

and ‘CAL’ display icons will extinguish and both the main display and

the bargraph will read ORP in mV.

Data Hold

Press the MODE/HOLD button to freeze the current reading. The HOLD

display icon will appear along with the held reading. The held reading

will be stored in the next 15-reading storage location. Press the

MODE/HOLD button to return to normal operation.

TESTING

Overview

ORP is the abbreviation for Oxidation Reduction Potential and

represents the oxidizing or reducing nature of a solution. The overall

reactive tendency of a solution can be determined from ORP

measurements.

Display

When the electrode is placed in a solution, the main display and bar

graph will indicate the ORP reading. Readings flash until they have

stabilized. The bar graph is ‘center zero’, i.e. at 500mV there is no

display. As the readings increase from 0 to 1000 mV the bar will move

from the left to the right.

Getting Started

1. Remove the cap from the bottom of the TRACER to expose the

flat surface electrode and reference junction.

2. White KCL crystals may be present in the cap. Rinse the crystals

with tap water.

ORP Measurement

1. Press the ON/OFF button to turn the meter on. Place the electrode

½” to 1” into the test sample .

2. Stir once and let the reading stabilize for 1 to 3 minutes.

The main display will indicate the ORP in numeric units from 0 to

1000mV. The bar graph will also display the ORP value. As the

ORP increases, the bar graph will move from left to right.

3. Press the ON/OFF button to turn the meter off. Rinse the electrode

with distilled water. Replace cap.

Storing Readings

1. After the reading is made press the MODE/HOLD button to store

the current reading. The HOLD icon will be displayed. The storage

location number will also be displayed followed by the reading

being stored.

2. Press the MODE/HOLD

button to return to normal

operation.

3. Repeat step 1 to store the next

reading.

4. If an attempt is made to store

more than 15 readings, the

stored readings (starting with

the first reading) will be overwritten.

Recalling Stored Readings

NOTE: First ensure that the HOLD symbol is not displayed. If it is, exit

the HOLD function by pressing the MODE/HOLD button.

1. Press the CAL/RECALL button once and then press the MODE

button immediately after CAL is displayed; the location number (1

through 15) will flash. If the CAL mode is accidentally accessed

(display flashing), press the CAL/RECALL button again to exit.

2. The last stored reading taken will be displayed first. To advance

through the stored readings, press the MODE/HOLD button. The

location number is displayed first, followed by the reading stored in

that location.

3. To exit the recall mode, press the CAL/RECALL button and the

TRACER will return to normal operation.

If the batteries are removed, any stored readings will be discarded.

MAINTENANCE

Storage

To preserve electrode life keep the sponge in the protective cap soaked

with tap water. Dot not use deionized or distilled water.Cap TRACER

when not in use. Store vertically.

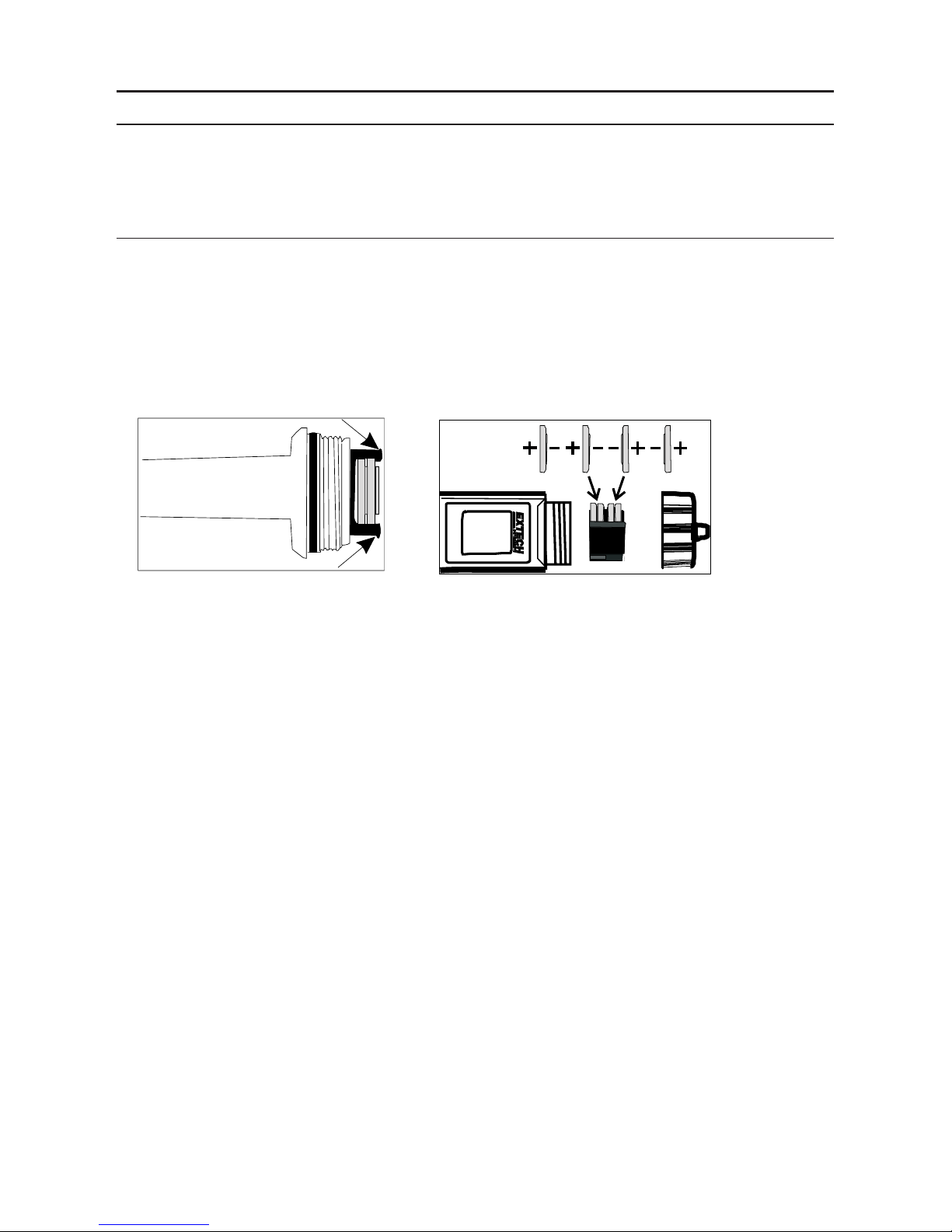

Battery Replacement

1. Twist off the battery compartment cap.

2. Hold the battery housing in place with one finger. Remove the

battery carrier by pulling on the small tabs.

3. Replace the four CR2032 batteries. Observe polarity.

4. Replace the battery compartment cap.

NOTE: If the batteries are removed, stored data will be cleared.

Factory calibrations will be retained.

Troubleshooting

Problem Cause Action

Power on but no

display

Batteries Insert batteries

Batteries Verify correct polarity

Batteries Replace batteries

Unstable readings Electrode Immerse electrode more deeply in

sample

Electrode Condition electrode before first use.

Soak in tap water for 10 minutes.

Electrode Remove air bubbles caught under

electrode

Electrode Clean electrode

Electrode Replace electrode

Static charge Wiping electrode Rinse electrode and blot. Do not wipe

electrode

Same readings in

different samples

Cracked or broken

electrode

Replace electrode. Avoid plunging

electrode into bottom of container and

stir bars.

Display frozen HOLD function Press MODE or turn meter off

Button response Remove batteries (stored data will be

lost)

Steady “-1 ” display Wait Reading not stable yet

Replacing the Electrode

The TRACER is shipped with an electrode attached. If the electrode

needs to be replaced, follow these steps for removing and connecting

electrodes.

1. Turn meter off.

2. To remove the electrode, turn the collar counter-clockwise and

remove it.

3. Gently rock the electrode from side to side, pulling it downwards,

until it disconnects from the meter.

4. To attach an electrode, carefully plug the electrode into the meter

socket. Note that the electrode connector is keyed to ensure a

proper connection.

5. Tighten the electrode collar firmly enough to make a good seal. A

rubber gasket will seal the electrode with the meter.

Expand Your TRACER

Interchangeable electrodes are available to convert the ORP TRACER

to a Total Chlorine TRACER or a pH TRACER.

Remember to ask for instructions and appropriate reagent or buffer

tablets when ordering Total Chlorine or pH electrodes.

Total Chlorine TRACER Electrode, 0.00-10.00 ppm Code 1732

The Total Chlorine TRACER Electrode (Code

1732) requires the use of TRACER TCL Tablets.

Order Code 7044A-J (100 pack).

pH TRACER Electrode, 0.00 - 14.00 pH Code 1733

The pH TRACER Electrode is used with pH 4.0, 7.0

and 10.0 buffers. Order using the following codes:

pH 4.0 Mini Buffer Tablets (100) Code 3983A-J

pH 7.0 Mini Buffer Tablets (100) Code 3984A-J

pH 10.0 Mini Buffer Tablets (100) Code 3985A-J

WARRANTY

This Instrument is guaranteed to be free from defects in material and

workmanship for a period of one (1) year from the original purchase

date. The probe is guaranteed to be free from defects in material and

workmanship for a period of six (6) months from the original purchase

date. In the event that a defect is found during the warranty time

frame, LaMotte Company agrees that it will be repaired or replaced

without charge except for the transportation costs. This guarantee does

not cover batteries.

This product can not be returned without a return authorization

number from LaMotte Company. For warranty support or a Return

Authorization Number, contact LaMotte Company at 1-800-344-3100

or [email protected].

Limitations

This guarantee is void under the following circumstances:

• Damage due to operator negligence, misuse, accident or improper

application.

• Damage or alterations from attempted repairs by an unauthorized

(non-LaMotte) service.

• Damage due to improper power source, AC adapter or battery.

• Damage caused by acts of God or natural disaster.

• Damage occurred while in transit with a shipping carrier.

Tabla de contenidos

Otros manuales de Equipo de prueba de LaMotte

LaMotte

LaMotte Water Link Spin Touch CW Guía de instalación

LaMotte

LaMotte 2020 ClearTrace Series Manual de usuario

LaMotte

LaMotte WaterLink Spin Touch DW Manual de usuario

LaMotte

LaMotte WaterLink Spin Touch DW Manual de usuario

LaMotte

LaMotte ColorQ 2102 Manual de usuario

LaMotte

LaMotte Tracer Total Chlorine PockeTester 1740 Manual de usuario

LaMotte

LaMotte pH 5 Plus Manual de usuario

LaMotte

LaMotte Tracer DO PockeTester Manual de usuario

LaMotte

LaMotte POCKETESTER 5-0078 Manual de usuario

LaMotte

LaMotte Tracer pH/TDS/Salt/TempPockeTester Manual de usuario

LaMotte

LaMotte TRACER pH PockeTester Manual de usuario

LaMotte

LaMotte ORP PockeTester Tracer Manual de usuario

LaMotte

LaMotte TRACER pH PockeTester 1741 Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
