LAMONA Appliances
Dear Customer,
Congratulations on your choice of a LAMONA domestic appliance which has been designed to give you
excellent service.
The user manual will help you use your product quickly and safely.
Please read this user manual before installing and using the product.
Always follow the safety instructions.
Keep this user manual within easy reach for future reference.
Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
This product’s packaging material is recyclable. Help recycle it and protect the environment
by dropping it off in the municipal receptacles provided for this purpose. Your product also
contains a great amount of recyclable material. It is marked with this label to indicate that
the used appliance should not be mixed with other waste. This way, the appliance recycling
will be done under the best possible conditions, in compliance with European Directive
2002/96/EC on Waste Electrical and Electronic Equipment. Contact local council or your
retailer for the used appliance collection points closest to your home. We thank you doing
your part to protect the environment.
Exclusive to Howdens Joinery.co Page _ 3
User manual LAM2800
Index
Before using the extractor 03
Safety 03
General 03
Safety for children 06
Safety when working with electricity 07
General information and operation 08
Extractor layout 08
Control panel layout 08
Care and maintenance 09
General Cleaning 09
Grease Filters 09
Carbon Filters 10
Replacing the Lamps 10
Installation 11
Methods of extraction 11
Extraction Via Ducting 11
Extraction Via Recirculation 11
Parts
Hanging your extractor 13
Decorative Chimney Fitting 15
Electrical Connections 16
17
Troubleshooting 17
Your Guarantee 18
12
www.howdens.com
Page _ 4
LAMONA Appliances
Make sure that you have removed all
packaging, wrappings, stickers and films
from the Extractor
Before using the Extractor
General
Safety
This appliance is for domestic extraction
purposes only. It must not be used for
other purposes. Commercial use will void
the guarantee.
The manufacturer shall not be liable for any
damage caused by improper use, installation or
handling errors.
This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced people
(including children) unless they are supervised
by a person who will be responsible for their
safety or who will instruct them accordingly in
the use of the product.
www.howdens.com Page _ 5
Do not carry out any repairs or modifications
on the product. However, you may remedy
some the problems that do not require any
repairs or modifications. See Troubleshooting,
at the rear of this manual.
Never wash down the product with excessive
water, as there is the risk of electric shock!
Never use the product when your judgment or
coordination is impaired by the use of alcohol
and/or drugs.
Product must be disconnected from the mains
during installation, maintenance, cleaning and
repair procedures.
Repair procedures must always be performed
by qualified service agents. The manufacturer
shall not be held responsible for damages
arising from procedures carried out by
unauthorised persons, which may also void
the guarantee.
Do not operate the product if the power cable
is damaged. Call qualified service agent.
User manual LAM2800
www.howdens.com
Page _ 6
LAMONA Appliances
Do not trap the mains cable and do not route
it over surfaces which may become hot. The
cable insulation may melt and cause a fire as
a result of a short circuit.
Safety for children
Make sure that the product function buttons
are switched off after every use.
Product must be installed by a qualified
person in accordance with the regulations in
force otherwise, the guarantee may become
void.
Electrical products can be dangerous to children.
Keep children away from the product when it is
operating and do not allow them to play with or
near the product.
The packaging materials will be dangerous for
children. Keep the packaging materials away
from children. Please dispose of all parts of the
Keep all ventilation slots clear of obstructions,
as this may cause premature failure of the
appliance
www.howdens.com Page _ 7
Safety when working with electricity
In case of any damage, switch off the product
and disconnect it from the mains. To do this,
turn off the fuse at the fuse box.
Make sure that fuse rating is compatible with
the product.
packaging according to environmental standards.
User manual LAM2800
Exclusive to Howdens Joinery.coPage _ 8
LAMONA Appliances
1. Upper chimney section
2. Lower chimney section
3. Fan and light controls
4. Extractor body
5.
6. Light
General Information & Operation
Extractor layout
Control panel layout
1. single press.
2. Control for the timer of the motor. The extractor will operate for 5 minutes at the current speed and
5 minutes at each of the lower speeds until coming to a complete stop.
3. Control for the light
4. On/Off
5. Extractor power levels 1,2 and 3
5
www.howdens.com Page _ 9
Before cleaning or attempting any type
of maintenance, always make sure that
the electricity supply is disconnected.
The manufacturer declines all liability in cases
where the instructions for the appropriate
installation,maintenance and use of the extractor
hood are not observed.
General Cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners.
Care and maintenance
To avoid the possibility of fire, adhere
strictly to all of the recommendations
included in this booklet, paying particular
attention to the grease filters to ensure
grease deposits do not build up.
If the power cable is cut or damaged in any way,
disconnect the extractor from the electricity
supply and call the service number on the rear
cover of this booklet or a suitably qualified
repairer.

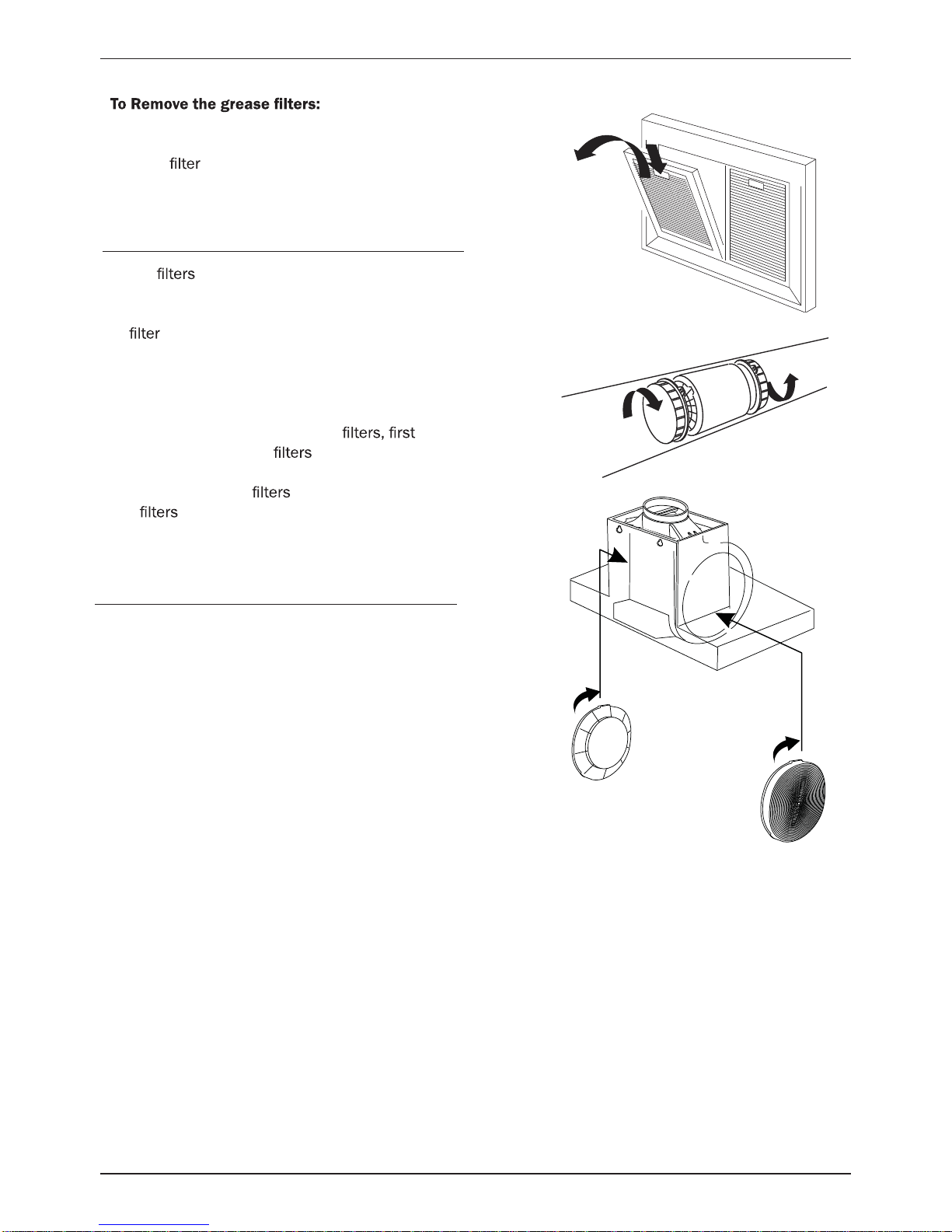

The Grease Filters
The grease filter is of a metallic material and should be washed using a neutral detergent.
User manual LAM2800
Exclusive to Howdens Joinery.coPage _ 10
Replacing the Lamps
The lamps on this appliance should only be used
during operation of the cooker hood. They should
not be left on permanently and used as a main
lighting source. The extractor is for domestic use
only.
1 Press latch towards side of extractor
2 Lower to remove.
The Carbon Filters
Carbon have a limited life. We advise you
to change them when there is a noticeable drop
in performance. The intervals between changing
the will depend entirely upon the amount of
cooking you do, but on average they will last about
6 months. Please quote the part refrence number
LAM2900
(pack of 2) when re-ordering.
To gain access to the carbon
of
all
remove the grease as above.
Remove the old and install new charcoal
by turning them gently
1
2
LAMONA Appliances
This appliance is fitted with ecoLED lighting which should
not be replaced by the user. Please contact the service
line if a lamp requires replacing.
Tabla de contenidos
Otros manuales de Campana de ventilación de Lamona
Lamona
Lamona HJA2540 Manual de usuario
Lamona
Lamona LAM2377 Manual de usuario
Lamona
Lamona HJA2500 Manual de usuario
Lamona
Lamona LAM2850 Guía
Lamona
Lamona LAM2410 Guía
Lamona
Lamona LAM2502 Guía de solución de problemas
Lamona
Lamona HJA2480-1 Guía de solución de problemas
Lamona
Lamona LAM2377 Manual de usuario
Lamona
Lamona HJA2450-2 Guía de solución de problemas
Lamona
Lamona LAM2300 Guía de solución de problemas
Lamona
Lamona LAM2375 Manual de usuario
Lamona
Lamona LAM2477 Manual de usuario
Lamona
Lamona LAM2580 Manual de usuario
Lamona
Lamona NBT625/2NX Manual de usuario
Lamona
Lamona LAM2877 Manual de usuario
Lamona
Lamona LAM2803 Manual de usuario
Lamona
Lamona LAM2950 Manual de instrucciones
Lamona
Lamona LAM2203 Manual de usuario
Lamona
Lamona CBT625/2X/1/UK Manual de usuario
Lamona
Lamona LAM2703 Guía
