Lamona LAM2600 Instrucciones de montaje

Stainless Steel & Glass

Island Extractor

LAM2600

Instillation & User Instructions

issuF+VMZ

Page 2www.howdens.com

Contents

Environmental note 3

Important Safety & Technical Information 4

Product Information 5

Methods of Extraction 6

Installation 7

Electrical Connections 11

Operating Your Extractor 12

The Grease Filters

The Carbon lters

Maintenance 13

General Cleaning

Replacing the halogen Lamps

Troubleshooting 14

Your Guarantee 15

Product guarantee details

What to do if you need to report a problem

Page 3www.howdens.com

Environmental note

This appliance is marked according to the European directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environ-

ment and human health, which could otherwise by inappropriate waste handling

of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appli-

ance may not be treated as household waste. Instead it shall be handed over to the applicable collection

point for recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact

your local city oce, your household waste disposal service or the shop where you purchased the

product.

• The packaging materials that Lamona uses are environmentally friendly and can be recycled

• Please discard all packaging material with due regard for the environment.

Page 4www.howdens.com

Important safety information

Your safety is of the utmost importance to Lamona. Please make sure that

you read this instruction booklet before attempting to install or use the

appliance. If you are unsure of any of the information contained in this

booklet, please contact the Lamona Advice Line.

Keep this Book in a handy place for reference; it contains important details on the safe and proper

use of your appliance. Should you sell the extractor please remember to pass on the instruction

book to the new owner.

Technical Information

The extractor is designed to give you the option to extract air by ducting to the outside and away (via

an exterior wall), or to re-circulate through charcoal lters to minimise odours, steam and condensation.

The choice is yours to decide at installation, and both systems are explained in the booklet.

Data

Power Supply: 230/240v ~ 50Hz

Rating: 470 W

Fuse Rating: 3 A

4 bulbs Halogen Lamps 50 W each

Our policy is one of continual improvement in design and development, therefore strict accuracy of

illustrations and descriptions cannot be guaranteed.

Page 5www.howdens.com

Product Information

On opening your box you will nd the extractor hood, glass canopy, a telescopic decorative outer chimney,

adjustable inner chimney assembly, a ducting connector, and a bag of xings and screws.

Upper chimney

Extractor hood

Ducting connector

(150mm diameter)

Duct adapter

(diameter 150mm to 125mm)

Glass canopy

Upper plate

Upper support

Lower support

Lower chimney

Page 6www.howdens.com

Methods of Extraction

The very best method of cleaning the kitchen of unwanted odours is by connecting the appliance to

an exhaust duct and venting to the outside atmosphere via the ceiling to an exterior wall. (Suitable

ductingkits may be purchased from the store where you bought your extractor.) You do not need a

charcoal lter when using the ducting mode.

REMEMBER: BEFORE DRILLING OR CHISELLING THE CEILING OR WALL, CHECK FOR PIPES AND

POWER CABLES.

1. Ensure the ducting tube is kept as short as possible and with the minimum of bends to permit the

smoothest airow. (Maximum length 3 metres.)

2. Ducted air must not be discharged into a ue, which is used for exhausting fumes from appliances

supplied with energy other than electricity.

3. Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.

4. Ensure adequate room ventilation is provided when the extractor is used in the same room as appliances

supplied with energy other than electricity.

5. Never duct into a hot air ow such as a central heating duct.

WE STRONGLY ADVISE THAT ALL EXTERIOR OUTLETS BE FITTED WITH A NON-RETURN VALVE OR

LOUVRED SLATTING

DUCTING MODE

(NO CHARCOALFILTER RE-

QUIRED)

RECIRCULATING MODE

CHARCOAL FILTER RE-

QUIRED)

FIG. 2

FIG. 1

Carbon

Filters

DUCTING MODE

(NO CHARCOALFILTER RE-

QUIRED)

RECIRCULATING MODE

CHARCOAL FILTER RE-

QUIRED)

FIG. 2

FIG. 1

Carbon

Filters

DUCTING MODE

(no charcoal lter required)

RECIRCULATING MODE

(charcoal lter required)

Page 7www.howdens.com

Installation

This instruction must be strictly adhered to. Failure to comply could result in overheating and

serious damage to your appliance.

It is recommended that the installation is carried out by at least two people.

1. Mark and drill four holes using to the

dimensions shown and install the ducting facilities

(if ducting the extractor out) in the ceiling. Ensure

that the extractor is secured into joists (it may be

necessary to add wooden struts between the

joists).

188

259

188

H (min. 62,7cm,

max. 102,7cm)

75cm recommended

worktop

70cm minimum

2 of 6

Lower 2 holes

(62.7 to 80.3cm)

2. Mount the upper plate onto the ceiling using 4

suitable screws and washers

2 of 6

Lower 2 holes

(62.7 to 80.3cm)

3. Secure the ducting connector and glass canopy

to the extractor body

Page 8www.howdens.com

5. The recommended clearance Between

the extractor and the work top is 750mm. The

minimum allowable clearance is 700mm

188

259

188

259

H (min. 62,7cm,

max. 102,7cm)

75cm recommended

worktop

70cm minimum

32 of 48

4. Place the exhaust duct onto the connector and

secure it with duct tape or tie wrap

32 of 48

6. Fix the lower and upper supports to the

extractor hood at the required length with 32

screws

Page 9www.howdens.com

Mains lead

Socket on the ceiling

16 of 48

Mains lead

Socket on the ceiling

16 of 48

7. Place the inner and outer chimneys on the

extractor hood, and make the electrical connection.

8. Fix the extractor assembly to the upper plate

with 16 screws.

2 of 6

9. Connect the duct to the outlet on the ceiling if

ducting out, or to the lter if recirculating.

Upper 2 holes

(82.8 to 102.7cm)

2 of 6

Lower 2 holes

(62.7 to 80.3cm)

Page 10www.howdens.com

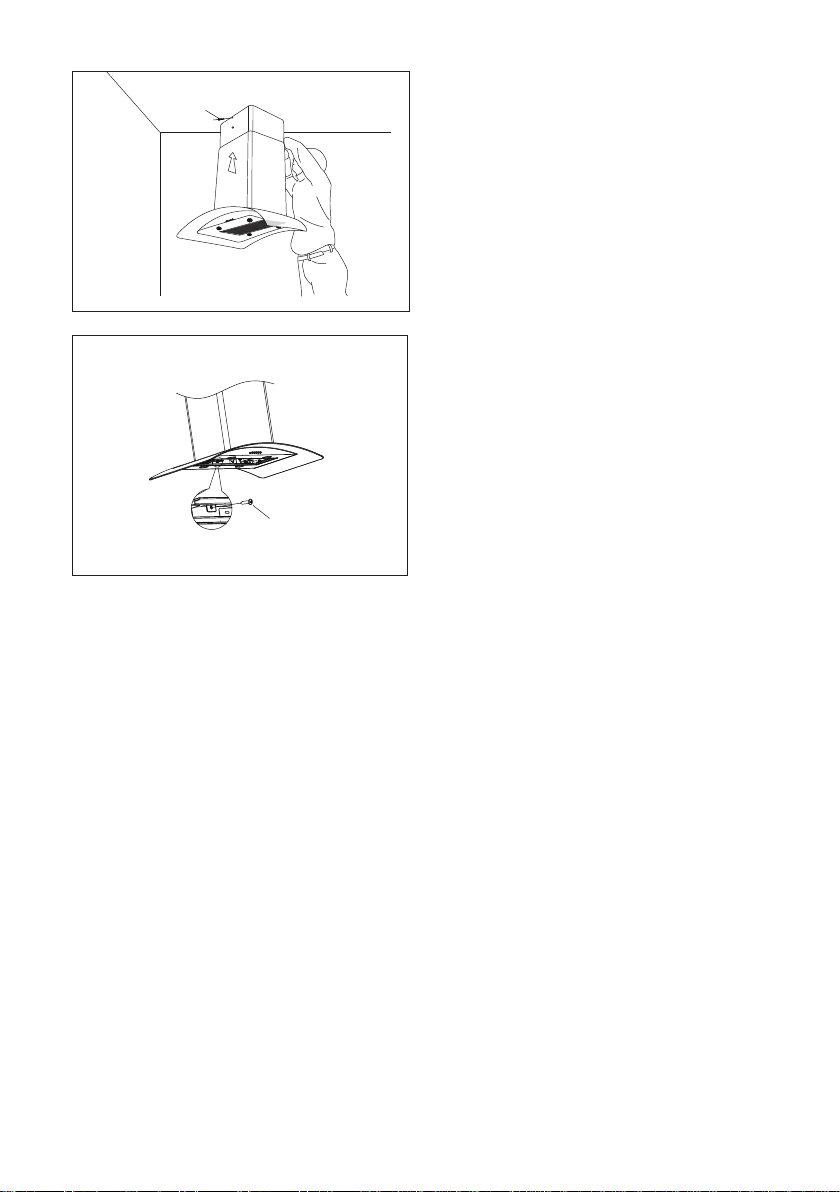

2 of 6

11. Finally x the outer chimney to the extractor

hood with 2 screws.

2 of 6

10. Slide up the inner chimney and x it to the

upper plate with 2 screws.
