User manual LAM1216

Dear Customer,

Congratulations on your choice of hob.

The user manual will help you use your product quickly and safely.

• Please read this user manual before installing and using the hob.

• Always follow the safety instructions.

• Keep this user manual within easy reach for future reference.

• Please read any other documents supplied with the product.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful tips about usage.

Warning for possible hazards to health and property.

Warning possibility of electric shock.

Warning of risk of fire.

Warning of hot surfaces.

Product information correct at the time of publication in January 2019.

The company has a policy of continuous product development and reserves the right to change

any products and specifications given in this manual.

The appliance is marked according to the European Directive 2012/19/EU on waste Electrical

and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will

help prevent potential negative consequences for the environment and human health. The

symbol on this product indicates that this product may not be treated as household waste.

Instead it should be handed over to the applicable collection point for recycling of electronic

equipment. Disposal must be carried out in accordance with local environmental regulations

for waste disposal. For more detailed information please contact your local council household

waste site.

04_

LAMONA Appliances

Index

01 - Before using the hob 05

02 - Safety 05

General safety 05

Electrical safety 06

Product safety 07-08

Intended use 08

Safety for children 08

03 - Using your hob 09

Controls 09

Hob layout 10

04 - Cleaning and maintenance 11

How to clean your hob 11

05 - Installation 11

General information 11

Positioning 11

Protecting the hob cut out 11

Clearances and dimensions

requirements 12-13

Connect to the electricity supply 14-15

Technical data 15

06 - Your guarantee 16

_ 05

User manual LAM1216

Before Using the hob

• Make sure that you have removed all packaging, wrappings, stickers and films from the hob

surface.

• It is recommended that you clean and wash the hob surface before using for the first time (see

p11).

01 - Before using the hob

This appliance is for

domestic cooking purposes

only. It must not be used for

other purposes, for example

room heating.

General safety

This appliance can be

used by children aged from 8

years and above and persons

with reduced physical,

sensory or mental capabilities

or lack of experience and

knowledge if they have

been given supervision or

instruction concerning use of

the appliance in a safe way

and understand the hazards

involved.

Children shall not play with

the appliance. Cleaning and

user maintenance shall not

be made by children without

supervision.

• The appliance is not to be

used by persons (including

02 - Safety children) with reduced

physical, sensory or mental

capabilities, or lack of

experience and knowledge,

unless they have been given

supervision or instruction.

Children being supervised

not to play with the

appliance.

• If the product is handed

over to someone else for

personal use or second

hand use purposes, theuser

manual, product labels and

other relevant documents

and parts should be also

given.

• Installation and repair

procedures must always be

performed by Authorised

Service Agents. The

manufacturer shall not

be held responsible for

damages arising from

procedures carried out by

unauthorised persons which

may also void the warranty.

Before installation, read the

instructions carefully.

06_

LAMONA Appliances

• Do not operate the product

if it is defective or has any

visible damage.

• Ensure that the product

function knobs are switched

o after every use.

Electrical safety

• If the product has a failure, it

should not be operated unless

it is repaired by an Authorised

Service Agent. There is the

risk of electric shock!

• Only connect the product to

a grounded outlet/line with

the voltage and protection as

specified in the “Technical

specifications”. Have the

grounding installation

made by a qualified

electrician while using the

product with or without a

transformer. Our company

shall not be liable for any

problems arising due to the

product not being earthed

in accordance with the local

regulations.

NEVER wash the product

by spreading or pouring water

onto it! There is the risk of

electric shock!

• The product must be

disconnected during

installation, maintenance,

cleaning and repairing

procedures.

• If the power connection

cable for the product is

damaged, it must be replaced

by the manufacturer, its

service agent or similarly

qualified persons in order to

avoid a hazard.

• Only use the connection

cable cable specified in the

“Technical specifications”.

• The appliance must be

installed so that it can be

completely disconnected

from the mains supply. The

separation must be

provided by a switch built

into the fixed electrical

installation, according to

construction regulations.

• Any work on electrical

equipment and systems

should only be carried

out by authorised and

qualified persons.

• In case of any damage,

switch o the product and

disconnect it from the mains.

• Make sure that fuse rating

_ 07

User manual LAM1216

Safety

is compatible with the

product. To do this, turn o

the fuse at home.

Product Safety

WARNING: The appliance

and its accessible parts

become hot during use. Care

should be taken to avoid

touching heating elements.

Children less than 8 years of

age shall be kept away unless

continuously supervised.

• Never use the product

when your judgment or

coordination is impaired by

the use of alcohol and/or

drugs.

• Be careful when using

alcoholic drinks in your

dishes. Alcohol evaporates at

high temperatures and may

cause fire since it can ignite

when it comes into contact

with hot surfaces.

• Do not place any flammable

materials close to the product

as the sides may become hot

during use.

• Keep all ventilation slots

clear of obstructions.

• Do not use steam cleaners

to clean the appliance as this

may cause an electric shock.

WARNING: Unattended

cooking on a hob with fat or

oil can be dangerous and

may result in fire.

NEVER try to extinguish

a fire with water, but switch

o the appliance and then

cover flame e.g. with a lid or

a fire blanket.

CAUTION: The cooking

process has to be

supervised. A short term

cooking process has to be

supervised continuously.

WARNING: Danger of

fire: Do not store items on

the cooking surfaces.

• The appliance is not

intended to be operated by

means of an external timer

or separate remote control

system

WARNING: Use only

hob guards designed by the

manufacturer of the cooking

appliance or indicated by the

manufacturer of the

in the instructions for use

as suitable or hob guards

incorporated in the

appliance.

08_

LAMONA Appliances

The use of inappropriate

guards can cause accidents.

Prevention against possible

fire risk!

• Ensure all electrical

connections are secure and

tight to prevent risk of arcing.

• Do not use damaged cables

or extension cables.

• Ensure liquid or moisture is

not accessible to the

electrical connection point.

Intended use

• This product is designed for

domestic use. Commercial

use will void the guarantee.

• This appliance is for cooking

purposes only. It must not be

used for other purposes, for

example room heating.

• The manufacturer shall

not be liable for any damage

caused by improper use or

handling errors.

Safety for children

WARNING: Accessible

parts may become hot during

use. Young children should be

kept away.

• The packaging materials

will be dangerous for

children. Keep the packaging

materials away from

children. Please dispose of

all parts of the packaging

according to environmental

standards.

• Electrical products are

dangerous to children. Keep

children away from the

product when it is operating

and do not allow them to

play with the product.

• Do not place any items

above the appliance that

children may reach for.

_ 09

User manual LAM1216

Do not use the hob if the surface is cracked,

as electrical parts are directly beneath. Switch

o the appliance at the supply to prevent

electric shock and contact your supplier.

The hob surface remains hot after use.

DO NOT TOUCH.

The appliance is not intended to be operated

by means of an external timer or separate

control system.

Controls

Rotate in either direction to switch on and

select the heat level. Each zone has 6 fixed heat

settings as described in the heat settings table.

03 - Using the hob

Using the hob

Heat Settings

1 2 - 3 4 - 5 - 6

Warming Simmering &

Stewing

Frying &

Boiling

When any one of the heating zones is on, the red

indicator light on the control panel lights up.

3 4

To switch a heating zone o turn the

corresponding knob to ‘0’ (zero)

10_

LAMONA Appliances

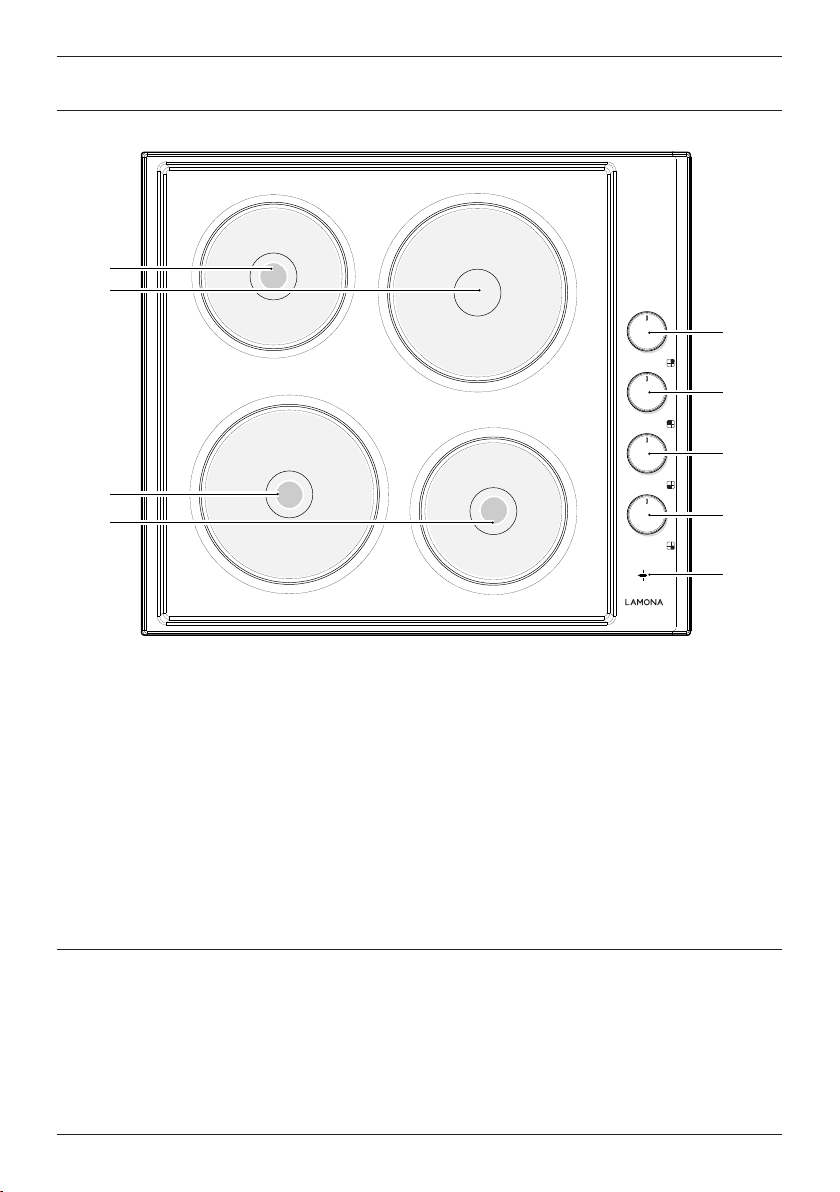

Hob layout

3 4

Using the hob

a. Rear Left Zone (Rapid) Ø145mm 1500w

Suitable for 6” or 15cm diameter saucepan

b. Rear Right Zone (Standard) Ø180mm 1500w

Suitable for 7” or 18cm diameter saucepan

c. Front Left Zone (Rapid) Ø180mm 2000w

Suitable for 7” or 18cm diameter saucepan

d. Front Right Zone (Rapid) Ø145mm 1500w

Suitable for 6” or 15cm diameter saucepan

e. Rear right control Knob

f. Rear left control Knob

g. Front left control Knob

h. Front right control Knob

i. Hob on Indicator.

Over heating protection

Hotplates that have a power above 1000W are equipped with over heating protection.

This protection decreases the power of the hotplate in the following conditions:

• There is no saucepan or vessel on the hotplate.

• There is an empty saucepan or vessel on the hotplate.

• The bottom of the saucepan or vessel is not completely flat.

Tabla de contenidos

Otros manuales de Quemador de Lamona

Lamona

Lamona LAM1800 Manual de usuario

Lamona

Lamona LAM1744 Manual de usuario

Lamona

Lamona LAM1742 Guía de solución de problemas

Lamona

Lamona LAM1009 Guía

Lamona

Lamona LAM1008 Manual de usuario

Lamona

Lamona LAM9500 Guía

Lamona

Lamona LAM 1000 Guía de solución de problemas

Lamona

Lamona LAM1112 Guía

Lamona

Lamona LAM1551 Guía

Lamona

Lamona LAM1902 Manual de usuario

Lamona

Lamona LAM9501 Manual de usuario

Lamona

Lamona LAM1210 Guía de solución de problemas

Lamona

Lamona LAM1501 Guía

Lamona

Lamona LAM1217 Guía

Lamona

Lamona LAM1111 Manual de usuario

Lamona

Lamona LAM1550 Manual de usuario

Lamona

Lamona LAM1749 Guía

Lamona

Lamona LAM1110 Manual de usuario

Lamona

Lamona LAM1006 Manual de usuario

Lamona

Lamona LAM1763 Guía de solución de problemas

Lamona

Lamona LAM1500 Manual de usuario

Lamona

Lamona LAM1761 Guía de solución de problemas

Lamona

Lamona LAM1701 Guía de solución de problemas

Lamona

Lamona LAM1625 Guía de solución de problemas

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
