Atomic Alarm Clock

Instruction Manual

Introduction:

Congratulations on purchasing the Atomic Alarm Clock with WWVB Radio controlled time,

calendar, 12/24 hours display, time zone with US map, indoor temperature and two alarms

settings. This innovative product is ideal for home or office use. Please read this instruction

manual to enjoy the full benefits of all the features.

Features:

•WWVB Radio controlled time with manual setting option

•12/24 hour time display

•Time zone with USA map (Pacific Time(-8h); (Mountain Time (-7h); Central Time (-6h);

Eastern Time(-5h) or GMT

•Automatic or manual ON/OFF daylight saving time

•Indoor temperature reading (ºC/ºF user selectable)

•2 alarm times (crescendo and normal sounding alarms)

•snooze interval setting (from 1 to 59 minutes)

•Calendar display (weekday/month/date or month/ date/year)

•LCD back-light

Setting up the Atomic Alarm Clock:

The clock uses 1 x AA LR6 battery (Alkaline recommended). To set please follow these easy

steps:

1. Slide the battery cover downwards as indicated by the triangle to reveal the battery

compartment

2. Observing the correct polarisation insert the battery.

3. Replace battery cover.

4. After power-up, the alarm will sound once and all LCD segments will light up briefly.

5. The clock will now start receiving the WWVB time signal and the radio tower icon will start

flashing indicating that time reception is being attempted

6. Time reception takes typically about 3-5 minutes with timeout being 10 minutes. If after 10

minutes the WWVB time signal has still not been received, the user should try one of the

following two actions:

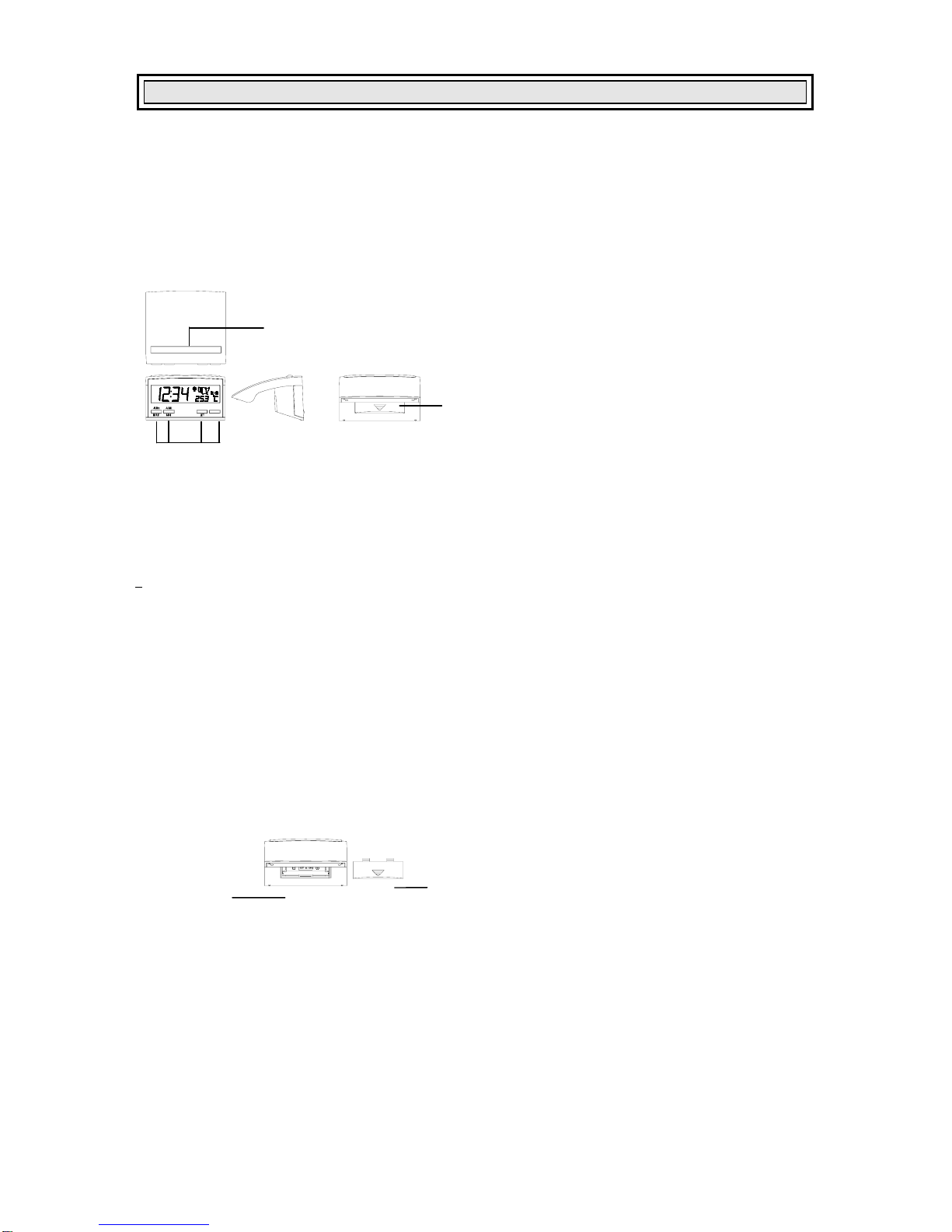

Function keys

Battery

compartment

Snooze button

Battery

compartment Battery cover



              



WWVB icon (flashing)

Location test

sequence for better

reception

Reset the unit by removing the battery and proceed from step 2 (above). Should after 10

minutes and the time is still not received the clock will automatically attempt to receive the

WWVB time signal two hours later.

Manually set the time (see “Manual Time Setting” below).

Note: During the time of power-up (i.e. inserting the battery) DO NOT press any of the keys as

this will interrupt stop the WWVB time signal reception. If keys are pressed during this

stage, then proceed from “Setting up the Atomic Alarm” above.

If there is no WWVB signal then the radio tower will not appear on the LCD

When WWVB time reception is successful, the received time will automatically override

the manually set time and date. (Please see notes on “Radio Controlled Time

Reception” and “Manual Time Setting”).

Radio controlled Time Reception:

During reception, the WWVB tower icon in the LCD will start flashing. This indicates that the

WWVB time signal is present and the clock is trying to receive it. At the same time, three digits

“000” will appear below the USA map in the LCD to indicate that the time data from the signal

source is being de-coding for the time. The digit on the left should randomly display the

numbers 0, 1 or 8 for a strong signal. If 0, 1 or 8 are not displayed, then reposition the clock for

a better signal.

When the time signal is received, the WWVB tower becomes permanently lit and the time will

be displayed.

General Information on WWVB radio controlled time

NIST Radio Station WWVB is located on the WWVB site near Ft. Collins, Colorado. The

WWVB time code is transmitted by the 60 kHz carrier and is broadcast continuously at a rate of

1 pulse per second using pulse width modulation.

The broadcast information includes the year; time intervals; Daylight Saving Time and leap

year. The accuracy of the transmitted WWVB signal is better than 1 part in 100 billion (1 x 100

) and with day to day deviations being less than 5 parts in 1000 billion

(5 x 10

-12

Using the Atomic Alarm Clock:

The clock has five easy to use function keys:

Front view Top view

Using the keys:

“SET” key: - Used to enter the programming mode

- Used to select and confirm the various setting modes

“MODE/+” key: - Used in setting mode to change/select of all changeable/selectable

values and displays

-Used to toggle between the calendar/seconds/alarm times and

temperature reading

“ALM1/Hour” key: - Used to enter the alarm setting mode for Alarm ((1))

- Used to set Alarm ((1)) ON/OFF (crescendo alarm time is ON when

((1)) is displayed).

“ALM2/Min key”: - Used to enter alarm setting mode for Alarm ((2))

- Used to set Alarm ((2)) ON/OFF (normal alarm sound time is ON when

((2)) is displayed).

“Snooze” key: - Used to activate the snooze during alarm

-Used to Display alarm time set for Alarm ((1)) and ((2))

-Used to exit the setting modes

Alarm setting mode:

•Press ALM1 or ALM2 keys for 2 seconds to enter the ALM1 or ALM2 setting mode

•Set the alarm hour by pressing “ALM1/HOUR” key

•Set the alarm minutes by pressing “AML2/MIN” key

•Exit Alarm setting mode by pressing the “Snooze” key or automatic timeout (approx. 15

seconds)

Note: to stop the alarm pressing any key except the “Snooze” key

Setting Mode:

Each time the settings are changed (except for alarm times), the following setting modes are

entered in sequence by using the “SET” key:

•Time zone setting from Pacific Time(-8h); (Mountain Time (-7h); Central Time (-6h); Eastern

Time(-5h) or GMT

•Daylight Saving Time ON/OFF

•Snooze time setting (default 10 minutes)

•Manual Time Setting (hour and minutes)

•Calendar year, month, date, weekday

Snooze key

Alarm 1/ Hour

key

ALM 2/Min

key SET key

MODE/+ key

     



              



•12 or 24 hours time display

•ºF or ºC indoor temperature display

Time zone setting mode:

•After pressing the “SET” key, the time zone will now start flashing. Use the “MODE/+” key

to change the Time zone between Pacific Time(-8h); (Mountain Time (-7h); Central Time (-

6h); Eastern Time(-5h) or GMT

•The time zone with USA map will only be displayed if time zone selection is between Pacific

Time(-8h); (Mountain Time (-7h); Central Time (-6h) and Eastern Time(-5h) and will remain

visual after exiting the setting mode. If GMT (zero hours time source) is selected, the GMT

icon will remain on the LCD after exiting this mode. To exit, press the “SET” key to enter

the “Daylight Saving Time setting” mode.

Daylight Saving Time setting mode:

1. Use the “MODE/+” key to switch the DST ON/OFF. Automatic switching of summer/winter

time will be enable if DST is ON.

2. Now press the SET” key to enter the “Snooze setting” mode.

Snooze setting mode (default setting10 minutes):

1. The Snooze display will start flashing. Use the “MODE/+” key to select the desired snooze

interval from 0-59 minutes (snooze function will disable if the minutes are set to “00”)

2. Now press the “SET” key to enter the “Time setting” mode.

Time setting mode:

In some cases, the Alarm Clock may not be able to detect the WWVB signal which means the

WWVB tower icon will not show at all on the LCD (see Trouble Shooting) because it is only

visible when the signal is present. To overcome this problem, the time can be manually set for

the time being (see Manual Time Setting below) by entering the setting mode.

1. Following on from the Snooze setting mode, the hour digits will start flashing in the manual

time setting mode. Use the “MODE/+” key to set the desired hours followed by pressing

the “SET” key to move to the minutes setting

2. The minute digits will now start flashing. Set the desired minutes by pressing the “MODE/+”

key followed by pressing the “SET” key to move to the “Year Setting” mode

Year setting mode:

1. In the calendar section the year digits will start flashing (default setting year 1999). Select

the desired year (from 1999 to 2019) by using the “MODE/+” key.

2. Press the “SET” key to switch to the “Month setting” mode.

Month Setting:

1. The month digits will start flashing (default setting month is 1). Set the desired month by

using the “MODE/+” key.

2. Press the “SET” key to move to the “Day setting” mode.

Day Setting:

1. The digits for the date will start flashing (Default setting 1). Set the desired date by using the

“MODE/+” key.

2. Press the “SET” key to enter the “Weekday setting” mode.

Weekday Setting:

1. The weekday will start flashing (Default setting MON). Set the desired weekday by using the

“MODE/+” key.

2. Press the “SET” key to enter the “12/24 hour setting” mode.

12/24 hour select mode:

1. The 12 or 24 hour will start flashing. Choose the desired time display mode by using the

“MODE+” key

2. Now press the “SET” key to enter the “Indoor temperature selection” mode.

Temperature selection mode:

1. The temperature reading will start flashing. Using the “MODE/+” to select the desired

temperature display for Celsius = ºC or Fahrenheit = ºF

2. After selecting the temperature display mode, press the “SET” key to exit the programming

mode and switch back to normal display.

Trouble Shooting

If the WWVB tower icon flashes, but does not set to the WWVB time signal or the tower icon

does not appear at all, then please take note of the following:

•Recommended distance to any interfering sources like computer monitors or TV sets is a

minimum of 1.5 - 2 meters.

•Within ferro-concrete rooms (basements, superstructures), the received signal is naturally

weakened and in extreme cases the signal may not be received. In this case, place the unit

close to a window so that it faces in the general direction of the Ft. Collins, Colorado

transmitter

•During daytime high levels of interference from other transmitting sources could prevent the

WWVB time signal reception. During night-time, atmospheric disturbances are usually less

severe and reception is possible in most cases

Note: Even if the time has been set manually the Alarm Clock will still try to receive the signal

every hour between 12:00 a.m. and 6:00 a.m. local time. If the time signal data is

received, it is converted into radio controlled time from atomic clock run by the NIST and

then be displayed on the LCD. The received time will automatically override the

manually set time and date. When clock is attempting reception, the tower icon on the

LCD will start flashing if the WWVB time signal is present. When reception is successful,

no more radio signal reception will take place during that day. However if reception has

been unsuccessful, the WWVB tower icon will not appear and reception will be

attempted the following hour up to 6:00 a.m.

Care and Maintenance:

•Extreme temperatures, vibration and shock should be avoided as these may cause damage

to the unit and could give inaccurate readings.

•When cleaning the display and casing, use a soft cloth only. Do not use solvents or

scouring agents as they may mark the LCD and casing.

•Do not submerge the unit in water.

•Immediately remove any low powered battery to avoid leakage and damage and replace

only with a new battery of the recommended size.

•Do attempt to repair a unit. Return it to its original point of purchase for repair by a qualified

engineer. Opening and tampering with the unit may invalidate its guarantee

•Do not expose the unit to extreme and sudden temperature changes, this may lead to rapid

changes in readings reducing its accuracy

Battery Change:

It is recommended to replace the battery in the Clock on an annual basis to ensure optimum

running accuracy

When replacing the battery cover, ensure that the batteries do not spring free from the

contacts as this may cause start up problems.

Should the low battery icon show on the LCD, the battery will need to be replaced.

Please participate in the preservation of the environment. Return used batteries to

an authorized depot.

Specifications:

Time source : WWVB

Time frequency : 60 kHz

Indoor temperature measuring range: -21.8ºF to +156.2ºF with 0.1ºF resolution

(-29.9ºC to +69ºC with 0.1ºC resolution)

(“OFL” displayed if outside this range)

Indoor temperature checking interval: every 10 seconds

Power source : 1 x AA, IEC LR6, 1.5V

Battery life cycle : Approximately 12 months

(Alkaline batteries recommended)

Dimensions (L x W x H) : 95 x 90 x 49mm

Liability Disclaimer

•The manufacturer and supplier cannot accept any responsibility for any incorrect readings

and any consequences that occur should an inaccurate reading take place

•This product is not to be used for medical purposes or for public information

•The specifications of this product may change without prior notice

•This product is not a toy. Keep out of children’s reach

•No part of this manual may be reproduced without written consent of the manufacturer

For warranty work, technical support, or information, contact La Crosse Technology at:

La Crosse Technology, Ltd

2809 Losey Blvd. S.

La Crosse, WI 54601

Phone: 608.782.1610

Fax: 608.796.1020

e-mail:

support@lacrossetechnology.com

(warranty work)

sales@lacrossetechnology.com

(information on other products)

web:

www.lacrossetechnology.com

Tabla de contenidos

Otros manuales de Despertador de La Crosse Technology

La Crosse Technology

La Crosse Technology WT-2160U Manual de usuario

La Crosse Technology

La Crosse Technology 602-249V2 Dimensiones

La Crosse Technology

La Crosse Technology 616A-1413 Manual de usuario

La Crosse Technology

La Crosse Technology WT-2171 Manual de usuario

La Crosse Technology

La Crosse Technology 433 MHz RADIO CONTROLLED PROJECTIONALARM... Manual de usuario

La Crosse Technology

La Crosse Technology RADIO CONTROLLED ALARM CLOCK WITH SOLAR... Manual de usuario

La Crosse Technology

La Crosse Technology 617-148TXT Manual de usuario

La Crosse Technology

La Crosse Technology C79141-UK Dimensiones

La Crosse Technology

La Crosse Technology K85236 Dimensiones

La Crosse Technology

La Crosse Technology WT-5120 Manual de usuario

La Crosse Technology

La Crosse Technology WT-9300 Manual de usuario

La Crosse Technology

La Crosse Technology Soluna C79141 Manual de usuario

La Crosse Technology

La Crosse Technology 616-146v3 Manual de usuario

La Crosse Technology

La Crosse Technology C87207 Manual de usuario

La Crosse Technology

La Crosse Technology 616-1412V3 Dimensiones

La Crosse Technology

La Crosse Technology 617-2410V2 Dimensiones

La Crosse Technology

La Crosse Technology C82929V2 Dimensiones

La Crosse Technology

La Crosse Technology WS-8157 Manual de usuario

La Crosse Technology

La Crosse Technology WT-5721 Manual de usuario

La Crosse Technology

La Crosse Technology C85183 Manual de usuario

La Crosse Technology

La Crosse Technology WT-5360U Manual de usuario

La Crosse Technology

La Crosse Technology RADIO CONTROLLED PROJECTION ALARM CLOCK Manual de usuario

La Crosse Technology

La Crosse Technology RADIO CONTROLLED PROJECTION CLOCK WITH DIGITAL... Manual de usuario

La Crosse Technology

La Crosse Technology 616-1950V2 Manual de usuario

Manuales populares de Despertador de otras marcas

Steren

Steren CLK-210 Manual de usuario

COP-USA

COP-USA ALCDVR32-SL Manual de usuario

Philips

Philips HF3505/70 Manual técnico

Casio

Casio PQ-70 Manual de usuario

iHome

iHome IA63 Manual de usuario

Coopers

Coopers 9765 Manual de usuario

ANJANK

ANJANK AC-190 Guía

TFA

TFA 98.1075 Manual de usuario

Sharper Image

Sharper Image 204050 Manual de usuario

Lumie

Lumie Zest Manual de usuario

Dexford

Dexford RCT200 Manual de usuario

Philips

Philips AJL303/37B Manual de usuario

RST

RST Q754 Manual de usuario

iHome

iHome iKT50 Manual de usuario

Sony

Sony dash HID-B7 Manual de usuario

SVINZ

SVINZ SCC009 Manual de usuario

Clas Ohlson

Clas Ohlson 918863 Manual de usuario

IKEA

IKEA FNURRA Manual de usuario
