INTRODUCTION:

The Atomic Projection Alarm features radio-controlled time, indoor and outdoor temperature on a stylish,

colorful, and easy to read display. Time and/or outdoor temperature can be projected on a wall or ceiling.

ATOMIC PROJECTION ALARM

OUTDOOR TEMPERATURE/HUMIDITY TRANSMITTER: TX14

Atomic Projection Alarm

Model: K86326

TABLE OF CONTENTS:

INTRODUCTION 1

ATOMIC PROJECTION ALARM 1

OUTDOOR TEMPERATURE TRANSMITTER TX14 1

FEATURES 3

INITIAL SETUP 3

POWER THE PROJECTION ALARM 4

A/C ADAPTER 4

BATTERIES 4

INSTALL BATTERIES IN THE OUTDOOR TRANSMITTER 4

WWVB RADIO CONTROLLED TIME 5

WWVB RECEPTION ICON 5

MANUAL SIGNAL SEARCH 5

FUNCTION BUTTONS 5

PROGRAM MENU 6

WWVB RECEPTION ON/OFF 6

TIME ZONE 6

DAYLIGHT SAVING TIME INDICATOR 7

12 OR 24 HOUR TIME FORMAT 7

SET TIME 7

SET CALENDAR 7

FAHRENHEIT/CELSIUS 7

ALARM SET 8

DEACTIVATE ALARM 8

SNOOZE 8

BACKLIGHT AND PROJECTION INTENSITY 8

PROJECTION: 8

BATTERIES 8

A/C ADAPTER 8

ROTATE PROJECTION 8

CHANGE PROJECTION MODE 8

TEMPERATURE TREND ICONS 9

LOW BATTERY ICON 9

OTHER DISPLAY ICONS 9

POSITION OUTDOOR TRANSMITTER 10

POSITION DISPLAY 10

CARE AND MAINTENANCE 10

SPECIFICATIONS 10

ACCURACY 11

INDOOR TEMPERATURE 11

OUTDOOR TEMPERATURE 11

WARRANTY 11

FCC 12

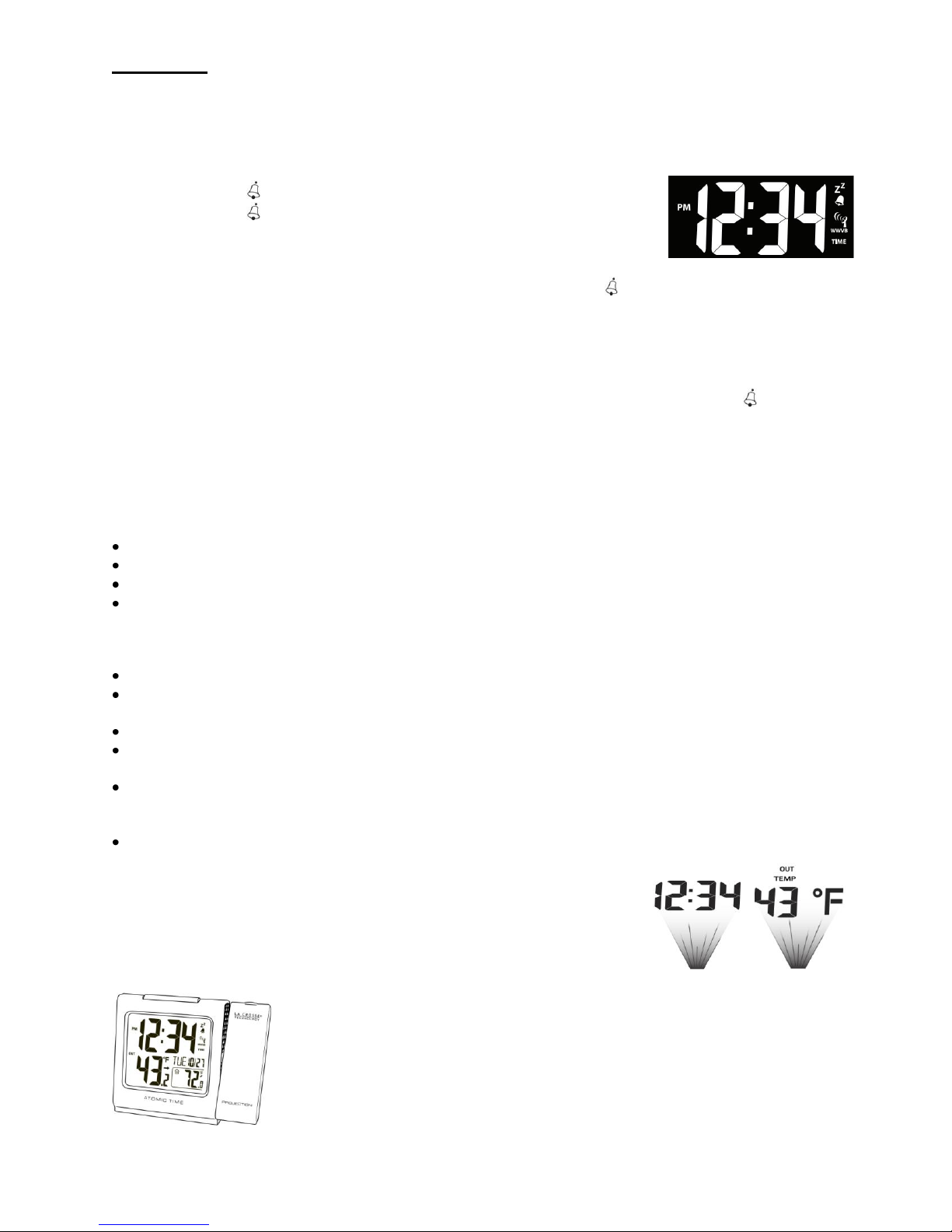

FEATURES:

Projects time and outdoor temperature

oToggles time and outdoor temperature

oDisplay time only

oDisplay outdoor temperature only

o（Default----Toggles time and outdoor temperature）

Projection rotate with 90 degree increments

Atomic Clock: 7 Time-zones:（AST, EST, CST, MST, PST, AKT, HAT）

Calendar (Month/date,2000-2099 Default Year 2010)

Time (hour/minute)

Indoor Temperature

Wireless Outdoor Temperature

Indoor/outdoor temp with trend arrow

C/F selectable

Time alarm with snooze function

Low Battery indicator

Atomic display

High/Low/Off backlight and projection controlled

•Sits on desktop or tabletop

•2 "AA" Alkaline batteries (not included) OR optional 5.0V AC adapter (included)

INITIAL SET UP:

1. Insert A/C adapter into the wall outlet then into the display or insert 2 AA batteries (not included) into

the display (see Power the Atomic Projection Alarm). The Atomic Projection Alarm will light up and

display time and indoor temperature.

2. Insert 2 fresh AA batteries into the transmitter, observing the correct polarity (see Install Batteries in

the Outdoor Transmitter).

3. Keep the transmitter 5-10 feet from the Atomic Projection Alarm for 15 minutes to establish a good

connection.

4. Within 3 minutes the outdoor temperature should be displayed on the Atomic Projection Alarm. If the

outdoor temperature is not displayed after 3 minutes remove power from the transmitter and the

display for 60 seconds and start again from step 1.

5. For optimum 433 MHz transmission, the outdoor transmitter should be placed a distance of no more

than 200 feet (60 meters, open air) from the Atomic Projection Alarm.

IMPORTANT: When operating on a/c power, the backlight/projection will turn off for 2 to 10 minutes

while the Atomic Projection Alarm searches for the WWVB signal, to avoid interference. The backlight and

projection will resume after the 2-10 minute search.

Do Not Mix Old and New Batteries

Do Not Mix Alkaline, Standard, Lithium or Rechargeable Batteries

POWER THE ATOMIC PROJECTION ALARM:

The Projection Alarm can be powered by the 5-volt a/c adapter or by 2 AA batteries.

A/C power adapter:

Insert enclosed 5-volt a/c power adapter into a wall outlet, then into the Atomic Projection Alarm.

Batteries:

1. Remove battery cover: Slide tab to the right and pull out to remove battery cover.

2. Install two fresh AA batteries according to the polarity markings.

Do Not Mix Old and New Batteries

Do Not Mix Alkaline, Lithium, Standard, or Rechargeable Batteries

If the Atomic Projection Alarm does not display indoor temperature after 60 seconds, remove adapter and

batteries, and wait for at least 60 seconds before repeating the setup process.

INSTALL BATTERIES IN THE OUTDOOR TRANSMITTER:

1. Slide the battery cover down, then lift off the back of the transmitter.

Note: Be careful not to break the tabs on the battery cover.

2. Insert two fresh AA batteries into the transmitter. Observe the correct

polarity (see marking inside battery compartment).

3. Keep transmitter 5-10 ft. from the Atomic Projection Alarm during setup.

4. After 15 minutes, if the outdoor temperature shows on the display, you can

move the outdoor transmitter outside to a shaded location within range of

the Atomic Projection Alarm.

TROUBLESHOOTING:

If the Projection Alarm does not display the outdoor temperature after 3 minutes, remove the a/c

power adapter and all batteries from both units and start the setup process again.

If the outdoor temperature does not show up after a second attempt, please slide open the battery

cover of the outdoor transmitter to reveal the TX button push down on the TX button for 3 seconds to

send a wireless signal to the Projection Alarm.

Hold the +/TEMP button for 5 seconds so the clock will search for the sensor.

For optimal 433 MHz signal reception, the outdoor transmitter should be placed within 200 feet (60

meters) from the indoor Projection Alarm.

Battery

Compartment

5-Volt a/c adapter

WWVB RADIO CONTROLLED TIME

The NIST radio station, WWVB, is located in Ft. Collins, Colorado and transmits the exact time signal

continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away

through the internal antenna in the Atomic Projection Alarm. However, due to the nature of the Earth’s

Ionosphere, reception is very limited during daylight hours. The Atomic Projection Alarm will search for a

signal every night when reception is best. The WWVB radio station derives its signal from the NIST

Atomic Clock in Boulder, Colorado. A team of atomic physicists continually measures every second of

every day to an accuracy of ten billionths of a second a day. These physicists have created an

international standard, measuring a second as 9,192,631,770 vibrations of a Cesium 133 atom in a

vacuum. This atomic clock regulates the WWVB transmitter.

WWVB RECEPTION ICON with full signal strength will appear on screen in front of the date

when the reception of atomic time is successful.

The tower icon will show solid when the display has received the WWVB signal.

No tower icon displayed. The display was unable to receive a signal at this time.

Reposition the display for better signal reception or try again at bedtime.

The display will start searching at UTC: 07:00 and if no reception on the first attempt they will try

again at 08:00, 09:00 and 10:00. Each attempt will be at least 2 minutes and the most will be 10

minutes.

If there is no signal or too much interference the receiver will only be on for 2 minutes.

If the signal is good it may catch a signal in ABOUT 2-3 minutes.

If the signal is marginal it will try to catch a signal for up to 10 minutes.

IMPORTANT: When operating on a/c power, the backlight will turn off while the Display searches

for the WWVB signal, to avoid interference. The backlight will return after the 2-10 minute search

which occurs during the late night or early morning hours.

Note: In case the Atomic Projection Alarm is not able to detect the WWVB-signal (disturbances,

transmitting distance, etc.); the time may be manually set.

Manual Signal Search: In normal mode, hold the RCC button until the reception icon appears to force a

search of the WWVB signal. The WWVB icon will flash during the search. If this icon disappears after

the 2-minute search, the radio time signal is not available at the moment.

Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of

6 feet (2 meters).

Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened.

In extreme cases, please place the unit close to a window and/ or point its front or back towards the

Fort Collins, Colorado, transmitter.

During nighttime, the atmospheric disturbances are usually less severe and reception is possible in

most cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.

Note: In case the atomic Projection Alarm is not able to detect the WWVB-signal (disturbances,

transmitting distance, etc.), the time and date can be manually set (see “program menu”).

FUNCTION BUTTONS:

SNOOZE/LIGHT/HI/LOW/OFF (TOP)

Button

Press and Release Functions

Hold 2 seconds

SET/°C/°F

Move through program menu (setup)

Select temperature in °C/°F

Enter program menu, set time,

date, etc. (setup)

ALARM

Once: View Alarm

Twice: Activate or Deactivate Alarm

Alarm set

+/TEMP

1 step forward (setup)

Search for Sensor

Fast advance (setup)

-/TIME

1 step backward (setup)

Fast backward ( setup) WWVB

PROJECTION

Rotate Projection 90 degrees

Change what is projected:

Time/Outdoor Temp alternating

(default)

Once:Time only

Twice: Outdoor Temp only

Third time: Time/Outdoor

Temp alternating (default)

SNOOZE/LIGHT

HI/LOW/OFF

Once: Backlight and Projection low

intensity (a/c)

Twice: Backlight and Projection OFF

(a/c)

Third time: Backlight and projection ON

high intensity (default, a/c adapter)

Battery Power: Activate backlight for 10

seconds

Trigger snooze alarm (ringing)

PROGRAM MENU:

The SET button will moves through the items in the program menu. The +/TEMP or -/TIME buttons will

change these values.

WWVB reception ON or OFF

Time Zone (Seven Time Zones)

Daylight Saving Indicator

12/24 hour time format

Manual time set (Hour, Minutes)

Calendar set (Year, Month, Date)

WWVB RECEPTION:

The WWVB time reception defaults to ON. To turn the WWVB reception OFF:

1. Hold the SET button for 5 seconds.

2. WWVB and ON will flash.

3. Press and release the +/TEMP or -/TIME buttons to turn this OFF.

4. Confirm with the SET button and move to the Time Zone.

TIME ZONE:

This station offers seven time zones listed in letter format (default is EST):

AST Atlantic Time

EST Eastern Time

CST Central Time

MST Mountain Time

PST Pacific Time

AKT Alaskan Time

HAT Hawaiian Time

1. EST will flash.

2. Press and release the +/TEMP or -/TIME buttons to select a different Time Zone.

3. Confirm with the SET button and move to Daylight Saving Indicator.

WWVB

TIME

ZONE

EST

DAYLIGHT SAVING INDICATOR:

DST will default to the ON position as most of the country observes the DST change. If you live in an

area does not observe the DST change, switch this to the OFF position.

1. DST and ON will flash.

2. Press and release the +/TEMP or -/TIME buttons to turn DST to OFF.

3. Confirm with the SET button and move to 12/24 hour time format.

12 OR 24 HOUR TIME FORMAT:

The Time may be displayed in 12-hour or 24-hour format. Default is 12-hour time.

Note: When in 12-hour format AM or PM will show in front of the hour.

1. 12H will flash.

2. Press and release the +/TEMP or -/TIME buttons to select 24-hour time.

3. Confirm with the SET button and move to Set Time.

SET TIME:

To set the time manually:

1. The hour digit will flash.

2. Press and release the +/TEMP or -/TIME buttons to select the hour.

3. Press and release the SET button to set the minutes.

4. The minute’s digit will flash.

5. Press and release the +/TEMP or -/TIME buttons to select the

minutes.

6. Confirm with the SET button and move to Set Calendar.

SET CALENDAR:

The date default of the Atomic Projection Alarm is 1. 1. 2010.

To set the calendar:

1. The year will flash.

2. Press and release the +/TEMP or -/TIME buttons to set the year (between year 2010-2039).

3. Press the SET button again to confirm and to enter the month setting.

4. The month will flash.

5. Press and release the Press and release the +/TEMP or -/TIME buttons to set the month.

6. Press the SET button again to confirm and enter date setting.

7. The date will flash.

8. Press and release the +/TEMP or -/TIME buttons to set the date.

9. Confirm all calendar settings with the SET button to confirm and exit the program menu.

Note: The day of the week will set automatically once the year, month and date are set.

FAHRENHEIT/CELSIUS:

1. Press and release the SET/°C/°F button once to switch from Fahrenheit to Celsius.

DST

12H

2010

1M.1D

ALARM SET:

Hold the ALARM button for 5 seconds to enter the alarm time set mode.

1. The alarm hour digit will flash.

2. Press and release the +/TEMP or -/TIME buttons to select the hour.

3. Press and release the SET button to set the minutes. The minute digits will flash.

4. Press and release the +/TEMP or -/TIME buttons to select the minutes.

5. Confirm with the SET button and exit.

6. The alarm icon will show after the minutes indicating the alarm is active.

7. The alarm icon will flash when the alarm is sounding.

DEACTIVATE ALARM:

1. Press and release the ALARM button once to show Alarm Time.

2. Press and release the ALARM button to deactivate the Alarm. The alarm icon will disappear

indicating the alarm is no longer active.

SNOOZE:

1. When the alarm sounds, press the SNOOZE/LIGHT button to trigger snooze alarm for 10 minutes.

The snooze icon Zz will flash when the snooze feature is active.

2. To stop alarm for one day, press ALARM button, while in snooze mode. The alarm icon will remain

solid.

Note: When the alarm sounds, it continues for 2 minutes and then shuts off completely.

BACKLIGHT AND PROJECTION INTENSITY: Hold two seconds, and then release the SNOOZE/LIGHT

button to adjust the brightness of the backlight and projection (together):

ON High intensity: (default setting on a/c power)

ON Low intensity: Hold and release SNOOZE/LIGHT button once

OFF: Hold and release SNOOZE/LIGHT button

ON High intensity (default): Hold and release SNOOZE/LIGHT button

PROJECTION:

Battery Power: Press and release the SNOOZE/LIGHT button to show the projection for 10 seconds.

Note: Projection will not display constantly when operating on battery power.

A/C Power: Projection is displayed constantly

Note: can be turned off see “Backlight and Projection Intensity”

Rotate Projection: Press and release the PROJECT button to rotate projection image 90 degrees on

the wall or ceiling. Press and release the PROJECT button again to rotate another 90 degrees.

Change Projection Mode: Hold two seconds, and then release the PROJECT button to switch

projection modes. You will need to watch the projection image to view the changes.

oTime and Outdoor Temperature: alternate every 5 seconds (default)

oTime: Hold and release PROJECT button

oOutdoor Temperature: Hold and release PROJECT button again

Note: Both Time and Outdoor Temperature will not show at the same time

Projection Arm Rotation: The projection arm can be rotated 180 degrees to

view the projection on the wall or ceiling.

TEMPERATURE TREND ICONS:

The indoor and outdoor temperature trend indicators are updated every 30 minutes. These trends

represent temperature changes over the past three hours.

Temperature rising more than 2°F /1°C in the past three hours

Temperature has not changed more than 2°F /1°C in the past three hours

Temperature falling more than 2°F /1°C in the past three hours

The temperature trend indicators are shown next to the indoor temperature and outdoor temperature

readings.

OUTDOOR TEMPERATURE FLASHING:

Low battery icon present: Change batteries in the transmitter, and then hold the CH button until

the station beeps to search for the outdoor transmitter again.

End of Transmission Range: Move the transmitter closer to the display. Avoid obstructions in the

signal path. Keep transmitter and display away from electronics.

LOW BATTERY ICON:

When this icon appears in the indoor (IN) data reading section, replace the batteries in the

Projection Alarm.

When this icon appears in the outdoor (OUT) data readings section, replace the batteries in the

outdoor transmitter.

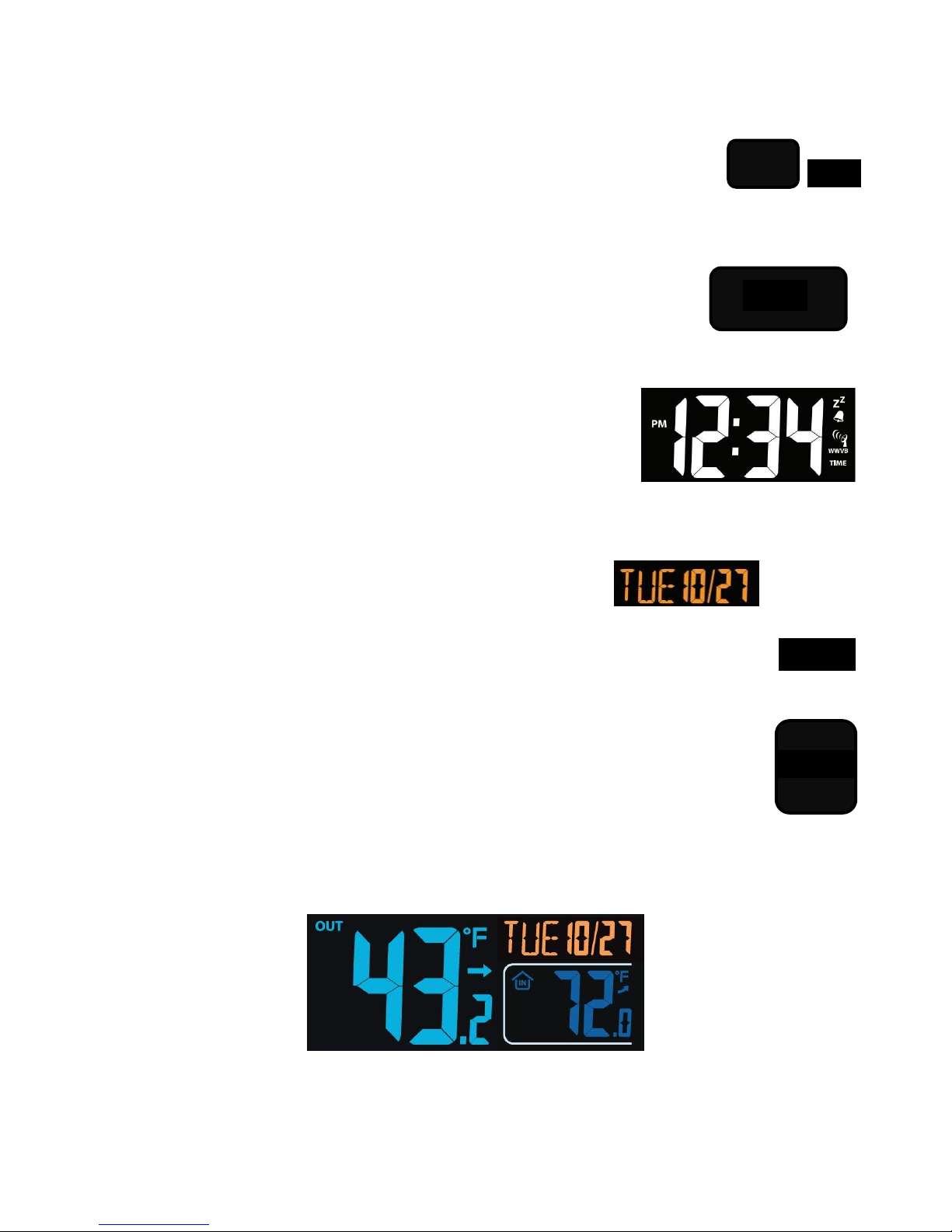

OTHER DISPLAY ICONS:

WWVB Reception icon

The tower icon will show solid when the display has received the WWVB signal.

No tower icon displayed. The display was unable to receive a signal at this time.

Reposition the display for better signal reception or try again at bedtime.

Indoor Temperature

Zz –Snooze icon

Will flash when snooze feature has been activated

Solid when alarm is on

Does not display when alarm is deactivated.

Alarm icon

Shows when time alarm is on

Does not display when time alarm is deactivated

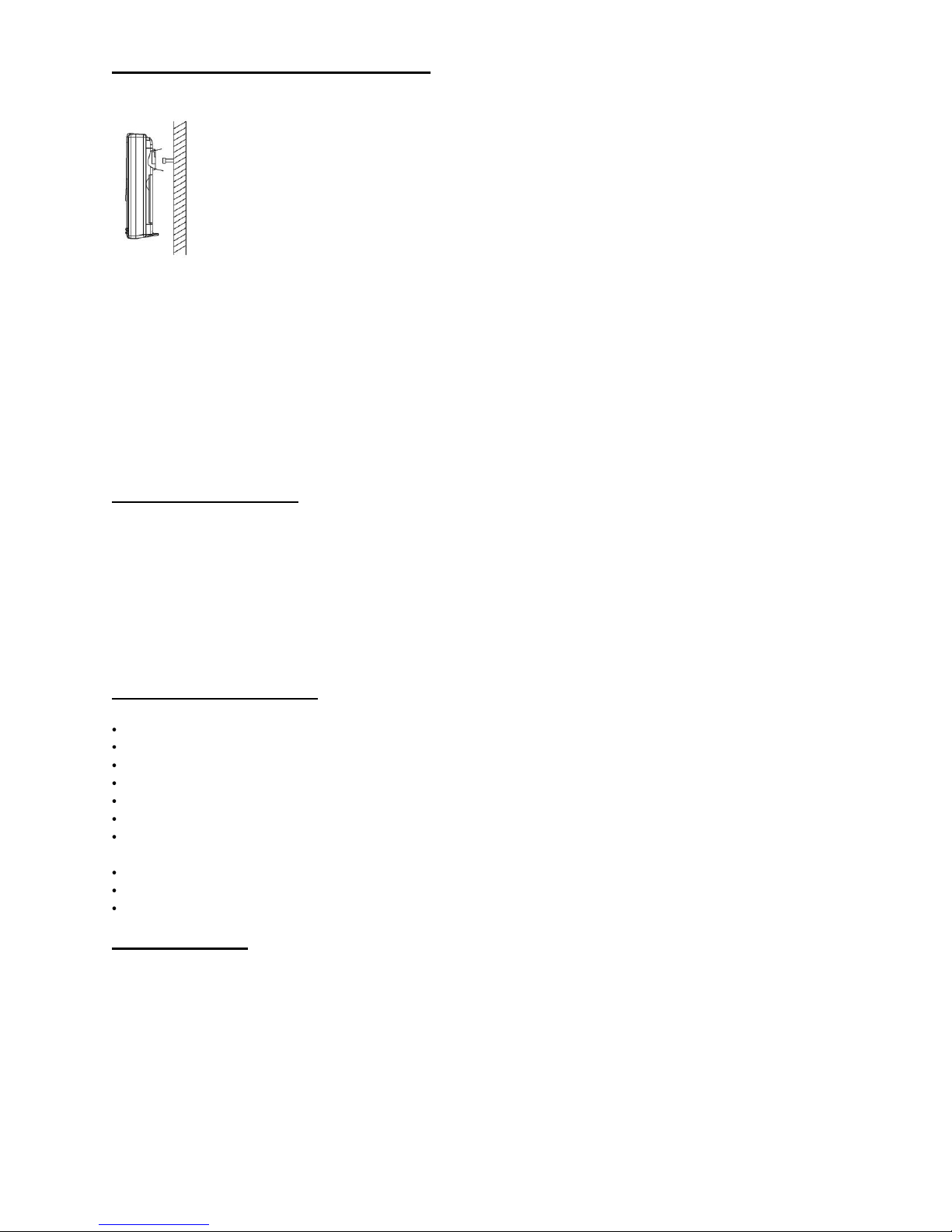

POSITION THE OUTDOOR TRANSMITTER:

The remote temperature transmitter should be mounted vertically to avoid damage.

WALL MOUNT

1. Choose a location for the transmitter that is within range of the Atomic Projection

Alarm and under an overhang for accuracy.

2. Install one mounting screw (not included) into a wall leaving approximately ½ inch

(12.7mm) extended..

3. Place the transmitter onto the screw, using the hanging hole on the backside.

4. Gently pull the transmitter down to lock the screw into place.

NOTE: Always ensure that the transmitter locks onto the screw before releasing.

To achieve a true temperature/humidity reading, mount where direct sunlight cannot reach the outdoor

transmitter. Mount the outdoor transmitter on a North-facing wall or in any well shaded area. Under an

eave or deck rail work well. The maximum transmitting range in open air is 200-feet (60 meters).

Obstacles such as walls, windows, stucco, concrete, and large metal objects can reduce the range. Place

the transmitter at least 6 feet in the air to improve signal transmission.

Place both units in their desired location, and wait approximately 1-hour before permanently mounting the

transmitter to ensure that there is proper reception. The outdoor temperature/humidity transmitter is water

resistant, not waterproof and should not be placed anywhere it will become submerged in water or subject

to standing water or snow.

POSITION THE DISPLAY:

1. The Atomic Projection Alarm has a wide base to sit on a desk or table.

2. Choose a location 6 feet or more from electronics such as cordless phones, gaming systems,

televisions, microwaves, routers etc.

3. Place within range of the outdoor transmitter.

4. The maximum transmitting range in open air is 200-feet (60 meters). Obstacles such as walls,

windows, stucco, concrete, and large metal objects can reduce the range.

5. For best WWVB reception orientate the Atomic Projection Alarm with the front of the back facing Ft.

Collins Atomicado.

CARE AND MAINTENANCE:

Do Not Mix Old and New Batteries

Do Not Mix Alkaline, Standard, Lithium or Rechargeable Batteries

Do not expose the Atomic Projection Alarm to extreme temperatures, vibration or shock.

Keep Atomic Projection Alarm dry.

Clean the Atomic Projection Alarm with a soft damp cloth. Do not use solvents or scouring agents.

The Atomic Projection Alarm is not a toy. Keep it out of reach of children.

The Atomic Projection Alarm is not to be used for medical purpose or for public information, but is

determined for home use only.

The specifications of this Atomic Projection Alarm may change without prior notice.

Improper use or unauthorized opening of housing will void the warranty.

If the unit does not work properly, change the batteries and/or check the a/c cord connection.

SPECIFICATIONS:

Indoor:

Temperature Range: +32°F to +122°F (0°C to 50°C)

Accuracy: +/- 2 degrees Fahrenheit

Interval: About every 30 seconds

Outdoor:

Temperature Range: -40°F to 140°F (-40°C to 60°C)

Alkaline Batteries: -20°F to 140°F (-28.8°C to 60°C)

Lithium Batteries: -40°F to 140°F (-40°C to 60°C)

Otros manuales para K86326

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Despertador de La Crosse Technology

La Crosse Technology

La Crosse Technology 616-1412V2 Dimensiones

La Crosse Technology

La Crosse Technology WT-5600 Manual de usuario

La Crosse Technology

La Crosse Technology 616-1412v2 Manual de operación y mantenimiento

La Crosse Technology

La Crosse Technology WS-9412U Manual de usuario

La Crosse Technology

La Crosse Technology soluna W74146 Manual de usuario

La Crosse Technology

La Crosse Technology 433 MHz RADIO CONTROLLED PROJECTIONALARM... Manual de usuario

La Crosse Technology

La Crosse Technology 617-1485Bv2 Manual de usuario

La Crosse Technology

La Crosse Technology 617-1485W Manual de usuario

La Crosse Technology

La Crosse Technology 616-1412V4 Dimensiones

La Crosse Technology

La Crosse Technology CA81199 Dimensiones

La Crosse Technology

La Crosse Technology WS-8115U-IT Manual de usuario

La Crosse Technology

La Crosse Technology WT-5442 Manual de usuario

La Crosse Technology

La Crosse Technology 616-146AV2 Manual de usuario

La Crosse Technology

La Crosse Technology 602-249 Dimensiones

La Crosse Technology

La Crosse Technology W85923 Manual de operación y mantenimiento

La Crosse Technology

La Crosse Technology W85923 Dimensiones

La Crosse Technology

La Crosse Technology WT-9300 Manual de usuario

La Crosse Technology

La Crosse Technology 317-1909 Dimensiones

La Crosse Technology

La Crosse Technology RADIO CONTROLLED PROJECTION CLOCK WITH DIGITAL... Manual de usuario

La Crosse Technology

La Crosse Technology WS-8056U Manual de usuario

La Crosse Technology

La Crosse Technology 617-148v2 Manual de usuario

La Crosse Technology

La Crosse Technology WT-2192 Manual de usuario

La Crosse Technology

La Crosse Technology WS-8117U-IT Manual de usuario

La Crosse Technology

La Crosse Technology 617-1485Bv3 Manual de usuario

Manuales populares de Despertador de otras marcas

Steren

Steren CLK-210 Manual de usuario

COP-USA

COP-USA ALCDVR32-SL Manual de usuario

Philips

Philips HF3505/70 Manual técnico

Casio

Casio PQ-70 Manual de usuario

iHome

iHome IA63 Manual de usuario

Coopers

Coopers 9765 Manual de usuario

ANJANK

ANJANK AC-190 Guía

TFA

TFA 98.1075 Manual de usuario

Sharper Image

Sharper Image 204050 Manual de usuario

Lumie

Lumie Zest Manual de usuario

Dexford

Dexford RCT200 Manual de usuario

Philips

Philips AJL303/37B Manual de usuario

RST

RST Q754 Manual de usuario

iHome

iHome iKT50 Manual de usuario

Sony

Sony dash HID-B7 Manual de usuario

SVINZ

SVINZ SCC009 Manual de usuario

Clas Ohlson

Clas Ohlson 918863 Manual de usuario

IKEA

IKEA FNURRA Manual de usuario
