SET UP GUIDE

MODEL: 817-2410 | 817-83957

PROJECTION ALARM CLOCK

with 2 AMP USB Charging and FM Radio

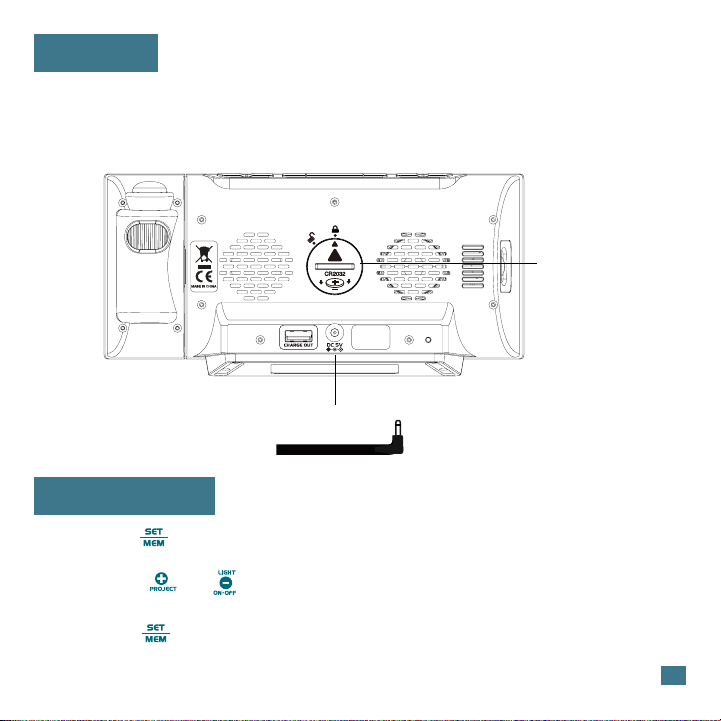

Power Up

1. Insert the 5.0 volt power adapter into an outlet, then into your clock.

Optional: Insert a CR2032 battery (not included) for backup.

2. Enter the Settings Menu to set Time.

5.0 V adapter

(included)

Optional CR2032

(not included)

Settings Menu

1. Hold the button to enter the Settings Menu.

2. Press the or button to adjust the values. Hold to adjust quickly.

3. Press the button to conﬁrm and move to the next item.

Settings Menu

Settings Menu Order:

• Hour

• Minutes

• Snooze Duration (NO5) 5-60 minutes

Note: When setting the Hour, the “P” will show to indicate PM hours.

FM Radio

1. Extend the antenna for best reception.

2. Press the button to listen to the radio. ON will show brieﬂy, followed

by the frequency in MHz.

3. Press the or button to select station. Hold to search for next clear

station.

4. Press to view Volume Setting. Use or button to adjust Volume

(1-16).

5. Press to turn radio o.

FM Radio

Auto Scan and Store Preset Stations:

1. Press to listen to the radio

2. Hold to automatically scan and set up to 20 stations.

Manually Store Preset Stations:

1. Press the button to listen to the radio. ON will show brieﬂy.

2. Press the or button to select station.

3. Hold until P01 ﬂashes to store as Preset 1.

4. Repeat steps 2 and 3 to set up to 20 Preset Stations.

Note: You can change preset stations with the above instructions.

Listen to Preset Stations:

1. Press the button to listen to the radio.

2. Press then or to select Preset Stations.

Radio Sleep Timer:

1. When the radio is on, hold , the sleep time “05” (5 minutes) will show.

2. Press repeatedly to select minutes from 05, 10, 15, 30, 45, 60, 75, 90

or OFF.

3. The clock radio reverts to the time display automatically in a few

seconds. Hold to see the sleep time remaining.

4. Press to deactivate the radio and the sleep function before the sleep

time has elapsed.

Time Alarm

This Projection Clock has a dual time alarm function. Use the following

instructions to set your alarm times, choose your wake up sound (buzzer or

radio), and alarm volume if you choose the radio option.

Set Alarms:

1. Hold the button to enter the Alarm Settings.

2. Press the or button to adjust the values. Hold to adjust quickly.

3. Press and release the button to conﬁrm and move to the next item.

4. Press the button anytime to save and exit.

Alarm Settings Order:

• Alarm 1 Hour

• Alarm 1 Minutes

• Alarm 1 Wake sound: bu (buzzer) or rd (Radio)

• When rd (Radio) is selected: Alarm 1 HI/LO (volume)

• Alarm 2 Hour

• Alarm 2 Minutes

• Alarm 2 Wake sound: bu (buzzer) or rd (Radio)

• When rd (Radio) is selected: Alarm 2 HI/LO (volume)

Activate/Deactivate Alarm 1 & 2:

1. Press the button to activate or deactivate Alarm 1 and/or Alarm 2.

2. The Amber LED Light next to the or indicates that alarm is active.

Time Alarm

Projection

Turn O Sounding Alarm:

When alarm sounds, press the button once to stop the alarm for 24

hours.

Snooze:

When an alarm is sounding, press once, the alarm will be silenced

and come on again after the custom snooze duration selected.

Note: If your second alarm activates while the ﬁrst alarm is sounding, or it

is in the snooze mode, the second alarm overrides the ﬁrst alarm (the ﬁrst

alarm is reset to come on the next day).

Projection ON/OFF:

The Projection will be On when Projection Alarm Clock is powered on.

1. Press the button to turn Projection O, Dim or On again.

Projection

Projection Image Rotation:

1. Hold the button to turn Projection 180 degrees.

2. Turn the Projection Wheel on the back of the

Projection Arm to adjust the projected image

90 degrees.

Note: The Projection Wheel will rotate to allow you to

correctly project the time onto your wall or ceiling.

Projection

Wheel

• Make sure the original adaptor (5V-2A) enclosed with your clock radio is

being used to power your clock radio.

• Connect your external device’s USB charging cable (not included) to the

USB Charging Port.

• Charging times will vary.

• USB Power Output: 2A maximum current.

• Charge 2A devices or devices that are self- regulating.

Note: This clock was designed to charge tablets or other devices requiring

more than a 2A current.

USB Charging

Adjustable Backlight

Select High or Low:

Press the button to select High or Low backlight. Backlight will dim but does

not turn o.

Adjust Low Brightness:

Rotate the Dimmer Wheel on the side of your clock to adjust the brightness of the

Low setting. The High setting is not adjustable.

The Mood Light glows below the clock, oering a gentle amber glow.

Press the button to turn this light on or o.

Mood Light

Dimmer Wheel

to adjust Low

Backlight

Mood Light

Stay in Touch

Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram.

Ask questions, watch setup videos, and provide feedback on our social

media outlets.

Care + Maintanence

Do not mix old and new batteries.

Do not mix Alkaline, Lithium, standard, or

rechargeable batteries.

Always purchase the correct size and grade of

battery most suitable for intended use.

Clean the battery contacts and also those of the

device prior to battery installation.

Ensure the batteries have been installed with

correct polarity (+/-).

Remove batteries from equipment that will not to

be used for an extended period.

Promptly remove expired batteries.

Speciﬁcations

Projection Alarm Clock (817-2410 | 817- 83957)

Power Requirements:

5V AC/DC adapter (included) KA1201A-0502000US

Optional Backup: CR2032 battery (not included)

The plug on the power adapter is intended to

serve as the disconnect device, the socket-outlet

shall be installed near the equipment and shall be

easily accessible.

Dimensions: 7.75” W x 1.97” D x 3.74” H

(19.7cm W x 5.0cm D x 9.5cm H)

USB output: 2A maximum current.

Note: This is only a power output USB device and a

USB cord cannot power the alarm itself.

Alarm duration:

Buzzer 5 minutes / Radio 1 hour

Snooze duration: 5-60 minutes programmable

Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC 040621
