SET UP GUIDE
MODEL: 616-1410 / 616-12667
616-1410v2 / 616-12667v2
Atomic Projection Clock
with Indoor/Outdoor Temperature
AA
AA
AAA
AAA
AAA

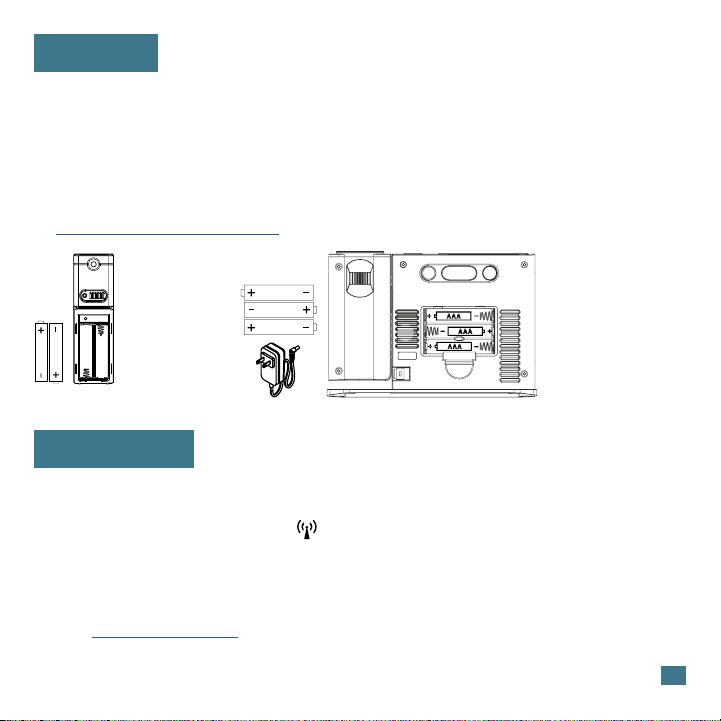

1. Insert 2-AA batteries into your Outdoor Sensor.
2. Insert the 5 volt power cord into an outlet, then into your Projection
Clock. Optional: Insert 3-AAA batteries for backup.
3. Set time, date, etc.
4. Once the sensor is reading to your clock, place the sensor outside in a
shaded location. View our sensor mounting video here:
bit.ly/th_sensor_mounting
• The clock will search for the Atomic Time Signal at power up and at UTC
7:00, 8:00, 9:00, 10:00, and 11:00.
• The Atomic Time Signal Icon will flash while searching and be solid
when it has connected.
• From the normal time display, press the SET button to manually start or
stop a search for the WWVB time signal. For information about WWVB
visit: bit.ly/AtomicTime
Note: The Backlight will be o temporarily while searching for the WWVB time signal.
Power Up
Atomic Time
2
TX141-Bv3
or TX141-Bv4
Outdoor Sensor
616-1410 / 616-12667
or
616-1410v2 / 616-12667v2
Projection Clock
Settings Menu
TIME ZONE
ATLANTIC
EASTERN
CENTRAL
MOUNTAIN
PACIFIC
ALASKA
HAWAII
3
IMPORTANT: Only press or hold one button at a time.
1. Hold the SET button until the display changes to enter the Settings
Menu.
2. Press and release the +/- buttons to adjust values.
3. Press and release SET to confirm values.
4. Press and release the SNOOZE/LIGHT button at any time to save and
exit.
Settings Menu Order:
• Language (English, Spanish, French, German)
• Beep ON/OFF
• Atomic ON/OFF
• DST Settings:
DST AUTO ON (Changes Spring and Fall)
DST ALWAYS OFF (No change in Spring)
DST ALWAYS ON (No change in Fall)
• Time Zone
• 12/24 Format
• Hour
• Minutes
• Year
• Month
• Date
• Month/Date or Date/Month
• Fahrenheit/Celsius
Backlight
• Press the SNOOZE/LIGHT button to adjust the backlight to adjust the
backlight intensity. There are 4 levels, plus an o option.
Auto Dim
Program your display to automatically dim during preselected times.
1. Hold the SNOOZE/LIGHT button to enter the Auto-Dim Settings Menu.
2. Press the +/- buttons to turn the Auto-Dim feature on or o. Press
SNOOZE/LIGHT to confirm.
3. Press the +/- buttons to adjust the starting hour. Press SNOOZE/LIGHT to
confirm.
4. Press the +/- buttons to adjust the stopping hour. Press SNOOZE/LIGHT
to confirm and exit.
The icon will appear on the LCD when the Auto-Dim feature activated.
4

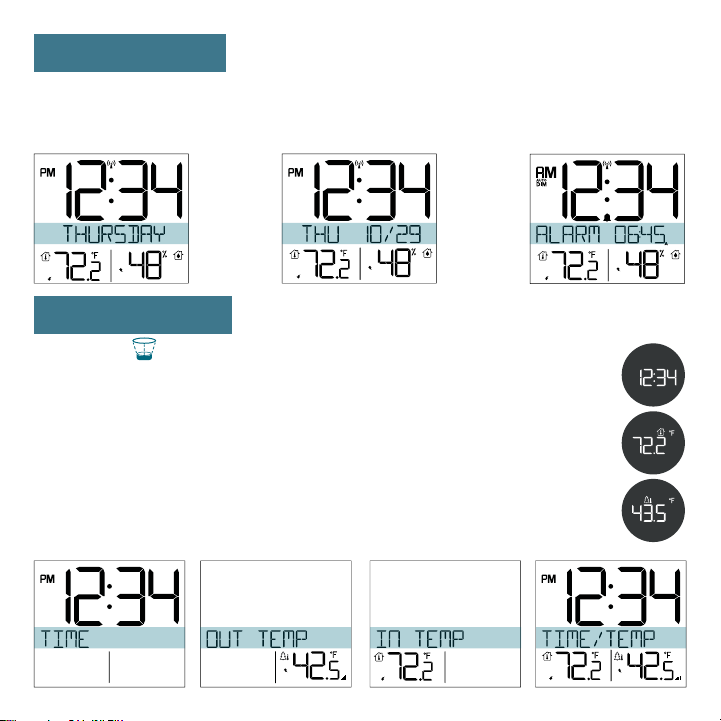

Custom Display
Press the CALENDAR button to change the middle section of your display.
Choose between full weekday, abbreviated weekday with date, or alarm
time.
Projection Image
1. Hold the button to enter the Projection Settings
2. Use the +/- buttons to change projection selection.
3. Projection image will stay on last option selected.
Projection Options:
• Time only
• Indoor Temp only
• Outdoor Temp only
• Alternate Time + Indoor Temp + Outdoor Temp
Projection Brightness & Rotation
Brightness:
Press the button to change the Projection Brightness (High, Low, or O).
Rotation:
Use the Rotation Wheel on the back of the projection arm
to change the projection orientation 270 degrees.
Tilt The Projection Arm:
The Projection Arm can tilt forward and backward to adjust the
location of the projection image on a wall or ceiling.
Time Alarm
Set Alarm:
1. Hold the ALARM button to enter the Alarm Settings Menu.
2. Use the +/- buttons to adjust the flashing values.
3. Press the ALARM button to confirm and move forward.
Note: The alarm will activate after being set, indicated by the Alarm Icon .
The Alarm Time will also remain on screen until the CALENDAR button is
used to switch back to a calendar display.
Activate/Deactivate Alarm:
Press the ALARM button to activate or deactivate the alarm and view your
alarm time. The Alarm Icon will show only when alarm is active. 6
Snooze:
• When alarm sounds, press the SNOOZE button to silence alarm for 10
minutes. The Snooze Icon Zz will flash.
• Press any button except SNOOZE to silence the alarm for 24 hours.
• When alarm ends by button press or time out after 2 minutes, GOOD DAY
will show briefly then return to normal time display.

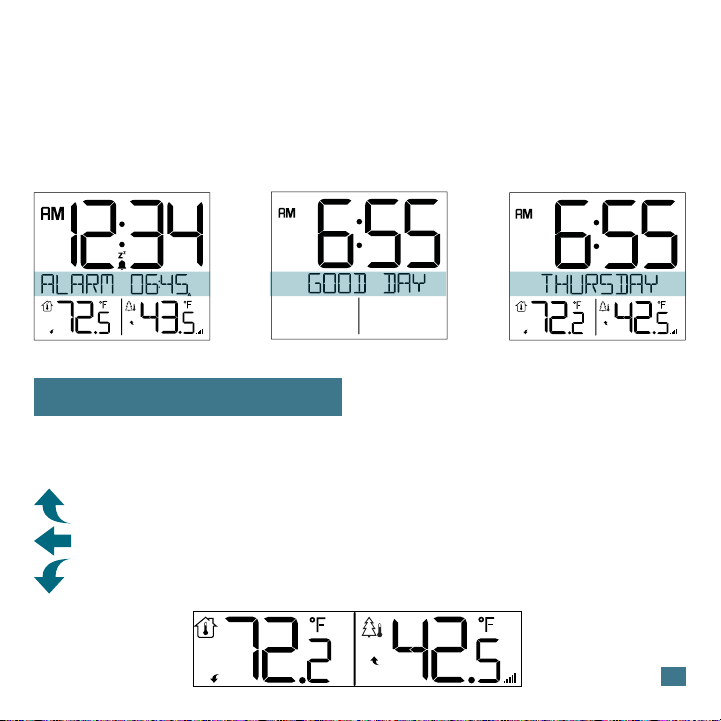

Temperature Trend Arrows
Both the Indoor and Outdoor temperature have Trend Arrows to indicate
temperature changes (2°F / 1°C) over the past one hour period.
Temperature has risen over the past one hour.
Temperature has been steady over the past one hour.
Temperature has fallen over the past one hour.
7

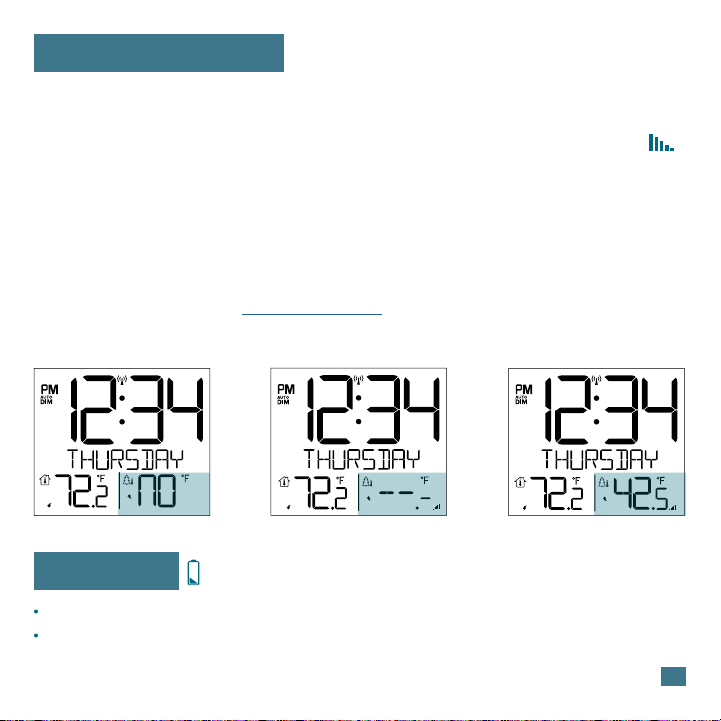

Outdoor Temperature
If you are seeing NO or dashes for your outdoor readings, please try the following
steps:
1. Hold the +button to search for your outdoor sensor. The Reception Indicator
will begin to animate.
2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next to
the display and remove power from both the sensor and clock.
3. Press any button on the clock 20 times and leave the parts sit for a few moments
with the power o.
4. Install a new set of alkaline batteries into the sensor, then into your clock.
For additional help visit: bit.ly/basic_restart
5. If your outdoor data is still not appearing after these steps, please contact our
support sta via the links below
Low Battery
8
By the Indoor Temp, replace clock batteries.
By the Outdoor Temperature, replace sensor batteries.
Specifications
Projection Clock (616-1410/616-12667) or
(616-1410v2/61612667v2)
Temperature Range: 32°F to 99°F
(0°C to 37°C)
Power Requirements: 5 volt Power cord
AC6: GPU280500150WAOO
Optional: 3-AAA LR3, IEC, batteries for
backup (not included)
The plug on the power adapter is intended to serve as the
disconnect device, the socket-outlet shall be installed near
the equipment and shall be easily accessible.
Dimensions: 5.83” L x 1.61” L x 4.06” H
(14.8cm L x 4.1cm W x 10.3cm H)
Outdoor Sensor (TX141-Bv3 or TX141-Bv4)
Temperature Range: -40°F to 140°F
(-40°C to 60°C)
Transmission Range: Over 330 ft. open air
(100 meters) RF 433MHz
Update Interval: About every 51 seconds
Power: 2-AA, IEC, LR6 batteries
(not included)
Battery Life: Over 12 months
Dimensions: 1.57” L x 0.79” W x 5.12” H
(4.0cm L x 2.0cm W x 13.0 H cm)
9
