Kyocera KM-C2230 Manual de usuario

Creative lmage Book

Please read the Creative lmage Book before

using the copier.

Keep it close to the copier for easy reference.

KM-C2230

Available Features

This chapter contains many useful copy samples that will give you a better

understanding of the wide range of applications for the various functions available with

this full-color copier. These functions are explained in an easy-to-understand way using

the many copy samples.

For details on the operating procedures for these functions, refer to the User’s Guide.

Available Features

*Since the print samples provided are photographs, they may slightly differ in color with actual color copies.

Contents

ontents

“Contrast”

Parameter

“Sharpness”

Parameter

“Hue”

Parameter

“Brightness”

Parameter

“Saturation”

Parameter

“Red”

Parameter

“Blue”

Parameter

“Color Balance”

Parameter

“Copy Density”

Parameter

Adjusts the vividness

Adjusts the level of red

Adjusts the level of blue

Adjusts the concentration of

cyan, magenta, yellow and black

Adjusts the copy density

Adjusts the difference between

highlights and shadows

Adjusts the sharpness of text

Adjusts the level of green

Adjusts the tint of fresh color Adjusts the color

. . . . . . p.14

. . . . . . . p.6 . . . . . . p.13

. . . . . . p.15

. . . . . . . p.9 . . . . . . p.16

General Information

About Color . . . . . . p.12

. . . . . . p.17

“Color Image Adjust” Function

. . . . . p.4,5

“Portrait”

Parameter

. . . p.10,11

(CMYBK color adjustment)

Adjusts the brightness

“Green”

Parameter . . . . . . . p.7

. . . . . . . p.8

Contents

Copies using only black and one selected

color

“2 Color”Setting

Function. . . . . p.19

“Creation”Functions

“Single Color”

Function

Copies using only one selected color (monotone)

Copies with the selected background color

“Color Separation”

Function

Copies while separating the four CMYK colors

“Neg. Pos. Reverse”

Function

Copies with the light-colored areas and the

dark-colored areas of the image inversed

Prints multiple copies of the document, reduced

to postcard size, on a single sheet of paper

Prints a mirror image of the original

Splits an enlargement of the document and

copies each part onto a separate page

“Postcard”

Function

“Mirror Image”

Function

“Multi-Page

Enlargement.”

Function

“Background Color”

Function

. . . . . p.18

. . . . . p.20

. . . . . p.21

. . . . . p.22

. . p.23

. . . . . p.23

. . p.24

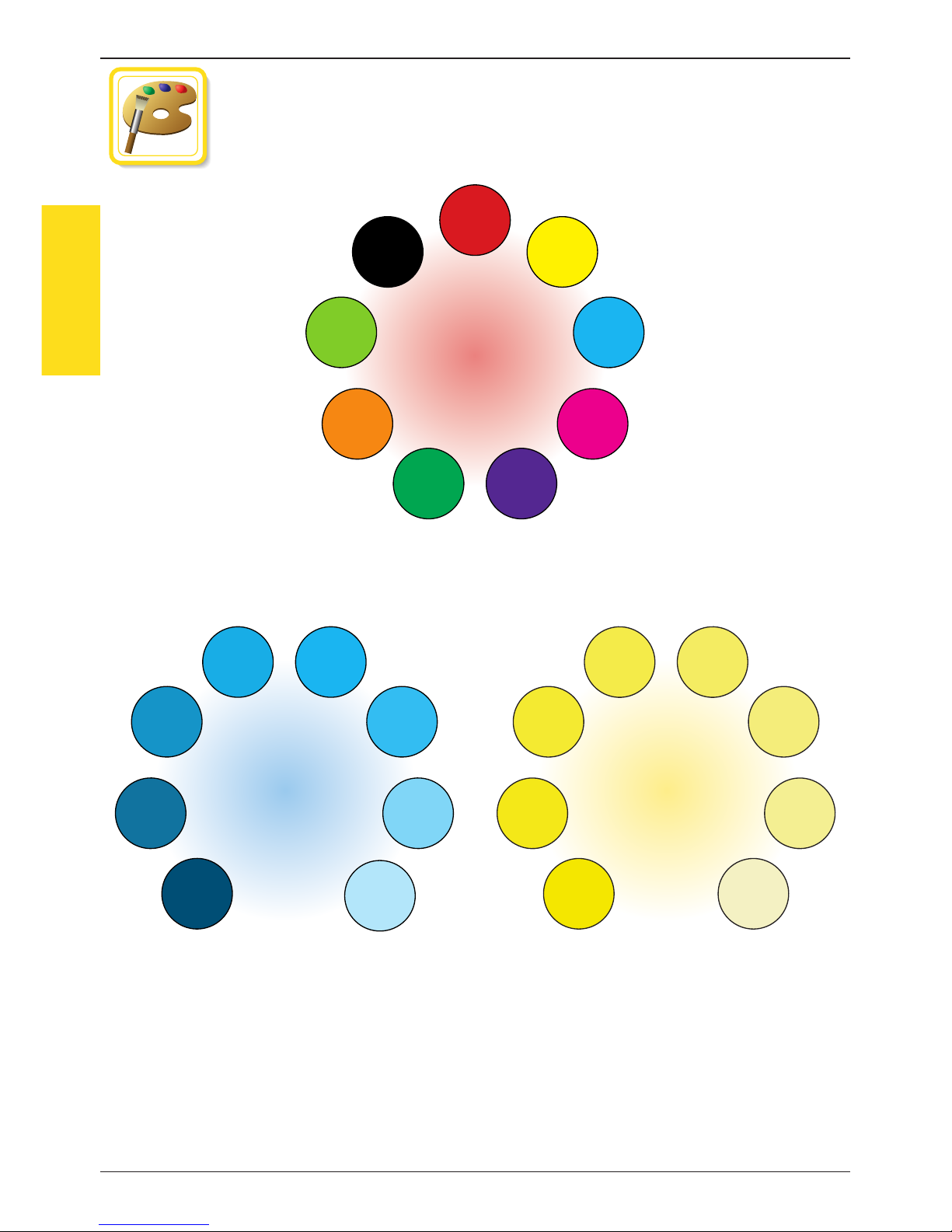

General Information

About Color

Everybody has an idea of what hue an object has, for example, an apple is

red, a lemon is yellow, and the sky is blue. Hue is the tint by which the color of

an object is classiﬁed as red, yellow, blue, etc.

Brightness is the degree of lightness in a color,

as compared with another color, which makes it

a light color or a dark color. For example, when

comparing the yellow of a lemon and the yellow

of a grapefruit, it is obvious that the yellow of

the lemon is brighter. But what about when

comparing the yellow of a lemon and the red of

a bean? Obviously, the yellow of the lemon is

brighter. Brightness is this degree of lightness

that enables comparison regardless of the hue.

What makes the difference between the

yellow of a lemon and the yellow a pear? By

saying that the lemon is a more vivid yellow

and the pear is a duller yellow, the difference

between the two colors is stated in terms

of saturation, as opposed to brightness. As

opposed to hue and brightness, saturation is

the characteristic that indicates the degree of

vividness.

What is

saturation?

What is hue?

General Information About Color

Darker

What is

brightness?

Lighter

More vivid

Duller

General Information

About Color

“Color Image Adjust” Function

Figure 2

White

Brightness

Black

White

Brightness

Saturation

Hue

Black

Hue, brightness and saturation are the elements that we call the “three attributes of color”. We can

think of their affects using the solid object shown in ﬁgure 1, where the outer edge is the hue, the

vertical axis is the brightness, and the horizontal axis from the center is the saturation.

Assigning colors to the solid object, representing the three attributes of color, shown in ﬁgure 1

produces the color model shown in ﬁgure 2. Although the level of saturation differs for each hue

and degree of brightness, creating a complex color model, we can get a better understanding of

the conditions under which the hue, brightness and saturation vary.

Color model

Figure 1

Relationship between hue, brightness and saturation (color model)

p.7-32

“Red”Parameter

This parameter can be used to adjust the degree of red in the image to one

of seven levels.

Sample images

“Red”Parameter

Original

–3

“Green”Parameter

p.7-33

Sample images

This parameter can be used to adjust the degree of green in the image to

one of seven levels.

“Color Image Adjust”Function

“Green”Parameter

Original

–3

“Blue”Parameter

p.7-34

Sample images

Original

This parameter can be used to adjust the degree of blue in the image to

one of seven levels.

–3

“Blue”Parameter

“Portrait” Parameter

p.7-37

–3

“Portrait” Parameter

Original

Sample images

“Color Image Adjust” Function

This parameter can be used to adjust the tint of ﬂesh color to one of seven

levels.
