KYMCO MXU 300 - Manual de usuario

LA60AA(US):AUG/13/05

光陽機車KYMCO 光陽機車KYMCO 光陽機車KYMCO

前言

●本零件目錄適用於 LA60AA(US)機種，訂購零件時，請參照本冊。

●本冊之配色表僅供參考，若與實車不符之處，以實車為準。

●販賣記號(Sales mark)：

1.註明〞**〝記號，表示訂購該零件時，請參照機車相片及配色表，並請在基本零件號碼

最後加上色碼。

●本冊付梓印刷倉促，倘有錯誤或遺漏之處，敬請不吝賜教指正。

-2-

ABOUT THIS PARTS LIST

●This parts list is compiled all service parts for model LA60AA(US)。

●Any difference between color chart and motorcycle will be revised according to motorcycle。

● The sales mark：

1.marking〞**〝must add color code in the end before ordering parts。

●When modification or additions to this parts list are made a revised edition at an appropriate time。

●前言‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧1

●LA60AA(US)配色表‧‧‧‧‧‧‧‧‧‧‧‧5

●引擎分組圖‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧7

●車架分組圖‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧9

●引擎零件號碼表‧‧‧‧‧‧‧‧‧‧‧‧‧‧13

●車架零件號碼表‧‧‧‧‧‧‧‧‧‧‧‧‧‧59

●零件號碼索引‧‧‧‧‧‧‧‧‧‧‧‧‧‧‧137

CONTENTS

●ABOUT THIS PARTS LIST‧‧‧‧‧‧‧‧‧1

●COLOR CHART OF LA60AA(US)‧‧‧‧‧‧5

●CONTENTS-ENGINE GROUP‧‧‧‧‧‧‧‧7

●CONTENTS-FRAME GROUP‧‧‧‧‧‧‧‧9

●ENGINE PARTS LIST‧‧‧‧‧‧‧‧‧‧‧13

●FRAME PARTS LIST‧‧‧‧‧‧‧‧‧‧‧59

●PART NO. INDEX‧‧‧‧‧‧‧‧‧‧‧‧‧137

-3-

機種名稱

(

MODEL

)

60AA

(

)

COLOR CHART

相片號碼(PHOTO NO) NO.1 NO.2 NO.3 NO.4 NO.5 NO.6

主體色(BASIC COLOR) 紅黑深綠黃藍土黃

色碼(CODE) RR338S

NH001S

GG345S

R159S

PB089S

R160S

項

次

NO 色別零件名稱(PARTS NAME) 基本零件號碼

(

PARTS NO

)

版數

(

VERSION

)

Red Black Dee

Green Blue Blue

ellow Ochre

1 FENDER FRONT 60100-LCA5-E00 7

2 FENDER REAR 80100-LCA5-E00 8

3MOLDING RR FENDER 80200-LCA5-E00 4

4 COVER BATTERY 80300-LCA5-E00 1

E4R N1R GWR YNR C3R YSR

5 COVER COMP R CRANK CASE 11330-LDE9-E00 2 M3A

6 LEVER L STRG HNDL 53178-KFC8-E10 0 M2A

7 COVER LEFT 11341-LBA7-900 6 N8A

8 CUSHION ASSY FR 51400-PWA1-900 3

9 CUSHION ASSY RR 52400-PWA1-900 3

10 HNDL PIPE STRG 53100-LCA5-900 1 N1S

11 STRIPE R FENDER FRONT 86523-LCA5-E61 4

12 STRIPE L FENDER FRONT 86533-LCA5-E61 4

13 STRIPE R SIDE COVER 86623-LDE9-E61 2

14 STRIPE L SIDE COVER 86633-LDE9-E61 2

T01 T02 T03 T04 T05 T06

15 STRIPE KYMCO 87532-LBE8-900 1

16 STRIPE K-LOGO 60MM 87532-LCA5-900 1 T03

17 SEAR ASSY 77200-LCA5-E00 1

18 EMB K-LOGO 30MM 86102-LCA5-900 1

19 LABEL TIRE OFF ROAD 87505-LCA5-E00 3

20 CAUTION MAXIMUM CAPACITY 87514-LDE9-E00 1

21 CAUTION LIST ON ROAD 87515-LBA7-E00 1

22 CAUTION DRIVE AGE 87517-LBA7-E00 1

23 MARK DRIVE CAUTION 87560-LBA7-E00 1

24 LABEL MIT 87571-LCA5-M30 1

T01

25 RIM COMP RR WHEEL 42705-LCA5-E00 4

26 RIM COMP FR WHEEL 44705-LCA5-E00 3 NJS

27 DUCT COOLING AIR 19102-LCA5-E00 2

28 GUIDE COVER CHANGE HNDL 60120-LCD9-E00 5

29 COVER FRONT 64301-LCA5-E00 2

30 BUMPER FR 64302-LCA5-E00 4

31 GRILL R FENDER 64303-LCA5-E00 2

32 GRILL L FENDER 64304-LCA5-E00 2

33 MUDGUARD R FLOOR 80121-LCA5-E00 4

34 MUDGUARD L FLOOR 80122-LCA5-E00 4

35 COVER R SIDE 83500-LCA5-E00 6

36 COVER ASSY L SIDE 8360A-LCA5-E00 3

37 COVER HANDLE 53205-LCA5-E00 3

38 COVER TANK 17700-LCA5-E00 3

N1R

39 CALIPER ASSY RR 43100-PWA1-900 2

40 CALIPER ASSY FR R 45100-LBA7-900 2

41 CALIPER ASSY FR L 45200-LBA7-900 2 NJA

42 ARM ASSY R UP SWING 53400-PWA2-900 2

43 ARM ASSY R LOW SWING 53450-LCD9-E00 1

44 ARM ASSY L UP SWING 53500-PWA2-900 2

45 ARM ASSY L LOW SWING 53550-LCD9-E00 1

46 RR CARRIER LUGGAGE 77330-LCA5-E00 7

MAS

生產日期(DATE OF STARTING-SALES) 2005.07.20 2005.07.20 2005.07.20 2005.07.20 2005.07.20 2005.07.20

停產日期(DATE OF ENDING-SALES) -

機種名稱

(

MODEL

)

60AA

(

)

COLOR CHART

相片號碼(PHOTO NO) NO.1 NO.2 NO.3 NO.4 NO.5 NO.6

主體色(BASIC COLOR) 紅黑深綠黃藍土黃

色碼(CODE) RR338S

NH001S

GG345S

R159S

PB089S

R160S

項

次

NO 色別零件名稱(PARTS NAME) 基本零件號碼

(

PARTS NO

)

版數

(

VERSION

)

Red Black Dee

Green Blue Blue

ellow Ochre

47 FR CARRIER LUGGAGE 77430-LCA5-E00 4

48 PIPE COMP FR BUMPER 85100-LCA5-E00 3 MAS

生產日期(DATE OF STARTING-SALES) 2005.07.20 2005.07.20 2005.07.20 2005.07.20 2005.07.20 2005.07.20

-6- 停產日期(DATE OF ENDING-SALES)

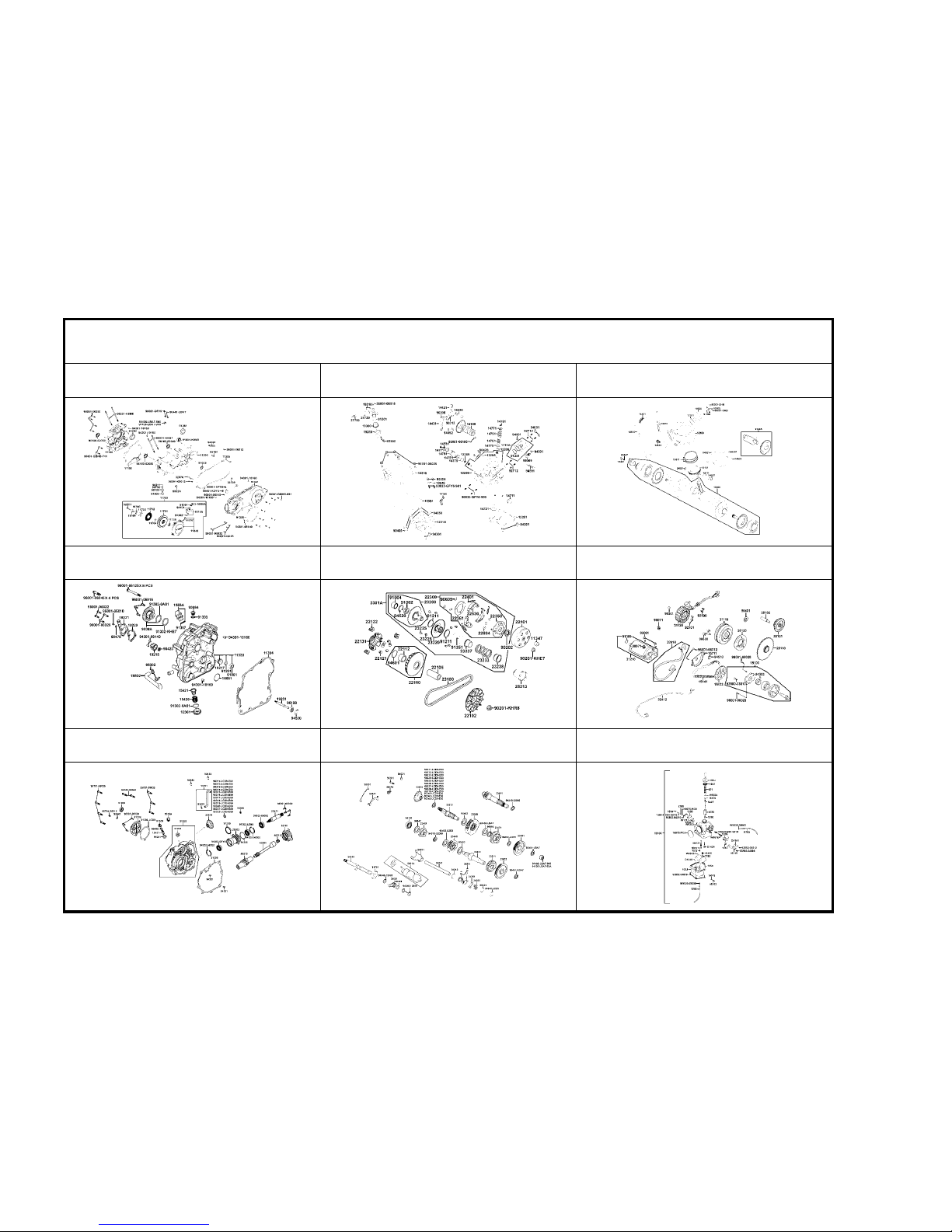

CONTENTS-ENGINE GROUP

E 1 Crank Case -15- E 2 Cylinder Head Cover ●

Cylinder Head -21- E 3 Cylinder ●Piston ●

Crankshaft -27-

E 4 Right Crankcase Cover ●

Water Pump -29- E 5 Drive Pulley -33- E 6 Starting Motor ●

Generator -37-

E 7 Case Comp Mission -41- E 8 Transmission -47- E 9 Carburetor -53-

-7-

CONTENTS-FRAME GROUP

F 1 Head Light -61- F 2 Speed Meter -63- F 3 Handle Steering -65-

F 4 Master Cylinder -67- F 5 Fender Front -71- F 6 Stem Steering -73-

F 7 Front Wheel -75- F 8 Rear Wheel -79- F 9 Seat -83-

-9-

CONTENTS-FRAME GROUP

F10 Fuel Tank -85- F11 Battery -89- F12 Fender Rear -91-

F13 Air Cleaner -93- F14 ExhaustMuffler -97- F15 Master Cylinder Rear -99-

F16 Cushion ●

Right Arm Swing -105- F17 Cushion ●Left Arm Swing -107- F18 Rear Fork -109-

-10-

CONTENTS-FRAME GROUP

F19 Side Case Rr Final -111- F20 Light Tail -115- F21 Harness Wire -117-

F22 Frame Body -121- F23 Carrier Luggage -125- F24 Radiator -127-

F25 Caution Label -133- F26 Emblem ●Stripe -135-

-11-

E 1 Crank Case

-14-
