Parts
ASSEMBLY INSTRUCTIONS FOR 2B1701 KWIK FLEX GOAL
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
Rear Tension Rod (2)
(Part# VZ858-01)
19-7/8”
Bottom Tension Rod (4)
(Part# VZ859-01)
29”
Front Tension Rod (2)
(Part# VZ858-02)
26-1/2”
Carry Bag (1)
(Part# VZ780)
Net (1)
(Part# VZ749)
Left Base (1)
(Part# VZ769)
Right Base (1)
(Part# VZ774)
Left Rear Base (1)
(Part# VZ770)
Right Rear Base (1)
(Part# VZ773)
Center Connector (1)
(Part# VZ734)
®
NZ403 Rev. 02/11/19

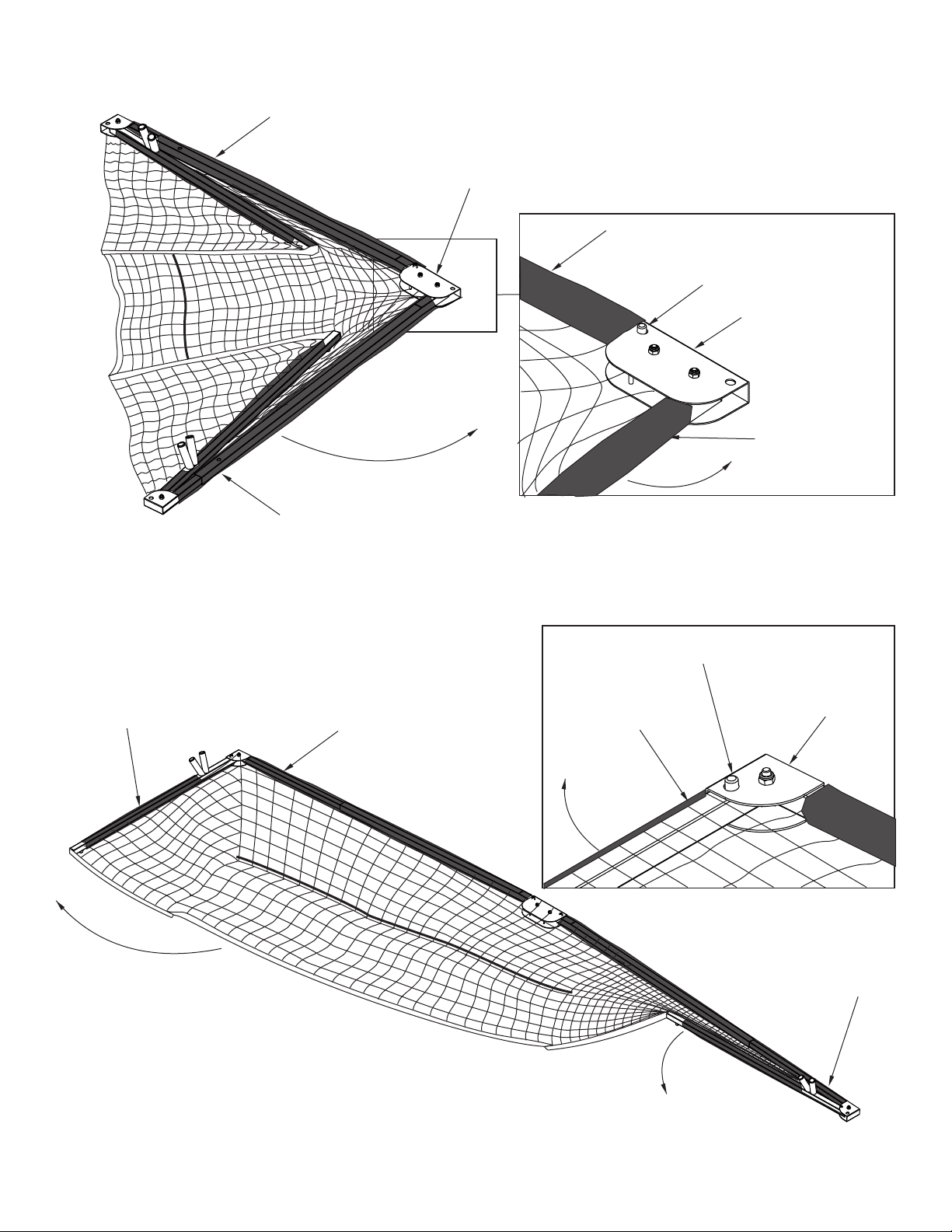

2. Open base frame by swinging outward until button locks
in place in center connector as shown. Use care to keep
net from getting pinched in moving parts.
Open until button locks in place
Base Frame
Base Frame
Center Connector
Base Frame
Base Frame
Center Connector
Open until button is engaged
Left Base
Left Rear Base
3. Open left and right bases by swinging outward until button
locks in place in left and right rear base.
Left Base
Right Base
Left Rear Base
Right Rear Base
NZ403 Rev. 02/11/19
Front or Rear
Tension Rod
Bottom
Tension Rod
4. Add tension rods to base as shown.
Bottom
Tension Rod
Left Base
Bottom
Tension Rod
Rear Tension Rod
Front Tension Rod
Bottom
Tension Rod
Front Tension Rod
(Long)
Rear Tension Rod
(Short)
5. Connect top corners of net to front tension rod assembly by
sliding rod cap over end of tension rod.
6. Connect backdrop corners of net to back tension rod
assembly by sliding rod cap over end of tension rod.
NZ403 Rev. 02/11/19
Rod Cap
Assembled Front
Tension Rod
Rod Cap
Assembled Rear
Tension Rod
7. Secure corner of net to left and right base with hook & loop straps as shown.
NZ403 Rev. 02/11/19
Left Base
Hook & Loop Strap
Go to kwikgoal.com for additional product information.
