Kuppersbusch LB 6650.1 E Manual de operación

BEDIENUNGSANWEISUNG

mit Montageanweisungen

Instrucciones de Uso y de Montaje

Instructions for use and installation

Instructions d΄utilisation e avis de montage

Instruções de utilizaçao e instalaçao

Istruzioni di uso e di montaggio

Bruks- och monteringsanvisningar

Gebruiksaanwijzing en montagehandleiding

Εγχειριδίου με τις Οδηγίεσ Χρήσεωσ

Инструкция по эксплуатации

LB 6650.1 E

LB 8650.1 E

Rev.04 C21145901D

Dear Customer,

Congratulations on your choice. We

are certain that this modern, functional

and practical device made with first rate

quality materials will fully satisfy your

requirements.

Please read all the sections in this

INSTRUCTION MANUAL before using the

hood for the first time in order to obtain

maximum performance from the device

and avoid faults which may arise from

incorrect use as well as minor problem

solving.

For optimal performance, the external duct

should not exceed FOUR METRES, have

more than two 90 ° angles and its diameter

should be at least Ø120.

•Disconnect the device before

performing any work on the interior,

e.g. during cleaning or maintenance.

•The excessive accumulation of

grease in the hood and metal filters

may cause dripping and fire risks,

therefore it is necessary to wash

the inside of the hood and the metal

filters at least once a month.

•This device can be used by children

aged 8 and over and persons with

reduced physical, sensory or mental

capabilities or lack of experience and

knowledge, if they have been given

supervision or proper training in the

safe use of the device and if they

understand the dangers involved.

Children should not play with the

device. Cleaning and maintenance

should be performed by the user

and not by unsupervised children.

•Check that the power voltage and

frequency match those indicated

on the label located on the inside

of the hood. A suitable earth must

be connected (except for Class II

devices, marked with on the

technical data plate).

•For installation, a connection

method isolated from the fixed

installation should be incorporated,

in accordance with installation

regulations (adjusted to the strength

to be endured and with a minimum

opening between the contacts of

3mm) under overvoltage category

III conditions, for the emergency

shutdown, cleaning or light

replacement. In no event should the

earth pass through this switch. This

switch can be replaced with a plug if

it is accessible in normal use.

• If the power lead is damaged it must

be replaced by the manufacturer, its

after-sales service or by qualified

personnel in order to avoid potential

danger.

•Air should not be extracted by ducts

used to expel fumes from equipment

•The room must be adequately

ventilated when the hood will be

Safety Instructions

used simultaneously with equipment

electricity e.g. gas cookers.

•The excessive accumulation of

grease in the hood and metal filters

may cause dripping and fire risks,

therefore it is necessary to wash

the inside of the hood and the metal

filters at least once a month.

•Do not produce flames under the

hood.

•The bottom of the hood must be

fitted at least 65cm above gas or

combination hobs. Observe the

minimum limits set by WORKTOP

MANUFACTURER’S MINIMUM

LIMITS. This distance may be

reduced if mentioned in the hood

installation instructions.

•Never leave gas burning without

a pan above it. The grease

accumulated in the filters may drip

or catch fire when the temperature

is increased.

•Avoid cooking under the hood if

the metal filters are not fitted e.g.

while they are being cleaned in the

dishwasher.

•We recommend you wear gloves

and use extra caution when cleaning

the inside of the hood.

•Your hood is designed for domestic

use and only for the extraction

and purification of gases from food

preparation. Use for other purposes

is at your own risk and may be

dangerous. The manufacturer is not

responsible for damage caused by

improper use of the device.

•For repairs please contact the

manufacturer’s nearest Technical

Assistance Department which will

always use genuine parts. Repairs

or modifications by unauthorized

personnel may result in damage

to equipment or malfunction,

endangering safety.

•This device complies with the

European Directive 2012/19/EU on

electrical and electronic devices

entitled “Electrical and Electronic

Equipment Waste “. The directive

provides the framework applicable

throughout the European Union for

the return and recycling of electrical

and electronic equipment waste

responsible for his/her safety. Keep

children away from the device and

never let them play with it .

Program the working time

Proceed as follows:

1.-Choose the required speed.

2.-Press “timer”. The light will begin to flash.

3.-The duration of the “timer” is 10 min.

4.-During the programmed time, fan speed

can be changed.

The intensive speed is autoprogramed and

will change to speed 2 after approximately 10

minutes.

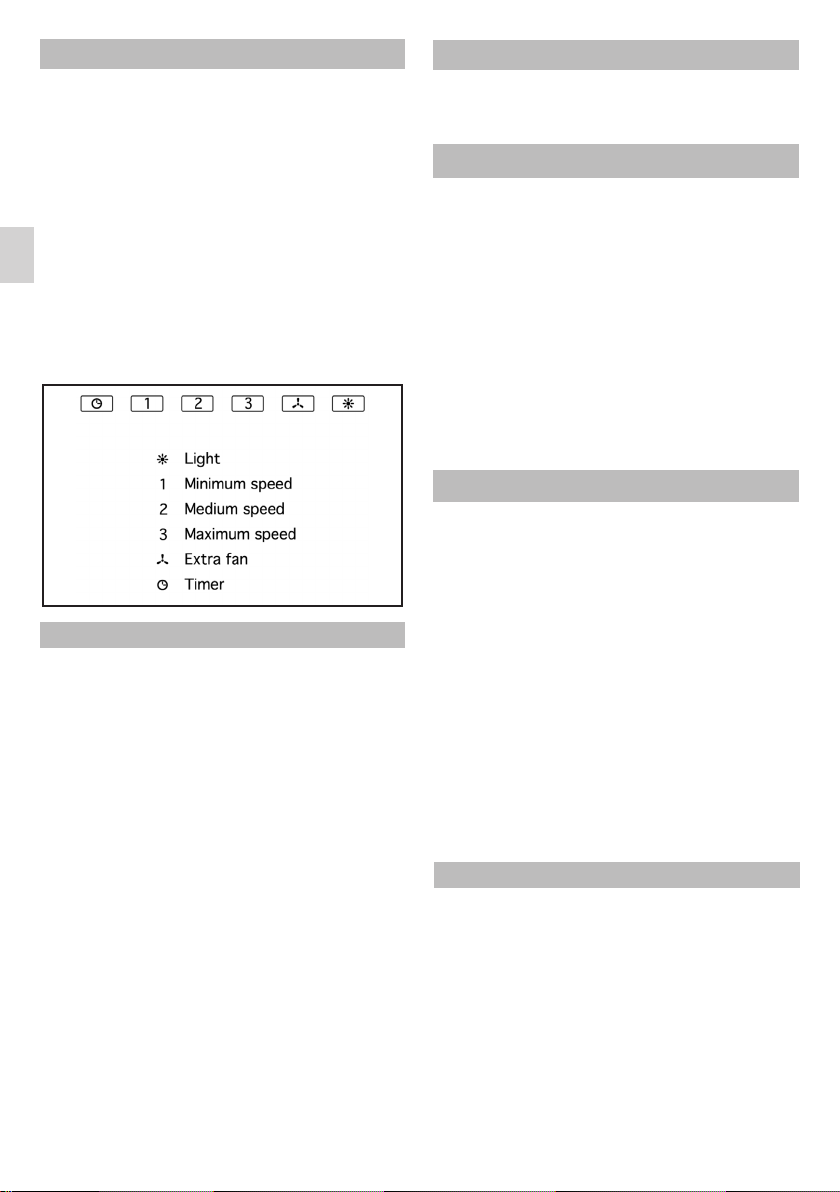

Instructions for use

You can activate or deactivate the cooker

hood by operating the functions shown in the

diagram.

Switch on the extractor fan a few minutes

before you start to cook in order to ensure that

a steady air flow has been established before

fumes appear.

Allow the extractor fan to run for several

minutes after you have finished cooking

(between 3 to 5 minutes) in order to expel all

the grease from the outlet duct. This prevents

the return of grease, smoke and smells.

Changing light bulbs

For changing the light bulbs please

contact the manufacturer’s nearest

Technical Service.

•If your kitchen hood is made of stainless

steel, use proprietary cleaners mentioned in

the product instructions.

•If your kitchen hood is painted, use lukewarm

water and a neutral soap.

•Never use metallic scourers, nor abrasive or

corrosive products.

•Dry the kitchen hood using a cloth that

does not produce fibres. Do not use vapour

cleaners.

•To remove the filters from their fittings, press

lightly on the locks and then pull them off.

Cleaning the hood body

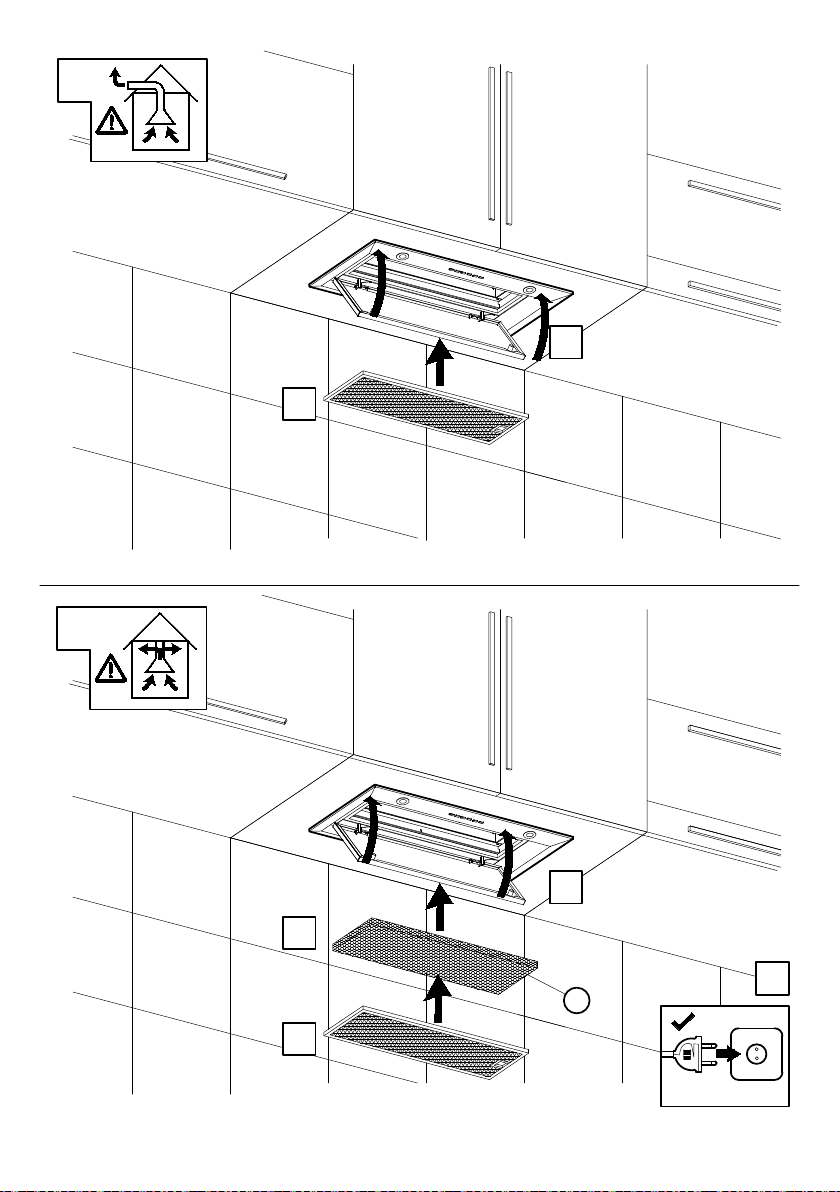

Cleaning the metal filters

•To remove the filters from their fittings, press

lightly on the locks and then pull them off.

•The metal filters can be cleaned by soaking

them in hot water with neutral detergent until

the fat dissolves and then rinsing them under

the tap or using special anti-grease products.

They can also be washed in a dishwasher.

In this case, it is advisable to stack them

vertically to avoid food residues to stick to

them.

•Cleaning in a dishwasher may damage the

metallic surface (blackening it), although this

will not affect its fat retention capacity.

•Once clean, leave them to dry off and then fit

them onto the kitchen hood.

During cleaning and maintenance

work, make sure the safety instructions

are complied with.

Cleaning and maintenance

Problem solving

Proceed with the following checks before calling the Technical Service:

Active charcoal filters (Optional)

When exterior gas extraction is not possible, then the kitchen hood may be set to

purify the air by recycling it through active charcoal filters.

The active charcoal filters have an active life of between three to six months,

depending on the individual conditions of use. These filters cannot be washed nor

regenerated. They must be replaced once their useful life comes to an end.

The manufacturer reserves the right to make changes and corrections to its products as

it deems necessary, without altering their basic characteristics.

Problem Possible cause Solution

The kitchen hood does

not work.

The mains cable is not

connected to the network.

There is no current in the

network.

Connect the mains cable to

the network.

Provide current to the network.

The kitchen hood does

not extract sufficiently

or vibrates.

Filters are saturated with fat.

Obstruction in the air outlet.

Change or clean the active

charcoal and/or metal filters.

Remove the obstruction.

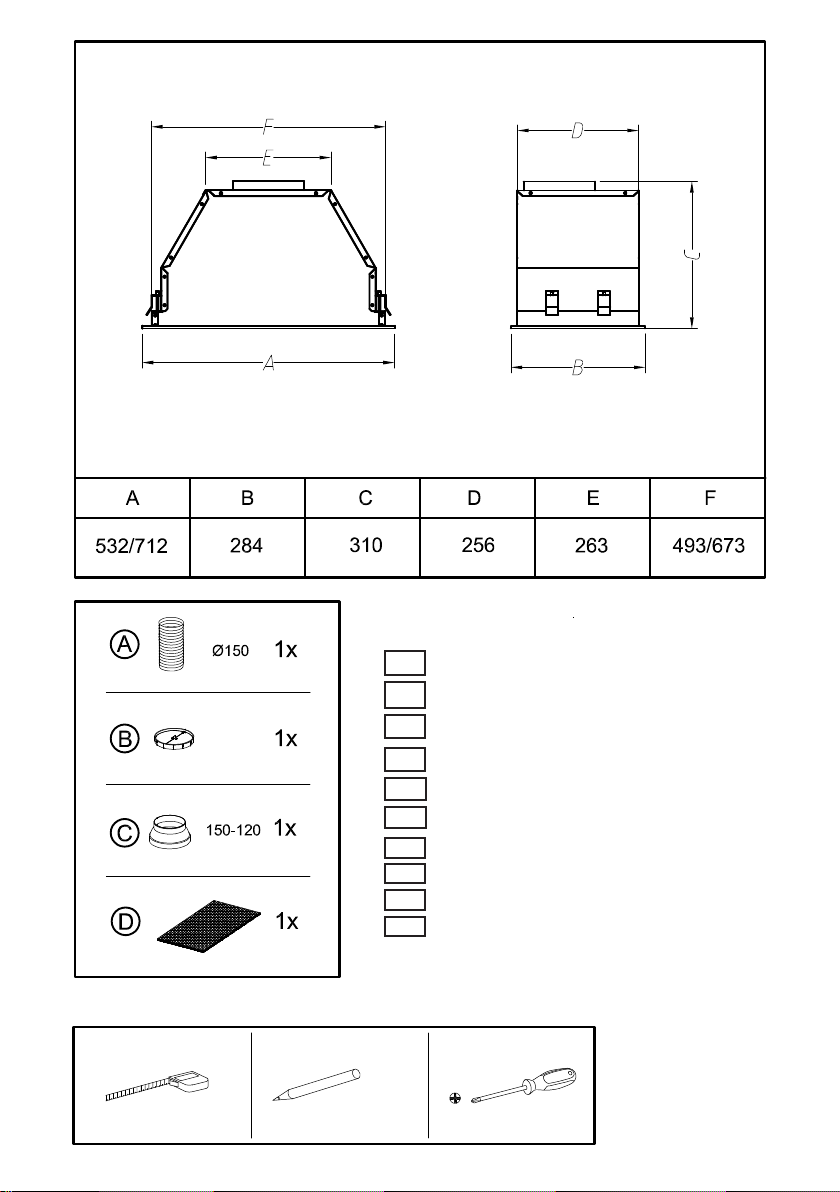

A,D NICHT ENTHALTEN

A,D EJ INGÅR

A,D NON COMPRESO

A,D NÃO INCLUÍDO

A,D PAS INCLU

A,D NOT INCLUDED

A,D НЕ ВКЛЮЧЕНЫ

A,D ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΟΝΤΑΙ

A,D NIET INBEGREPEN

A,D NO INCLUIDO

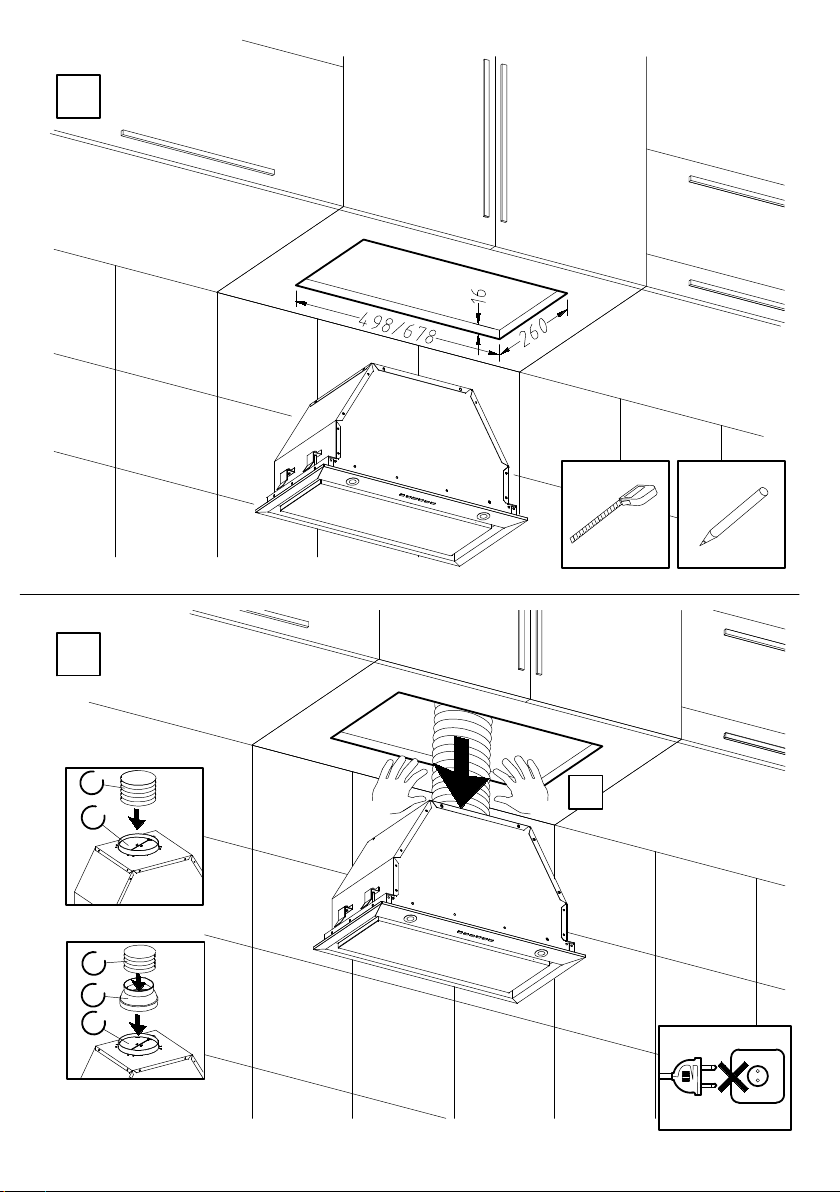

2.1

Ø150

AØ120

C1x

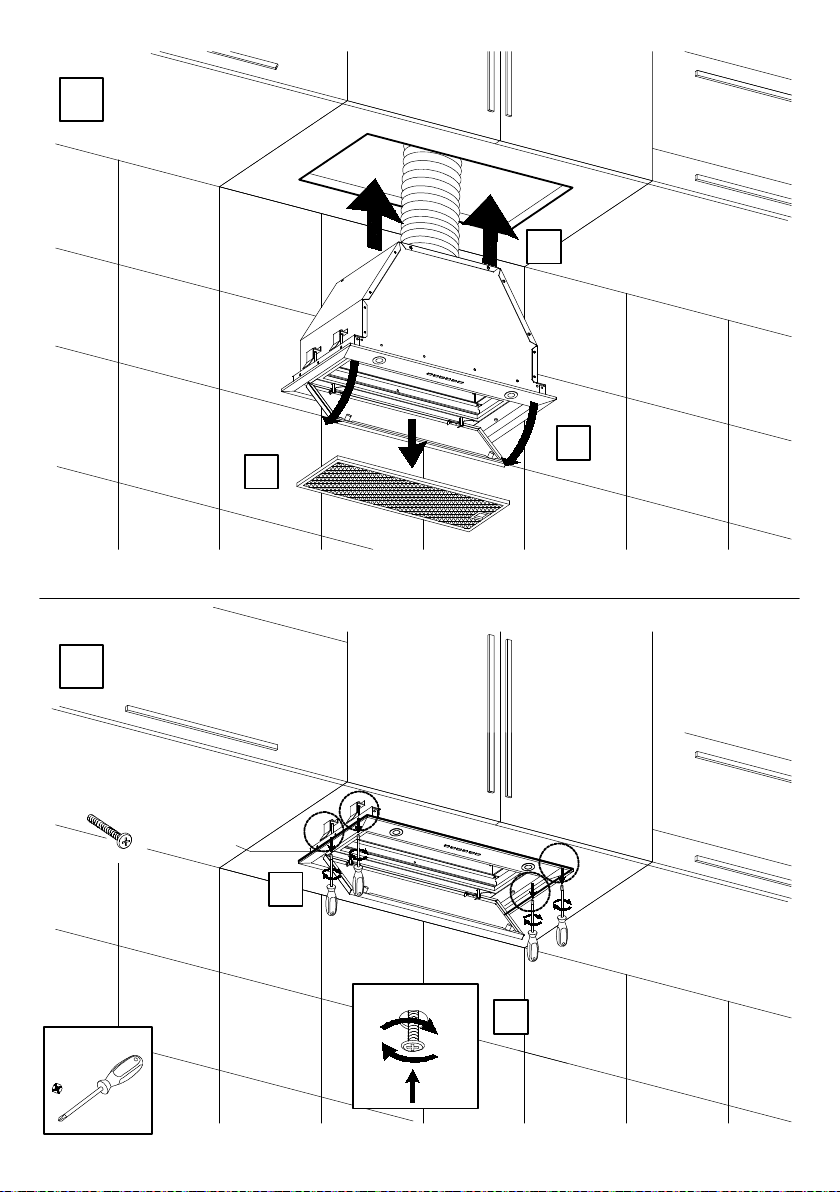

3.1

4.1

3.3

3.2

4.1

M4x60 (4x)

5.1

5.2

5.3

5.1

D5.4
