en Index

Safety instructions 4. . . . . . . . . . . . .

Getting to know your appliance 6. .

Water softener 7. . . . . . . . . . . . . . . .

Filling in the Salt 8. . . . . . . . . . . . . . .

Adding rinse aid 9. . . . . . . . . . . . . . .

Not suitable for the dishwasher 10. .

Arranging crockery, glasses, etc.

in the dishwasher 11. . . . . . . . . . . . . .

Detergents 14. . . . . . . . . . . . . . . . . . .

auto 3in1 15. . . . . . . . . . . . . . . . . . . . .

Programme overview 17. . . . . . . . . .

Washing dishes 18. . . . . . . . . . . . . . .

Additional functions 20. . . . . . . . . . . .

Maintenance and care 21. . . . . . . . . .

Fault finding 23. . . . . . . . . . . . . . . . . .

Customer Service 26. . . . . . . . . . . . .

Information 26. . . . . . . . . . . . . . . . . . .

Installation 27. . . . . . . . . . . . . . . . . . . .

Waste disposal 28. . . . . . . . . . . . . . . .

Safety instructions

Delivery

Immediately check the packaging and

dishwasher for any damage which may

have been caused in transit. Do not use

a damaged appliance, but consult your

supplier.

Please dispose of packaging material

properly:

The corrugated cardboard consists

mainly of waste paper.

The polystyrene moulded parts

have been foamed without any

CFCs.

The polyethylene film (PE) consists

partly of secondary raw material.

The wooden frames (if fitted) are

made of residual wood and are

untreated.

The hoops (if fitted) consist of

polypropylene (PP).

Installation

Install and connect the appliance

according to the installation and

assembly instructions.

The dishwasher must NOT be

connected to the power supply during

installation.

Ensure that the protective conductor

system of the domestic electricity

supply has been installed correctly.

Electrical connection conditions must

correspond with the specifications on

the rating plate of the dishwasher.

If the dishwasher is to be installed

in a high-sided unit, ensure that the unit

is attached properly and also at the

rear.

Built-under and built-in appliances

should always be installed under a

continuous work surface which is

attached to the adjacent cupboards, in

order to ensure that the appliance is

entirely stable.

After the appliance has been installed,

the mains plug should still be easily

accessible.

Not on all models:

The plastic housing on the water input

contains an electrically operated valve.

The connecting wires are inside the

inlet hose. Do not cut through this hose

and do not immerse the plastic housing

in water.

Warning

For safety reasons, if the appliance is not

fitted in a recess, thereby making a side

wall accessible, the door hinge area

should be covered at the side.

(Risk of injury)

Covers are available as optional

accessories from customer services or

specialist stores.

In daily use

Warning

Knives and other utensils with sharp points

must be placed in the baskets either flat or

with the points downwards.

Use the dishwasher only in the

household and only for its designed

purpose, i.e. for washing domestic

dishes.

Do not lean or sit on the open door.

The appliance could tip.

Please note that free-standing

appliances may tip over if the baskets

are overloaded.

The water in the appliance is not

drinking water.

Do not add any solvents to the washing

chamber. Danger of explosion!

Open the door carefully when the

programme is still running. Water could

spray out of the appliance.

To prevent injuries, e.g. caused by

stumbling, open the dishwasher only

briefly in order to load and unload the

dishwasher.

Read and observe the safety

information and instructions for use on

the packaging for cleaning and rinsing

agents.

Children in the household

Do not let infants play or operate the

dishwasher.

Keep cleaning and rinsing agents out of

the reach of infants. These may cause

chemical burns in the mouth, throat and

eyes or asphyxiation.

Keep infants away from the open

dishwasher. It could contain residue of

the cleaning agent.

If the appliance is installed at eye-level,

ensure when opening and closing the

door that children are not caught or

crushed between the appliance door

and the cupboard door situated below.

Child-proof lock*

* some models

Comply with the drawings in the back

of the envelope.

40 Switch on the child-proof lock

41 Open the door with child-proof lock

switched on

42 Switch off the child-proof lock

When the door is open, the child-proof

lock offers no protection.

If a fault occurs

Repairs or other work on the

dishwasher should only be carried out

by a qualified specialist.

The dishwasher must be disconnected

from the electricity supply before any

repairs or other work are started. Pull

the mains plug out of the wall socket or

switch off at the fuse box. Grasp the

plug to remove it from the socket; do

not tug on the cable. Turn the water off

at the tap.

When disposing of old

appliances

Appliances that have reached the end

of their service life should be rendered

inoperable in order to exclude the

possibility of subsequent accidents. Pull

the mains plug out of the wall socket,

cut through the connecting cable and

disable the door lock.

Take the appliance to a designated

waste disposal centre.

Warning

Children could get locked in the appliance

(risk of suffocation) or get stuck in other

positions.

Therefore: Remove the mains plug, cut the

mains wire and set aside. Damage the

door lock so that the door can no longer

be closed.

Getting to know your

appliance

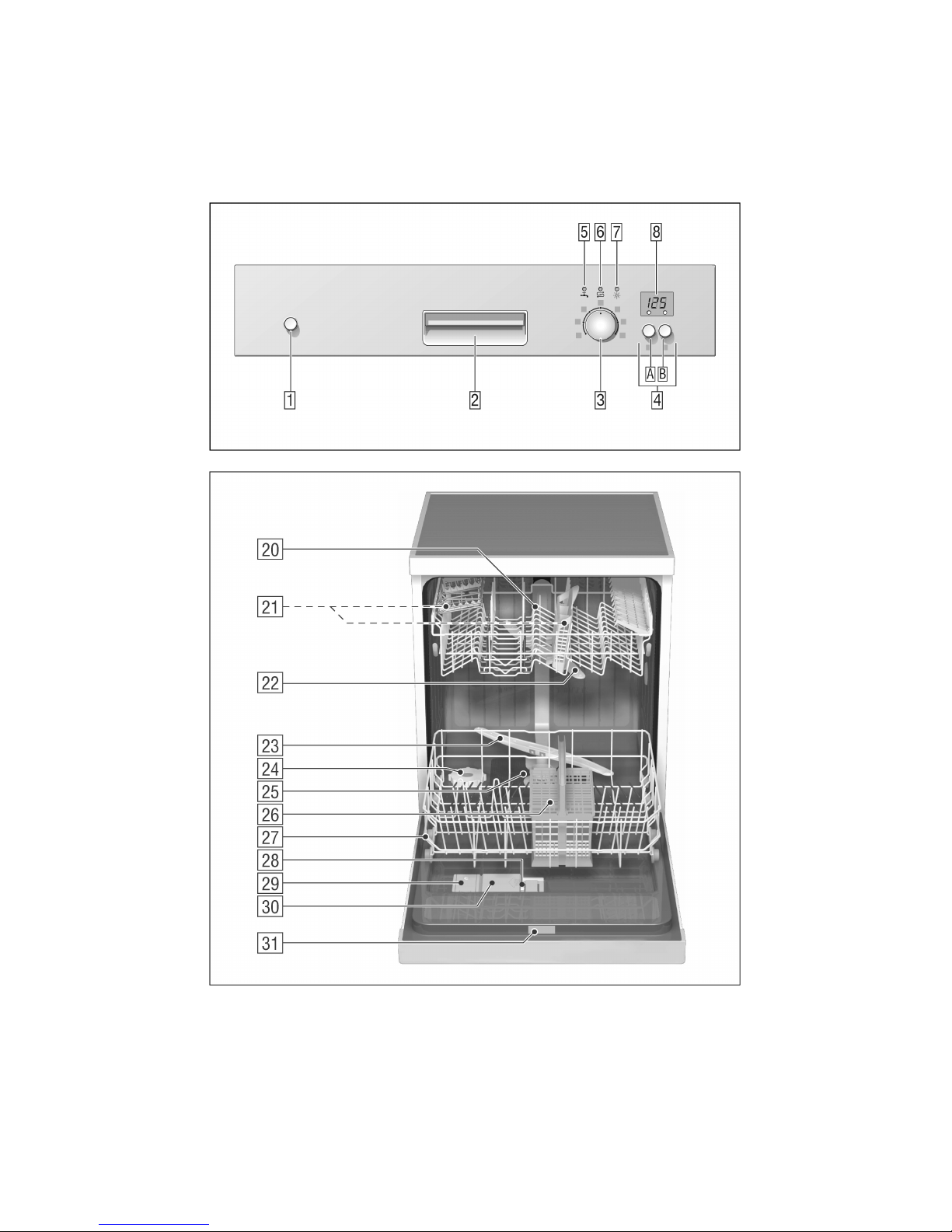

Diagrams of the control panel and the

interior of the appliance can be found

in the envelope at the front.

Individual positions are referred to in

the text.

Control panel

1Main switch

2Door Opener

3Programme selector (retractable*)

4Additional options*

5“Check water supply” display

6Salt refill indicator

7Rinse-aid refill indicator

8Digital display

* some models

Appliance interior

20 Upper basket with additional cup

rack

21 Additional cutlery basket for the

top basket*

22 Top spray arm

23 Bottom spray arm

24 Dispenser for salt

25 Filters

26 Cutlery basket

27 Bottom basket

28 Lock for detergent dispenser

29 Dispenser for rinse aid

30 Detergent dispenser

31 Rating plate

* some models

You will need to purchase the

following before using the

dishwasher for the first time:

– special salt for use in dishwashers

– detergent

– rinse-aid

Only use products, which are suitable for

dishwashers.

Water softener

In order to rinse dishes and glasses

satisfactorily, the dishwasher requires soft

water, i.e. containing little or no lime,

otherwise water stains will be left behind

on crockery and glasses, etc.

If the tap water exceeds a certain level of

hardness, it must be softened, i.e.

decalcified, so that it can be used in the

dishwasher.

This is achieved by adding a special salt

to the water softener inside the

dishwasher.

The water softener, that is the required

amount of salt, is set up according to how

hard the tap water is.

Setting up the water softener

Determine the level of hardness of your

tap water. Your local water company or

service agent can help you with this.

Identify setting from the following water

hardness table.

Water hardness table

Close the door

Rotate the programme selector 3

from the 12 o’clock position by one

notch to the left.

Switch on main switch 1and hold

down for at least 3 sec.

The digital display 8indicates the

current set hardness value and the salt

refill indicator 6flashes

(hardness value has been set to 4

at the factory).

To change the setting: Rotate the

programme selector 3.

You can select a set value between

0 and 7 according to the hardness

of your water.

Switch off the main switch 1.

The chosen setting has now been

stored.

Approx. 4 litres of water are required for

regenerating the water softening system.

The overall water consumption per load

can therefore be increased by between 0

and a maximum of 4 litres according to the

water hardness setting.

Filling in the Salt

Open the screw-type cap of the

compartment 24 .

Warning

Before switching on the appliance for

the first time, pour approx. 1 litre of water

into the salt dispenser.

Then refill with salt (not cooking salt)

until the salt container is full

(max. 1.5 kg). When you refill the salt,

water is being displaced and drains off.

Refill with salt always just before switching

on the appliance in order to prevent

corrosion. As a result, any salt solution

which has run over will be immediately

diluted and flushed out.

Then clean the filling area of salt

residues and screw the compartment

lid back on without tilting the lid.

The LOW SALT indicator 6on the front

panel will light up initially but will extinguish

again after a short period when the salt

solution has become sufficiently

concentrated.

If the set hardness value is , do not add

salt because no salt is used during

operation; the salt refill indicator

is switched off.

Do not pour detergent into the

container for special salt. This

would destroy the water

softener.

Salt refill indicator

As soon as the salt refill indicator 6is lit

on the control panel, refill with salt

immediately before the next rinse cycle.

Depending on the washing frequency and

the hardness setting, the regeneration salt

may not have to be topped up for several

months.

Adding rinse aid

The rinse aid is required for stain-free

utensils and clear glasses.

Use only rinse aid for domestic

dishwashers.

Open the cover on the rinse-aid

dispenser 29 . To do this, press the

mark (1 ) on the cover and

simultaneously lift the cover on the

control plate (2 ).

Carefully pour in the rinse aid to just

below the edge of the filler opening.

Close the lid, ensuring that you hear it

snap closed.

To prevent excessive foam formation

during the next rinse cycle, remove any

rinse aid which has run over with a cloth.

Adjusting the amount of

rinse-aid

The amount of rinse-aid added to the

water can be varied by adjusting the

stepless control. The rinse-aid control has

been set to ”4” in the factory.

Do not alter the setting of the rinse-aid

control unless streaks (turn knob towards

”–”) or water marks (turn knob towards ”+”)

are left on the dishes.

Rinse aid controller

Rinse-aid refill indicator

As soon as the rinse-aid refill indicator

lights up on the control panel 7,

refill with rinse aid.

If using detergent products with integrated

rinse aid, the rinse-aid refill indicator

can be switched off (see “Switching

the rinse-aid refill indicator off and on”

in the “auto 3in1” chapter).

Not suitable for

the dishwasher

The following should not be

cleaned in the dishwasher:

Wooden cutlery and utensils – these

will leach out and become unsightly;

even the utilised stickers are not

suitable for the temperatures which

occur.

Sensitive ornamental glasses, craft

utensil and vases, special antique

or irretrievable utensils. These

ornaments are not dishwasher-proof.

Plastic parts sensitive to hot water.

Copper and tin utensils.

Utensils which are soiled with ash, wax,

lubricating grease or ink.

Absorbent materials such as sponges

and cloths.

Aluminium and silver parts have

a tendency to discolour and fade during

the wash cycle. Even some types of glass

(e.g. crystal glass objects) may turn cloudy

after many wash cycles.

Recommendation:

In future buy utensils which are identified

as dishwasher-proof.

Damage to glassware and other

dishes

Possible causes:

type of glass or manufacturing process

chemical composition of detergent

water temperature and duration of

dishwasher programme.

Suggested remedy:

Use glassware or porcelain dishes that

have been marked ’dishwasher–proof’

by the manufacturer.

Use a mild detergent that is described

as ’kind to dishes’. If necessary, seek

further information from detergent

manufacturers.

Select a programme with as low a

temperature and as short a duration as

possible.

To prevent damage, take glass and

cutlery out of the dishwasher as soon

as possible after the programme has

ended.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Kuppersbusch

Kuppersbusch

Kuppersbusch IGV6509.5 Manual de usuario

Kuppersbusch

Kuppersbusch IG 6508.1 Manual de usuario

Kuppersbusch

Kuppersbusch IG 6406.0E Manual de usuario

Kuppersbusch

Kuppersbusch IG 634 Manual de usuario

Kuppersbusch

Kuppersbusch IGV 6508 Manual de usuario

Kuppersbusch

Kuppersbusch 634 Series Manual de usuario

Kuppersbusch

Kuppersbusch GSV 4500 Manual de usuario

Kuppersbusch

Kuppersbusch IGS 644 Manual de usuario

Kuppersbusch

Kuppersbusch IGVS6607-UL Manual de usuario

Kuppersbusch

Kuppersbusch IGV 6504.3 Manual de usuario

Kuppersbusch

Kuppersbusch IG 6508.2 GE Manual de usuario

Kuppersbusch

Kuppersbusch PGV 6101 Manual de usuario

Kuppersbusch

Kuppersbusch IGV6509 Manual de usuario

Kuppersbusch

Kuppersbusch IGVS6509.5 Manual de usuario

Kuppersbusch

Kuppersbusch IG 678.0 Manual de usuario

Kuppersbusch

Kuppersbusch IG 448 Series Manual de usuario

Kuppersbusch

Kuppersbusch IGVS 6609 Manual de usuario

Kuppersbusch

Kuppersbusch IG 455.1 Manual de usuario

Kuppersbusch

Kuppersbusch Dishwasher Manual de usuario

Kuppersbusch

Kuppersbusch 635 Series Manual de usuario

Kuppersbusch

Kuppersbusch IGV4609.2 Manual de usuario

Kuppersbusch

Kuppersbusch IG 6507.1 E Manual de usuario

Kuppersbusch

Kuppersbusch IG 643.1 Manual de usuario

Kuppersbusch

Kuppersbusch EDW 1001 Series Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
