KTM 125 EXC 2015 Manual

SETUP INSTRUCTIONS 2015

125 EXC EU

125 EXC SIX DAYS EU

200 EXC EU

200 EXC AU

200 XC‑W US

250 EXC EU

250 EXC AU

250 EXC SIX DAYS EU

250 XC‑W US

300 EXC EU

300 EXC AU

300 EXC SIX DAYS EU

300 EXC BR

300 XC‑W US

300 XC‑W SIX DAYS US

Art. no. 3213196en

INTRODUCTION 1

INTRODUCTION

The work described in these setup instructions must be performed before the vehicle is delivered to the customer.

Read the setup instructions in their entirety before beginning work.

Print out the current PDI form found on the KTM DEALER.NET.

These setup instructions were written to correspond to the latest state of this series. We reserve the right to make changes in the inter-

est of technical advancement without at the same time updating this manual.

We shall not provide a description of general workshop methods. Likewise, safety rules that apply in a workshop are not specified here.

It is assumed that the work will be performed by a fully trained mechanic.

All specifications are non-binding. KTM Sportmotorcycle AG specifically reserves the right to modify or delete technical specifica-

tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt

these to local conditions, as well as to stop production of a particular model without prior notice. KTM accepts no liability for delivery

options, deviations from illustrations and descriptions, misprints, and other errors. The models portrayed partly contain special equip-

ment that does not belong to the regular scope of supply.

Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright

owner.

ISO 9001(12 100 6061)

According to the international quality management standard ISO 9001, KTM uses quality assurance processes that lead

to the maximum possible quality of the products.

Issued by: TÜV Management Service

KTM-Sportmotorcycle AG

5230 Mattighofen, Austria

1 MEANS OF REPRESENTATION 2

1.1 Symbols used

The meaning of specific symbols is described below.

Indicates an expected reaction (e.g. of a work step or a function).

Indicates an unexpected reaction (e.g. of a work step or a function).

Indicates a page reference (more information is provided on the specified page).

Indicates information with more details or tips.

Indicates the result of a testing step.

Denotes a voltage measurement.

Denotes a current measurement.

Denotes a resistance measurement.

1.2 Formats used

The typographical formats used in this document are explained below.

Proprietary name Identifies a proprietary name.

Name®Identifies a protected name.

Brand™ Identifies a trademark.

2 SETUP 3

2.1 Unpacking and setting up the vehicle

B02176-10

Packaging 2

–Remove the box and the plastic packaging.

Info

An assistant prevents the motorcycle from falling over.

To avoid damaging the motorcycle during the setup, leave the protective

film on the vehicle until you have finished.

–Remove the separate enclosure and unpack it. Check that the scope of supply

is complete on the basis of the enclosed packing list.

–Have a lift stand available.

Lift stand (54829055000)

–Carefully loosen and remove the tension belt of the footrest mount.

Info

An assistant prevents the motorcycle from falling over.

402050-01

–Together with an assistant, take the vehicle off the palette.

–Position the vehicle on a lift stand.

–Check the vehicle for transport damage.

B02008-10

Package 12

–Remove the box and the plastic packaging.

Info

An assistant prevents the motorcycle from falling over.

To avoid damaging the motorcycle during the setup, leave the protective

film on the vehicle until you have finished.

–Remove the separate enclosure and unpack it. Check that the scope of supply

is complete on the basis of the enclosed packing list.

–Have a lift stand available.

Lift stand (54829055000)

–Together with an assistant, take the vehicle off the palette.

–Position the vehicle on a lift stand.

–Check the vehicle for transport damage.

402051-01

–Install the shock absorber. ( p. 10)

2 SETUP 4

B02183-01

–Route the clutch line with the clutch master cylinder toward the front between

the upper and lower triple clamps.

(EXC, XC‑W)

–Position the fork legs and tighten the screws of the triple clamp.

Guideline

Screw, top triple clamp M8 20 Nm

(14.8 lbf ft)

Screw, bottom triple clamp M8 15 Nm

(11.1 lbf ft)

Info

Grooves are milled into the side of the top end of the fork legs. The

second milled groove (from the top) in the fork leg must be flush

with the top edge of the upper triple clamp.

Position the bleeder screws toward the front.

(SIX DAYS)

–Position the fork legs and tighten the screws of the triple clamp.

Guideline

Screw, top triple clamp M8 17 Nm

(12.5 lbf ft)

Screw, bottom triple clamp M8 15 Nm

(11.1 lbf ft)

Info

The rebound damping is located in the right fork leg REB (red

adjusting screw). The compression damping is located in the left

fork leg COMP (white adjusting screw).

Grooves are milled into the side of the top end of the fork legs. The

topmost milled groove must be flush with the top edge of the upper

triple clamp.

Position the bleeder screws toward the front.

101488-10

–Remove screws . Take off the handlebar clamps.

–Remove screws . Take off the handlebar supports.

–Place the handlebar supports in the required position. Mount and tighten

screws .

Guideline

Screw, handlebar support M10 40 Nm

(29.5 lbf ft)

Loctite®243™

Info

Position the left and right handlebar supports evenly.

B02184-01

–Position the handlebar.

Info

Make sure the cables and wiring are positioned correctly.

–Position the handlebar clamps. Mount and tighten the screws evenly.

Guideline

Screw, handlebar clamp M8 20 Nm

(14.8 lbf ft)

Info

The markings on the handlebar should be at the center of the handlebar

clamps.

Keep the gap widths equal when tightening.

–Position the speedometer and connector board. Mount and tighten screws.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

2 SETUP 5

B02185-01

–Position the controls on the right half of the handlebar.

Info

The routing of the cables can be seen in the figure.

B02186-01

–Position the controls on the left half of the handlebar.

Info

The figure shows how to route the clutch line and wiring harness.

B01750-01

(All EXC models)

–Remove the fuel tank. ( p. 9)

–Disconnect the plug-in connector from the main wiring harness.

–Connect the plug-in connector of the turn signal wiring harness with the plug-in

connector of the main wiring harness.

–Position the turn signal wiring harness against the main wiring harness and

secure with cable binders.

–Install the fuel tank. ( p. 10)

–Position the turn signal indicator lamp in the speedometer holder.

B02188-10

–Insert the black and violet cables of bulb included in the separate enclosure

into the socket and position it in the turn signal indicator lamp.

–Secure the turn signal relay with a cable tie and plug in the connector.

–Position the turn signal on each side and mount and tighten nuts .

–Connect the plug-in connector of the right turn signal with the connector

marked green on the wiring harness.

–Connect the plug-in connector of the left turn signal with the connector

marked red on the wiring harness.

401382-01

(EXC EU/AU, 300 EXC BR)

–Mount the turn signal switch and connect the plug-in connector with the wiring

harness.

2 SETUP 6

402148-01

(SIX DAYS EU)

–Mount the turn signal switch and connect the plug-in connector with the wiring

harness.

B01747-11

(All XC-W models)

–Connect pull switch with the yellow and white cables.

–Install the front fender. ( p. 13)

–Correctly mount the fuel tank breather.

–Install the front wheel. ( p. 11)

–Refit the headlight mask with the headlight. ( p. 14)

B02187-01

–Mount the handlebar cushion.

800042-10

–Mount the footrests with the springs and pins. Secure the pins using the washers

and cotter pins.

Pliers for footrest spring (58429083000)

B00908-01

(All EXC models)

–Mount the license plate holder with the license plate lamp, turn signals, and

reflector.

–Connect the electrical components.

–Connect the connector of the right turn signal with the connector that is marked

green.

–Connect the connector of the left turn signal with connector that is marked red.

2 SETUP 7

800035-10

(All 200/250/300 EU/AU/US models)

Warning

Risk of injury Battery acid and battery gases cause serious chemical

burns.

–Keep batteries out of the reach of children.

–Wear suitable protective clothing and goggles.

–Avoid contact with battery acid and battery gases.

–Keep sparks and open flames away from the battery. Only charge in

well-ventilated rooms.

–In the event of skin contact, rinse with large amounts of water. If

battery acid gets in the eyes, rinse with water for at least 15 minutes

and contact a physician.

–Fill the battery.

Info

Read the notes in the battery package.

–Recharge the battery. ( p. 12)

–Install the battery. ( p. 13)

B00097-01

–Unpack and mount the KTM PowerParts included in the delivery (optional).

Info

Read the accompanying KTM PowerParts fitting instructions.

–Apply the label included in the delivery (optional).

101037-01

(All EXC models)

–Mount the mirror clamps on both sides.

B00909-01

–Mount and tighten the rear mirror on both sides.

–Mount the reflector.

–Set kilometers or miles. ( p. 16)

–Set the speedometer functions. ( p. 16)

–Set the clock. ( p. 17)

–Position all controls in their exact positions on the handlebar. Tighten all screws.

–Refuel. ( p. 15)

–Print out the current PDI form found on KTM DEALER.NET and perform the

pre-delivery inspection.

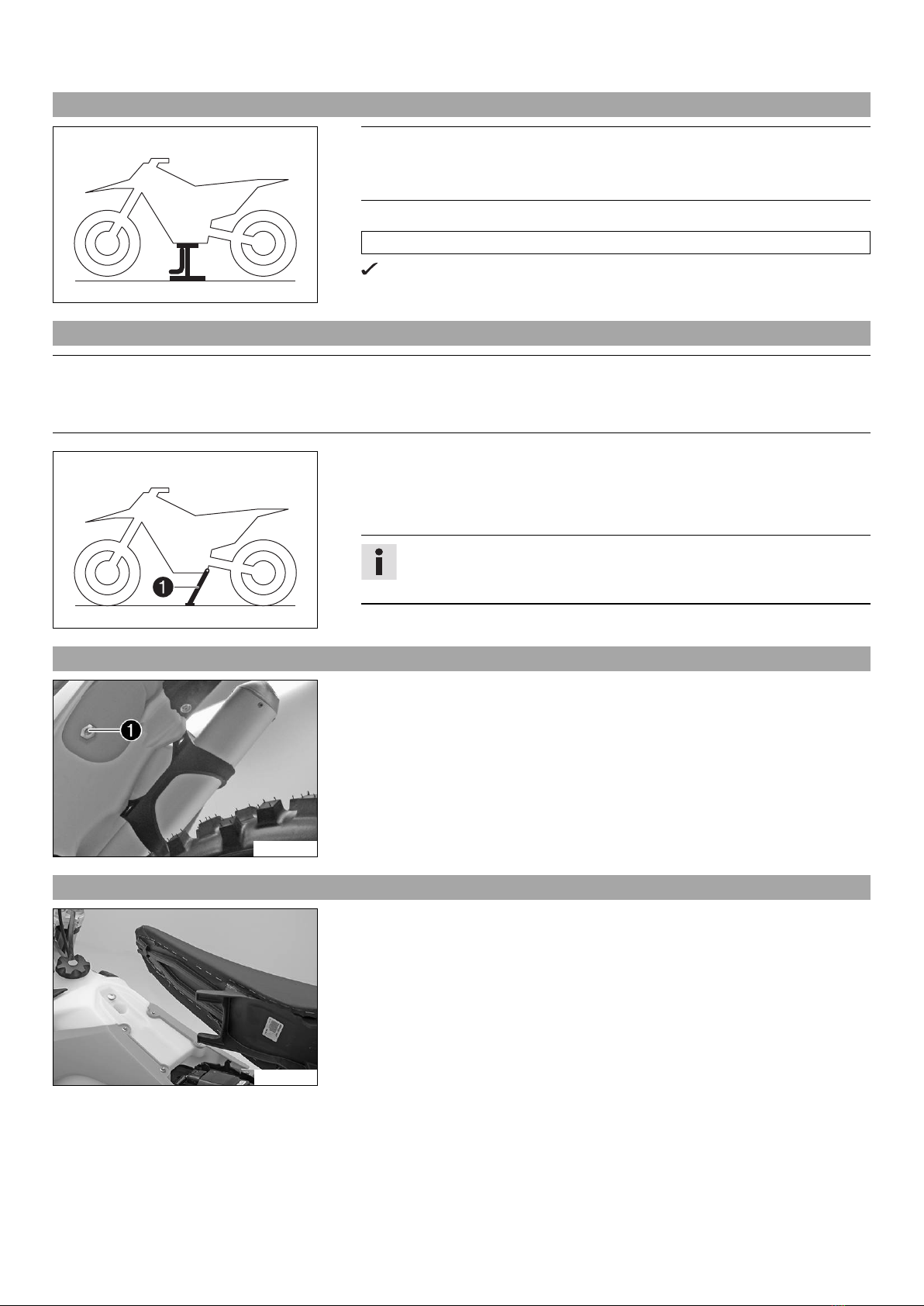

3 WORK 8

3.1 Raising the motorcycle with the lift stand

401942-01

Note

Danger of damage The parked vehicle may roll away or fall over.

–Always place the vehicle on a firm and even surface.

–Raise the motorcycle at the frame underneath the engine.

Lift stand (54829055000)

The wheels are no longer in contact with the ground.

–Secure the motorcycle against falling over.

3.2 Removing the motorcycle from the lift stand

Note

Danger of damage The parked vehicle may roll away or fall over.

–Always place the vehicle on a firm and even surface.

401943-10

–Remove the motorcycle from the lift stand.

–Remove the lift stand.

–To park the motorcycle, press side stand to the ground with your foot and lean

the motorcycle on it.

Info

When you are riding, the side stand must be folded up and secured with the

rubber band.

3.3 Removing the seat

B00817-10

–Remove screw . Lift up the seat at the rear, pull it back and then remove from

above.

3.4 Mounting the seat

602715-01

–Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear

and simultaneously push forward.

–Make sure that the seat is correctly locked in.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Motocicleta de KTM

KTM

KTM 790 Adventure 2019 Manual de usuario

KTM

KTM SX-E 5 Manual

KTM

KTM 990 ADVENTURE R EU Manual de usuario

KTM

KTM 1190 ADVENTURE R Manual de usuario

KTM

KTM 350 EXC-F 2021 Manual de usuario

KTM

KTM 450 SMR 2021 Manual de usuario

KTM

KTM 450 EXC-F Six Days 2017 Manual

KTM

KTM 250 EXC-F EU 2012 Manual

KTM

KTM 250 EXC-F Six Days 2019 Manual

KTM

KTM 250 sxf 2016 Instrucciones de funcionamiento

KTM

KTM 350 XC-F Manual de usuario

KTM

KTM 390 ADVENTURE 2022 Manual

KTM

KTM 350 EXC-F 2023 Manual de usuario

KTM

KTM 400 EXC RACING Manual de usuario

KTM

KTM 85 SX Manual de usuario

KTM

KTM Freeride 250 R 2016 Manual

KTM

KTM 2010 990 Super Duke R Manual de usuario

KTM

KTM 85 SX 2021 Manual de usuario

KTM

KTM 65 SX 2001 Guía del usuario

KTM

KTM F8103S4 Manual de usuario

KTM

KTM 250 EXC-F 2022 Manual

KTM

KTM 250 EXC F SIX DAYS 2023 Manual de usuario

KTM

KTM 250 XC-F USA Manual de usuario

KTM

KTM 400LC4 Guía del usuario

Manuales populares de Motocicleta de otras marcas

OHVALE

OHVALE GP-0 Manual de lista de piezas

Yamaha

Yamaha Star XV19CTSZ 2009 Manual de usuario

HYOSUNG

HYOSUNG ST7 Manual de usuario

Husqvarna

Husqvarna FC 250 2016 Manual de usuario

Ducati

Ducati SCRAMBLER 800 Manual de instrucciones

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manual de usuario

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manual de usuario

Yamaha

Yamaha 2006 YZF-R1V Manual de usuario

Fantic

Fantic Enduro 125 Manual de usuario

Ducati

Ducati Supersport 750 desmodue Manual de usuario

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manual de instrucciones

Yamaha

Yamaha XVS650A Manual de usuario

Yamaha

Yamaha YZF-R6T(C) Manual

Ducati

Ducati 748 monoposto strada Manual de usuario

ATK

ATK 1988 250 Manual de usuario

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manual de usuario

Triumph

Triumph Thunderbird Manual de usuario

Yamaha

Yamaha 2006 FJR1300A Manual de usuario
