Kraus Oletto KPF-2820 Manual de usuario
Oletto™Single Handle Pull Down Kitchen Faucet
KPF-2820
KPF-2821
INSTALLATION GUIDE
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. SEP 01, 2020
Congratulations on the purchase of your new
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / customerservice@kraususa.com
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
1
Prior to Installation:
•Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-775-
0703 for a replacement
•
•Pre-drilled countertop hole size requirement: 1-3/8”(min)
•Max countertop thickness: 3”

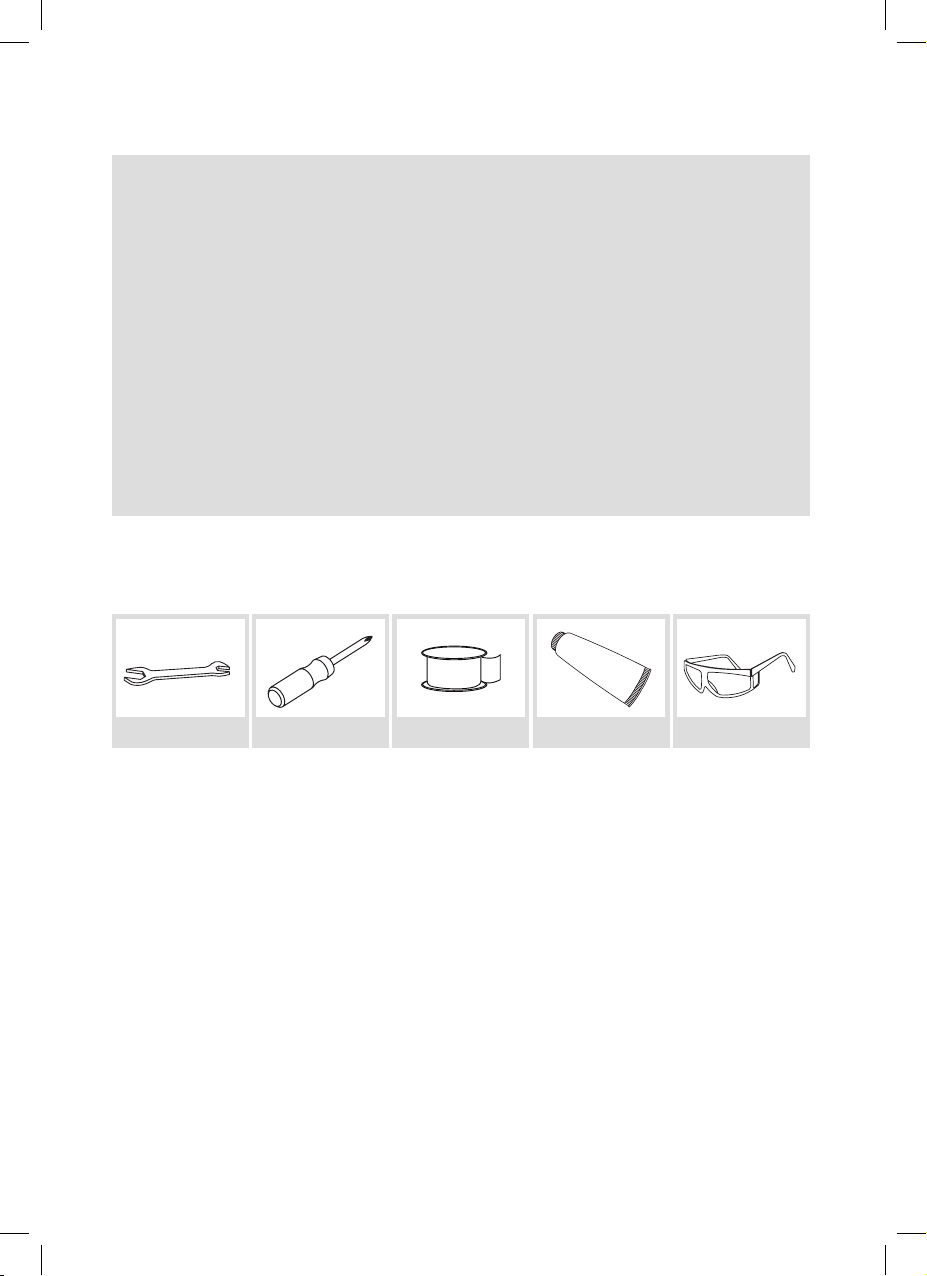

Tools you will need:
13
Wrench Phillips Screwdriver Safety Goggles
Silicone Sealant
(optional)
Pipe Tape
2
Turn o the hot and cold water lines at the angle stops and turn on the old faucet
to release any built-up pressure
3
A. Faucet Body
C. Rubber Washer
D. Metal Washer
F. Screws
A

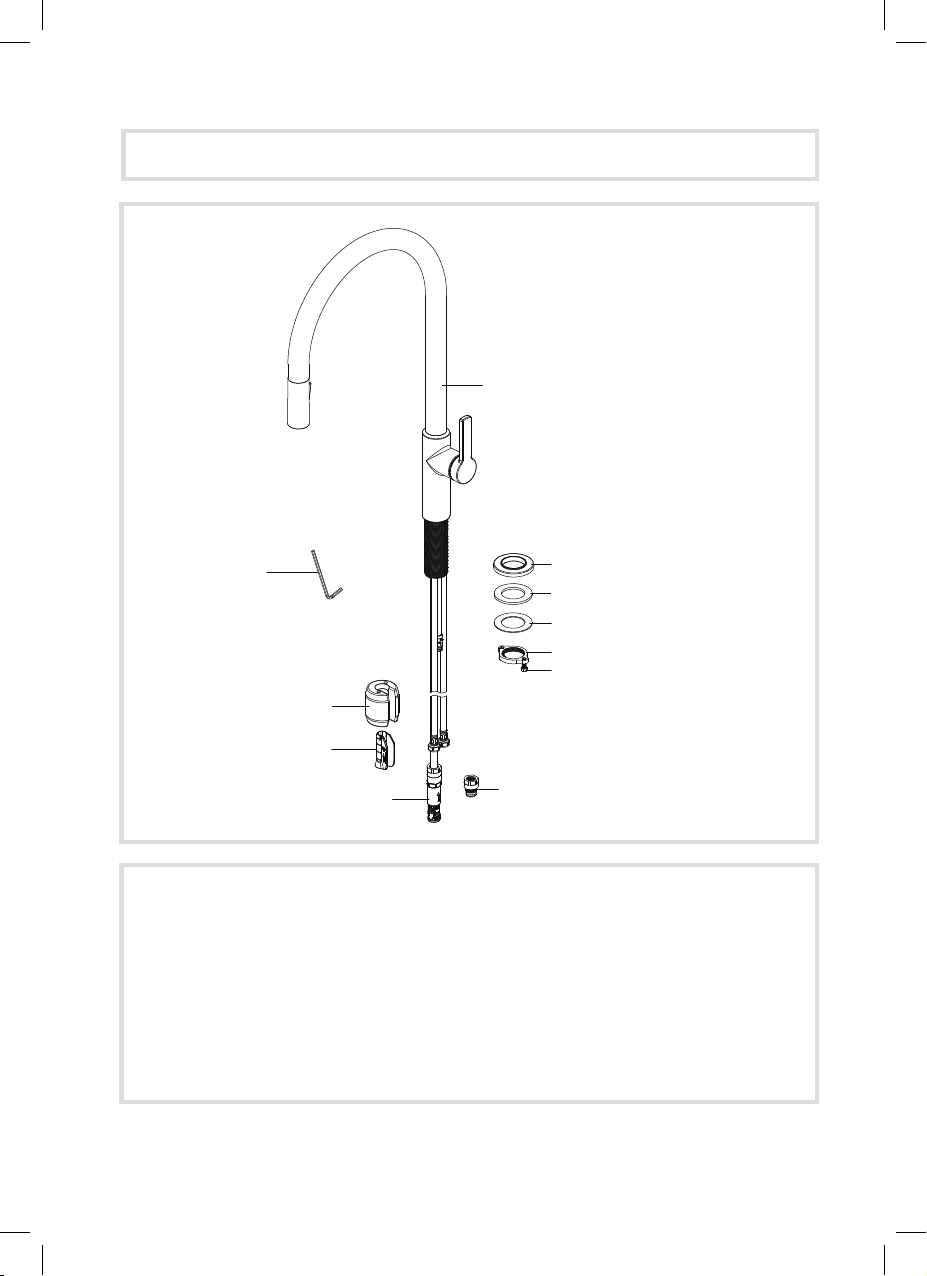

Diagram and Parts List
G. Weight
K
H. Weight Clip
B
B. Flange
E. Mounting Nut
C
D
E
F
J
G
H
I
I. Quick Connector
J. 2.2GPM Flow Restrictor (BLACK)
K. Hex Wrench
4

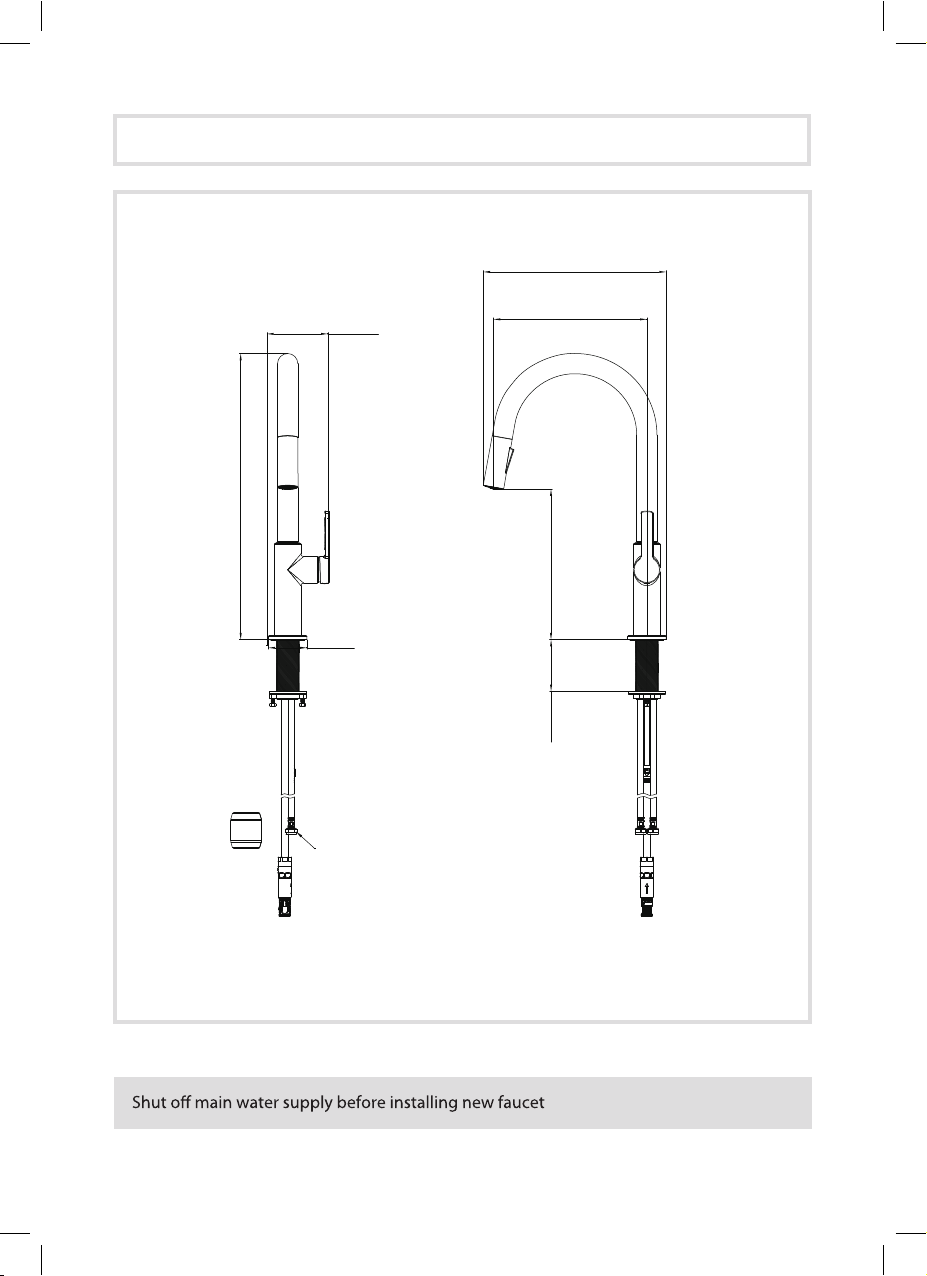

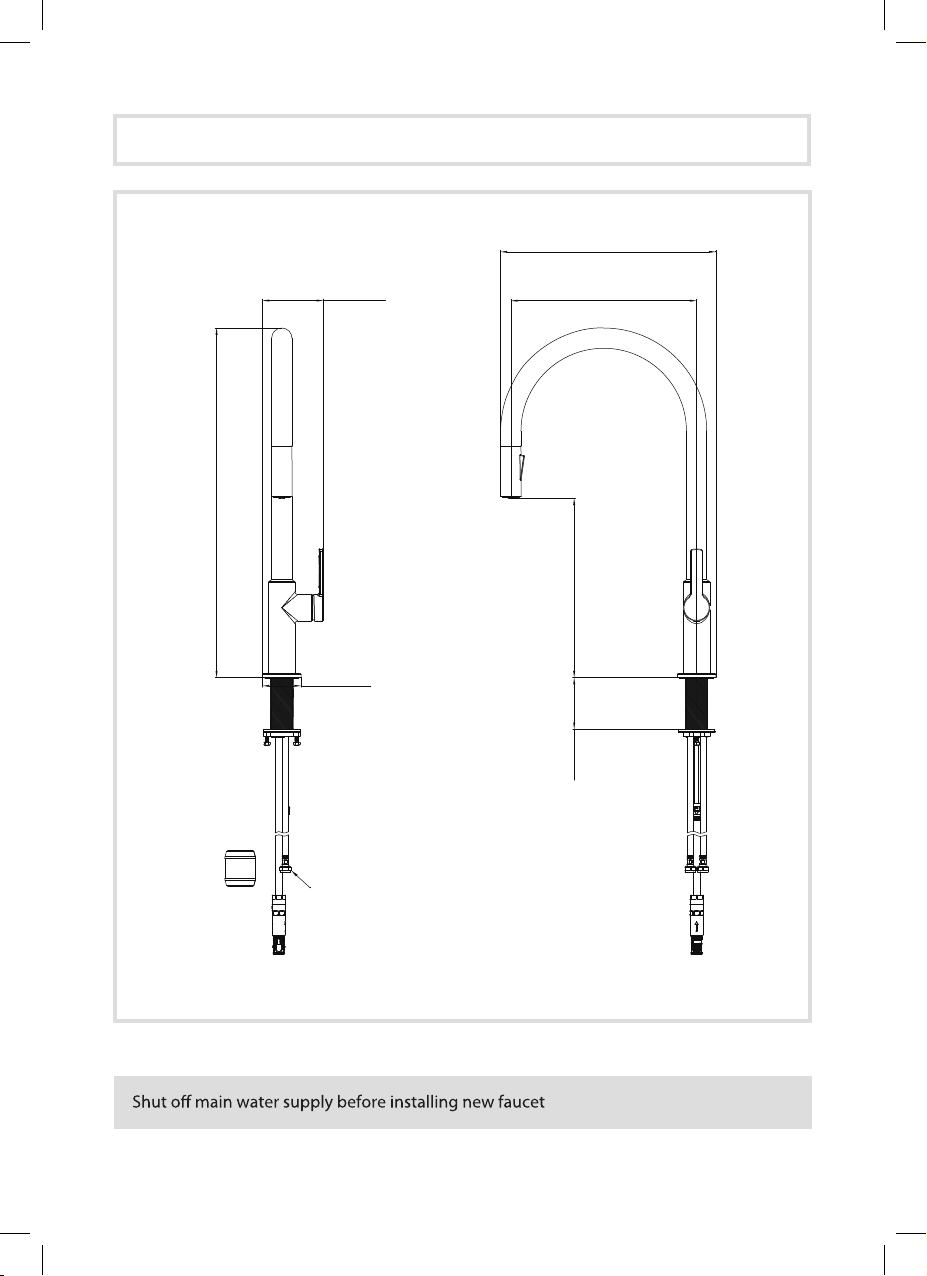

Faucet Dimension (For KPF-2821)
Installer Tip:
3/8” compression
Ø2 1/4"
[57.0mm]
10 7/8"
[275.0mm]
10 1/2"
[265.5mm]
20 3/8"
[517.6mm]
3"
[76.5mm]
3 1/2"
[90.1mm]
12 1/2"
[318.9mm]
5
Faucet Dimension (For KPF-2820)
Installer Tip:
3/8” compression
Ø2 1/4"
[57.0mm]
16 5/8"
[423.7mm]
3 1/2"
[90.1mm]
8 7/8"
[227.0mm]
10 5/8"
[270.7mm]
8 3/4"
[222.9mm]
3"
[76.5mm]
F

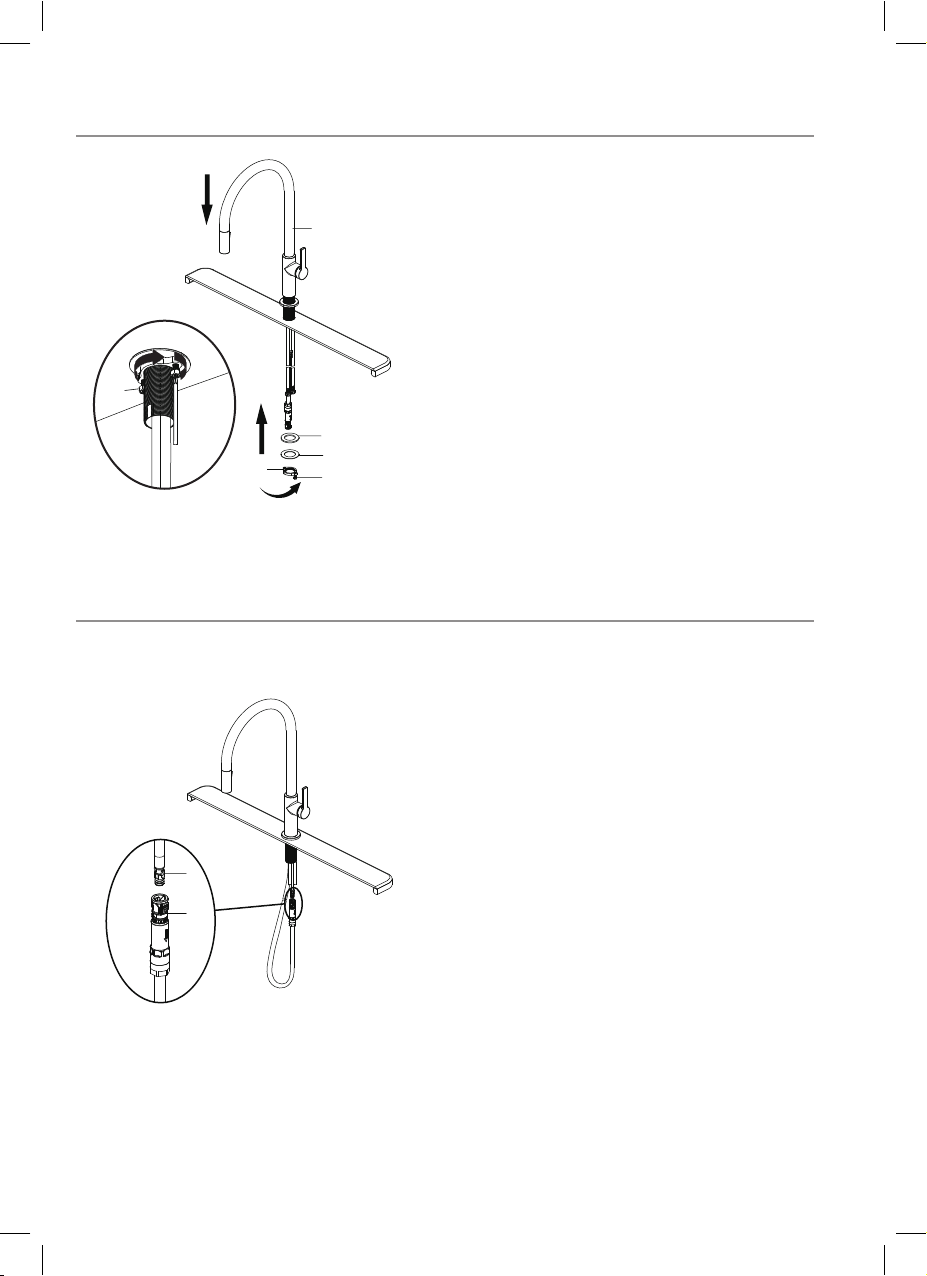

Step 1: Installing the faucet
Shut o the water supply. Place faucet (A)
through the hole in countertop.
Secure the faucet (A) to the countertop using
the rubber washer (C), metal washer (D) and
mounting nut (E) provided. Tighten screws (F).
Step 2: Securing the faucet assembly
Push the quick connector (I) rmly upward
and attach it to the receiving block (a). Pull
down moderately to ensure the connection
has been made.
6
C
D
F
A
E
a
I

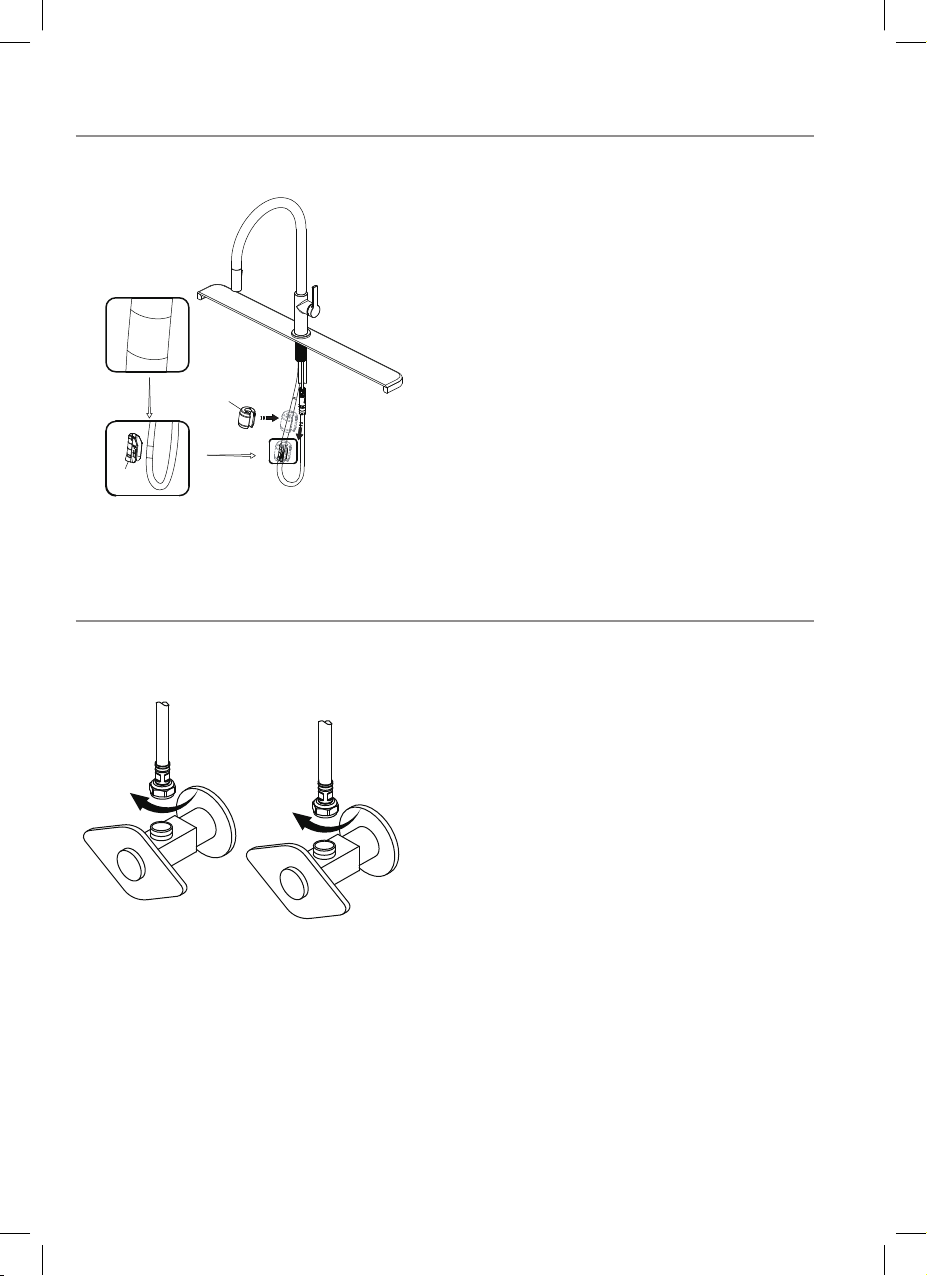

Step 3: Securing the faucet assembly
Install the weight clip (H) at the point of
the hose marking "weight here". Insert
the weight (G) onto the weight clip (H)
by sliding it down onto the weight clip (H).
Step 4: Connect waterlines to main valve
7
Attach waterlines to angle stops
and tighten until snug. Turn on angles
stops and check for leaks (DO NOT TURN
FAUCET ON)
Weight
here
Weight
here
H
G
8

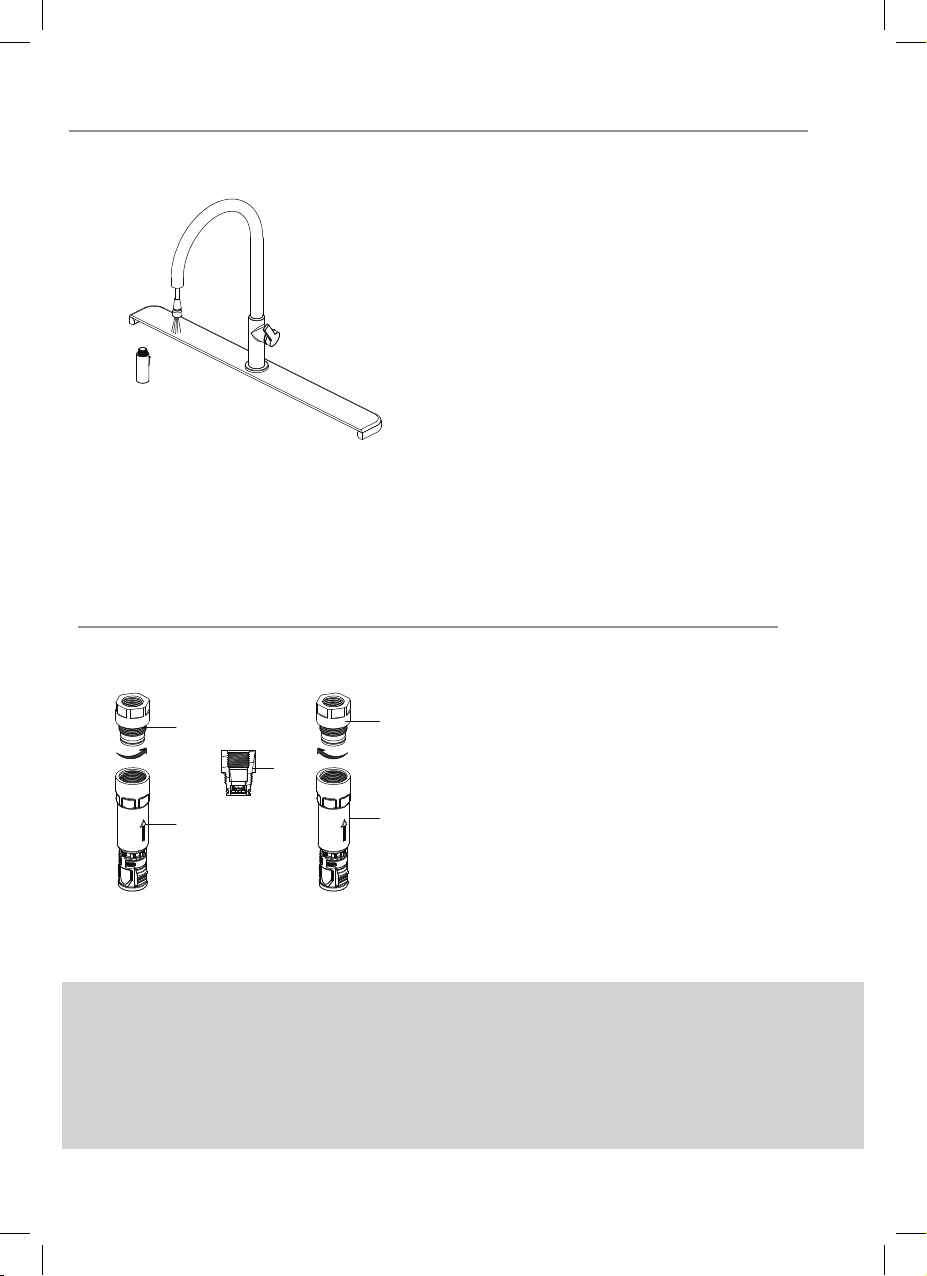

Step 5: Flush faucet
Step 6: Flow Regulator Replacement
This faucet ships with a (WHITE)1.8 GPM
ow restrictor installed. An optional
(BLACK) 2.2 GPM ow restrictor is also
included in the box.
Flow Rate Modication:
1. Disconnect the quick connect (2) and
unthread the (1-WHITE) ow restrictor
2. Replace with the 1.8 GPM restrictor
(1-WHITE) with the 2.2 GPM restrictor
(1-BLACK).
3. Reinstall the quick connect assembly.
Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into
the sink and turn the faucet on to the warm
position where it mixes hot and cold water.
Flush the water lines for one minute. This
Fushesaway any debris that could cause
damage to internal parts. Check for leaks.
Re-tighten any connections if necessary, but
do not overtighten. Reinstall the spray head
by hand tightening it back onto the spray
hose.
After installation is completed, turn on the
hot and cold water supplies. Check for leaks.
NOTE: In compliance with CEC standards, this faucet is designed with a 1.8 gpm ow
rate. At your discretion, you may modify the product with the included 2.2 gpm
restrictor. Please note that doing so will remove the capability of this product to meet
specic low-ow standards. Kraus is not liable for any alterations made to the product
post-sale, and highly advises that you consult with your local or statewide plumbing
enforcement agency prior to any modication.
1
2
1
2
1
9

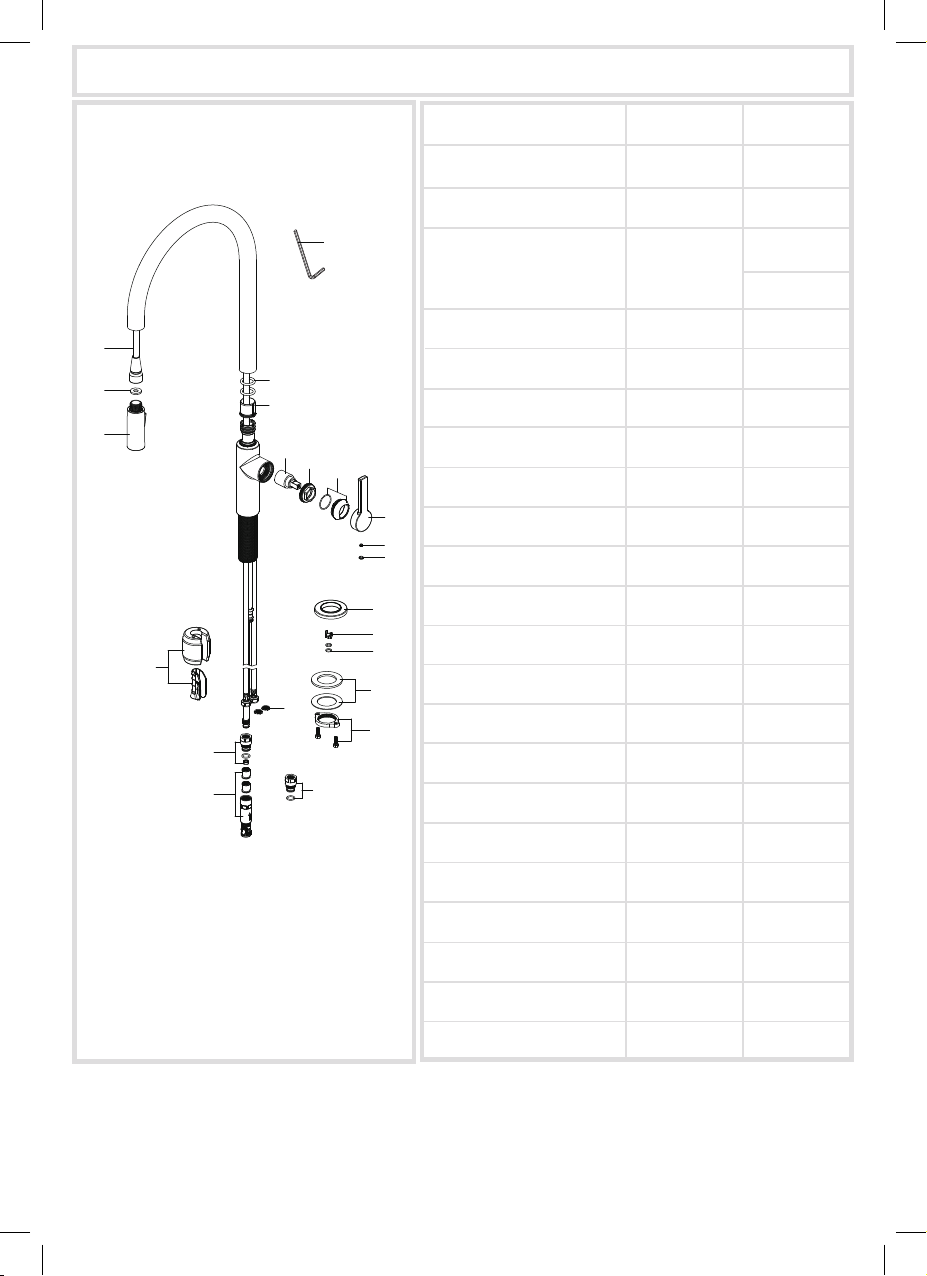

Replacement Parts
1. Sprayer Head
Replacement Parts List Part #
2. Sprayer Washer
3. Sprayer Hose
5. Inverter
6. Cartridge
7. Bonnet Nut
9. Handle
10. Set Screw
11. Cover Botton
Finish / Color
KP27211
KP27069
KP27202
KP27203
KP27204
KP27001
KP27207
KP27208
KP27233
(For KPF-2821)
3
1
11
12
13
8. Cap & O-ring
4. O-ring KP27210
12. Flange & Washer
KP27002
22
SFS, MB,
SFACB, BB*
KP27205
GR, BL*
13. Block KP27073
*Denotes faucet component color options:
SFS - Spot Free Stainless Steel ; MB - Matte Black; SFACB - Spot Free Antique Champagne Bronze
GR - Grey; BL - Black; BB - Brushed Brass; Grey hose with Spot Free Stainless Steel (GRSFS);
Black hose with Matte Black (BLMB); Black hose with Brushed Brass (BLBB);
Black hose with Spot-Free Antique Champagne Bronze (BLSFACB)
SFS, MB,
SFACB, BB*
14. O-ring
15. Rubber & Metal Washer
KP27092
16. Mounting Nut & Screw
KP27028
KP27079
SFS, MB,
SFACB, BB*
17. Weight & Clip Assembly
18. Filter Washer
KP27212
19. 1.8GPM Flow Restrictor
KP27167
KP27074-WHWHITE
SFS, MB,
SFACB, BB*
1
678
9
10
11
12
13
14
15
16
17
19
20 21
2
3
4
5
18
20. Quick Connector
Assembly
21. 2.2GPM Flow Restrictor
KP27090
22. Hex Wrench
KP27075-BL
KP27020
BLACK
GRSFS, BLMB,
BLSFACB, BLBB*
KP27209
(For KPF-2820)
