KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

TP-576

HDMI/CAT 5 Line Driver

P/N: 2900-000760 Rev 4

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Using Twisted Pair Cable 5

3.2 About the Power Connect™ Feature 5

3.3 Defining the TP-576 HDMI/CAT 5 Line Driver 6

4Connecting the TP-576 7

4.1 Connecting to the TP-576 via RS-232 10

4.2 Connecting an IR Emitter/Sensor 10

5Operating the TP-576 11

5.1 Controlling via RS-232 11

5.2 Controlling via Infrared 12

5.3 Wiring the TP LINE IN / LINE OUT RJ-45 Connectors 15

5.4 Acquiring the EDID 16

5.5 Disabling/Enabling Deep Color Support 17

6Default EDID 18

7Technical Specifications 19

8Default Communication Parameters 20

9Kramer Protocol 2000 21

Figures

Figure 1: TP-576 HDMI/CAT 5 Line Driver 6

Figure 2: Connecting the TP-576 HDMI/CAT 5 Line Driver 9

Figure 3: TP-576 RS-232 Signals 11

Figure 4: TP-576 IR Control –Example I 12

Figure 5: TP-576 IR Control –Example II 13

Figure 6: TP-576 IR Control –Example III 14

Figure 7: TP PINOUT 15

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer TP-576 HDMI/CAT 5 Line Driver,

which is ideal for the following typical applications:

Home theater, presentation and multimedia applications

Rental and staging

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer TP-576 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

You must use shielded twisted pair (STP) cabling with the TP-576,

(refer to Section 3.1 for further details).

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Overview

3 Overview

The TP-576 is a twisted pair line driver for HDMI, bidirectional RS-232 and infrared

signals. The TP-576 receives an HDMI signal either from a local HDMI source or

from a transmitter (for example, the Kramer TP-573) via the LINE IN RJ-45

connector. The TP-576 decodes these input signals to the local outputs and

simultaneously transmits them to a TP receiver (for example, the TP-574) which

converts them back to HDMI, RS-232 and infrared signals.

Using the TP-576, you can pass via the twisted pair cable:

EDID (Extended Display Information Data) and HDCP signals between the

TP-573 and TP-574

HPD (Hot Plug Detect) signals from the display device to the source

The TP-576 features:

6.75Gbps (2.25Gbps per graphic channel, HDMI); 4.95Gbps (1.65Gbps per

graphic channel, twisted pair inputs and outputs)

Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions.

An RS-232 baud rate of up to 38.4kbps

HDTV compatibility and HDCP compliance

Bidirectional RS-232 and IR interfaces. The IR input/output transmits and

receives IR commands over CAT 5 cable between the transmitter and

receiver

Compatible with a Kramer transmitter and via a Kramer external remote receiver:

C-A35M/IRR or C-A35M/IRE or C A35M/2IRE

A system range of up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on

shielded BC-DGKat524 cable; 90m (295ft) at 1080i, or up to 70m (230ft) at

1080p on shielded BC-DGKat623 cable; 100m (330ft) at 1080i or up to 90m

(295ft) at 1080p on shielded BC-DGKat7a23 cable

Note that the transmission range depends on the signal resolution, graphics card and

display used. The distance using non-Kramer CAT 5, CAT 6 and CAT 7a cables may

not reach these ranges

Use only shielded cables with the TP-576 in which the cable

Ground shielding must be connected/soldered to the shield of both

RJ-45 connectors

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Overview

HDMI support for Deep Color (on the HDMI input), x.v.Color™, HDMI

Uncompressed Audio Channels, Dolby TrueHD, DTS-HD

3D pass-through

The Power Connect System™ where a single connection to the TP-576

powers the transmitter, receiver and line driver units

The ability to read and store, in non-volatile memory, the default EDID, or the

EDID block from either or both of the output display devices, so it can then

provide the EDID information to the HDMI sources even if the display device

is not connected

LEDs indicating the selected input and active output LED indicators

The TP-576 is 12V DC fed and is housed in a MegaTOOLS® enclosure where two

units can be rack mounted side-by-side in a 1U rack space with the optional

RK-T2B rack adapter.

3.1 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the

Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23

(CAT 7a 23 AWG cable). These specially built cables significantly outperform

regular CAT 5/CAT 6/CAT 7a cables.

The TP-573 / TP-574 cannot work with unshielded cables.

3.2 About the Power Connect™ Feature

The Power Connect™ feature here means that the TP-576 unit can power both

the transmitter and receiver when they are within 270 feet (90 meters) from the

TP-576. The Power Connect™ feature applies as long as the cable can carry

power. The distance does not exceed 90 meters on standard CAT 5 cable, for

longer distances, heavy gauge cable should be used.

CAT 5 cable is still suitable for the video/audio transmission, but not for feedingthe power at

these distances.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Overview

3.3 Defining the TP-576 HDMI/CAT 5 Line Driver

This section defines the TP-576.

Figure 1: TP-576 HDMI/CAT 5 Line Driver

Feature

Function

IR Receiver

The yellow LED lights when receiving signals from the

infrared remote control transmitter

EDID SETUP Button

Press briefly to determine the type of EDID stored in the

non-volatile memory

Press and hold to select the desired EDID setup and then

release to acquire EDID (see Section 5.4)

INPUT SELECT Button

Press to select the input. The relevant IN LED illuminates

IN 1 LED

Illuminates when input 1 is selected

IN 2 LED

Illuminates when input 2 is selected

OUT 1 LED

Illuminates when output 1 is connected and active

Flashes when the monitor does not support HDCP

This LED also illuminates or flashes during EDID setup

(see Section 5.4)

OUT 2 LED

Illuminates when output 2 is connected and active

Flashes when the monitor does not support HDCP

ON LED

Illuminates when receiving power

INPUT 1 HDMI Connector

Connects to the HDMI source

INPUT 2 RJ-45 Connector

Connects to the CAT 5 IN RJ-45 connector on the TP-573

or TP-571

OUTPUT 1 RJ-45 Connector

Connects to the CAT 5 IN RJ-45 connector on the TP-574

or TP-572+

OUTPUT 2 HDMI Connector

Connects to the HDMI acceptor

RS-232 9-pin D-sub Connector

Connects to a PC or other controller

REMOTE IR 3.5mm Mini Jack

Connects to an infrared receiver/emitter

Compatible with a Kramer transmitter and via a Kramer

external remote IR receiver: C-A35M/IRR or

C-A35M/IRE or C A35M/2IRE

12V DC

+12V DC connector for powering the unit

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

TP-576 - Connecting the TP-576

4 Connecting the TP-576

Always switch off the power to each device before connecting it to your

TP-576. After connecting your TP-576, connect its power and then

switch on the power to each device.

To connect the TP-576 together with the TP-573 HDMI/RS-232/IR Line

Transmitter and the TP-574 HDMI/RS-232/IR Line Receiver, as illustrated in the

example in Figure 2, connect the following:

On the TP-573 connect:

1. An HDMI source (for example, a DVD player) to the HDMI IN connector.

2. An IR sensor or emitter to the IR 3.5mm mini jack connector (see

Section 4.2).

3. A PC to the RS-232 9-pin D-sub connector.

Alternatively, you can connect an RS-232 controllable device to the RS-232

port of the TP-573 and a PC to the RS-232 port of the TP-574.

4. A CAT 5 or CAT 6 cable to the LINE OUT RJ-45 twisted pair connector.

On the TP-576 connect:

1. An HDMI source (for example, a DVD player) to the HDMI INPUT 1

connector.

2. The CAT 5 or CAT 6 cable from the TP-573 to the INPUT 2 RJ-45 twisted

pair connector (to power the TP-576 as well as the TP-573 and TP-574).

3. An IR sensor or emitter to the REMOTE IR 3.5mm mini jack connector (see

Section 4.2).

4. The 12V DC power supply to the TP-576 (not shown in Figure 2) (to power

the TP-576 as well as the TP-573 and TP-574)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Otros manuales para TP-576

Tabla de contenidos

Otros manuales de Equipo de grabación de Kramer

Kramer

Kramer DSP-62-UC Manual de usuario

Kramer

Kramer DSP-1 Manual de usuario

Kramer

Kramer PT-102VN Manual de usuario

Kramer

Kramer VS-12DPIR Manual de usuario

Kramer

Kramer FC-404NET Manual de usuario

Kramer

Kramer DigiTOOLS 6808 Manual de usuario

Kramer

Kramer RC-3TBU Manual de usuario

Kramer

Kramer DSP-62-AEC Manual de usuario

Kramer

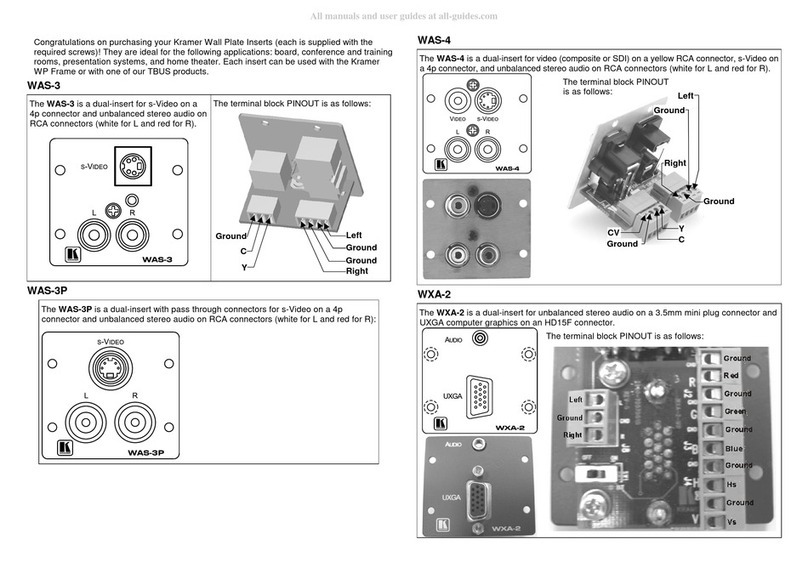

Kramer WAS-3 Manual de usuario

Kramer

Kramer VA-256 Manual de usuario

Kramer

Kramer DSP-1 Manual de usuario

Kramer

Kramer PS-1FW Manual de usuario

Kramer

Kramer FC-202NET Manual de usuario

Kramer

Kramer KT-2010 Manual de usuario

Kramer

Kramer SP-1G Manual de usuario

Kramer

Kramer DigiTOOLS 6809HD Manual de usuario

Kramer

Kramer VA-15XL Manual de usuario

Kramer

Kramer VS-21TS Manual de usuario

Kramer

Kramer 401DXL Manual de usuario

Kramer

Kramer SP-4D Manual de usuario

Kramer

Kramer VA-10 Manual de usuario

Kramer

Kramer DSP-1 Manual de usuario

Kramer

Kramer VS-12DPIR Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
