K-Bar Communication Bar

Congratulations on purchasing your Kramer K-Bar Communication Bar. K-Bar provides a 3 in 1 compact design,

including a camera, a speaker, and a microphone. Control K-Bar via the IR remote controller.

Get to know your K-Bar

Feature

Function

Camera

High quality Camera.

On/OFF Push Button

Press to toggle microphone on/off.

AUX OUT 3.5mm Mini Jack

Connect to an audio acceptor.

DEVICE USB-C 2.0 Port

Connect to a computer.

12V, 2A Input

Connect to the power adapter.

Mounting K-Bar

You can place your K-Bar on a surface, mount it on the wall or on top of the display (using the special TV mount,

purchased separately).

To attach K-Bar onto a wall:

1. Find the correct location on the wall.

2. In the desired location, Drill 3 holes (using a

6mm drill-bit).

3. Attach the wall bracket to the wall using the 3

supplied screws.

4. Attach the device bracket to the K-Bar using

smaller size screw.

•Ensure that the environment (e.g., dust, maximum ambient temperature, humidity & air flow)is compatible

for the device.

•Avoid exposing the product to direct sunlight or any other heat source.

•Keep away from children –product includes small accessories and components.

•Avoid uneven mechanical loading.

•Do not insert any sharp objects into the product.

•Avoid dropping or hitting the product to avoid damaging the product.

•For maintenance, call tech support.

Installation Instructions

5. Slide the fixed device bracket onto the wall

bracket.

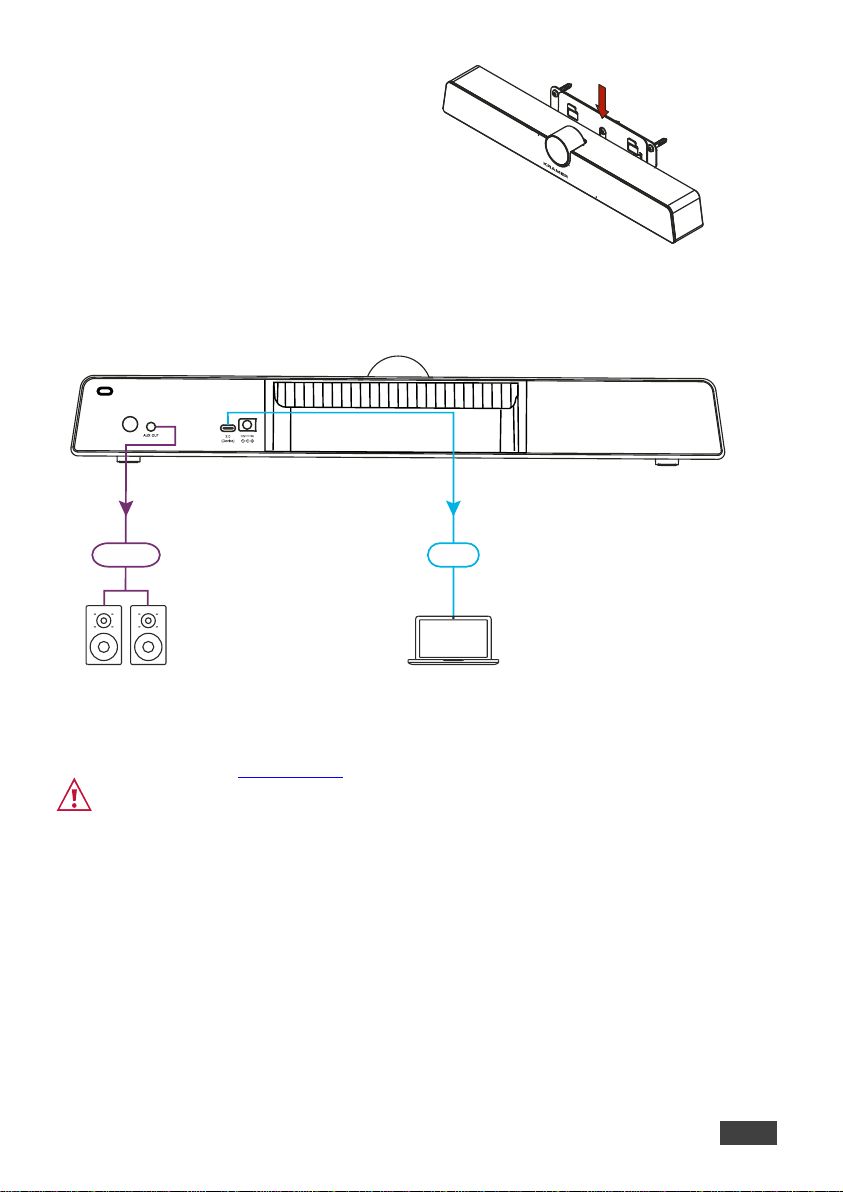

Connecting the K-Bar

Always switch OFF the power on each device before connecting it to your K-Bar.

Connect the power cord to the K-Bar and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which

located on the bottom of the unit.







K-Bar Communication Bar

Controlling K-Bar

You can operate K-Bar via the remote IR, or via your PC, as follows:

Feature

Function

Auto framing

Press to enable/disable auto-framing feature.

Mute Button

Press to turn Mic on or off.

Arrows Button

Press, after zooming, to move the camera

direction.

Button

Press to restore camera image to original

settings.

Start Call Button

Press to start a Microsoft Teams® call.

End Call Button

Press to end a Microsoft Teams® call.

Volume Button

Press to increase/decrease volume level.

Zoom Button

Press zoom camera in or out.

Presets Button

Press and hold a number (1 or 2) to save the

current view settings (including zoom level and

viewing angle information).

Available only when camera is on, and auto-

framing is disabled.

Technical Specifications

Ports

1 USB-C 2.0

On a USB-C connector

AUX OUT

On a 3.5mm mini jack

Camera

Pixel

12M

Max. Field of View (FOV)

120° (D)

Adjustable Angle (Manual)

±15° (Up/Down)

Focus Mode

Fixed focus

Focus Distance

Resolution and Frame Rate

H.264/MJPG: 3840x2160; 2560x1440; 1920x1080; 1280x720; 1024x576;

960x540; 800x600; 640x480; 640x360; 480x270; 352x288; 320x240

YUY2: 640x480; 640x360; 480x270; 352x288; 320x240

Output Format

MJPG/YUY2/H.264

Sound

Reinforcement

Sound Channel 1.0

Output Power 1x8W

Microphone

Quantity

Voice Pickup Distance

Up to 8 meters

Controls

Remote control

Power

Consumption

12V DC, 1A max.

Source

12V DC, 2A

Standby Power

≤0.5W

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-20° to +60°C (-4° to 140°F)

Humidity

10% to 90%, RHL non-condensing

Altitude

Below 5000 meters

Regulatory

Compliance

Safety

CE, FCC

Environmental

RoHs WEEE

Enclosure

Type

Aluminum and plastic

General

Net Dimensions (W, D, H)

46cm x 9.7cm x 7.3cm (18.1" x 3.8" x 2.9")

Shipping Dimensions (W, D, H)

53cm x 16.5cm x 15.7cm (20.8" x 6.5" x 6.2")

Net Weight

1.05kg (2.3lbs) approx.

Shipping Weight

2.3kg (5.1lbs) approx.

Accessories

Included

1 USB-C cable, remote control, power cord and adapter, lens cover, wall

bracket kit, screws set

Specifications are subject to change without notice at www.kramerav.com
